Results (826)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Design | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 |  | Manufacturers Part No. SPMH40A-3000(PSL40W) Speed Tray pin strip SPMHxxA Pin Box Header 2-row 90° 40 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 80 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Speed | Tray pin strip | Pin | Box Header | 2-row | 90° | 40 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Lever | Solder | 70.3 mm | 26.6 mm | 11.5 mm | 25.0 °C | 85.0 °C | 1.0 A | 1000.0 V DC | |||||||
27 | | Manufacturers Part No. SPMH50A-3000(PSL50W) Speed Tray pin strip SPMHxxA Pin Box Header 2-row 90° 50 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 80 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Speed | Tray pin strip | Pin | Box Header | 2-row | 90° | 50 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Lever | Solder | 83.0 mm | 26.6 mm | 11.5 mm | 25.0 °C | 85.0 °C | 1.0 A | 1000.0 V DC | |||||||
28 | | Manufacturers Part No. 093-2-014-0-F-BS0(LPH14RA) Binder MPE Tray pin strip 093-2 Pin Box Header 2-row 90° 14 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 6.270 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Tray pin strip | 093 | Pin | Box Header | 2-row | 90° | 14 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | yes | Solder | 15.24 mm | 9.0 mm | 14.02 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | ||||||
29 | | Manufacturers Part No. 093-1-006-0-F-BS0(LPH06S) Binder MPE Tray pin strip 093-1 Pin Box Header 2-row straight 6 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Tray pin strip | 093 | Pin | Box Header | 2-row | straight | 6 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | yes | Solder | 15.28 mm | 12.0 mm | 9.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | ||||||
30 | | Manufacturers Part No. 093-1-020-0-F-BS0(LPH20S) Binder MPE Tray pin strip 093-1 Pin Box Header 2-row straight 20 Pole Pitch2,54mm black vergoldet TOP | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Tray pin strip | 093 | Pin | Box Header | 2-row | straight | 20 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | yes | Solder | 33.06 mm | 12.0 mm | 9.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | ||||||
31 | | Manufacturers Part No. 3210-10SGOCBKOOA01(PSBZ10) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXS Pin Box Header 2-row straight 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 66.520 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 10 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 33.0 mm | 12.1 mm | 8.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | ||||||||
32 | | Manufacturers Part No. 3210-40SGOCBKOOA01(PSBZ40) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXS Pin Box Header 2-row straight 40 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 2.460 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 40 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 109.2 mm | 12.1 mm | 8.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | ||||||||
33 | | Manufacturers Part No. SPBH10A-3000(PSB10W) Speed Tray pin strip SPBHxxA Pin Box Header 2-row 90° 10 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 1.150 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Tray pin strip | Pin | Box Header | 2-row | 90° | 10 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | 19.6 mm | 9.1 mm | 10.9 mm | 1.0 A | 1000.0 V DC | ||||||||||
34 | | Manufacturers Part No. 3210-10RGOCBKOOA01(PSBZ10W) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXR Pin Box Header 2-row 90° 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | 90° | 10 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 33.0 mm | 13.86 mm | 11.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | ||||||||
35 | | Manufacturers Part No. SPBH34A-3000(PSB34W) Speed Tray pin strip SPBHxxA Pin Box Header 2-row 90° 34 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 110 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Speed | Tray pin strip | Pin | Box Header | 2-row | 90° | 34 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | 50.0 mm | 9.1 mm | 10.9 mm | 1.0 A | 1000.0 V DC | ||||||||||
36 | | Manufacturers Part No. 3210-20RGOCBKOOA01(PSBZ20W) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXR Pin Box Header 2-row 90° 20 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 5.650 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | 90° | 20 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 58.4 mm | 13.86 mm | 11.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | ||||||||
37 | | Manufacturers Part No. SPMH16S-3000(PSL16) Speed Tray pin strip SPMHxxS Pin Box Header 2-row straight 16 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 1.250 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Tray pin strip | Pin | Box Header | 2-row | straight | 16 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Lever | Solder | 39.8 mm | 29.5 mm | 8.6 mm | 25.0 °C | 85.0 °C | 1.0 A | 1000.0 V DC | |||||||

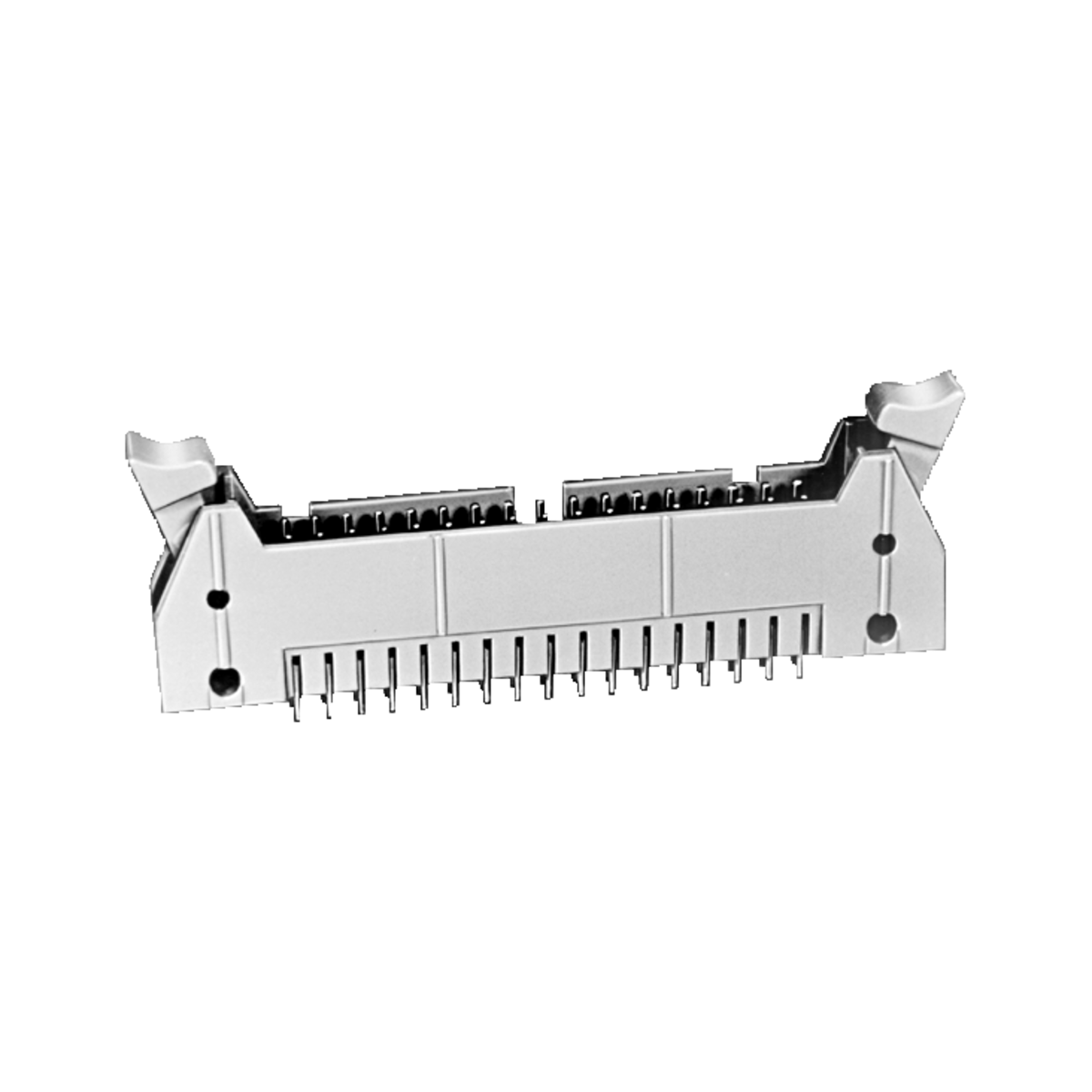

38 | | Manufacturers Part No. SPMH34S-3000(PSL34) Speed Tray pin strip SPMHxxS Pin Box Header 2-row straight 34 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 355 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Speed | Tray pin strip | Pin | Box Header | 2-row | straight | 34 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Lever | Solder | 62.6 mm | 29.5 mm | 8.6 mm | 25.0 °C | 85.0 °C | 1.0 A | 1000.0 V DC | |||||||

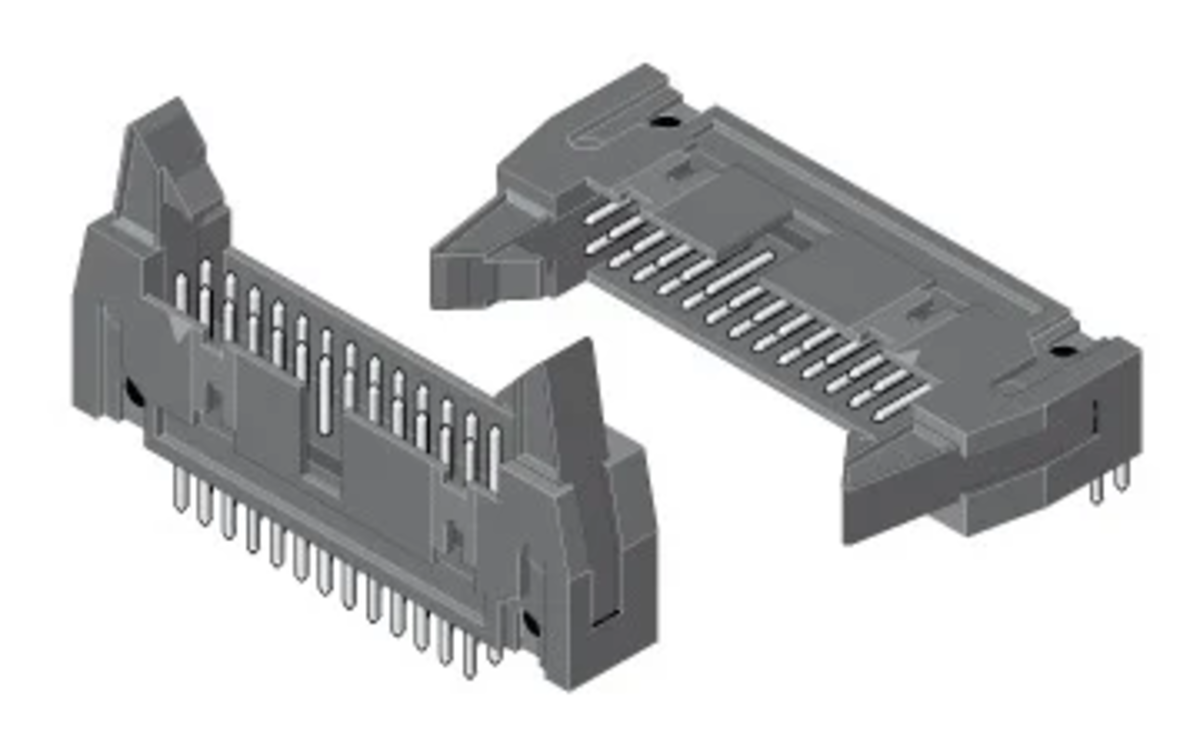

39 | | Manufacturers Part No. 092-2-010-0-F-KS0(SCL10) Binder MPE Tray pin strip 092-2 Pin Box Header 2-row straight 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 7.740 Pcs. Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Tray pin strip | 092 | Pin | Box Header | 2-row | straight | 10 | 2.54 mm | vergoldet | Thermoplast (TP) | black | yes | Latching lug | Solder | 32.2 mm | 30.8 mm | 8.3 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||
40 | | Manufacturers Part No. SPMH60S-3000(PSL60) Speed Tray pin strip SPMHxxS Pin Box Header 2-row straight 60 Pole Pitch2,54mm gray vergoldet | Customer Part No. Customer Project No. | 60 Pcs. Available (from stock) | (at least 5 or mul. of 5) | Speed | Tray pin strip | Pin | Box Header | 2-row | straight | 60 | 2.54 mm | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Lever | Solder | 94.7 mm | 29.5 mm | 8.6 mm | 25.0 °C | 85.0 °C | 1.0 A | 1000.0 V DC | |||||||
41 | | Manufacturers Part No. 3310-10SGOCBLA01(PSLZ10) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXS Pin Box Header 2-row straight 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 5.270 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 10 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 44.72 mm | 30.7 mm | 8.2 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
42 | | Manufacturers Part No. 092-2-026-0-F-KS0(SCL26) Binder MPE Tray pin strip 092-2 Pin Box Header 2-row straight 26 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 3.696 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Tray pin strip | 092 | Pin | Box Header | 2-row | straight | 26 | 2.54 mm | vergoldet | Thermoplast (TP) | black | yes | Latching lug | Solder | 52.52 mm | 30.8 mm | 8.3 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||
43 | | Manufacturers Part No. 3310-16SGOCBLA01(PSLZ16) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXS Pin Box Header 2-row straight 16 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 400 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 16 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 59.96 mm | 30.7 mm | 8.2 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
44 | | Manufacturers Part No. 3310-50SGOCBLA01(PSLZ50) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXS Pin Box Header 2-row straight 50 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 3 Weeks Available on order | (at least 5000 or mul. of 5000) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 50 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 146.32 mm | 30.7 mm | 8.2 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
45 | | Manufacturers Part No. 3310-10RGOCBLA01(PSLZ10W) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXR Pin Box Header 2-row 90° 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 4.300 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 12 or mul. of 12) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | 90° | 10 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 44.72 mm | 27.5 mm | 12.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
46 | | Manufacturers Part No. 093-1-040-0-F-BS0(LPH40S) Binder MPE Tray pin strip 093-1 Pin Box Header 2-row straight 40 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 600 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Tray pin strip | 093 | Pin | Box Header | 2-row | straight | 40 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | yes | Solder | 58.46 mm | 12.0 mm | 9.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | ||||||
47 | | Manufacturers Part No. 3310-16RGOCBLA01(PSLZ16W) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXR Pin Box Header 2-row 90° 16 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 5.000 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 5000 or mul. of 5000) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | 90° | 16 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 59.96 mm | 27.5 mm | 12.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
48 | | Manufacturers Part No. 3310-34RGOCBLA01(PSLZ34W) SHENZHEN JINLING ELECTRONICS Tray pin strip 3310XXR Pin Box Header 2-row 90° 34 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 690 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 7 or mul. of 7) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | 90° | 34 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Lever | Solder | 105.68 mm | 27.5 mm | 12.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | |||||||
49 | | Manufacturers Part No. 3210-14SGOCBKOOA01(PSBZ14) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXS Pin Box Header 2-row straight 14 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 4.080 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 14 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 43.16 mm | 12.1 mm | 8.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC | ||||||||
50 | | Manufacturers Part No. 3210-16SGOCBKOOA01(PSBZ16) SHENZHEN JINLING ELECTRONICS Tray pin strip 3210XXS Pin Box Header 2-row straight 16 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 6.990 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 10 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Tray pin strip | Pin | Box Header | 2-row | straight | 16 | 2.54 mm | vergoldet | Polyamide (PA) 6T | black | Solder | 48.24 mm | 12.1 mm | 8.9 mm | -40.0 °C | 105.0 °C | 3.0 A | 1000.0 V DC |
