| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Type | Contact Type | Locking Type | Housing | Alignment | Number of poles | Contact Surface Input | IP Protection Class Front Side | Standards | Housing material | Insulating body | Class of Inflammability | Connector Contact | IP Class Connection Side | Dimension: Length | Dimension: Width | Dimension: Height | Dimension: Depth | Conductor cross-section, max. | Rated current | Rated voltage AC | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

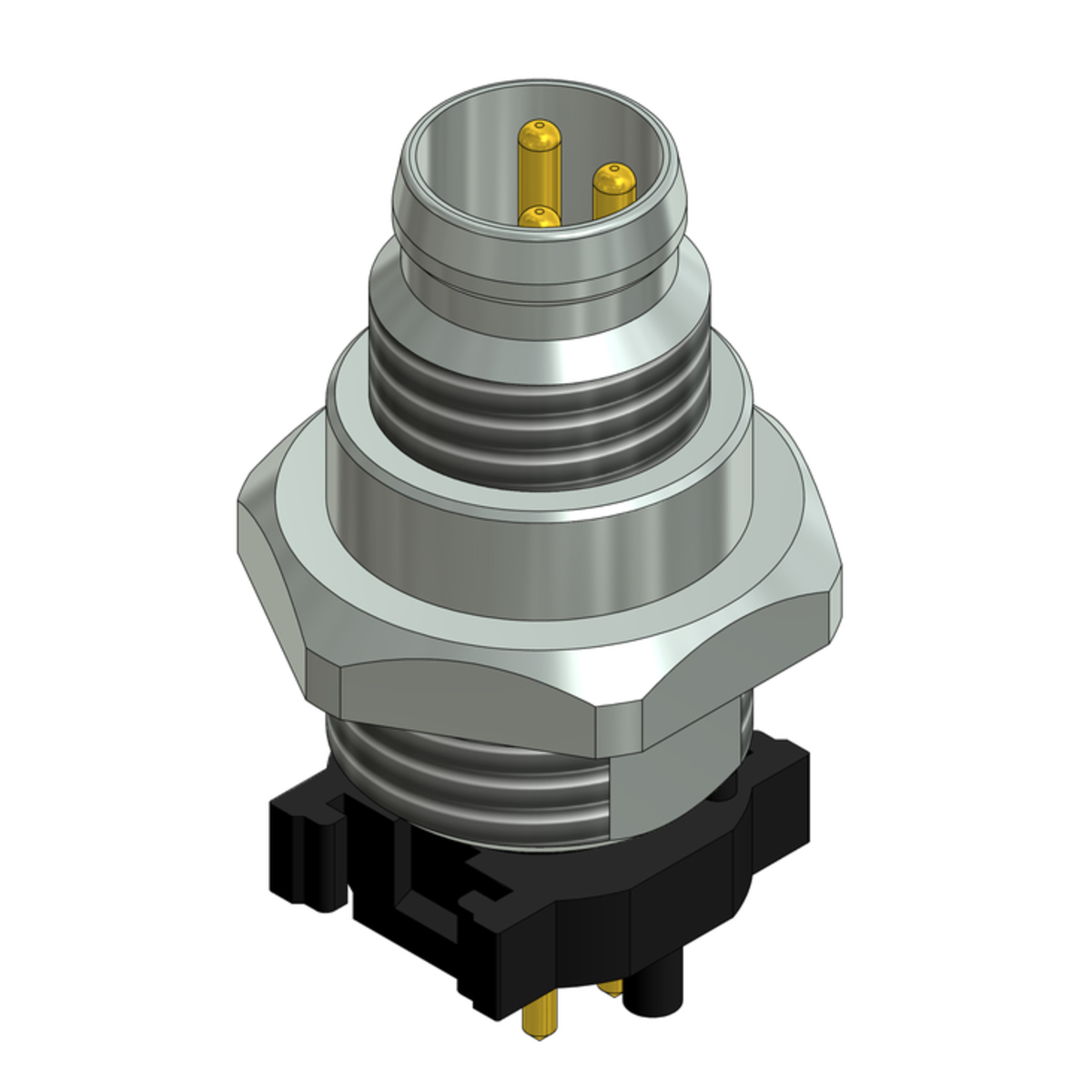

226 |  | Manufacturers Part No. 42-01301(SAL-8-FS3-X9/THR) Conec M8 plug connector SAL-8-FS3-X9/THR PCB M8 Bayonet round straight 3 Pole Solder unshielded | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Plug | M8 plug connector | Plug | Bayonet | round | straight | 3 | Nickel, vergoldet | IP67 | IEC 61076-2-104 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 24.15 mm | 4.0 A | 50.0 V AC | 60.0 V DC | |||||||||

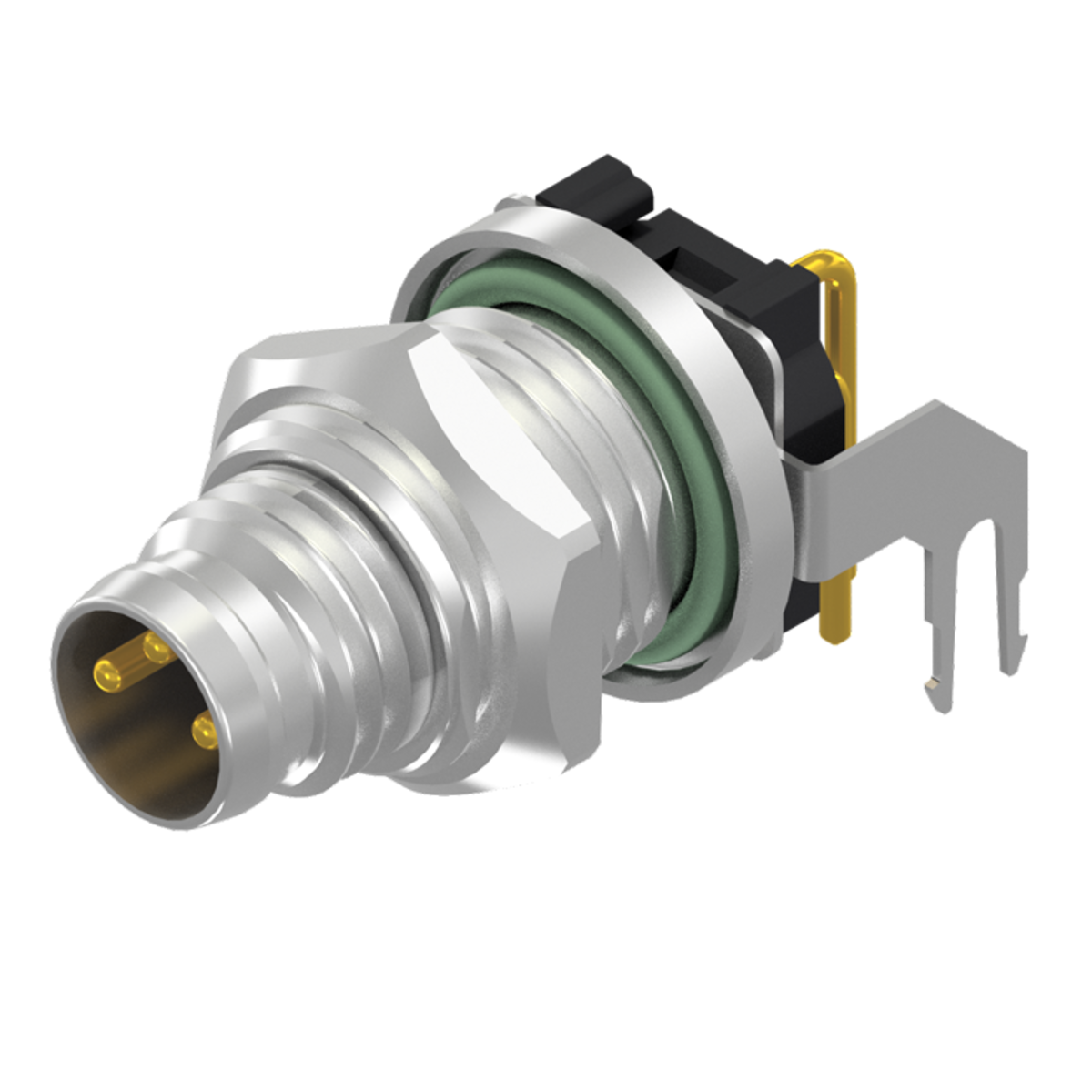

227 | | Manufacturers Part No. 42-01423(SAL-8S-FSHW3-X8) Conec M8 plug connector SAL-8S-FSHW3-X8 PCB M8 Screw round angled 3 Pole Solder shielded | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Plug | M8 plug connector | Plug | Screw | round | angled | 3 | Nickel, vergoldet | IP67 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 25.3 mm | 13.3 mm | 4.0 A | |||||||||||

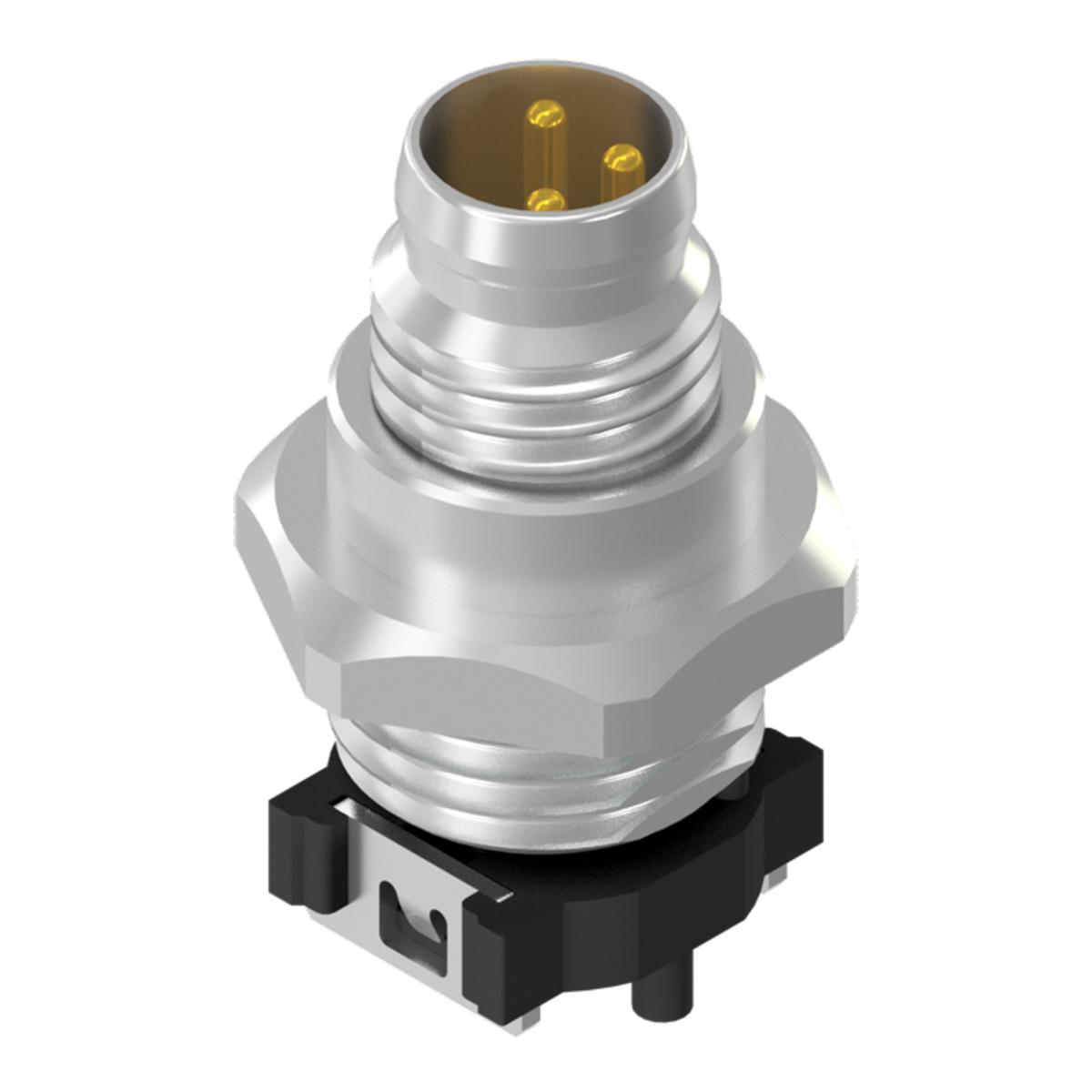

228 | | Manufacturers Part No. 42-01237(SAL-8-FS3-X9/SMT) Conec M8 plug connector SAL-8-FS3-X9/SMT PCB M8 Screw round straight 3 Pole Solder unshielded | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Plug | M8 plug connector | Plug | Screw | round | straight | 3 | Nickel, vergoldet | IP67 | IEC 61076-2-104 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 21.3 mm | 4.0 A | |||||||||||
229 | | Manufacturers Part No. 42-01419(SAL-8S-FKHW3-X8) Conec M8 plug connector SAL-8S-FKHW3-X8 PCB M8 Screw round angled 3 Pole Solder shielded | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Socket | M8 plug connector | Socket | Screw | round | angled | 3 | Nickel, vergoldet | IP67 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 21.0 mm | 14.3 mm | 4.0 A | |||||||||||

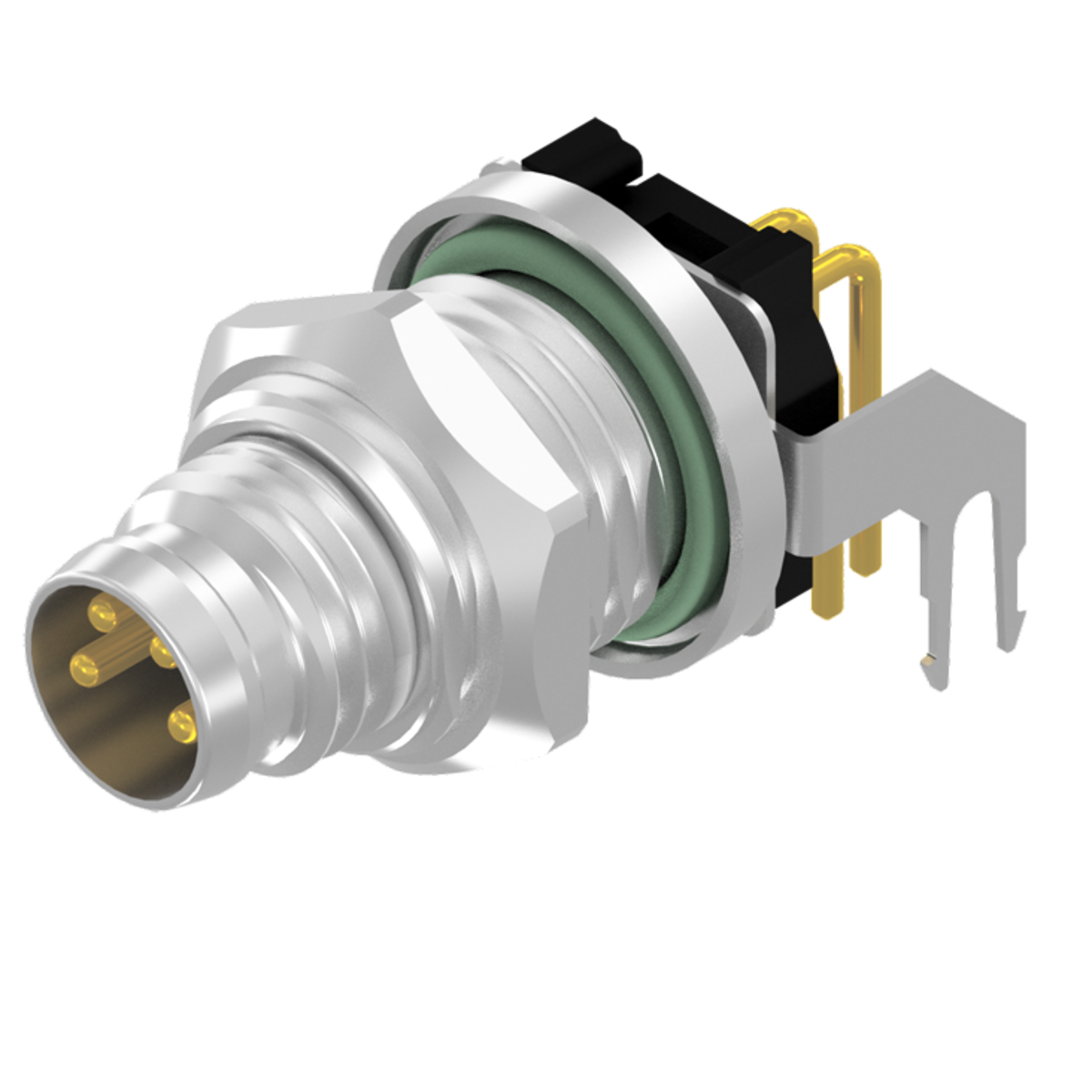

230 | | Manufacturers Part No. 42-01431(SAL-8S-FSHW4-X8) Conec M8 plug connector SAL-8S-FSHW4-X8 PCB M8 Screw round angled 4 Pole Solder shielded | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Plug | M8 plug connector | Plug | Screw | round | angled | 4 | Nickel, vergoldet | IP67 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 25.3 mm | 13.3 mm | 4.0 A | |||||||||||
231 | | Manufacturers Part No. 42-01245(SAL-8-FK4-X9/SMT) Conec M8 plug connector SAL-8-FK4-X9/SMT PCB M8 Screw round straight 4 Pole Solder unshielded | Customer Part No. Customer Project No. | 85 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Socket | M8 plug connector | Socket | Screw | round | straight | 4 | Nickel, vergoldet | IP67 | IEC 61076-2-104 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 17.0 mm | 4.0 A | 50.0 V AC | 60.0 V DC | |||||||||
232 | | Manufacturers Part No. 42-01317(SAL-8-FS4-X9/THR) Conec M8 plug connector SAL-8-FS4-X9/THR PCB M8 Bayonet round straight 4 Pole Solder unshielded | Customer Part No. Customer Project No. | 21 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Plug | M8 plug connector | Plug | Bayonet | round | straight | 4 | Nickel, vergoldet | IP67 | IEC 61076-2-104 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 24.15 mm | 4.0 A | 50.0 V AC | 60.0 V DC | |||||||||
233 | | Manufacturers Part No. 42-01229(SAL-8-FK3-X9/SMT) Conec M8 plug connector SAL-8-FK3-X9/SMT PCB M8 Screw round straight 3 Pole Solder unshielded | Customer Part No. Customer Project No. | 24 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Socket | M8 plug connector | Socket | Screw | round | straight | 3 | Nickel, vergoldet | IP67 | IEC 61076-2-104 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 17.0 mm | 4.0 A | |||||||||||

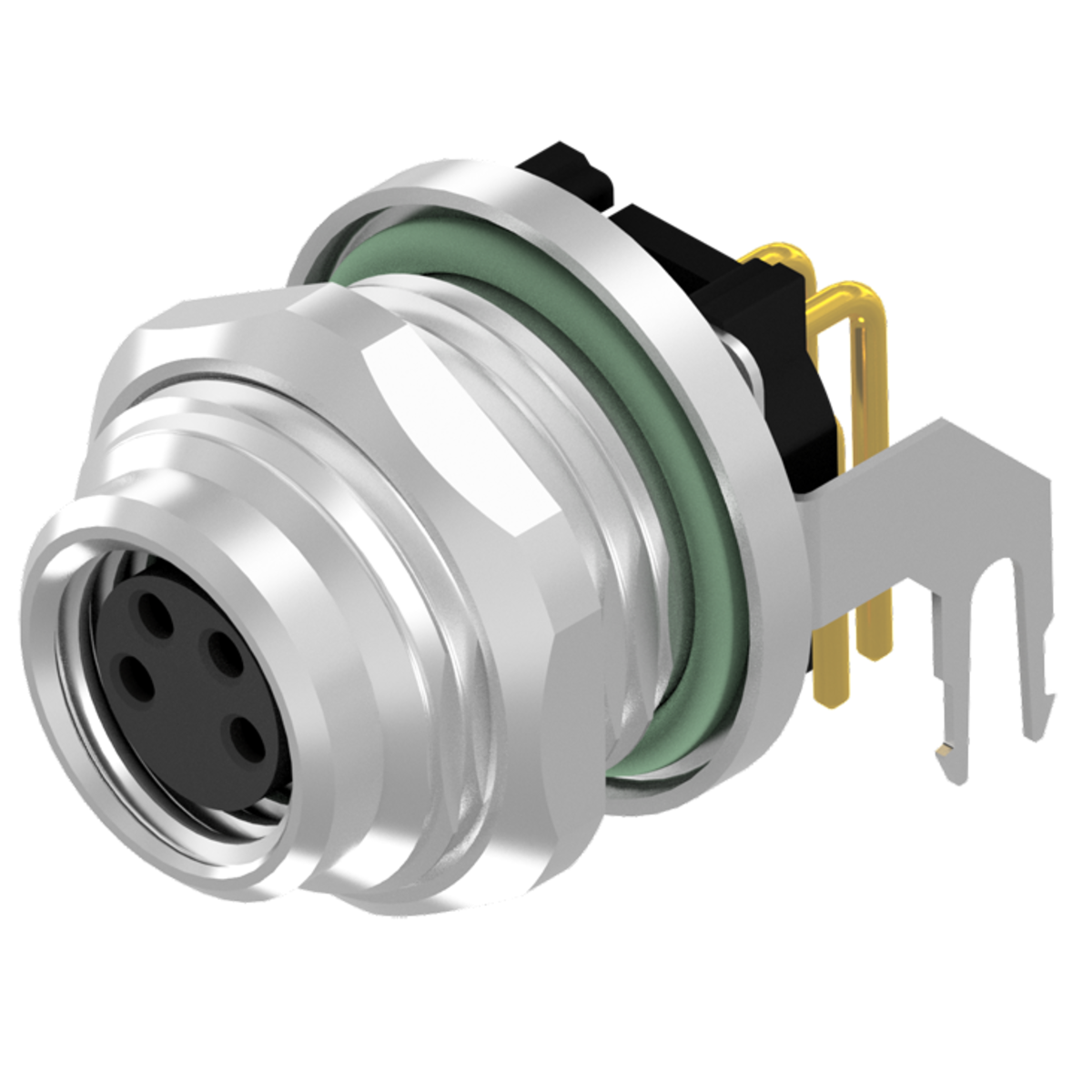

234 | | Manufacturers Part No. 42-01427(SAL-8S-FKHW4-X8) Conec M8 plug connector SAL-8S-FKHW4-X8 PCB M8 Screw round angled 4 Pole Solder shielded | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M8 plug connector | Socket | M8 plug connector | Socket | Screw | round | angled | 4 | Nickel, vergoldet | IP67 | Brass nickel-plated | Liquid Crystal Polymers (LCP) GF | UL 94 V-0 | Solder | IP67 | 21.0 mm | 12.7 mm | 4.0 A | |||||||||||

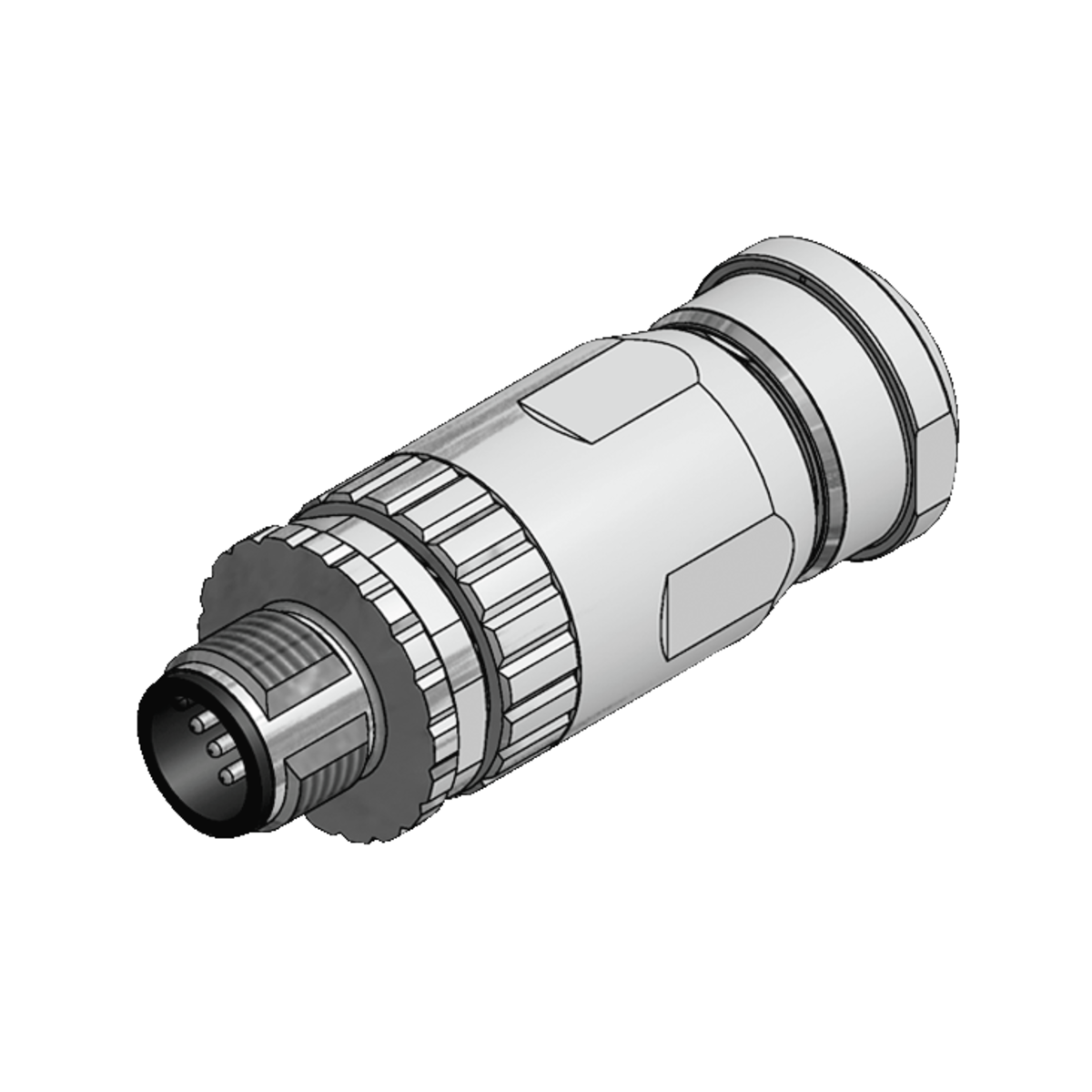

235 | | Manufacturers Part No. 43-00115(SAL-12S-RSC4-S-150) Conec M12 plug connector SAL M12x1 Cable M12 Screw round straight 4 Pole Screw shielded | Customer Part No. Customer Project No. | 45 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | Conec | M12 plug connector | Plug | M12 plug connector | Plug | Screw | round | straight | 4 | Nickel, vergoldet | IP67 | IEC 60512 IEC 60512-9a IEC 60529 IEC 60664-1 IEC 61076-2-101 | Zinc Die-Cast nickel-plated | Polyamide (PA) | UL 94 V-0 | Screw | IP67 | 57.0 mm | 1.5 mm² | 4.0 A | 250.0 V AC | |||||||||
236 | | Manufacturers Part No. A-CF96ABCT(CF96TG) Assmann WSW Female connector A-CF_ACT Box Header 3-row straight 96 Pole Pitch2,54mm Solder TOP | Customer Part No. Customer Project No. | 2.420 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 10 or mul. of 10) | Assmann WSW | Female connector | Socket | Female connector | Socket | 3-row | straight | 96 | Nickel, vergoldet | DIN 41612 | Polybutylenterephthalat (PBT) GF | UL 94 V-0 | Solder | 95.0 mm | 15.6 mm | 10.6 mm | 2.0 A | 125.0 V AC |
