Results (906)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Contact Type | Specifications | Locking Type | Housing | Alignment | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Housing material | Colour | Connector Contact | Connector Material | Connector Coating | Strain Relief | Conductor cross-section, min. | Conductor cross-section (AWG), min. | Conductor cross-section, max. | Conductor cross-section (AWG), max. | Rated current | Operating Temperature Min. | Operating Temperature Max. | Test voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
151 |  | Manufacturers Part No. 093-1-026-0-F-BS0(LPH26S) Binder MPE Box Header 093-1 Pin Box Header 2-row straight 26 Pole Pitch2,54mm black Copper alloy vergoldet | Customer Part No. Customer Project No. | 6.160 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Box Header | Pin | Box Header | 2-row | straight | 26 | 2.54 mm | Copper alloy | vergoldet | High Temperature Thermoplast (TP) | black | Solder | Copper alloy | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | ||||||||||||
152 | | Manufacturers Part No. 093-1-034-0-F-BS0(LPH34S) Binder MPE Box Header 093-1 Pin Box Header 2-row straight 34 Pole Pitch2,54mm black Copper alloy vergoldet | Customer Part No. Customer Project No. | 4.720 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Box Header | Pin | Box Header | 2-row | straight | 34 | 2.54 mm | Copper alloy | vergoldet | High Temperature Thermoplast (TP) | black | Solder | Copper alloy | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | ||||||||||||
153 | | Manufacturers Part No. 3210-26RGOCBKOOA01(PSBZ26W) SHENZHEN JINLING ELECTRONICS Box Header 3210XXR Pin Box Header 2-row 90° 26 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 1.330 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | 2-row | 90° | 26 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | ||||||||||||
154 | | Manufacturers Part No. SPMH14S-3000(PSL14) Speed Box Header SPMHxxS Pin Box Header 2-row straight 14 Pole Pitch2,54mm gray Copper alloy vergoldet | Customer Part No. Customer Project No. | 750 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Box Header | Pin | Box Header | Lever | 2-row | straight | 14 | 2.54 mm | Copper alloy | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | Copper alloy | Gold-plated | 1.0 A | 25.0 °C | 85.0 °C | |||||||||||
155 | | Manufacturers Part No. SPMH20S-3000(PSL20) Speed Box Header SPMHxxS Pin Box Header 2-row straight 20 Pole Pitch2,54mm gray Copper alloy vergoldet | Customer Part No. Customer Project No. | 1.190 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Box Header | Pin | Box Header | Lever | 2-row | straight | 20 | 2.54 mm | Copper alloy | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | Copper alloy | Gold-plated | 1.0 A | 25.0 °C | 85.0 °C | |||||||||||
156 | | Manufacturers Part No. 092-2-014-0-F-KS0(SCL14) Binder MPE Box Header 092-2 Pin Box Header 2-row straight 14 Pole Pitch2,54mm black Copper alloy vergoldet | Customer Part No. Customer Project No. | 1.045 Pcs. Available (from stock) | (at least 11 or mul. of 11) | Binder MPE | Box Header | Pin | Box Header | Latching lug | 2-row | straight | 14 | 2.54 mm | Copper alloy | vergoldet | Thermoplast (TP) | black | Solder | Copper alloy | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
157 | | Manufacturers Part No. 3310-26SGOCBLA01(PSLZ26) SHENZHEN JINLING ELECTRONICS Box Header 3310XXS Pin Box Header 2-row straight 26 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 4.991 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 7 or mul. of 7) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | Lever | 2-row | straight | 26 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
158 | | Manufacturers Part No. 3210-34RGOCBKOOA01(PSBZ34W) SHENZHEN JINLING ELECTRONICS Box Header 3210XXR Pin Box Header 2-row 90° 34 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 590 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | 2-row | 90° | 34 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | ||||||||||||
159 | | Manufacturers Part No. SPMH40S-3000(PSL40) Speed Box Header SPMHxxS Pin Box Header 2-row straight 40 Pole Pitch2,54mm gray Copper alloy vergoldet | Customer Part No. Customer Project No. | 270 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Box Header | Pin | Box Header | Lever | 2-row | straight | 40 | 2.54 mm | Copper alloy | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | Copper alloy | Gold-plated | 1.0 A | 25.0 °C | 85.0 °C | |||||||||||
160 | | Manufacturers Part No. 092-2-020-0-F-KS0(SCL20) Binder MPE Box Header 092-2 Pin Box Header 2-row straight 20 Pole Pitch2,54mm black Copper alloy vergoldet | Customer Part No. Customer Project No. | 2.184 Pcs. Planned Delivery Time Ø 22 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Box Header | Pin | Box Header | Latching lug | 2-row | straight | 20 | 2.54 mm | Copper alloy | vergoldet | Thermoplast (TP) | black | Solder | Copper alloy | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
161 | | Manufacturers Part No. 3310-34SGOCBLA01(PSLZ34) SHENZHEN JINLING ELECTRONICS Box Header 3310XXS Pin Box Header 2-row straight 34 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 784 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 7 or mul. of 7) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | Lever | 2-row | straight | 34 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
162 | | Manufacturers Part No. SPMH26S-3000(PSL26) Speed Box Header SPMHxxS Pin Box Header 2-row straight 26 Pole Pitch2,54mm gray Copper alloy vergoldet | Customer Part No. Customer Project No. | 1.025 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 5 or mul. of 5) | Speed | Box Header | Pin | Box Header | Lever | 2-row | straight | 26 | 2.54 mm | Copper alloy | vergoldet | Polybutylenterephthalat (PBT) 20% GF | gray | Solder | Copper alloy | Gold-plated | 1.0 A | 25.0 °C | 85.0 °C | |||||||||||
163 | | Manufacturers Part No. 3310-20SGOCBLA01(PSLZ20) SHENZHEN JINLING ELECTRONICS Box Header 3310XXS Pin Box Header 2-row straight 20 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 162 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 9 or mul. of 9) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | Lever | 2-row | straight | 20 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
164 | | Manufacturers Part No. 3310-40SGOCBLA01(PSLZ40) SHENZHEN JINLING ELECTRONICS Box Header 3310XXS Pin Box Header 2-row straight 40 Pole Pitch2,54mm black Brass Brass | Customer Part No. Customer Project No. | 4.340 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 10) | SHENZHEN JINLING ELECTRONICS | Box Header | Pin | Box Header | Lever | 2-row | straight | 40 | 2.54 mm | Brass | Brass | Polyamide (PA) 6T | black | Solder | Brass | Gold-plated | 3.0 A | -40.0 °C | 105.0 °C | |||||||||||
165 | | Manufacturers Part No. 369-1-010-0-NTX-KT0(BL215400-10) Binder MPE PCB connector 369-1 Spring Header 2-row straight 10 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 3.315 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 39 or mul. of 39) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 10 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
166 | | Manufacturers Part No. 369-1-004-0-NTX-KT0(BL215400-4) Binder MPE PCB connector 369-1 Spring Header 2-row straight 4 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 1.025 Pcs. Available (from stock) | (at least 41 or mul. of 41) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 4 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
167 | | Manufacturers Part No. 369-1-012-0-NTX-KT0(BL215400-12) Binder MPE PCB connector 369-1 Spring Header 2-row straight 12 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 1.320 Pcs. Available (from stock) | (at least 33 or mul. of 33) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 12 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
168 | | Manufacturers Part No. 369-1-014-0-NTX-KT0(BL215400-14) Binder MPE PCB connector 369-1 Spring Header 2-row straight 14 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 1.624 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 29 or mul. of 29) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 14 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
169 | | Manufacturers Part No. 369-1-016-0-NTX-KT0(BL215400-16) Binder MPE PCB connector 369-1 Spring Header 2-row straight 16 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 3.874 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 26 or mul. of 26) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 16 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
170 | | Manufacturers Part No. 369-1-006-0-NTX-KT0(BL215400-6) Binder MPE PCB connector 369-1 Spring Header 2-row straight 6 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 2.630 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 6 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
171 | | Manufacturers Part No. 369-1-008-0-NTX-KT0(BL215400-8) Binder MPE PCB connector 369-1 Spring Header 2-row straight 8 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 5.376 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 48 or mul. of 48) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 8 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Solder | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
172 | | Manufacturers Part No. 1-215079-2(AMP215079-12) TE Connectivity PCB connector 215079 Spring Header 2-row horizontal 12 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 4.000 Pcs. Planned Delivery Time Ø 35 Weeks Available (from stock) | (at least 100 or mul. of 100) | TE Connectivity | PCB connector | Spring | Header | 2-row | horizontal | 12 | 1.27 mm | Phosphor bronze | verzinnt | Polyester (PES) GF | red | Solder | Phosphor bronze | Tinned | no | 1.5 A | -40.0 °C | 105.0 °C | |||||||||||
173 | | Manufacturers Part No. 1-215079-0(AMP215079-10) TE Connectivity PCB connector 215079 Spring Header 2-row horizontal 10 Pole Pitch1,27mm red 230VDC TOP | Customer Part No. Customer Project No. | 2.900 Pcs. Available (from stock) | (at least 100 or mul. of 100) | TE Connectivity | PCB connector | Spring | Header | 2-row | horizontal | 10 | 1.27 mm | Phosphor bronze | verzinnt | Polyester (PES) GF | red | Solder | Phosphor bronze | Tinned | no | 1.5 A | -40.0 °C | 105.0 °C | |||||||||||

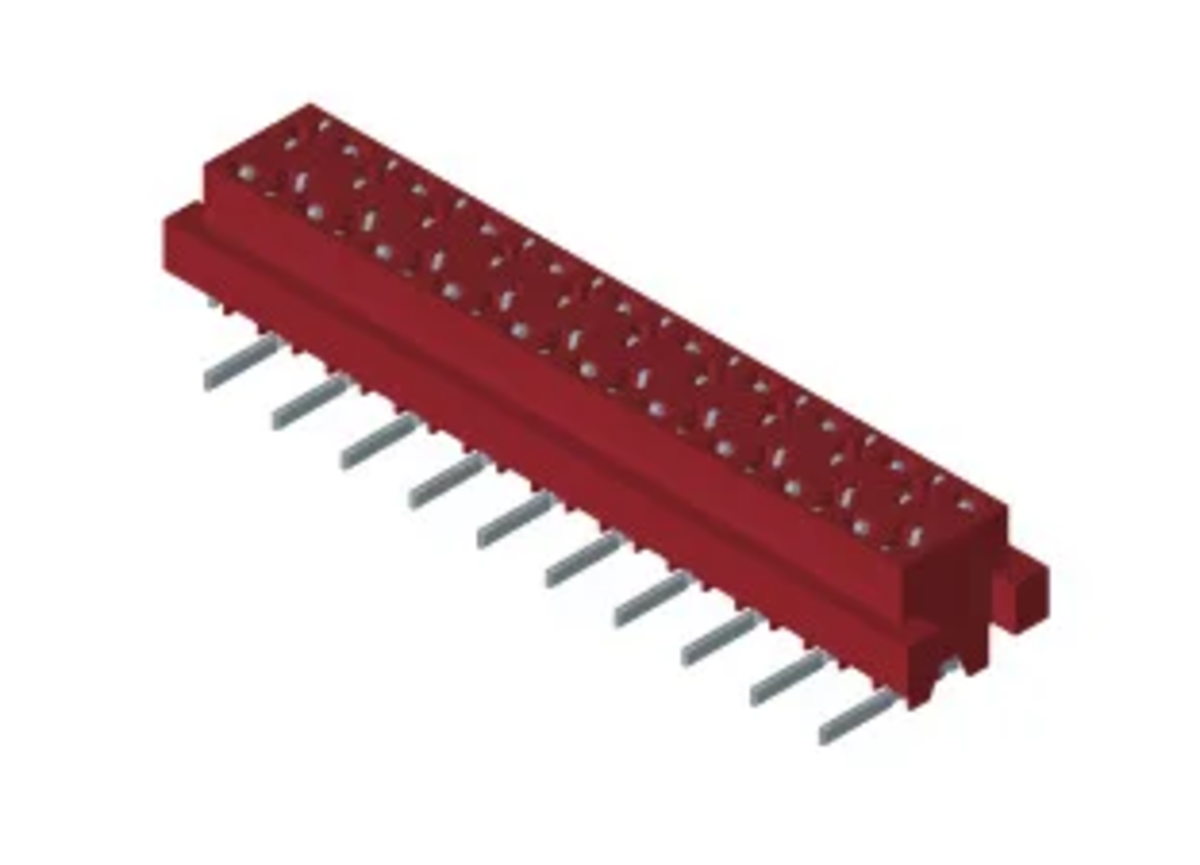

174 | | Manufacturers Part No. 374-1-012-0-NTX-KT0(BL215530-12) Binder MPE PCB connector 374-1 Spring Header 2-row straight 12 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 35 or mul. of 35) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 12 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Gull Wing SMD | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C | |||||||||||
175 | | Manufacturers Part No. 374-1-018-0-NTX-KT0(BL215530-18) Binder MPE PCB connector 374-1 Spring Header 2-row straight 18 Pole Pitch1,27mm red 230VDC | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 20 Weeks Available on order | (at least 5016 or mul. of 5016) | Binder MPE | PCB connector | Spring | Header | 2-row | straight | 18 | 1.27 mm | Phosphor bronze | verzinnt | High Temperature Thermoplast (TP) | red | Gull Wing SMD | Phosphor bronze | Tinned | no | 1.0 A | -40.0 °C | 105.0 °C |
