Results (841)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Product Family | Contact Type | Specifications | Housing | Alignment | Number of poles | Pitch | Contact Surface Input | Housing material | Colour | Coding | Locking Type | Connector Contact | Dimension: Width | Dimension: Height | Dimension: Depth | Operating Temperature Min. | Operating Temperature Max. | Rated current | Rated voltage DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
251 |  | Manufacturers Part No. 156-1-032-0-NFX-YS0(MBL132G) Binder MPE Socket connector 156-1 Socket Header 1-row straight 32 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 816 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 8 or mul. of 8) | Binder MPE | Socket connector | 156 | Socket | Header | 1-row | straight | 32 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 64.5 mm | 6.7 mm | 2.4 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||

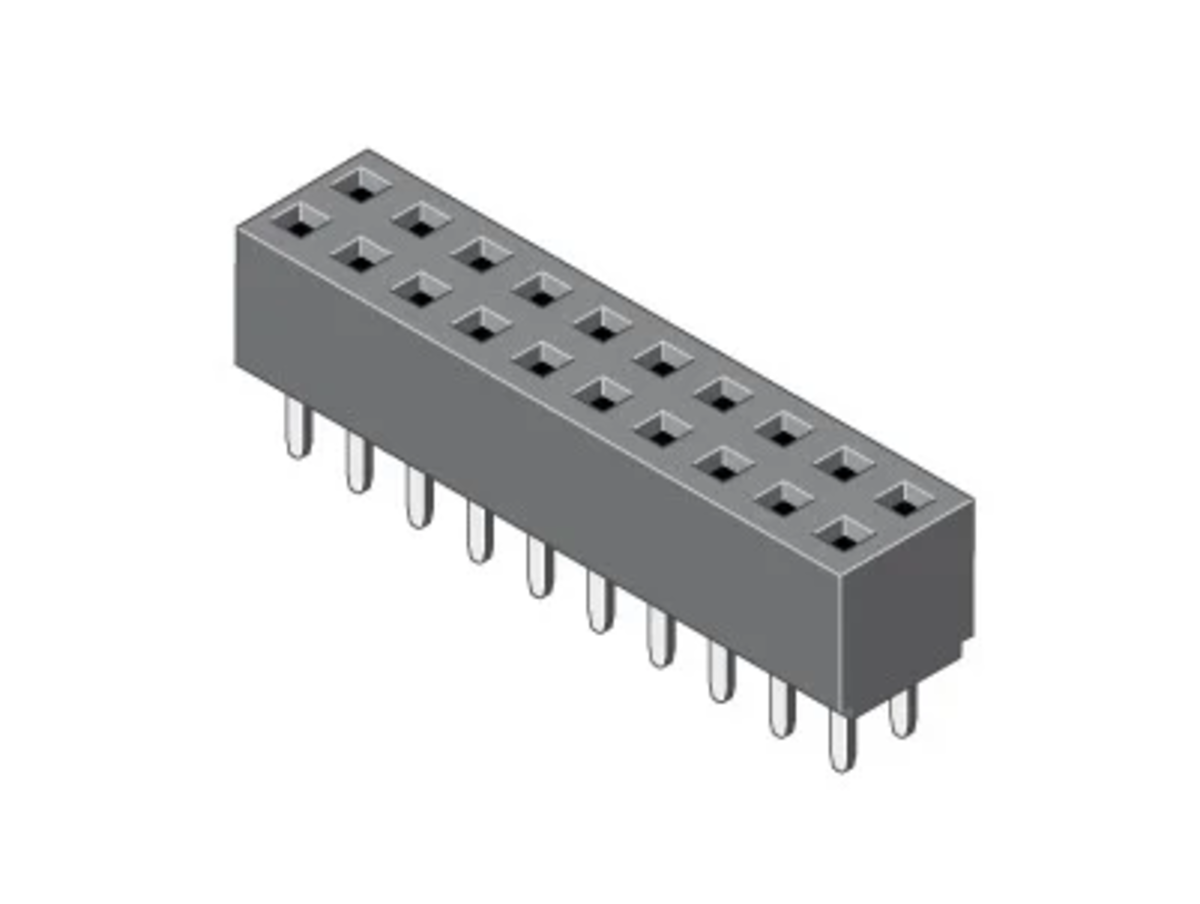

252 | | Manufacturers Part No. 156-3-010-0-NFX-YS0(MBL205G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 10 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 935 Pcs. Available (from stock) | (at least 11 or mul. of 11) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 10 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 10.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
253 | | Manufacturers Part No. 156-3-020-0-NFX-YS0(MBL210G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 20 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 1.456 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 20 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 20.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
254 | | Manufacturers Part No. 156-3-030-0-NFX-YS0(MBL215G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 30 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 513 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 19 or mul. of 19) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 30 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 30.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
255 | | Manufacturers Part No. 156-3-040-0-NFX-YS0(MBL220G) Binder MPE Socket connector 156-3 Socket Header 2-row straight 40 Pole Pitch2mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 156 | Socket | Header | 2-row | straight | 40 | 2.0 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 40.5 mm | 7.0 mm | 4.6 mm | -40.0 °C | 105.0 °C | 1.5 A | 150.0 V DC | ||||||
256 | | Manufacturers Part No. 904-1-005-0-NFX-XS0-0-0-0-0A78(BL5005G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 5 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 1.524 Pcs. Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 5 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 12.7 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||

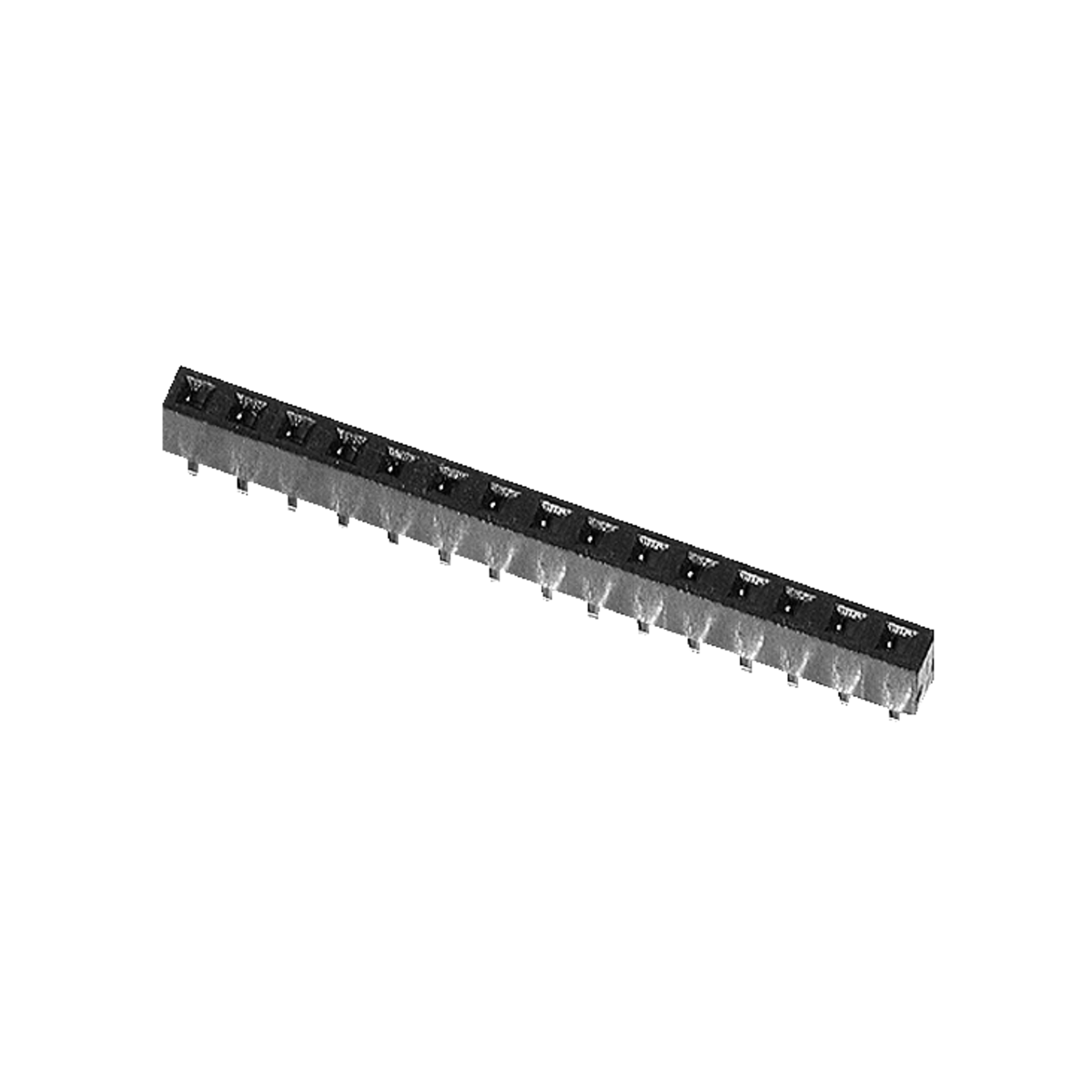

257 | | Manufacturers Part No. 904-1-010-0-NFX-XS0-0-0-0-0A10(BL5010G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 2.592 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 10 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 25.4 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
258 | | Manufacturers Part No. 904-1-015-0-NFX-XS0-0-0-0-0A11(BL5015G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 15 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 1.280 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 16 or mul. of 16) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 15 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 38.1 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
259 | | Manufacturers Part No. 904-1-020-0-NFX-XS0-0-0-0-0A79(BL5020G) Binder MPE Socket connector 904-1 Socket Header 1-row straight 20 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 780 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | straight | 20 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 50.8 mm | 8.0 mm | 2.54 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||

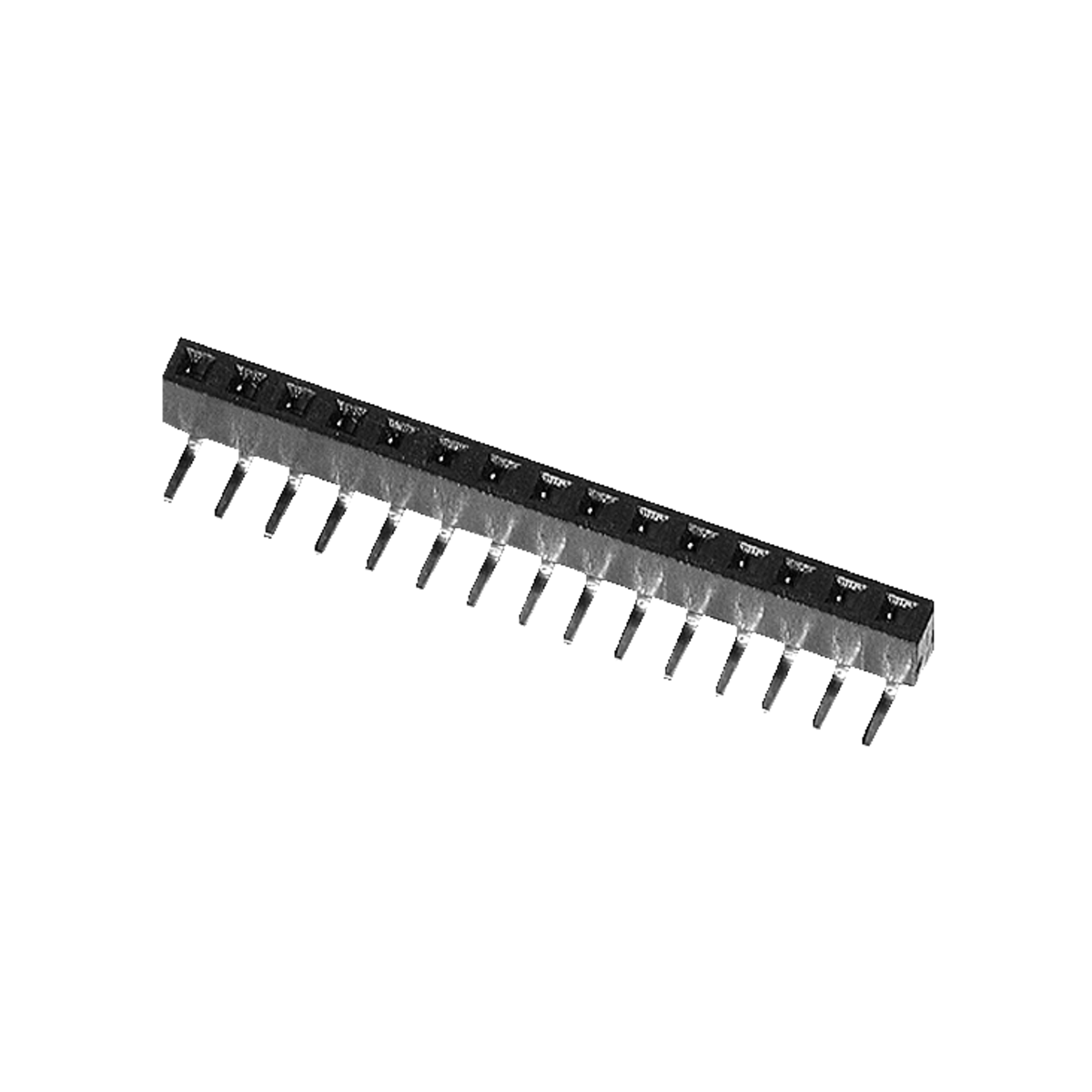

260 | | Manufacturers Part No. 904-1-005-0-NFX-XS0-0-0-0-0A06(BLW5005G) Binder MPE Socket connector 904-1 Socket Header 1-row 90° 5 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 3.220 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 8 or mul. of 8) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | 90° | 5 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 12.7 mm | 5.54 mm | 6.1 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
261 | | Manufacturers Part No. 904-1-010-0-NFX-XS0-0-0-0-0A07(BLW5010G) Binder MPE Socket connector 904-1 Socket Header 1-row 90° 10 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 936 Pcs. Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | 90° | 10 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 25.4 mm | 5.54 mm | 6.1 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
262 | | Manufacturers Part No. 904-1-015-0-NFX-XS0-0-0-0-0A08(BLW5015G) Binder MPE Socket connector 904-1 Socket Header 1-row 90° 15 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 1.780 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 15 or mul. of 15) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | 90° | 15 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 38.1 mm | 5.54 mm | 6.1 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
263 | | Manufacturers Part No. 904-1-020-0-NFX-XS0-0-0-0-0A09(BLW5020G) Binder MPE Socket connector 904-1 Socket Header 1-row 90° 20 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 990 Pcs. Planned Delivery Time Ø 27 Weeks Available (from stock) | (at least 11 or mul. of 11) | Binder MPE | Socket connector | 904 | Socket | Header | 1-row | 90° | 20 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | 50.8 mm | 5.54 mm | 6.1 mm | -40.0 °C | 105.0 °C | 3.0 A | 150.0 V DC | |||||||
264 | | Manufacturers Part No. 097-1-016-0-NFX-XTO(097-1-016-0-NFX) Binder MPE Socket connector 097-1 Socket Header 1-row straight 16 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 4.032 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | Socket connector | 097 | Socket | Header | 1-row | straight | 16 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 41.14 mm | 8.1 mm | 5.08 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
265 | | Manufacturers Part No. 097-1-040-0-NTX-XTO(097-1-040-0-NTX) Binder MPE Socket connector 097-1 Socket Header 1-row straight 40 Pole Pitch2,54mm black verzinnt | Customer Part No. Customer Project No. | 2.184 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 12 or mul. of 12) | Binder MPE | Socket connector | 097 | Socket | Header | 1-row | straight | 40 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 102.1 mm | 8.1 mm | 5.08 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
266 | | Manufacturers Part No. 097-5-004-0-NFX-XTO(097-5-004-0-NFX) Binder MPE Socket connector 097-5 Socket Header 2-row straight 4 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 20 Weeks Available on order | (at least 3024 or mul. of 3024) | Binder MPE | Socket connector | 097 | Socket | Header | 2-row | straight | 4 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 5.58 mm | 8.0 mm | 7.62 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
267 | | Manufacturers Part No. 097-5-006-0-NFX-XT0(097-5-006-0-NFX) Binder MPE Socket connector 097-5 Socket Header 2-row straight 6 Pole Pitch2,54mm black vergoldet | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 20 Weeks Available on order | (at least 5032 or mul. of 5032) | Binder MPE | Socket connector | 097 | Socket | Header | 2-row | straight | 6 | 2.54 mm | vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 8.12 mm | 8.0 mm | 7.62 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
268 | | Manufacturers Part No. 094-1-005-0-NTX-YS0(BL105Z) Binder MPE Socket connector 094-1 Socket Header 1-row straight 5 Pole Pitch2,54mm black verzinnt | Customer Part No. Customer Project No. | 13.500 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 5 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 13.1 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
269 | | Manufacturers Part No. 094-1-010-0-NTX-YS0(BL110Z) Binder MPE Socket connector 094-1 Socket Header 1-row straight 10 Pole Pitch2,54mm black verzinnt | Customer Part No. Customer Project No. | 2.650 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 10 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 25.8 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
270 | | Manufacturers Part No. 094-1-020-0-NTX-YS0(BL120Z) Binder MPE Socket connector 094-1 Socket Header 1-row straight 20 Pole Pitch2,54mm black verzinnt | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 20 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 51.2 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
271 | | Manufacturers Part No. 094-1-005-0-NSX-YS0(BL105TG) Binder MPE Socket connector 094-1 Socket Header 1-row straight 5 Pole Pitch2,54mm black selektiv vergoldet | Customer Part No. Customer Project No. | 9.500 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 5 | 2.54 mm | selektiv vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 13.1 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
272 | | Manufacturers Part No. 094-1-010-0-NSX-YS0(BL110TG) Binder MPE Socket connector 094-1 Socket Header 1-row straight 10 Pole Pitch2,54mm black selektiv vergoldet | Customer Part No. Customer Project No. | 3.990 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 10 | 2.54 mm | selektiv vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 25.8 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
273 | | Manufacturers Part No. 094-1-020-0-NSX-YS0(BL120TG) Binder MPE Socket connector 094-1 Socket Header 1-row straight 20 Pole Pitch2,54mm black selektiv vergoldet | Customer Part No. Customer Project No. | 2.180 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 1-row | straight | 20 | 2.54 mm | selektiv vergoldet | High Temperature Thermoplast (TP) | black | no | Solder | 51.2 mm | 11.7 mm | 2.5 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||

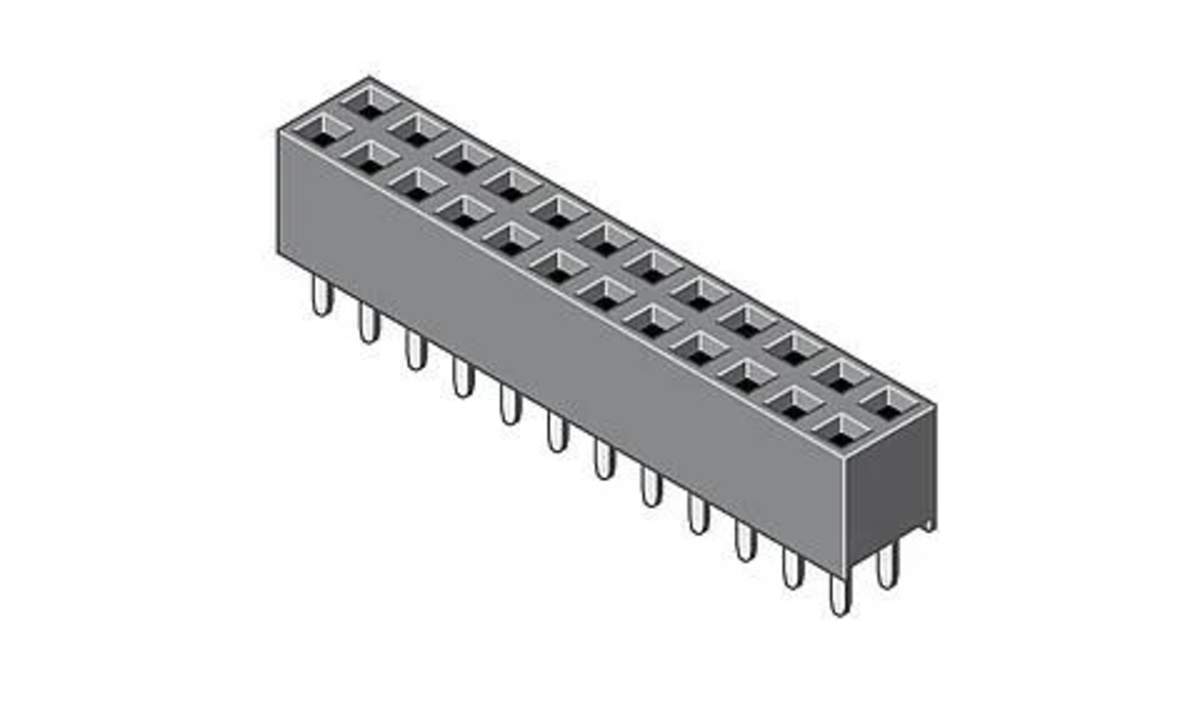

274 | | Manufacturers Part No. 094-2-010-0-NTX-YS0(BL205Z) Binder MPE Socket connector 094-2 Socket Header 2-row straight 10 Pole Pitch2,54mm black verzinnt | Customer Part No. Customer Project No. | 10.520 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 2-row | straight | 10 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 13.1 mm | 11.7 mm | 5.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC | ||||||
275 | | Manufacturers Part No. 094-2-020-0-NTX-YS0(BL210Z) Binder MPE Socket connector 094-2 Socket Header 2-row straight 20 Pole Pitch2,54mm black verzinnt % | Customer Part No. Customer Project No. | 2.820 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | Socket connector | 094 | Socket | Header | 2-row | straight | 20 | 2.54 mm | verzinnt | High Temperature Thermoplast (TP) | black | no | Solder | 25.8 mm | 11.7 mm | 5.0 mm | -40.0 °C | 105.0 °C | 3.0 A | 250.0 V DC |
