Results (73)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Housing | Number of poles | Pitch | Contact Material Input | Contact Surface Input | Insulating body | Class of Inflammability | Connector Contact | Connector Material | Connector Coating | Rated current | Rated voltage DC | Operating Temperature Min. | Operating Temperature Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 |  | Manufacturers Part No. 015-2-040-6-H5STF-LTO(015-2-040-6-H5STF) Binder MPE IC precision socket 015-2 2-row 40 Pole Pitch2,54mm SMD 15,24mm | Customer Part No. Customer Project No. | 210 Pcs. Available (from stock) | (at least 10 or mul. of 10) | Binder MPE | IC precision socket | 2-row | 40 | 2.54 mm | Beryllium copper | vergoldet | High Temperature Thermoplast (TP) | UL 94 V-0 | SMD | Copper alloy | Tinned | 3.0 A | 150.0 V DC | -55.0 °C | 125.0 °C | |||||
52 | | Manufacturers Part No. 015-2-022-4-H5STF-LT0(015-2-022-4-H5STF) Binder MPE IC precision socket 015-2 2-row 22 Pole Pitch2,54mm SMD 7,62mm | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 1620 or mul. of 1620) | Binder MPE | IC precision socket | 2-row | 22 | 2.54 mm | Beryllium copper | vergoldet | High Temperature Thermoplast (TP) | UL 94 V-0 | SMD | Copper alloy | Tinned | 3.0 A | 150.0 V DC | -55.0 °C | 125.0 °C | |||||
53 | | Manufacturers Part No. 015-1-016-3-H5STF-LTO(015-1-016-3-H5STF) Binder MPE IC precision socket 015-1 2-row 16 Pole Pitch2,54mm SMD
Gull Wing 7,62mm | Customer Part No. Customer Project No. | 2.400 Pcs. Planned Delivery Time Ø 24 Weeks Available (from stock) | (at least 25 or mul. of 25) | Binder MPE | IC precision socket | 2-row | 16 | 2.54 mm | Beryllium copper | vergoldet | High Temperature Thermoplast (TP) | UL 94 V-0 | Gull Wing SMD | Copper alloy | Tinned | 3.0 A | 150.0 V DC | -55.0 °C | 125.0 °C | |||||
54 | | Manufacturers Part No. 006-1-016-D-B1STF-XSO(006-1-016-D-B1STF) Binder MPE IC precision socket 006-1 1-row 16 Pole Pitch2,54mm Wire Wrap | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 24 Weeks Available on order | (at least 3600 or mul. of 3600) | Binder MPE | IC precision socket | 1-row | 16 | 2.54 mm | Beryllium copper | vergoldet | High Temperature Thermoplast (TP) | UL 94 V-0 | Wire Wrap | Copper alloy | Tinned | 3.0 A | 150.0 V DC | -55.0 °C | 125.0 °C | |||||
55 | | Customer Part No. Customer Project No. | 560 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 16 or mul. of 16) | Binder MPE | IC socket | 68 | 1.27 mm | Copper alloy | High Temperature Thermoplast (TP) | Copper alloy | 1.0 A | 100.0 V DC | -40.0 °C | 85.0 °C | |||||||||||
56 | | Customer Part No. Customer Project No. | 1.248 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 32 or mul. of 32) | Binder MPE | IC socket | 20 | 1.27 mm | Copper alloy | High Temperature Thermoplast (TP) | Copper alloy | 1.0 A | 100.0 V DC | -40.0 °C | 85.0 °C | |||||||||||
57 | | Customer Part No. Customer Project No. | 2.632 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 14 or mul. of 14) | Binder MPE | IC socket | 84 | 1.27 mm | Copper alloy | High Temperature Thermoplast (TP) | Copper alloy | 1.0 A | 100.0 V DC | -40.0 °C | 85.0 °C | |||||||||||
58 | | Customer Part No. Customer Project No. | 2.417 Pcs. Planned Delivery Time Ø 26 Weeks Available (from stock) | (at least 21 or mul. of 21) | Binder MPE | IC socket | 44 | 1.27 mm | Copper alloy | High Temperature Thermoplast (TP) | Copper alloy | 1.0 A | 100.0 V DC | -40.0 °C | 85.0 °C | |||||||||||
59 | | Manufacturers Part No. B1_KONTAKT STG-B (FLASH)U(SIL01PZF) Binder MPE IC precision socket B1 1 Pole Solder | Customer Part No. Customer Project No. | 50.900 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Binder MPE | IC precision socket | 1 | Beryllium copper | vergoldet | Solder | Beryllium copper | Gold-plated | |||||||||||||
60 | | Manufacturers Part No. M3_KONTAKT S GOLD 37-4U(SIL01STF) Binder MPE IC precision socket M3 1 Pole Solder | Customer Part No. Customer Project No. | 13.300 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Binder MPE | IC precision socket | 1 | Tin-plated; Nickel-plated | Brass | Solder | Brass | Gold-plated | |||||||||||||
61 | | Manufacturers Part No. A 08-LC-TT(DIL08EMF) Assmann WSW IC socket A xx-LC-TT 2-row 8 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 15.240 Pcs. Available (from stock) | (at least 60 or mul. of 60) | Assmann WSW | IC socket | 2-row | 8 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||

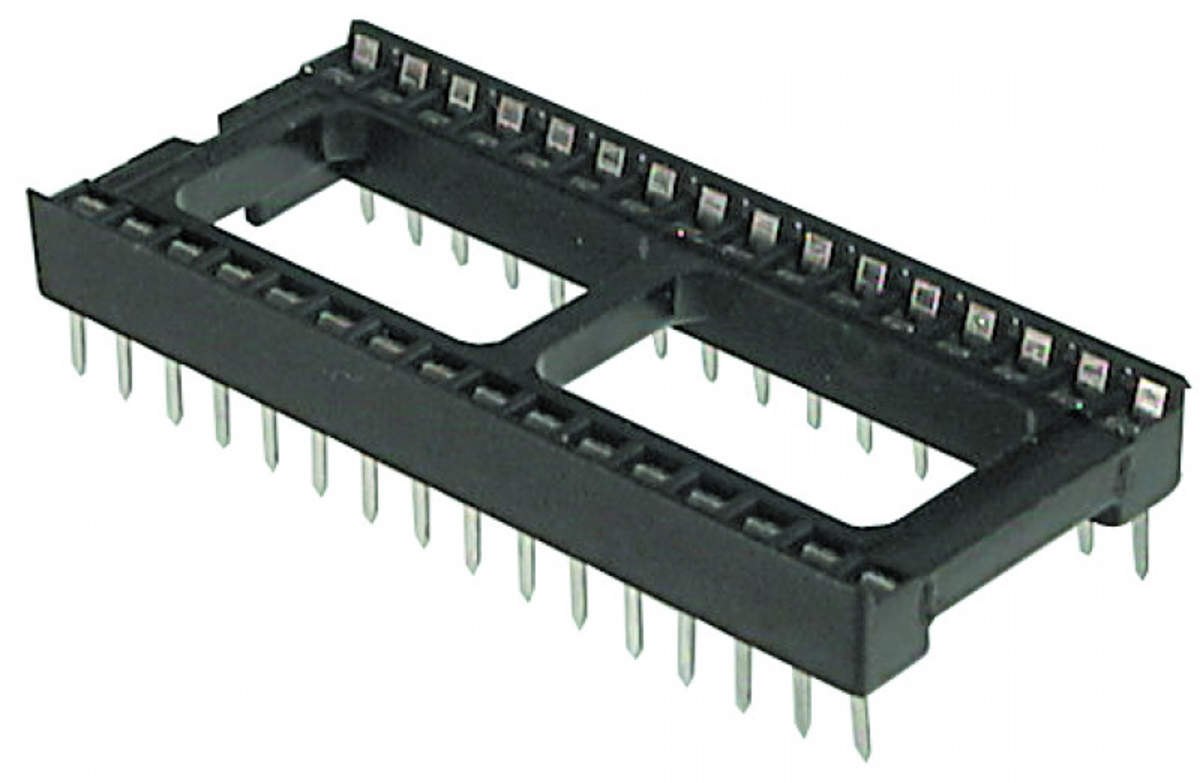

62 | | Manufacturers Part No. A 24-LC/7-T(DIL24EMFS) Assmann WSW IC socket A xx-LC/7-T 2-row 24 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 1.740 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 20 or mul. of 20) | Assmann WSW | IC socket | 2-row | 24 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
63 | | Manufacturers Part No. A 16-LC-TT(DIL16EMF) Assmann WSW IC socket A xx-LC-TT 2-row 16 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 5.250 Pcs. Available (from stock) | (at least 30 or mul. of 30) | Assmann WSW | IC socket | 2-row | 16 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
64 | | Manufacturers Part No. A 24-LC-TT(DIL24EMF) Assmann WSW IC socket A xx-LC-TT 2-row 24 Pole Pitch2,54mm Solder 15,24mm | Customer Part No. Customer Project No. | 1.680 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 20 or mul. of 20) | Assmann WSW | IC socket | 2-row | 24 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
65 | | Manufacturers Part No. A 06-LC-TT(DIL06EMF) Assmann WSW IC socket A xx-LC-TT 2-row 6 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 1.600 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 80 or mul. of 80) | Assmann WSW | IC socket | 2-row | 6 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
66 | | Manufacturers Part No. A 18-LC-TT(DIL18EMF) Assmann WSW IC socket A xx-LC-TT 2-row 18 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 754 Pcs. Available (from stock) | (at least 26 or mul. of 26) | Assmann WSW | IC socket | 2-row | 18 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
67 | | Manufacturers Part No. A 40-LC-TT(DIL40EMF) Assmann WSW IC socket A xx-LC-TT 2-row 40 Pole Pitch2,54mm Solder 15,24mm | Customer Part No. Customer Project No. | 900 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 12 or mul. of 12) | Assmann WSW | IC socket | 2-row | 40 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
68 | | Manufacturers Part No. A 20-LC-TT(DIL20EMF) Assmann WSW IC socket A xx-LC-TT 2-row 20 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 3.408 Pcs. Available (from stock) | (at least 24 or mul. of 24) | Assmann WSW | IC socket | 2-row | 20 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
69 | | Manufacturers Part No. A 14-LC-TT(DIL14EMF) Assmann WSW IC socket A xx-LC-TT 2-row 14 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 34 or mul. of 34) | Assmann WSW | IC socket | 2-row | 14 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
70 | | Manufacturers Part No. A 28-LC-TT(DIL28EMF) Assmann WSW IC socket A xx-LC-TT 2-row 28 Pole Pitch2,54mm Solder 15,24mm | Customer Part No. Customer Project No. | 2.822 Pcs. Available (from stock) | (at least 17 or mul. of 17) | Assmann WSW | IC socket | 2-row | 28 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
71 | | Manufacturers Part No. A 32-LC-TT(DIL32EMF) Assmann WSW IC socket A xx-LC-TT 2-row 32 Pole Pitch2,54mm Solder 15,24mm | Customer Part No. Customer Project No. | 840 Pcs. Available (from stock) | (at least 15 or mul. of 15) | Assmann WSW | IC socket | 2-row | 32 | 2.54 mm | Phosphor bronze | verzinnt | Polybutylenterephthalat (PBT) 4830 | UL 94 V-0 | Solder | Phosphor bronze | Tinned | 1.0 A | -55.0 °C | 85.0 °C | ||||||
72 | EOL 06.06.2023 | Manufacturers Part No. 004-1-014-3-D1STF-XTO(004-1-014-3-D1STF) Binder MPE IC precision socket 004-1 2-row 14 Pole Pitch2,54mm Solder 7,62mm | Customer Part No. Customer Project No. | 1.160 Pcs. Article discontinued | (at least 29 or mul. of 29) | Binder MPE | IC precision socket | 2-row | 14 | 2.54 mm | Beryllium copper | vergoldet | High Temperature Thermoplast (TP) | UL 94 V-0 | Solder | Copper alloy | Tinned | 3.0 A | 150.0 V DC | -55.0 °C | 125.0 °C | |||||
73 | EOL 19.01.2026 | Manufacturers Part No. 082-1-032-0-XT0(PLCC32SMD-TH) Binder MPE IC socket 082-1 32 Pole Pitch1,27mm SMD
Gull Wing | Customer Part No. Customer Project No. | 2.016 Pcs. Discontinued by manufacturer without replacement | (at least 24 or mul. of 24) | Binder MPE | IC socket | 32 | 1.27 mm | Copper alloy | High Temperature Thermoplast (TP) | UL 94 V-0 | Gull Wing SMD | Copper alloy | 1.0 A | 100.0 V DC | -40.0 °C | 85.0 °C |
