55-00449

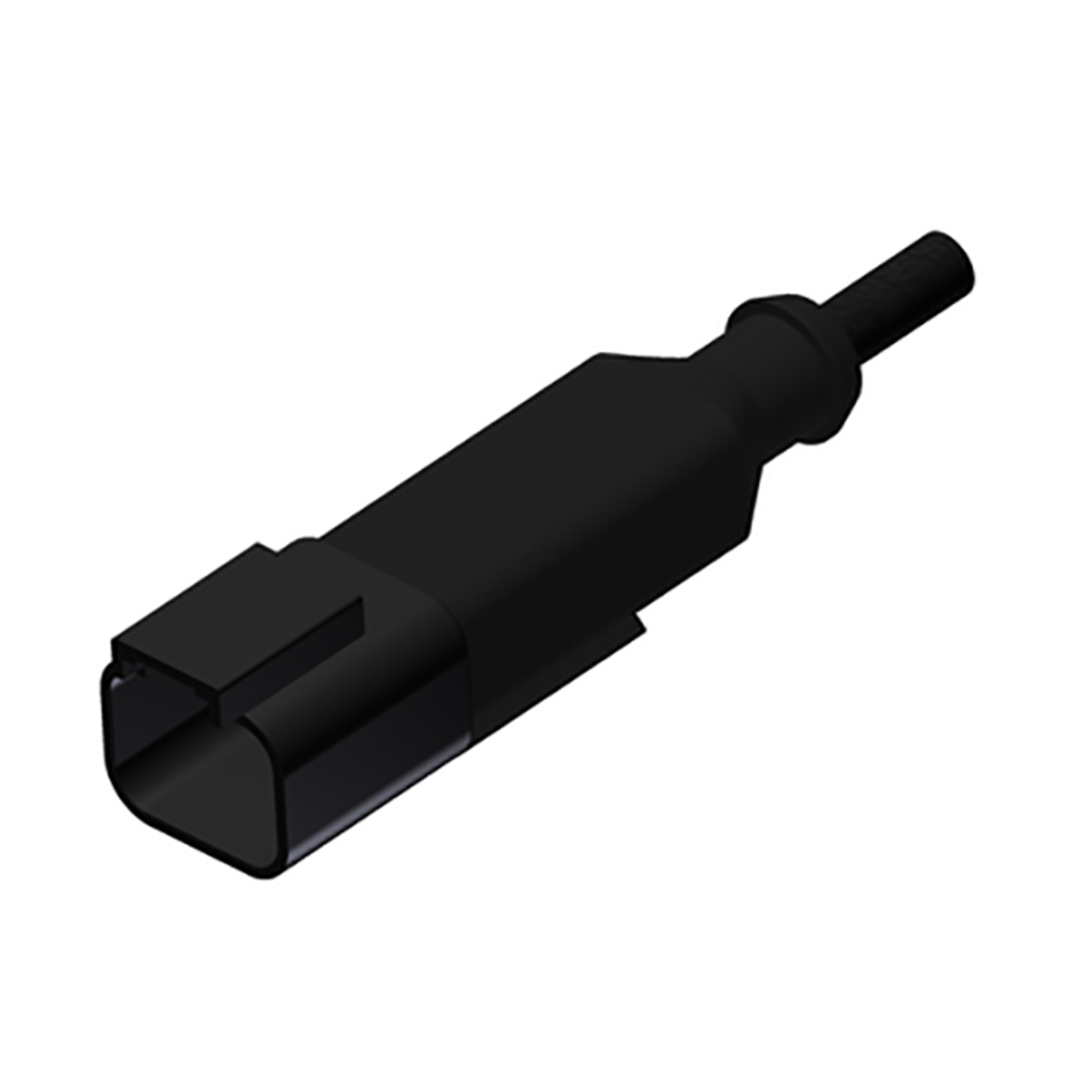

Conec Plug housing DT 04 2 Pole vernickelt black 0,75mm² 8A 60VAC 62mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Plug housing
- Series
- DT 04
- Colour
- black
- Housing material
- Deutsch DT04-2P-E004
- Number of poles
- 2
- Rated voltage AC
- 60 V AC
- Rated current
- 8 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 62 mm
- Conductor cross-section, min.
- 0.75 mm²
Technical Features
- Rated current
- 8 A
- Rated voltage AC
- 60 V AC
Mechanical Features
- Durability
- 100
- Housing material
- Deutsch DT04-2P-E004
- Contact Surface Input
- vernickelt
