43-00106

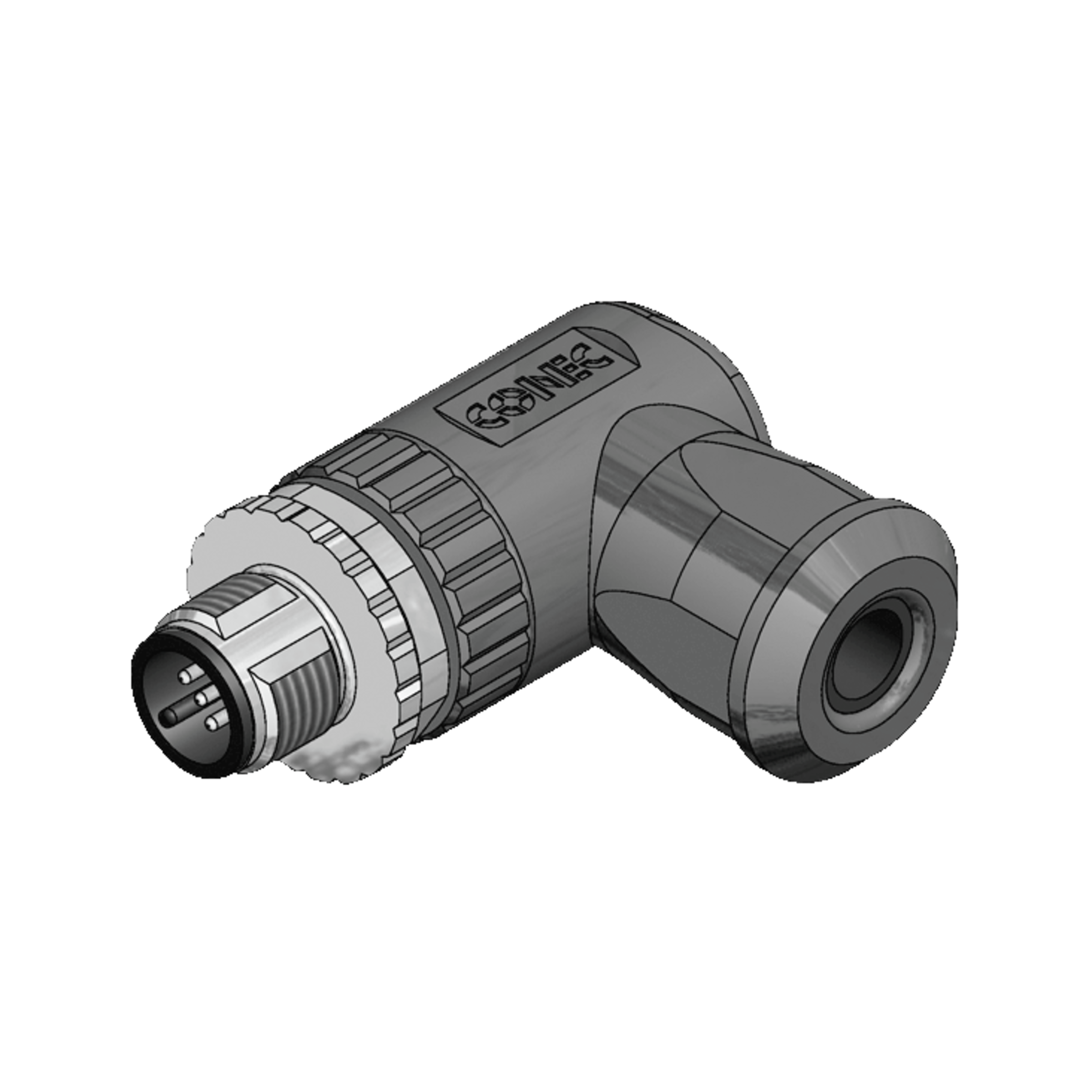

Conec SAL M12x1 5pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
80 Pcs.
80 Pcs.
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 80 or multiple of 80)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- SAL M12x1
- Labeling or description
- SAL M12x1
- Number of poles
- 5
- Dimension: Length
- 46 mm
- Rated current
- 7.5 A
- Dimension: Height
- 38.5 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

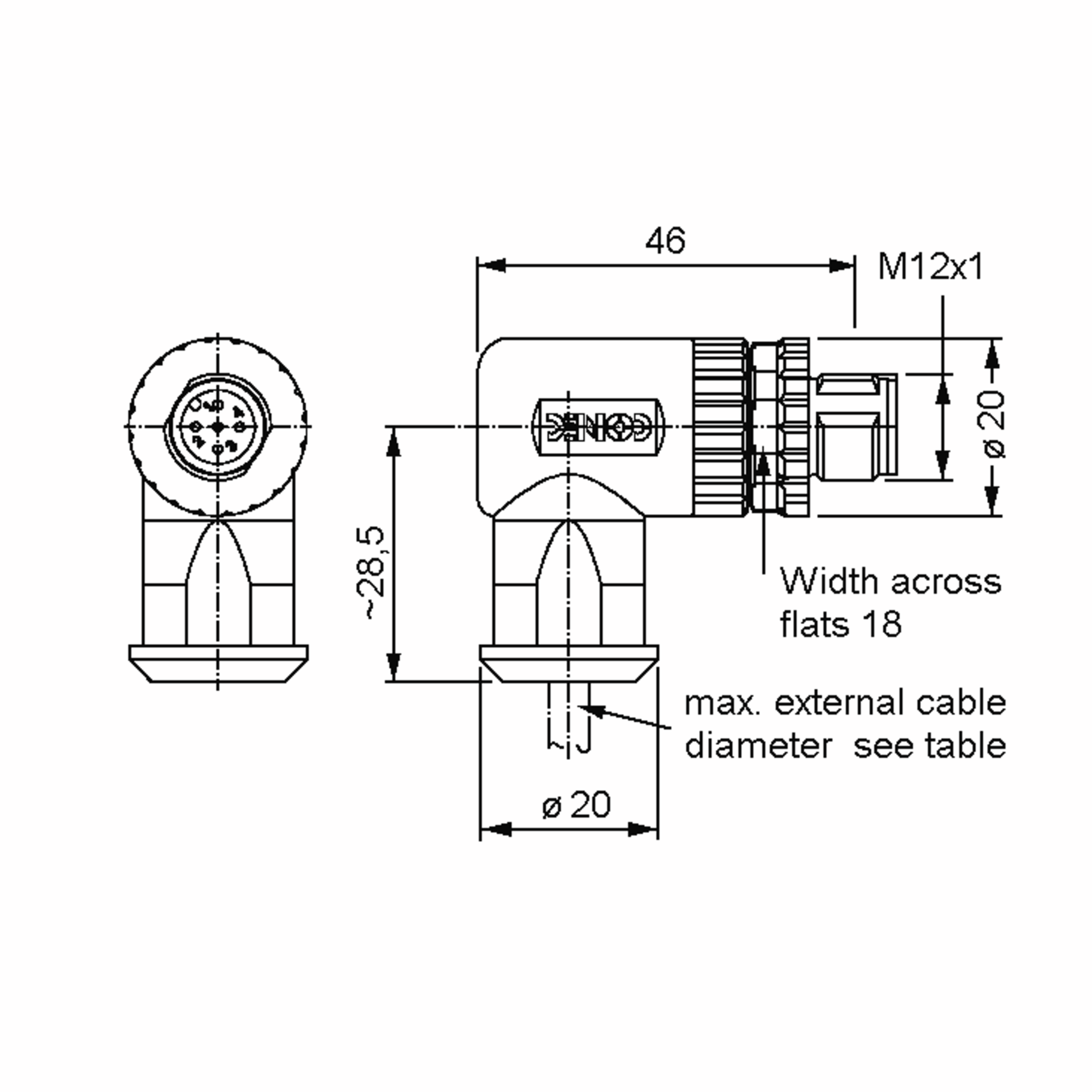

Dimensions and weights
- Dimension: Length
- 46 mm
- Dimension: Height
- 38.5 mm
- Diameter
- 20 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 8 mm
- Conductor cross-section, max.
- 0.75 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 7.5 A
- Insulation resistance
- 100 mOhm
Mechanical features
- Durability
- 100
- Kontaktbeschichtung Eingang
- Nickel vergoldet
- Gasket
- Elastomers
