43-00100

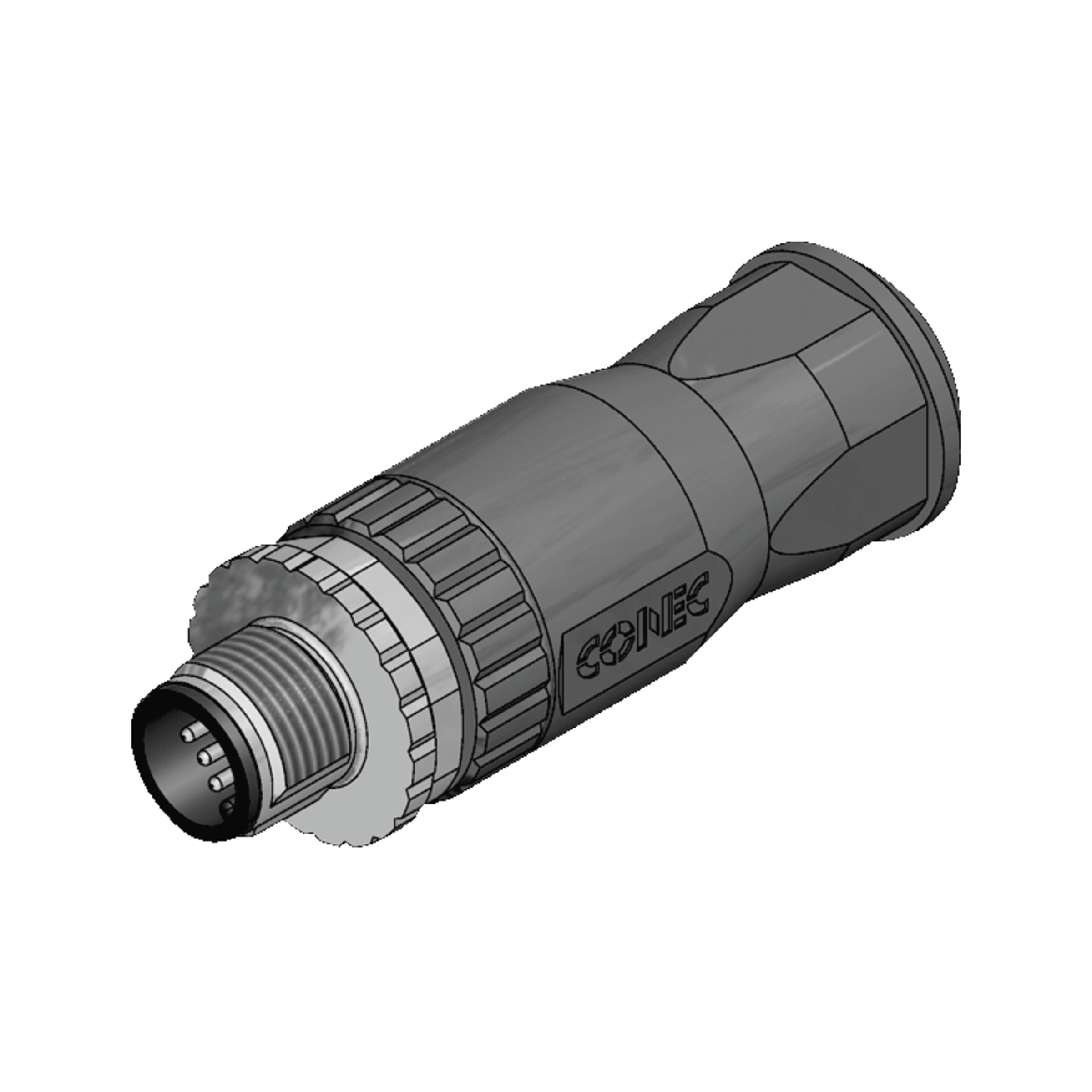

Conec M12 plug connector SAL M12x1 Cable M12 Screw round straight 4 Pole Screw unshielded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
103 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- M12 plug connector
- Connector Contact
- Screw
- Series
- SAL M12x1
- Colour
- black
- Housing material
- Polyamide (PA) 6 GF
- Housing
- round
- Design
- Cable
- Insulating body
- Polyamide (PA)
- Cable diameter, max.
- 8 mm
- Number of poles
- 4
- Standards
- IEC 60512
IEC 60512-9a
IEC 60529
IEC 60664-1
IEC 61076-2-101 - Contact Type
- M12
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- IP Protection Class Front Side
- IP67
- Locking Type
- Screw
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 7.5 A
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all

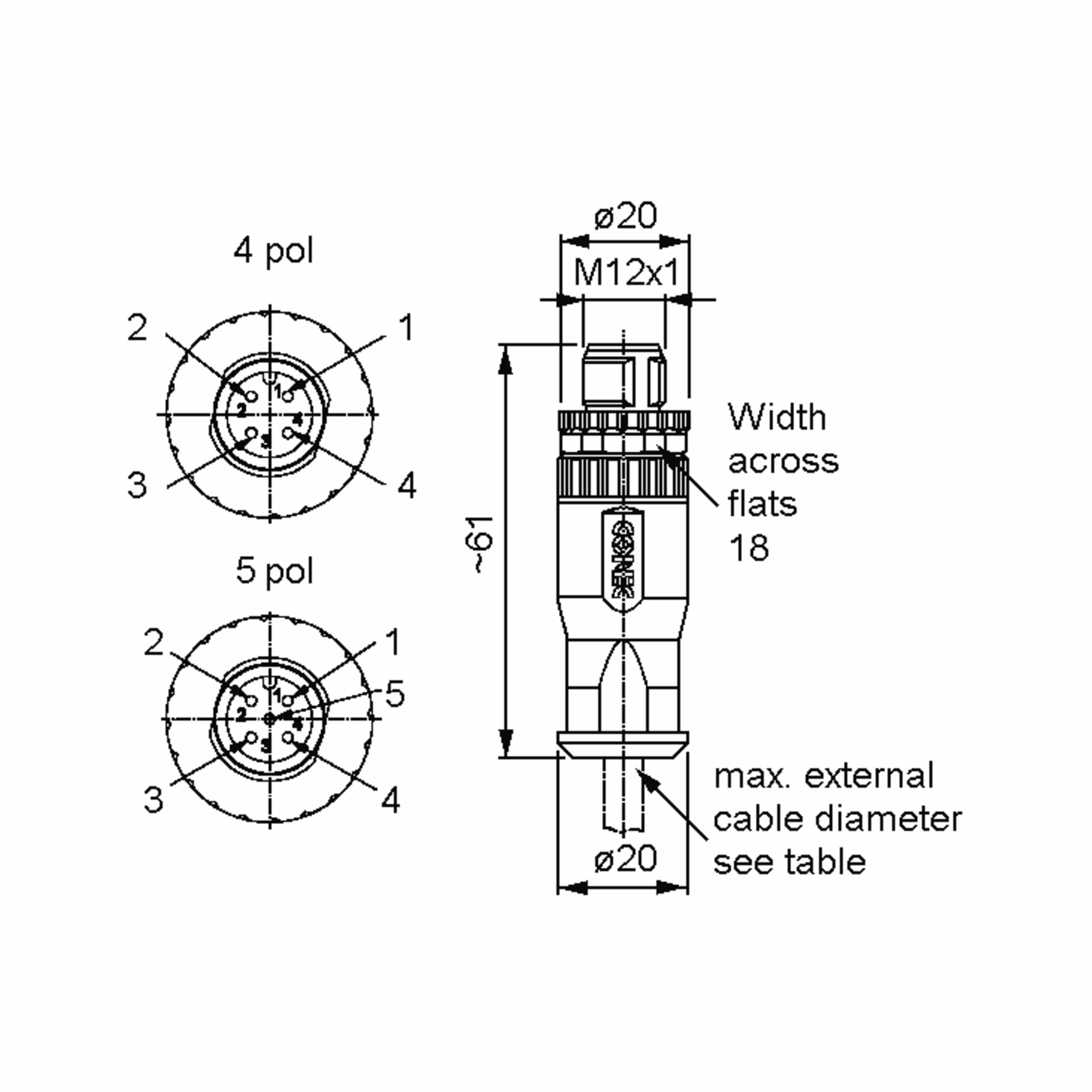

Dimensions and Weights
- Dimension: Length
- 61 mm
- Diameter
- 20 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 8 mm
- Conductor cross-section, max.
- 1.5 mm²
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 7.5 A
- Rated voltage AC
- 250 V AC
- Insulation resistance
- 100 mOhm
Mechanical Features
- Durability
- 100
- Housing material
- Polyamide (PA) 6 GF
- Insulating body
- Polyamide (PA)
- Contact Surface Input
- Nickel, vergoldet
- Gasket
- FPM
Safety/Certifications
- Standards
- IEC 60512
- IEC 60512-9a
- IEC 60529
- IEC 60664-1
- IEC 61076-2-101
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
- IP Class Connection Side
- IP67
