42-01309

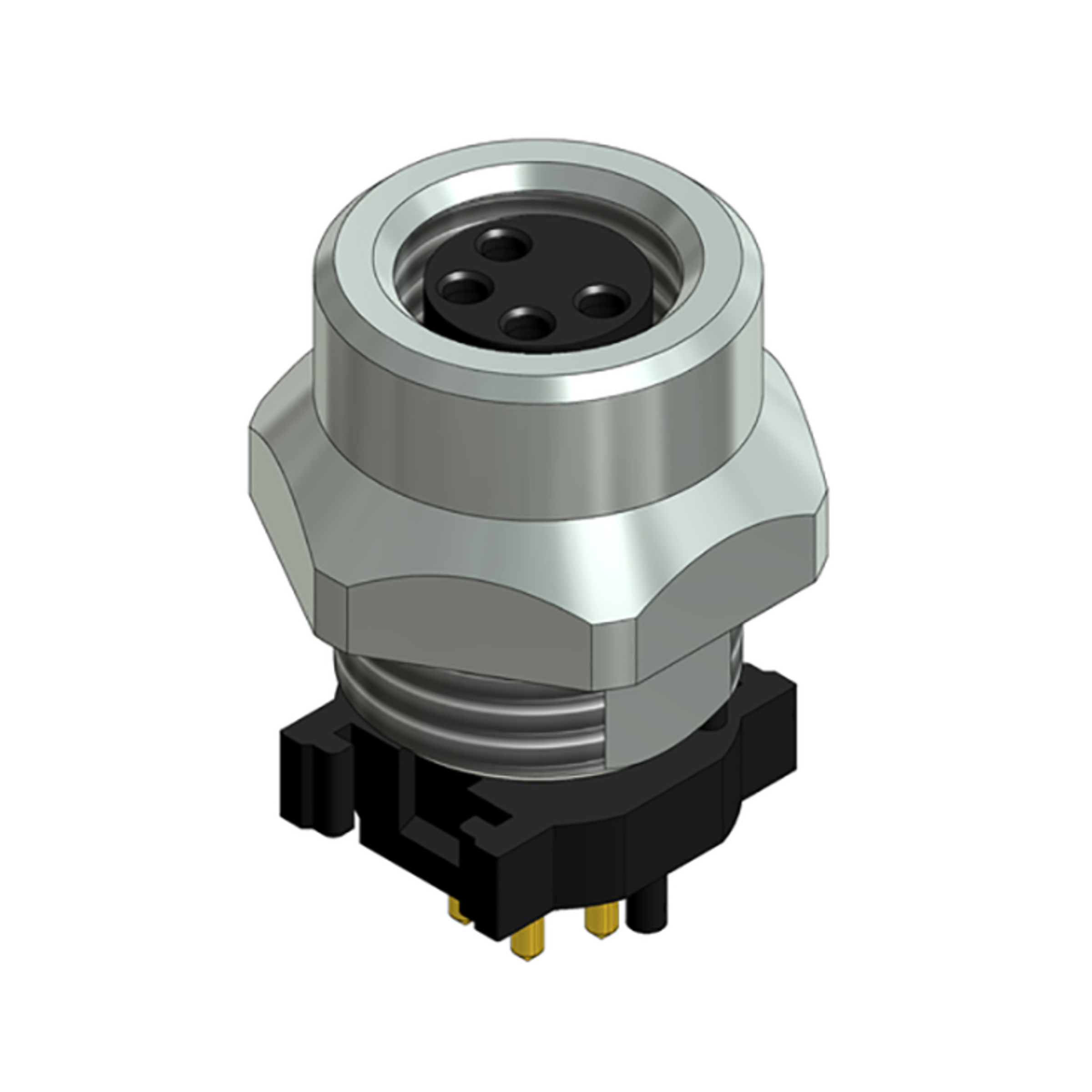

Conec M8 plug connector SAL-8-FK4-X9/THR PCB M8 Screw round straight 4 Pole Solder unshielded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
97 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- M8 plug connector
- Connector Contact
- Solder
- Series
- SAL-8-FK4-X9/THR
- Colour
- black
- Housing material
- Brass, nickel-plated
- Housing
- round
- Design
- PCB
- Insulating body
- Liquid Crystal Polymers (LCP) GF
- Number of poles
- 4
- Standards
- IEC 61076-2-104
- Contact Type
- M8
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- IP Protection Class Front Side
- IP67
- Locking Type
- Screw
- Operating Temperature Max.
- 95 °C
- Rated voltage AC
- 50 V AC
- Rated current
- 4 A
- Rated voltage DC
- 60 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

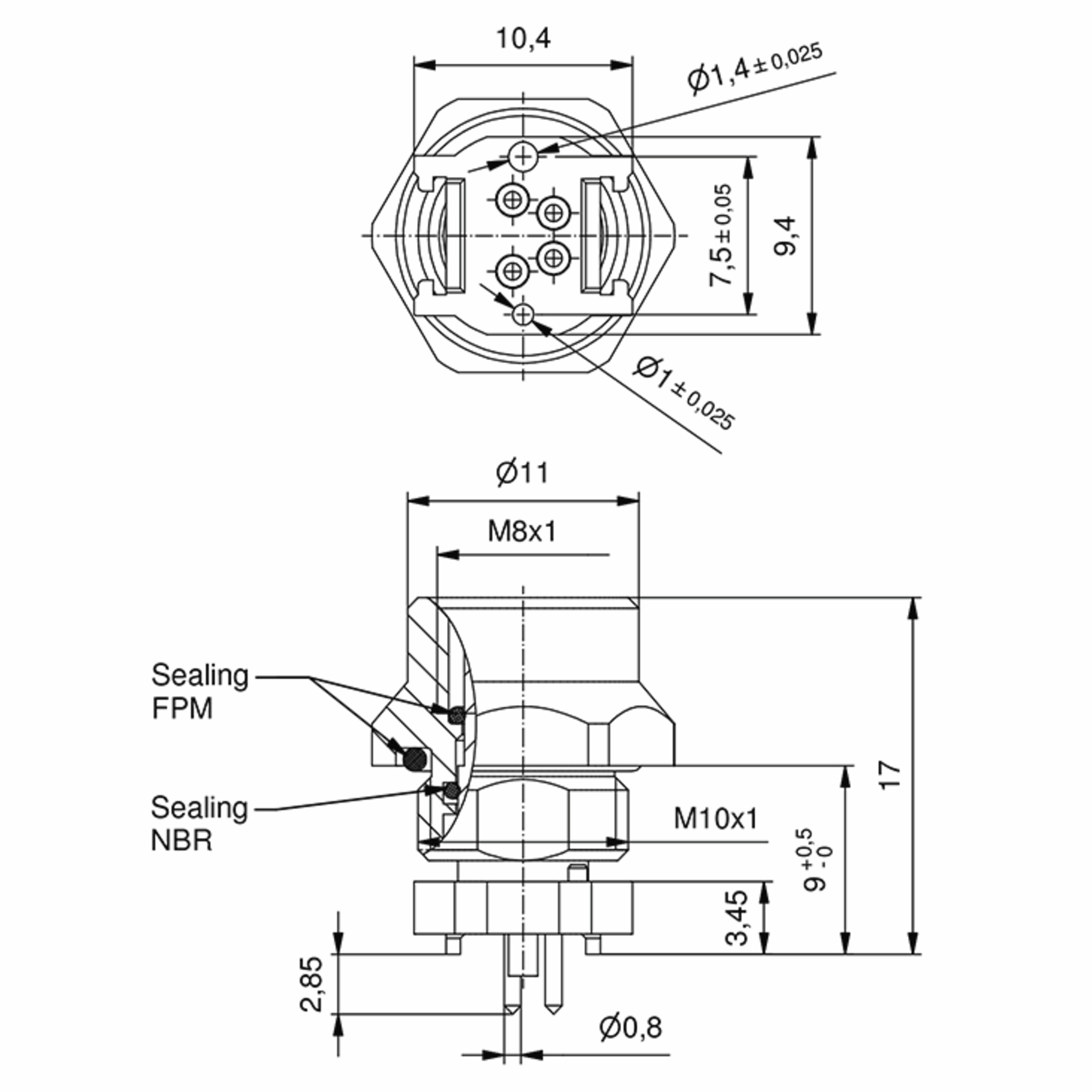

Dimensions and Weights
- Dimension: Length
- 19.85 mm
- Diameter
- 14.4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 95 °C
Technical Features
- Rated current
- 4 A
- Rated voltage AC
- 50 V AC
- Rated voltage DC
- 60 V DC
- Insulation resistance
- 100 mOhm
Mechanical Features
- Durability
- 100
- Housing material
- Brass, nickel-plated
- Insulating body
- Liquid Crystal Polymers (LCP) GF
- Contact Surface Input
- Nickel, vergoldet
- Gasket
- FPM
- NBR
Safety/Certifications
- Standards
- IEC 61076-2-104
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
- IP Class Connection Side
- IP67
