17-150284.01

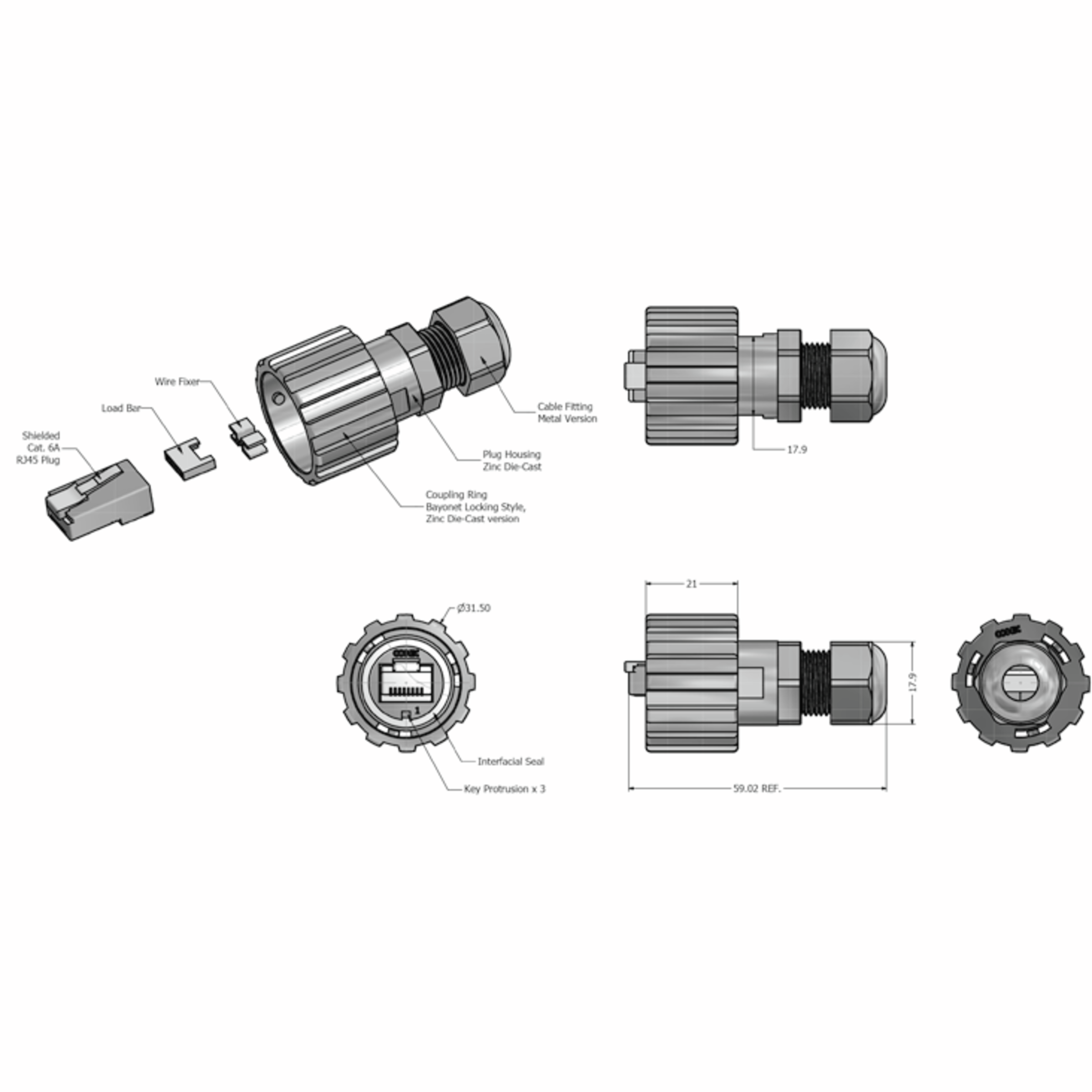

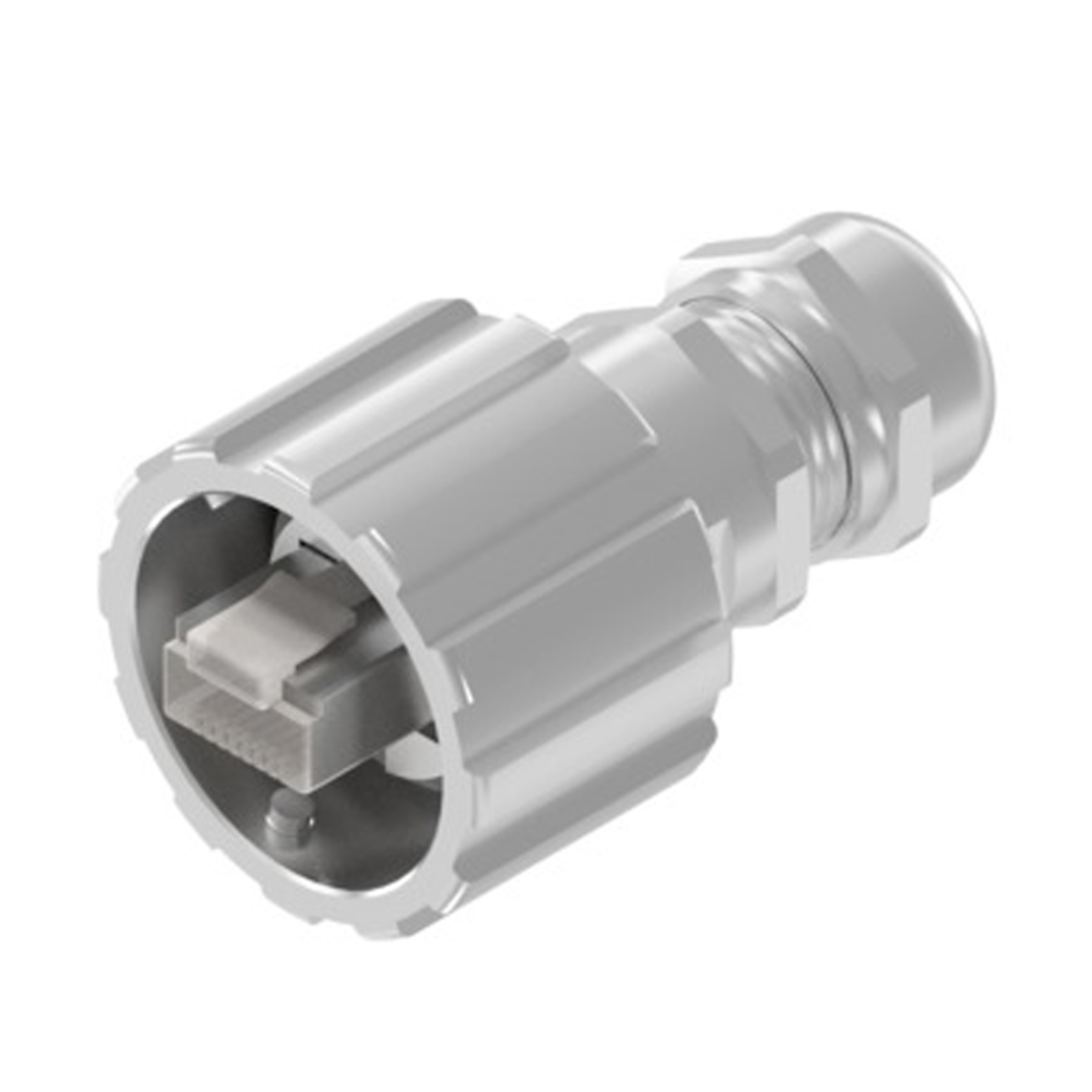

Conec Cable socket 17-15 Cable Socket Bayonet round IP67 Zinc Die-Cast, nickel-plated IDC Cat6a 59,02mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 15.06.2026
Item currently not available
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Cable socket
- Connector Contact
- IDC
- Series
- 17-15
- Housing material
- Zinc Die-Cast, nickel-plated
- Housing
- round
- Connector Coating
- Nickel, gold-plated
- Specifications
- Cable
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Cable diameter, max.
- 8 mm
- Standards
- IEC 60603-7
- Contact Type
- RJ45
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- IP Protection Class Front Side
- IP67
- Locking Type
- Bayonet
- Operating Temperature Max.
- 85 °C
- Rated current
- 1.2 A
- Rated voltage DC
- 100 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
