17-150234

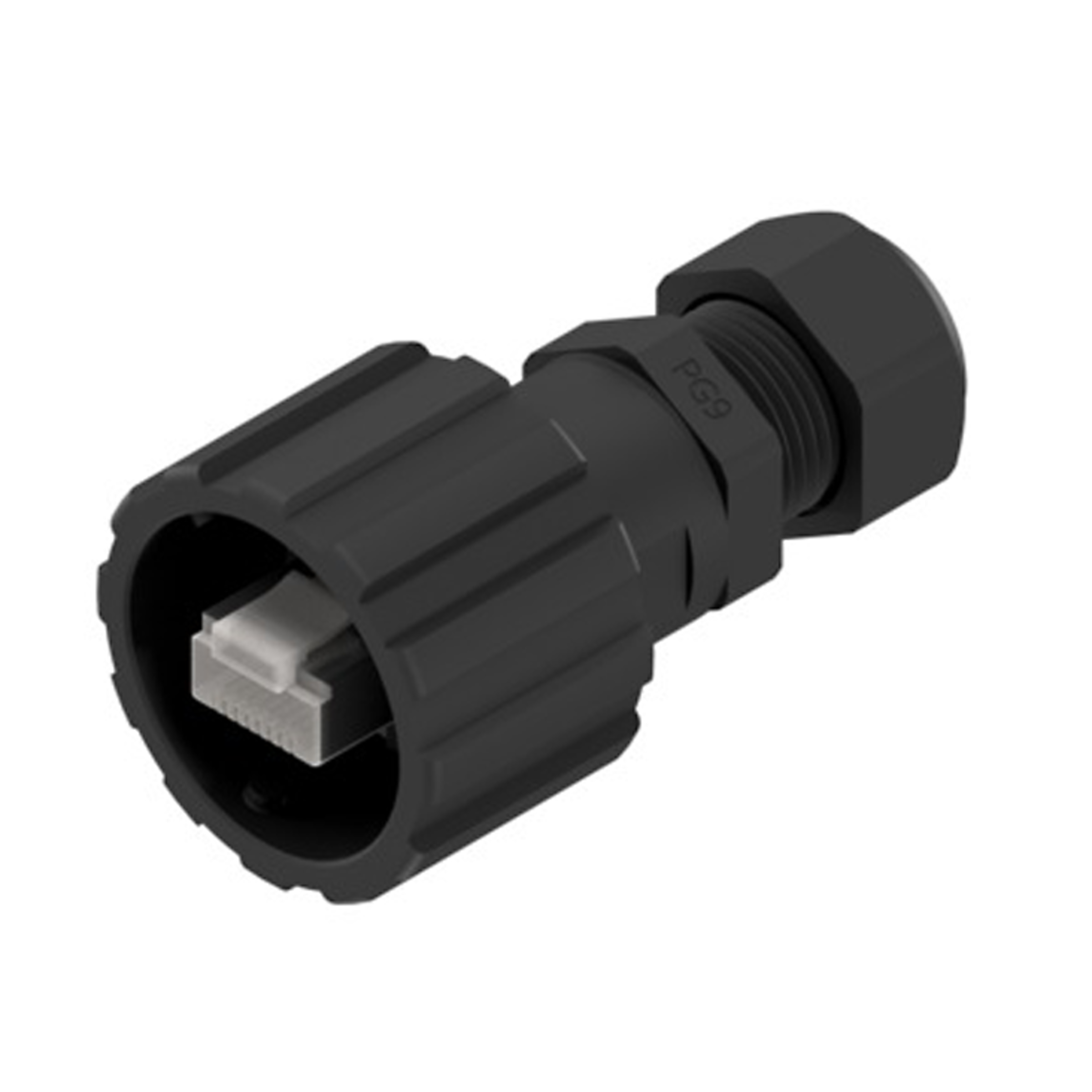

Conec Cable plug 17-15 Cable Socket Bayonet round straight IP67 Polyester (PES) IDC Cat6a 59,02mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Cable plug
- Connector Contact
- IDC
- Series
- 17-15
- Colour
- black
- Housing material
- Polyester (PES)
- Housing
- round
- Design
- Cable
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Cable diameter, max.
- 8 mm
- Standards
- IEC 60603-7
- Contact Type
- RJ45
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Alignment
- straight
- IP Protection Class Front Side
- IP67
- Locking Type
- Bayonet
- Operating Temperature Max.
- 85 °C
- Rated current
- 1.2 A
- Rated voltage DC
- 100 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

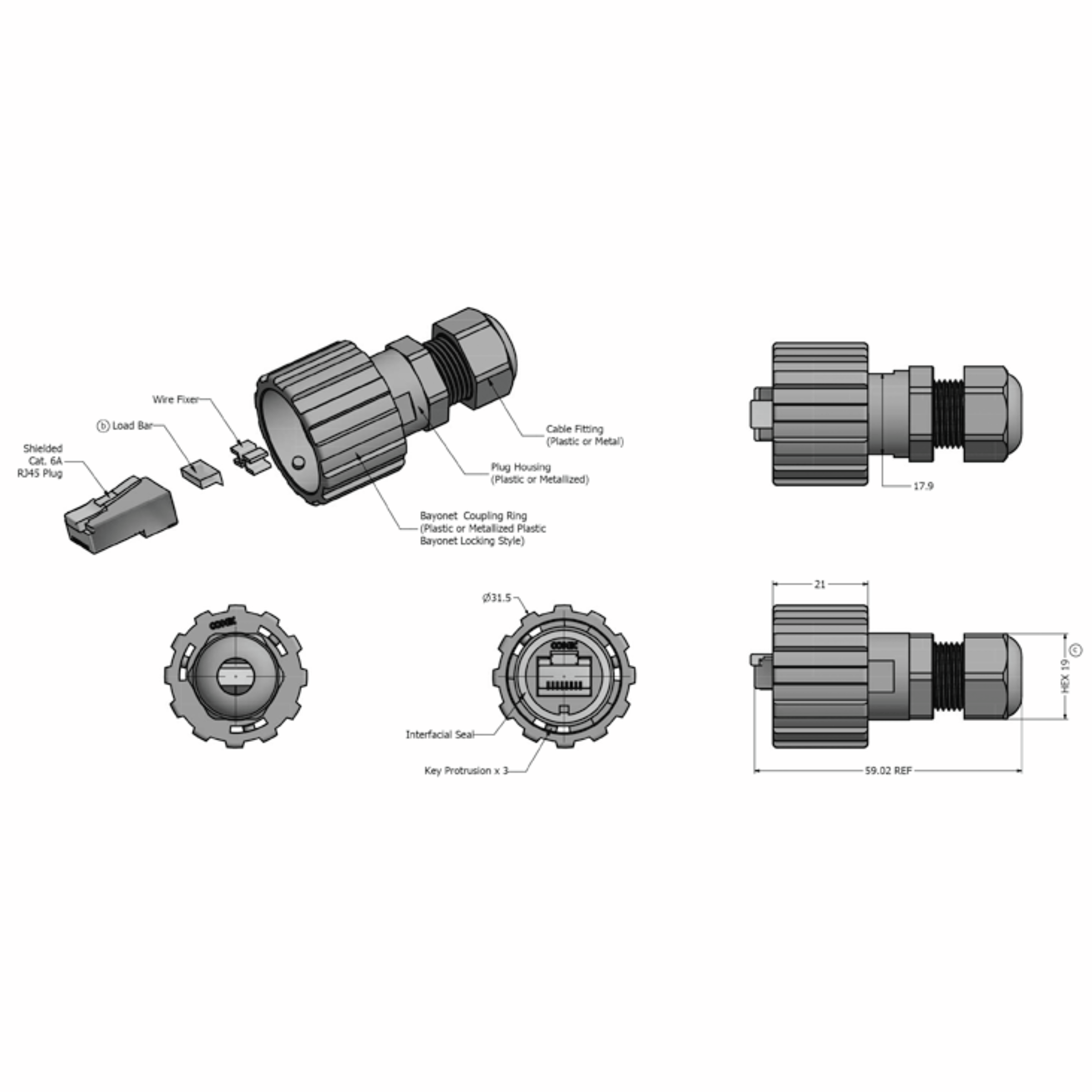

Dimensions and Weights
- Dimension: Length
- 59.02 mm
- Diameter
- 31.5 mm
- Cable diameter, min.
- 4 mm
- Cable diameter, max.
- 8 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1.2 A
- Rated voltage DC
- 100 V DC
- Breakdown voltage
- 1,000 V RMS / min.
- Performance
- Cat6a
- Insulation resistance
- 500 mOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Polyester (PES)
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
- Gasket
- silicone
Safety/Certifications
- Standards
- IEC 60603-7
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
