164A10199X
Conec Socket connector 164A 37 Pole Socket Panel angled UL 94 V-0 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 06.05.2026
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- Solder
- Series
- 164A
- Colour
- black
- Housing material
- Steel, tin-plated
- Housing
- 2-row
- Specifications
- Panel
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 37
- Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- angled
- Operating Temperature Max.
- 125 °C
- Rated current
- 5 A
- Rated voltage DC
- 125 V DC
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

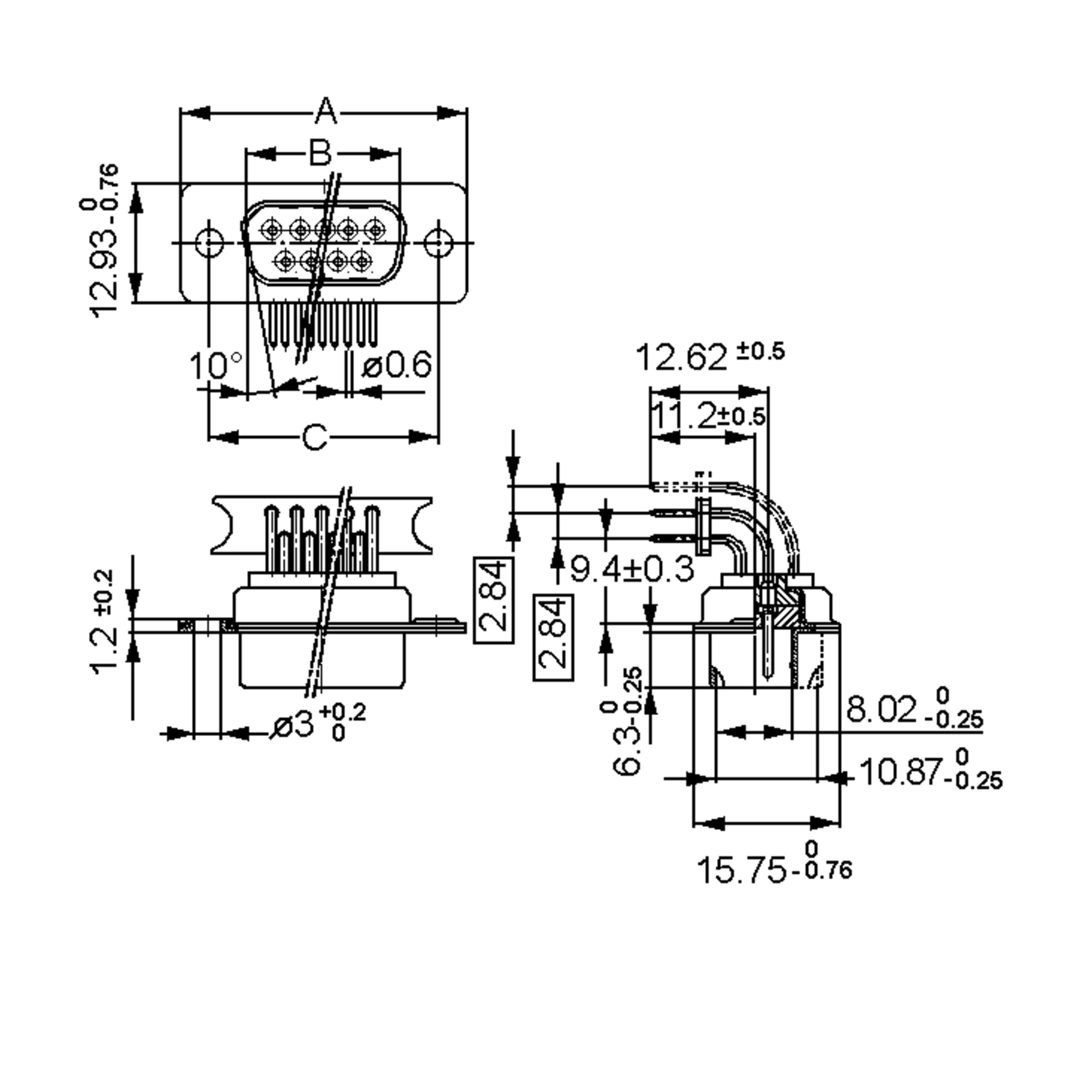

Dimensions and Weights
- Dimension: Width
- 69.7 mm
- Dimension: Height
- 19.34 mm
- Dimension: Depth
- 12.93 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 5 A
- Rated voltage DC
- 125 V DC
- Dielectric strength
- 1 V / min.
Mechanical Features
- Drilling Dimensions
- 3 mm
- Housing material
- Steel, tin-plated
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Approvals
- CSA
- UL
- VDE
- Class of Inflammability
- UL 94 V-0
