164A10089X

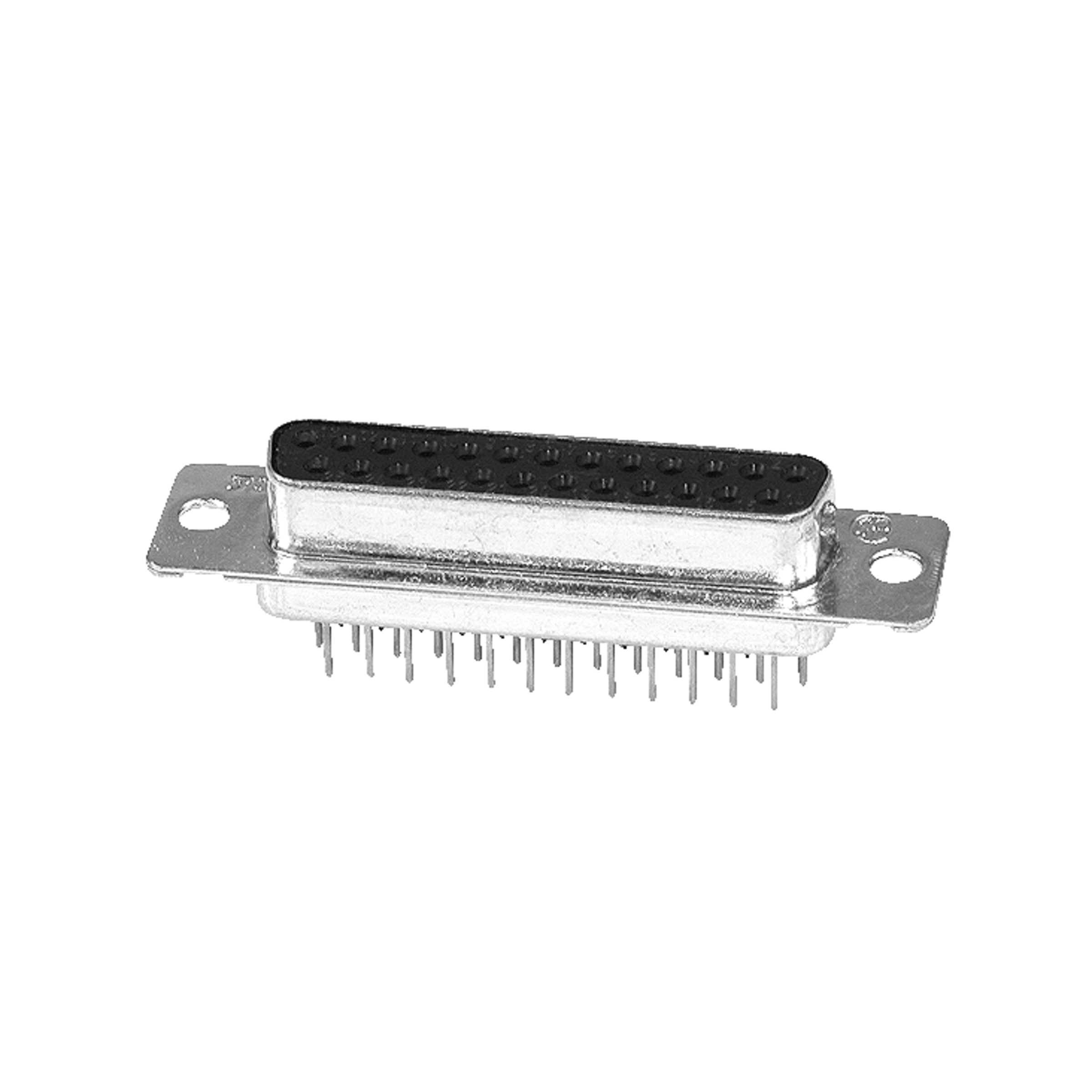

Conec Socket connector 164A 25 Pole Socket Panel straight IP20 UL 94 V-0 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
25 Pcs. in stock
Next Stock Receipt
Week 18/2026
150 Pcs.
150 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- Solder
- Series
- 164A
- Colour
- black
- Housing material
- Steel, tin-plated
- Housing
- 2-row
- Design
- Panel
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 25
- Standards
- IEC 60807-2
IEC 664-1 - Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Operating Temperature Max.
- 125 °C
- Rated current
- 5 A
- Rated voltage DC
- 125 V DC
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

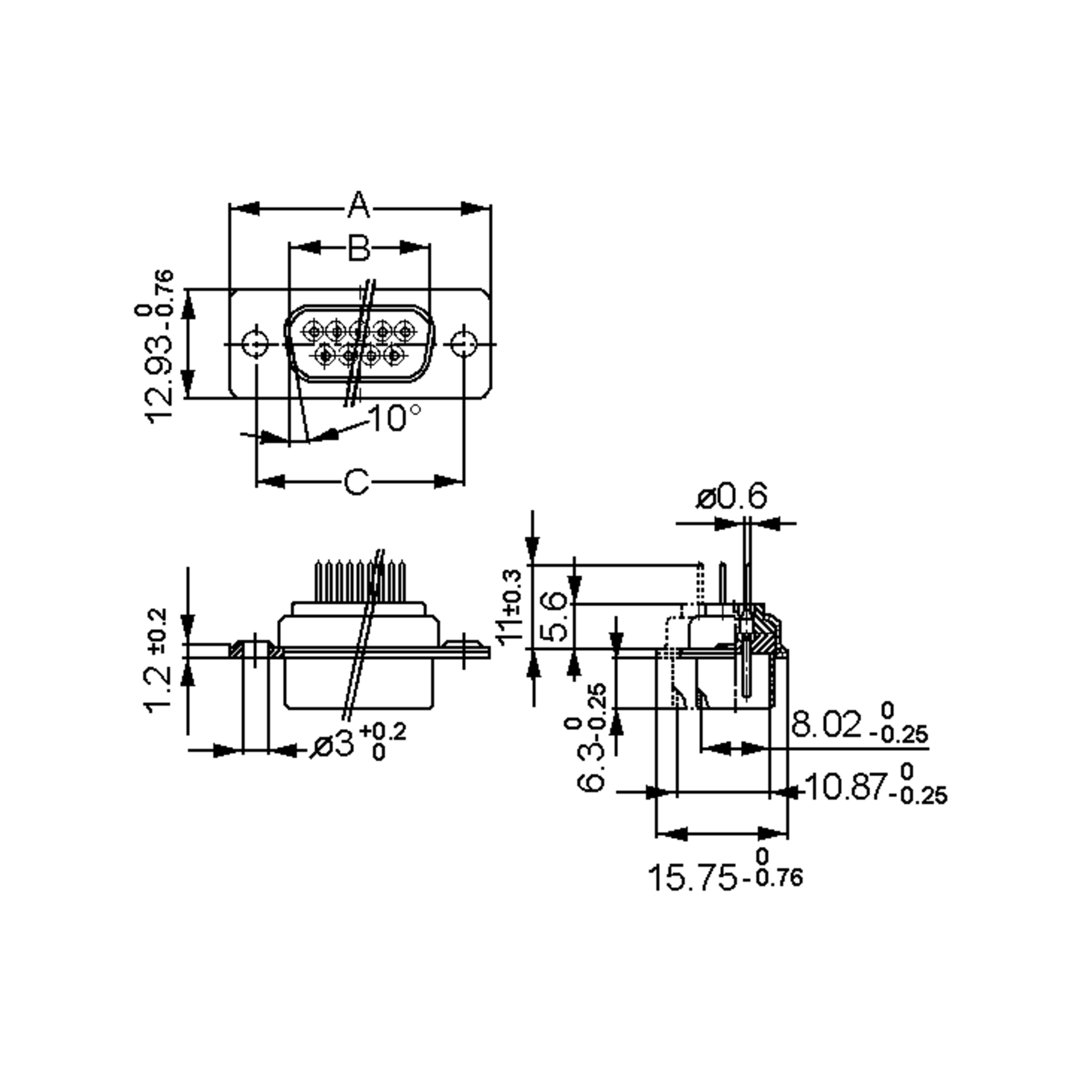

Dimensions and Weights
- Dimension: Width
- 53.09 mm
- Dimension: Height
- 17.9 mm
- Dimension: Depth
- 12.6 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 5 A
- Rated voltage DC
- 125 V DC
- Dielectric strength
- 1 V / min.
- Contact resistance
- 10 mOhm
- Insulation resistance
- 5 GOhm
Mechanical Features
- Durability
- 50
- Drilling Dimensions
- 3 mm
- Housing material
- Steel, tin-plated
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Approvals
- CSA
- UL
- VDE
- Standards
- IEC 60807-2
- IEC 664-1
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP20
- IP Class Connection Side
- IP20
