16-002200

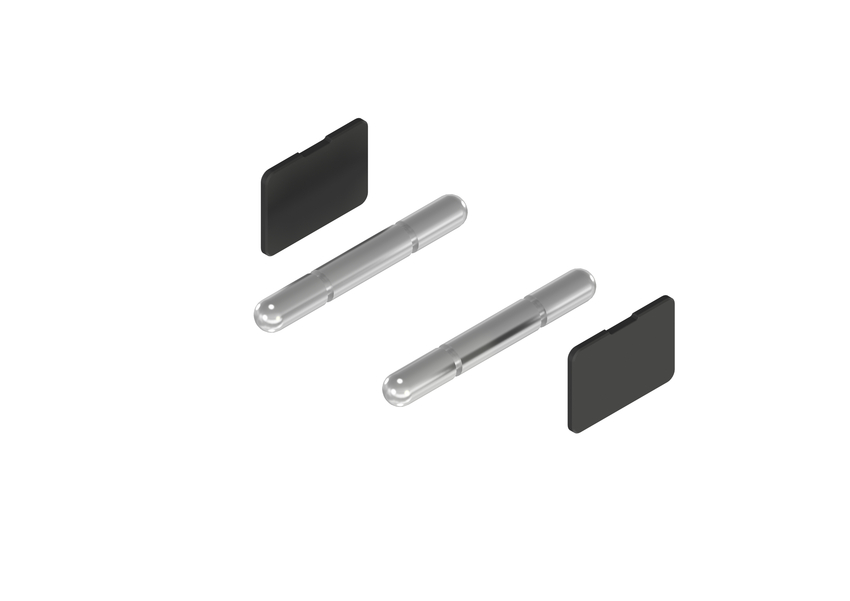

Conec Locking device 16K1A Accessories straight UL 94 V-0
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Locking device
- Series
- 16K1A
- Colour
- black
- Housing material
- Acrylnitril Butadiene Styrol (ABS)
- Design
- Accessories
- Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- RoHS-Conform
Specifications
Open all

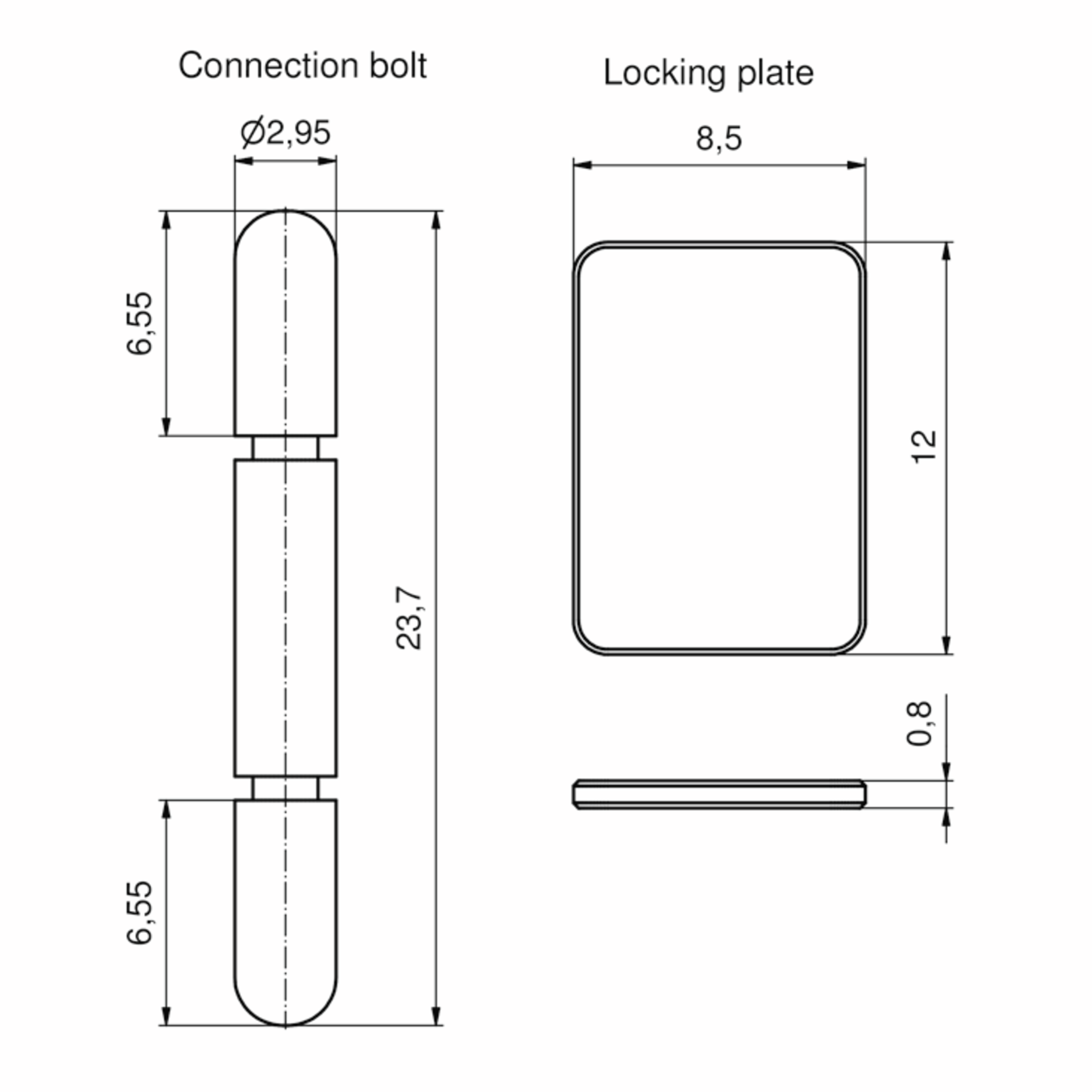

Dimensions and Weights
- Dimension: Length
- 23.7 mm
- Dimension: Width
- 8.5 mm
- Dimension: Height
- 12 mm
- Dimension: Depth
- 0.8 mm
- Diameter
- 2.95 mm
Mechanical Features
- Housing material
- Acrylnitril Butadiene Styrol (ABS)
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
