16-002173

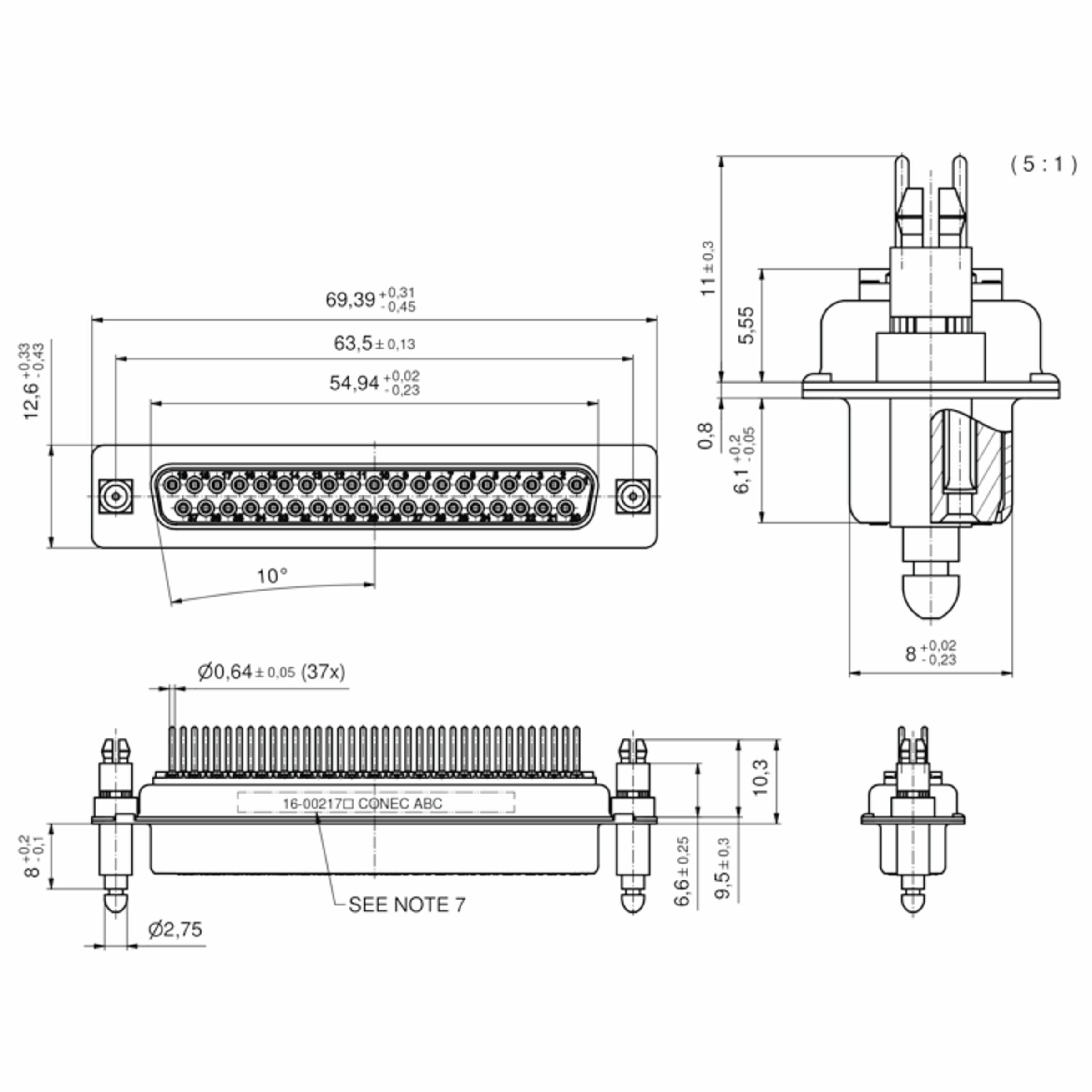

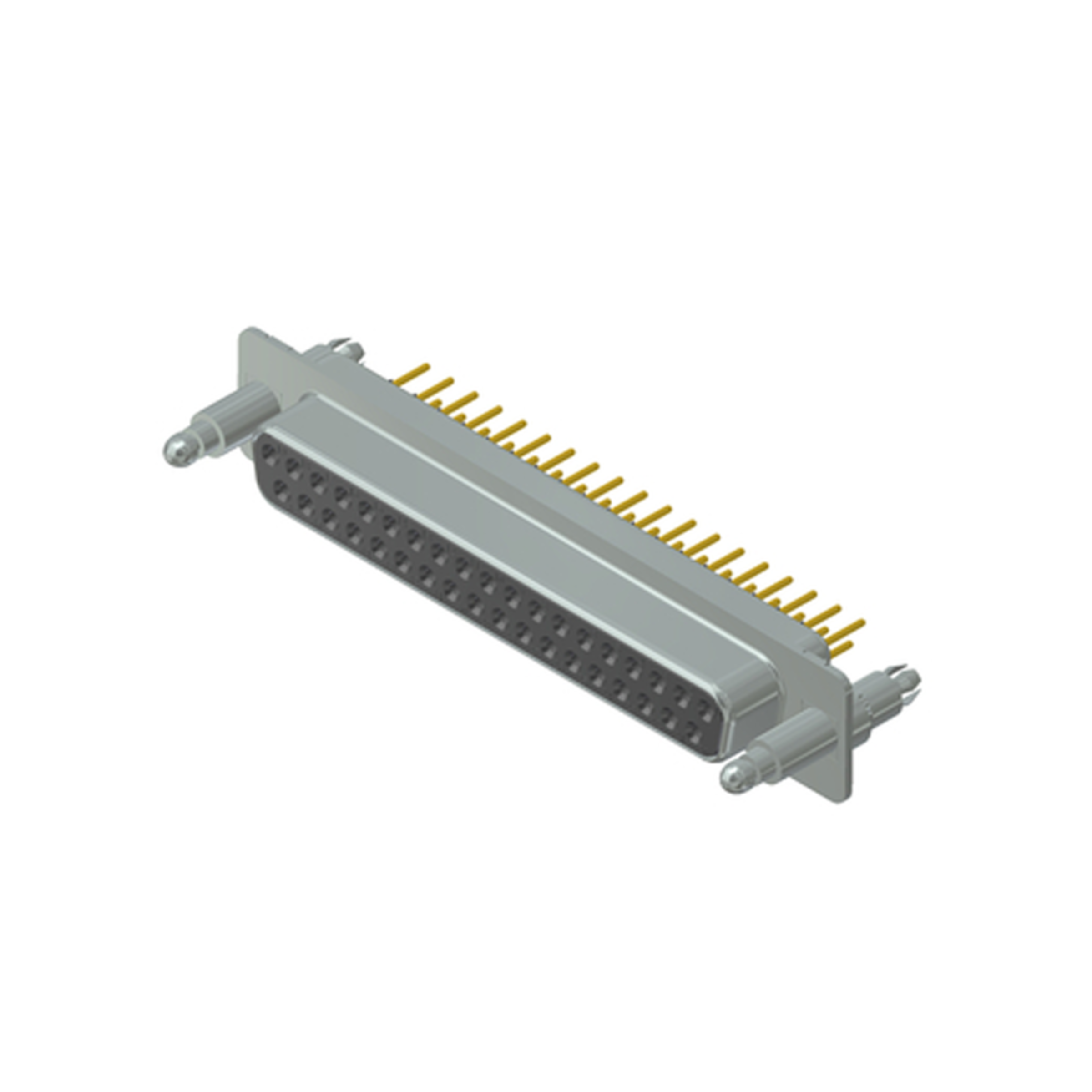

Conec Socket connector 16K1A 37 Pole Socket Panel Screw straight IP20 UL 94 V-0 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- General:
NEW! Transition to lead-free materials by December 31, 2026. Starting January 1, 2027, all production will be lead-free. - Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- Solder
- Series
- 16K1A
- Colour
- black
- Housing material
- Steel, tin-plated
- Housing
- 2-row
- Specifications
- Panel
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 37
- Standards
- IEC 60807-2
IEC 664-1 - Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Locking Type
- Screw
- Operating Temperature Max.
- 125 °C
- Rated current
- 7.5 A
- Rated voltage DC
- 125 V DC
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Close all

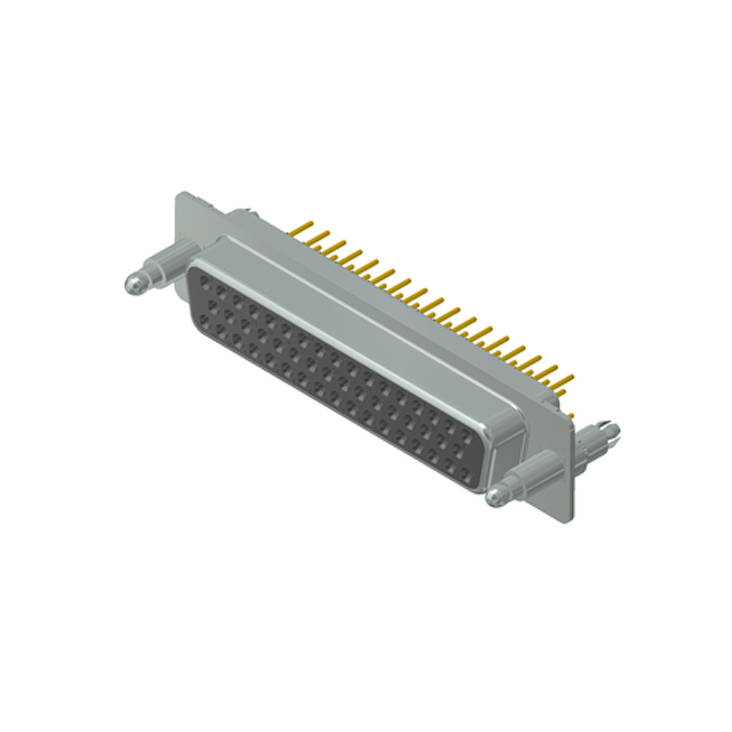

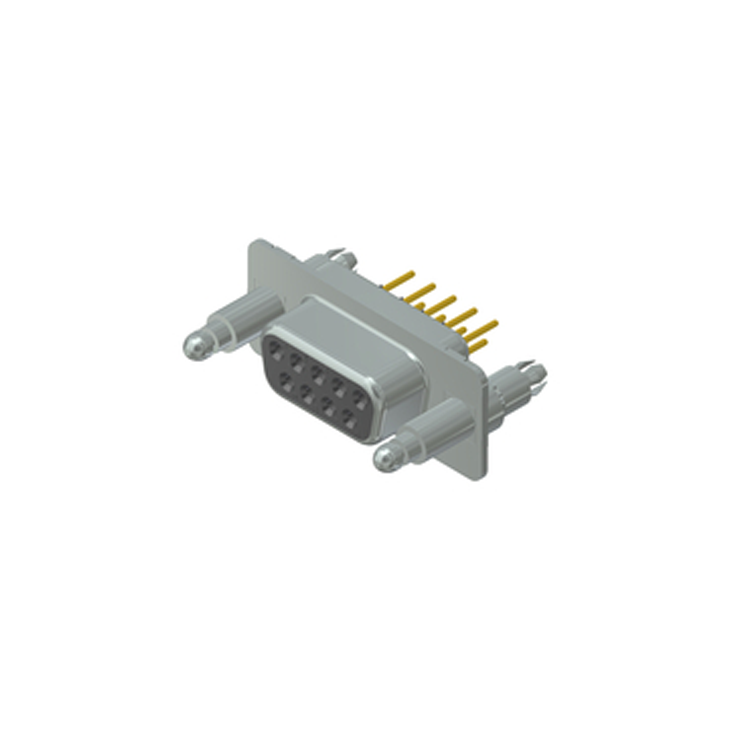

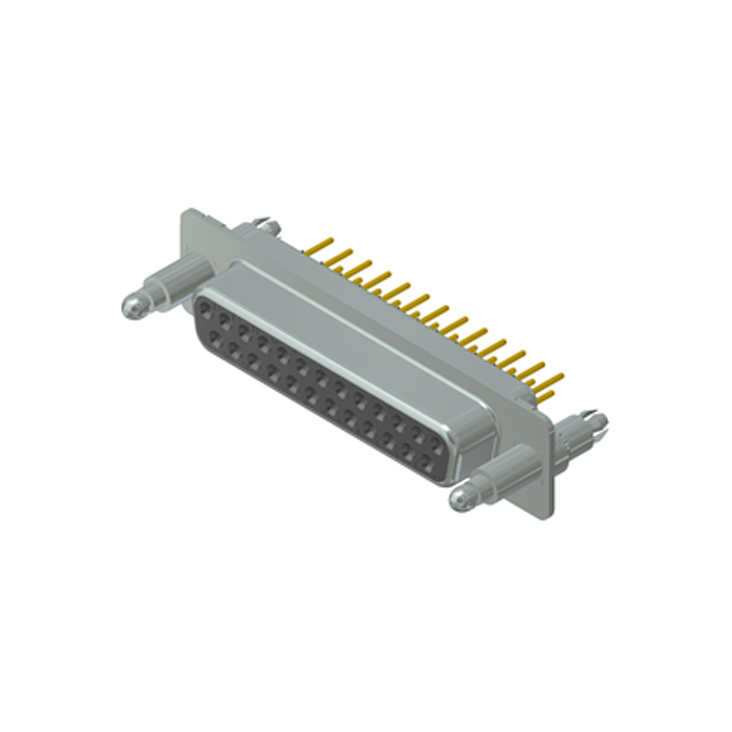

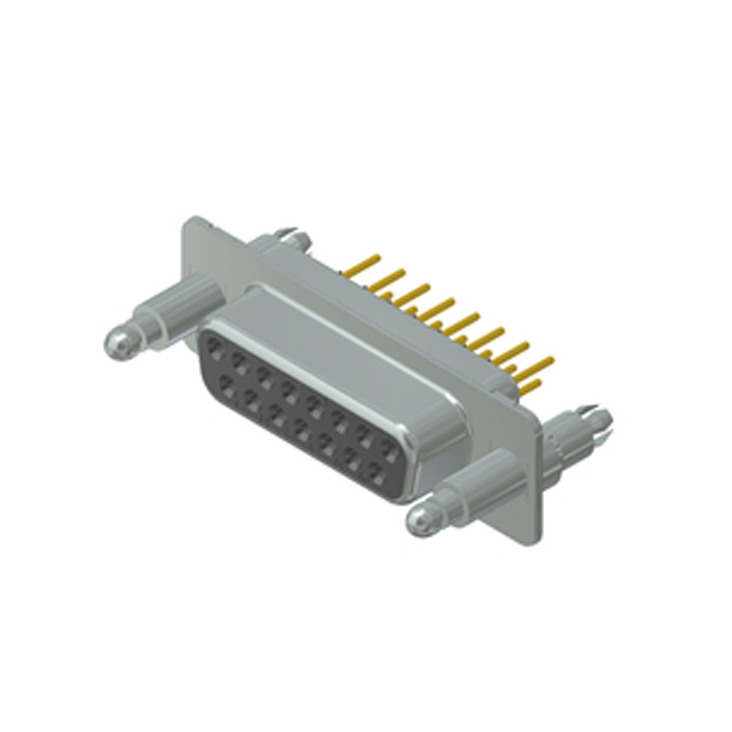

Other Products
