15-007623

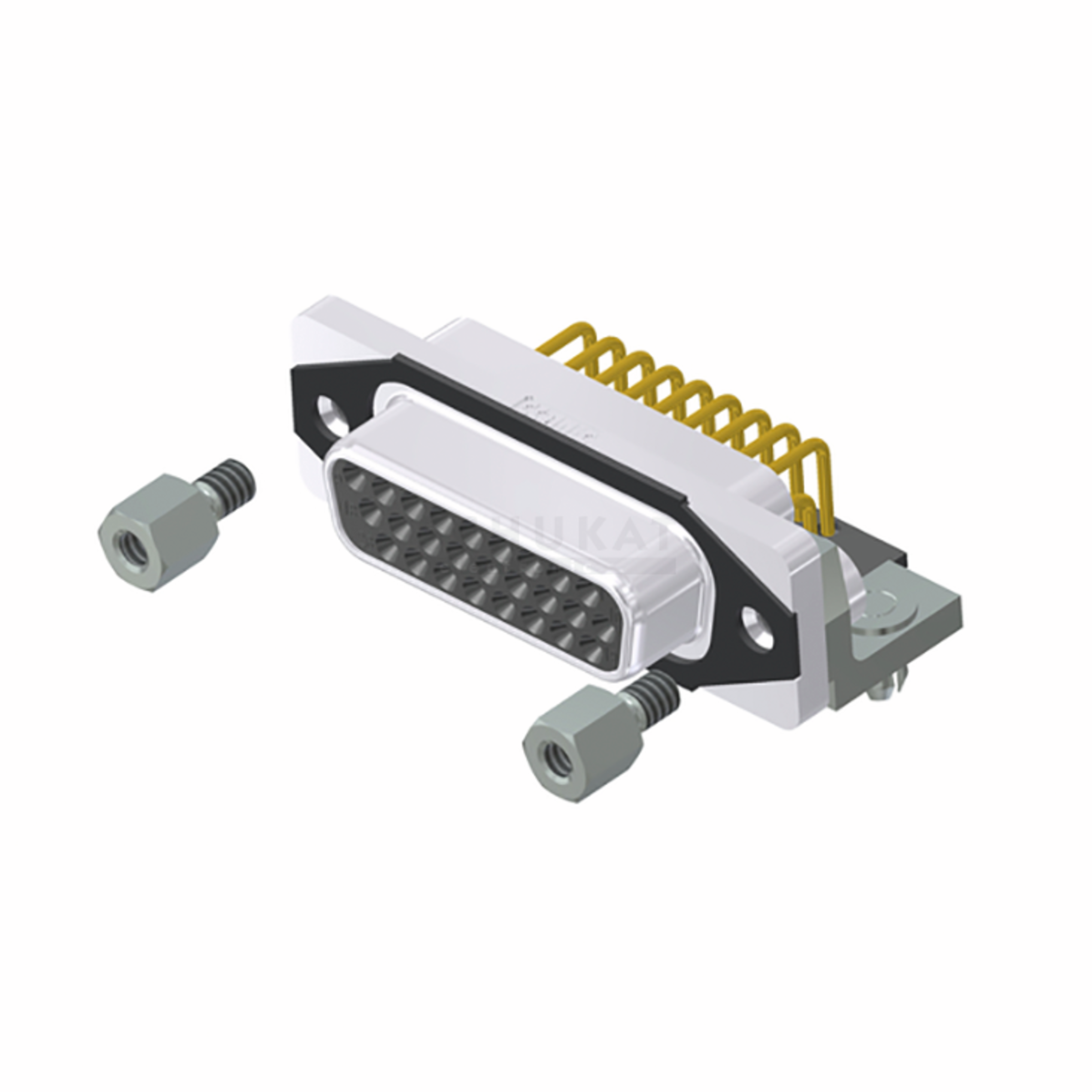

Conec Socket connector 15K1A 26 Pole Socket Panel Screw angled IP67 UL 94 V-0 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
30 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket connector
- Connector Contact
- Solder
- Series
- 15K1A
- Colour
- black
- Housing material
- Zinc Die-Cast, nickel-plated
- Housing
- 3-row
- Design
- Panel
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 26
- Standards
- DIN 41652
IEC 60529
IEC 664-1 - Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- angled
- IP Protection Class Front Side
- IP67
- Locking Type
- Screw
- Operating Temperature Max.
- 105 °C
- Rated current
- 3 A
- Rated voltage DC
- 60 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

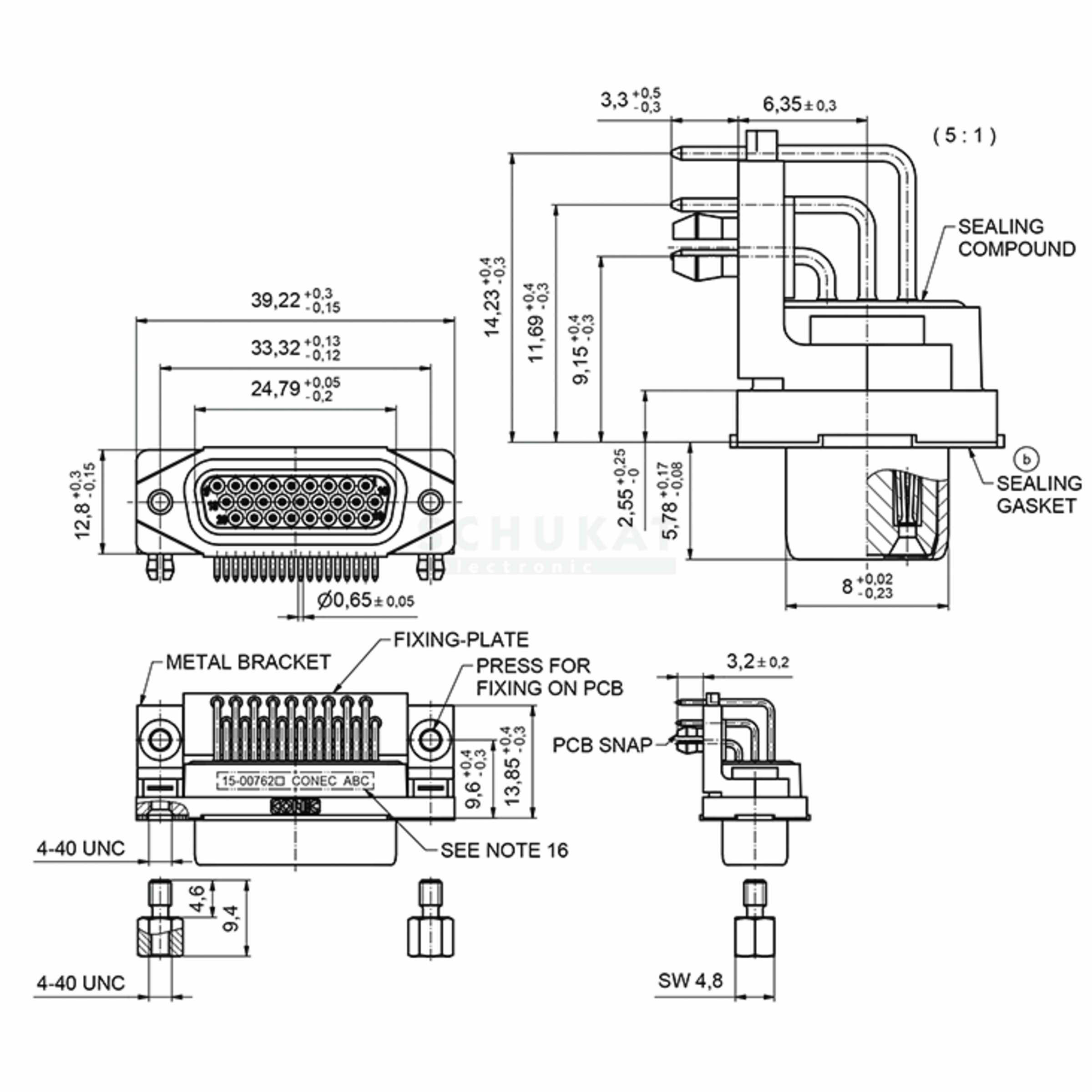

Dimensions and Weights
- Dimension: Width
- 39.22 mm
- Dimension: Height
- 20.01 mm
- Dimension: Depth
- 16.1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 3 A
- Rated voltage DC
- 60 V DC
- Solderability
- 265 °C / 8 s °C / s
- Dielectric strength
- 1 V / min.
- Contact resistance
- 10 mOhm
Mechanical Features
- Durability
- 50
- Drilling Dimensions
- 3.1 mm
- Torque for thread
- 35 Ncm
- Housing material
- Zinc Die-Cast, nickel-plated
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Standards
- DIN 41652
- IEC 60529
- IEC 664-1
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
- IP Class Connection Side
- IP67
