15-004740

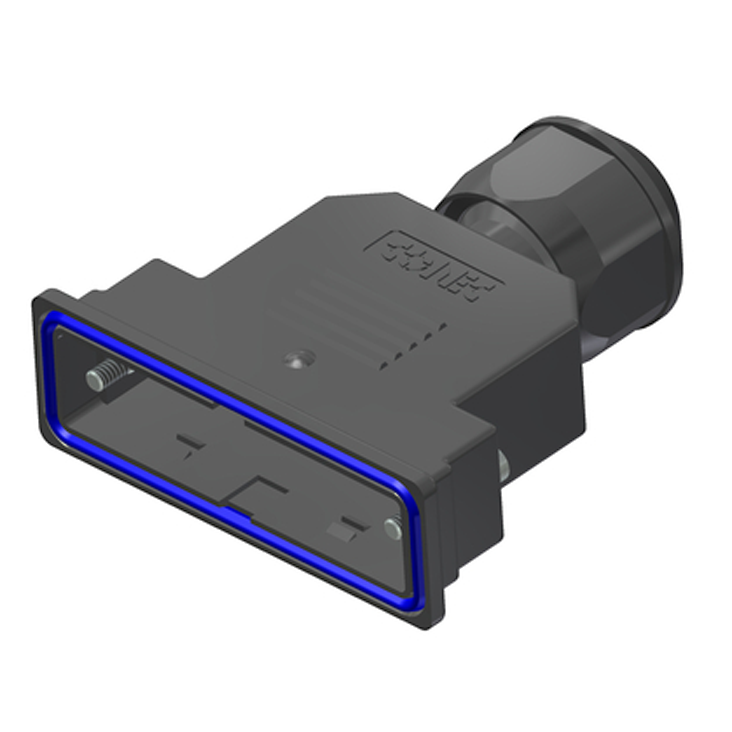

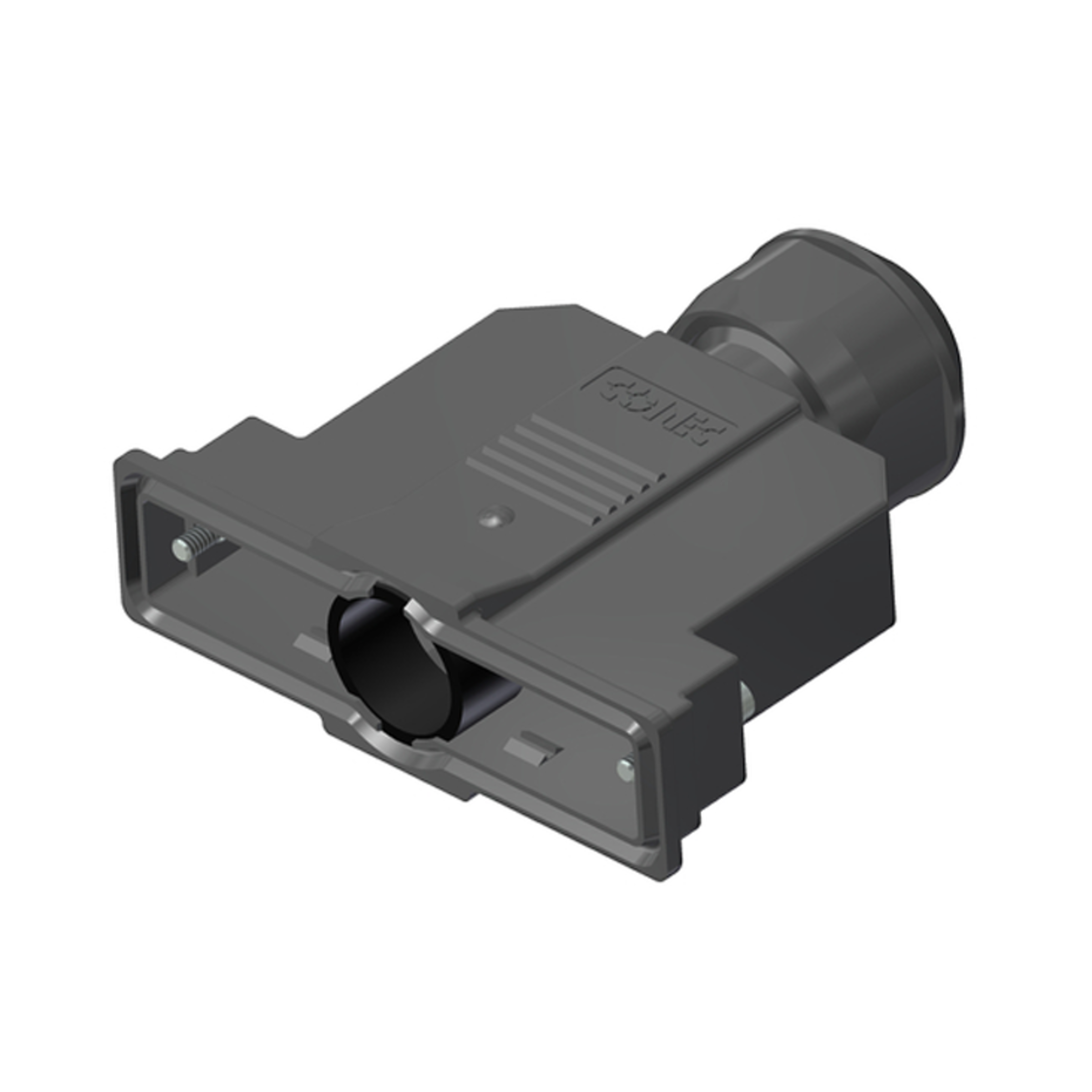

Conec Housing 15K1A 37 Pole Accessories straight IP67 UL 94 V-0
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Housing
- Series
- 15K1A
- Colour
- black
- Housing material
- Polybutylenterephthalat (PBT) GF
- Design
- Accessories
- Cable diameter, max.
- 16 mm
- Number of poles
- 37
- Standards
- IEC 60529
- Contact Type
- D-Sub
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- IP Protection Class Front Side
- IP67
- Operating Temperature Max.
- 90 °C
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all

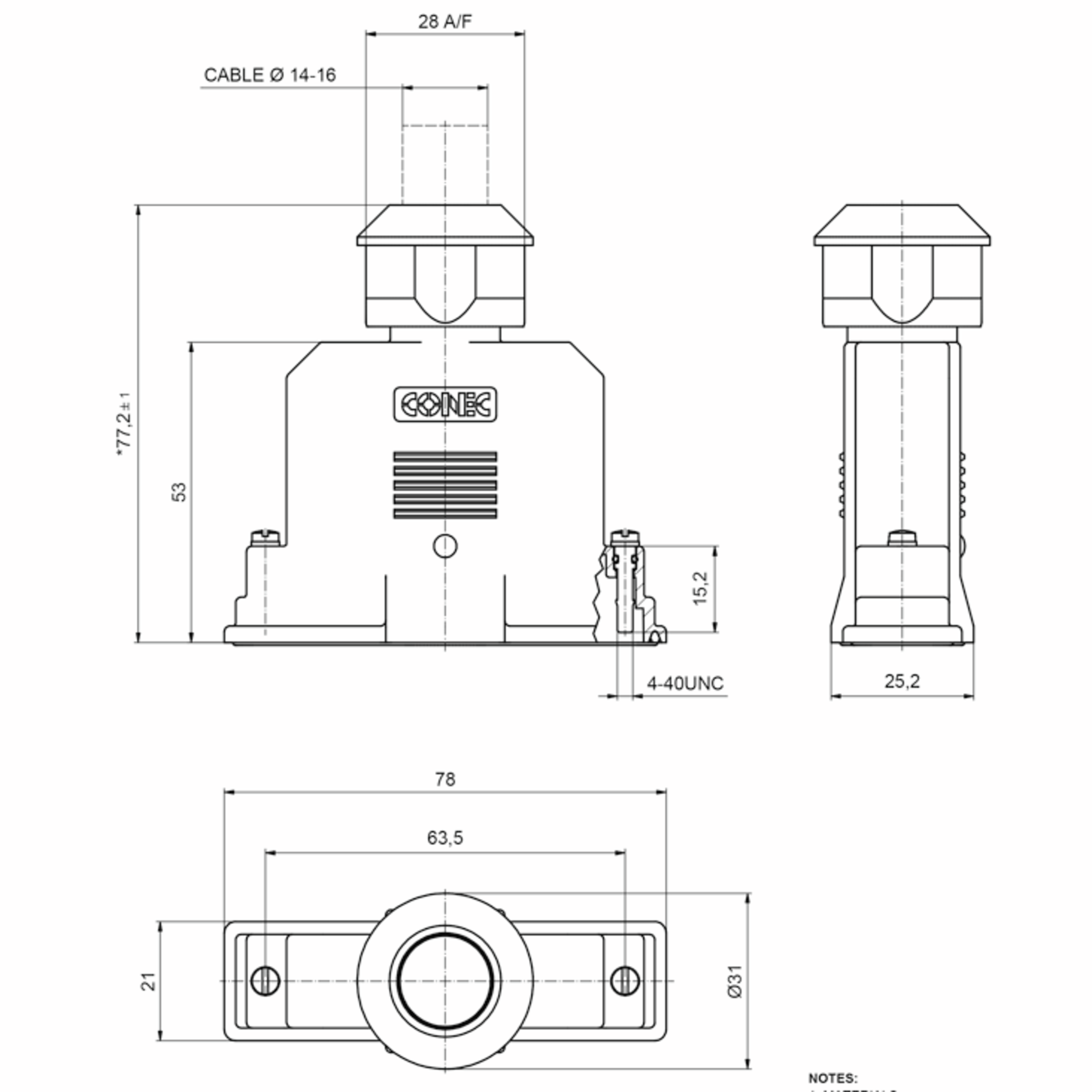

Dimensions and Weights
- Dimension: Width
- 78 mm
- Dimension: Height
- 21 mm
- Dimension: Depth
- 77.2 mm
- Cable diameter, min.
- 14 mm
- Cable diameter, max.
- 16 mm
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 90 °C
Mechanical Features
- Torque for thread
- 35 Ncm
- Housing material
- Polybutylenterephthalat (PBT) GF
- Gasket
- silicone
Safety/Certifications
- Standards
- IEC 60529
- Class of Inflammability
- UL 94 V-0
- IP Protection Class Front Side
- IP67
- IP Class Connection Side
- IP67
