131C10049X

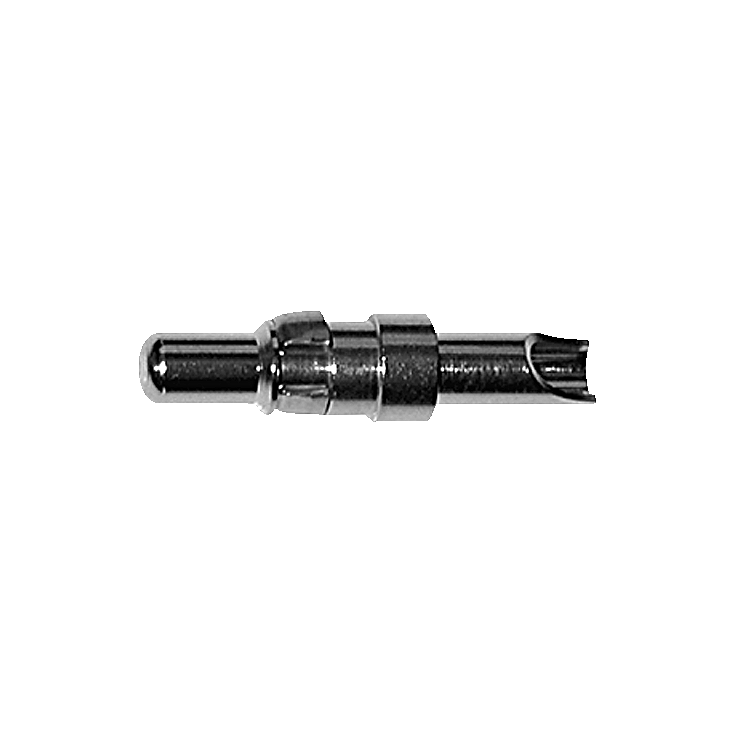

Conec Pin contact 131C 1 Pole Pin Contacts straight IP20 Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Pin contact
- Connector Contact
- Solder
- Series
- 131C
- Housing material
- Copper Alloy
- Housing
- round
- Design
- Contacts
- Cable diameter, max.
- 4.8 mm
- Number of poles
- 1
- Standards
- IEC 60807-2
- Contact Type
- D-Sub
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Operating Temperature Max.
- 155 °C
- Rated current
- 40 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 22.84 mm
- Diameter
- 3.6 mm
- Cable diameter, max.
- 4.8 mm
- Stripping length, max.
- 7.5 mm
- Conductor cross-section (AWG), min.
- 10 AWG
- Conductor cross-section (AWG), max.
- 8 AWG
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical Features
- Rated current
- 40 A
- Dielectric strength
- 1 V / min.
- Contact resistance
- 1 mOhm
- Insulation resistance
- 5 GOhm
Mechanical Features
- Durability
- 500
- Housing material
- Copper Alloy
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Standards
- IEC 60807-2
- IP Protection Class Front Side
- IP20
- IP Class Connection Side
- IP20
