122A11699X

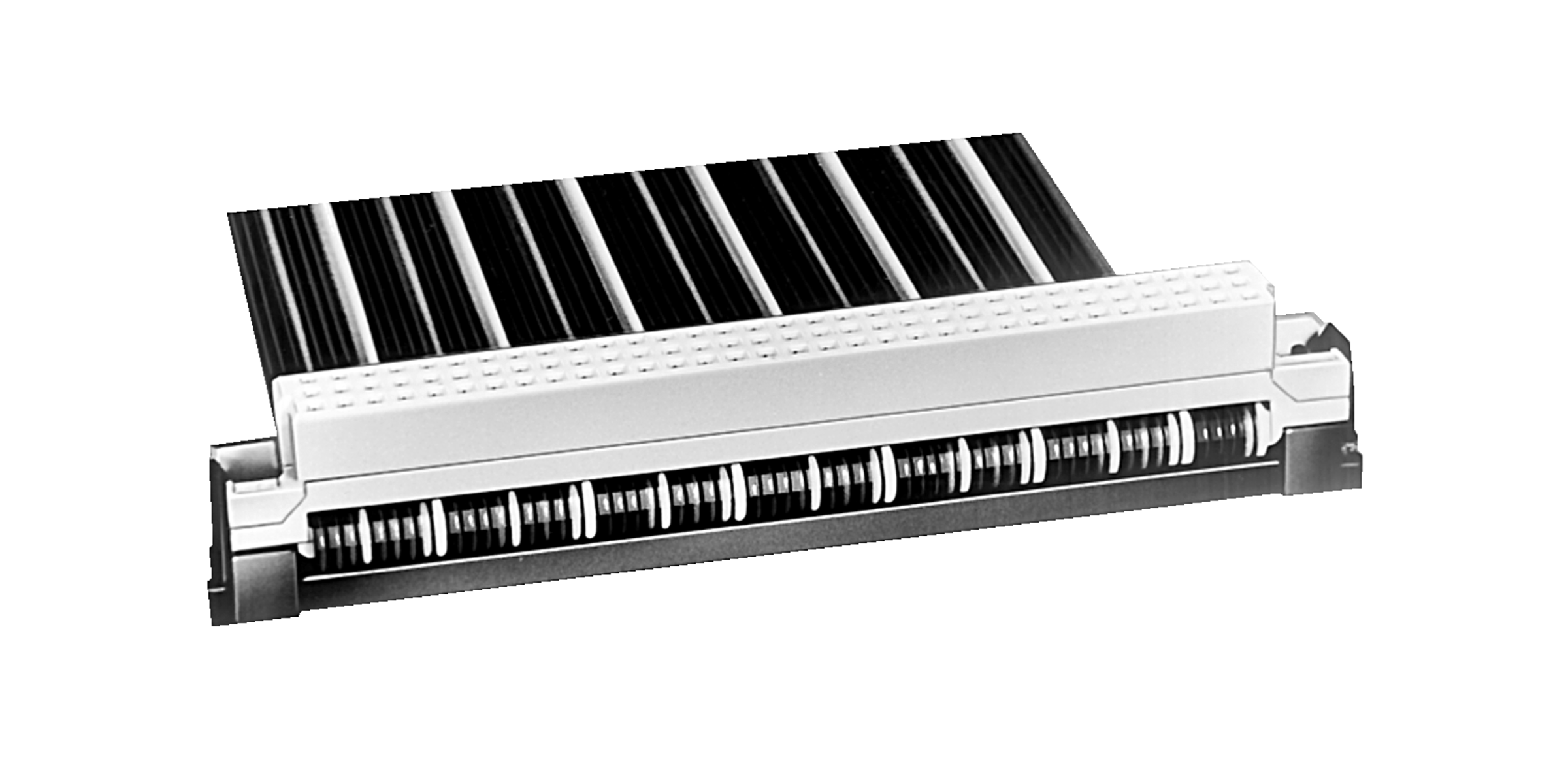

Conec Female connector 122A116_X Header 2-row straight 64 Pole Pitch2,54mm Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 10.04.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Female connector
- Connector Contact
- Solder
- Series
- 122A116_X
- Colour
- gray
- Housing
- 2-row
- Design
- Header
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 64
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 125 °C
- Rated voltage AC
- 330 V AC
- Rated current
- 1.5 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

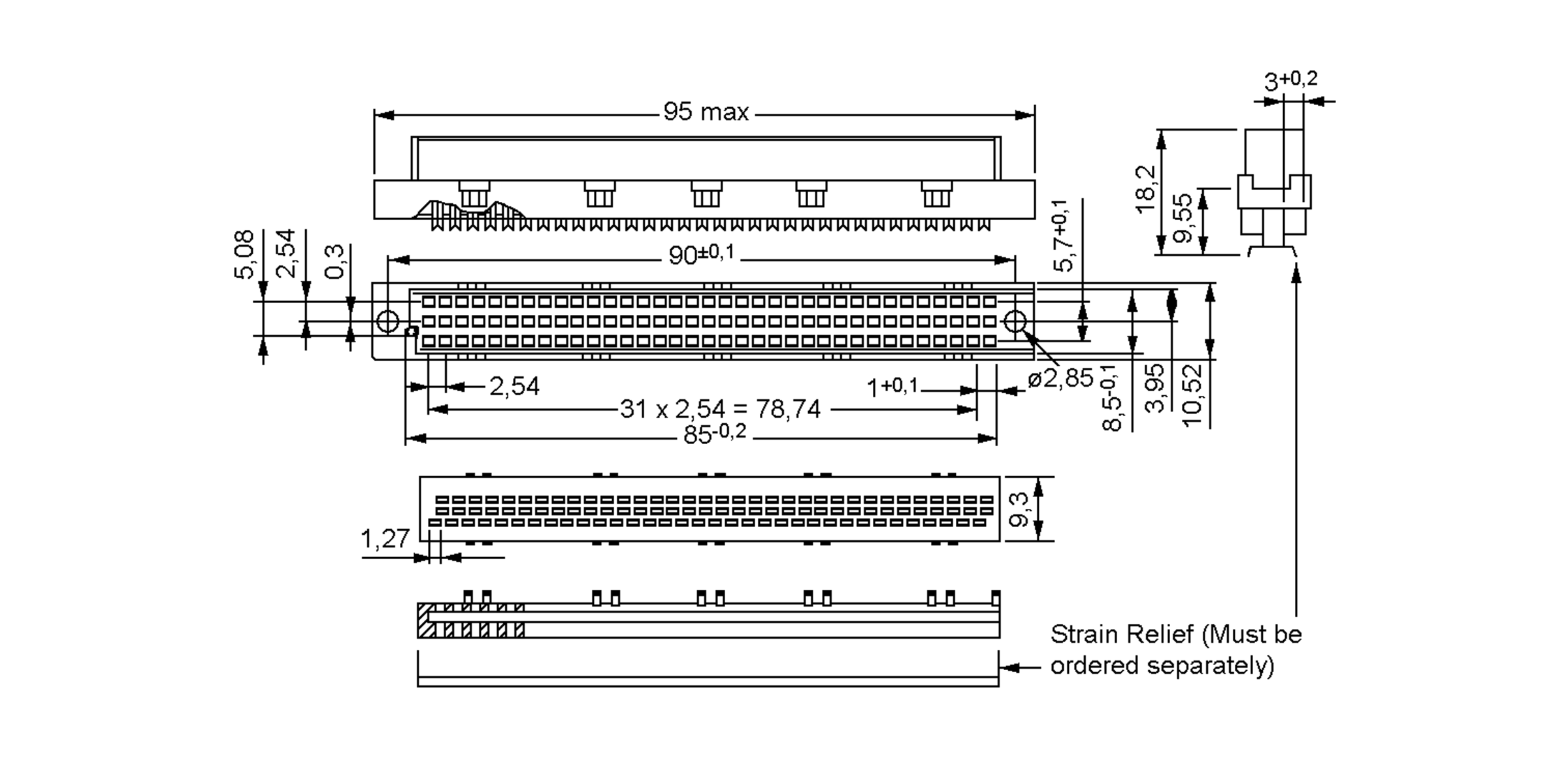

Dimensions and Weights
- Dimension: Length
- 95 mm
- Dimension: Width
- 10.52 mm
- Dimension: Height
- 18.2 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 1.5 A
- Rated voltage AC
- 330 V AC
- Contact resistance
- 15 mOhm
- Insulation resistance
- 10^11 MOhm
Mechanical Features
- Drilling Dimensions
- 2.85 mm
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
