122A11059X

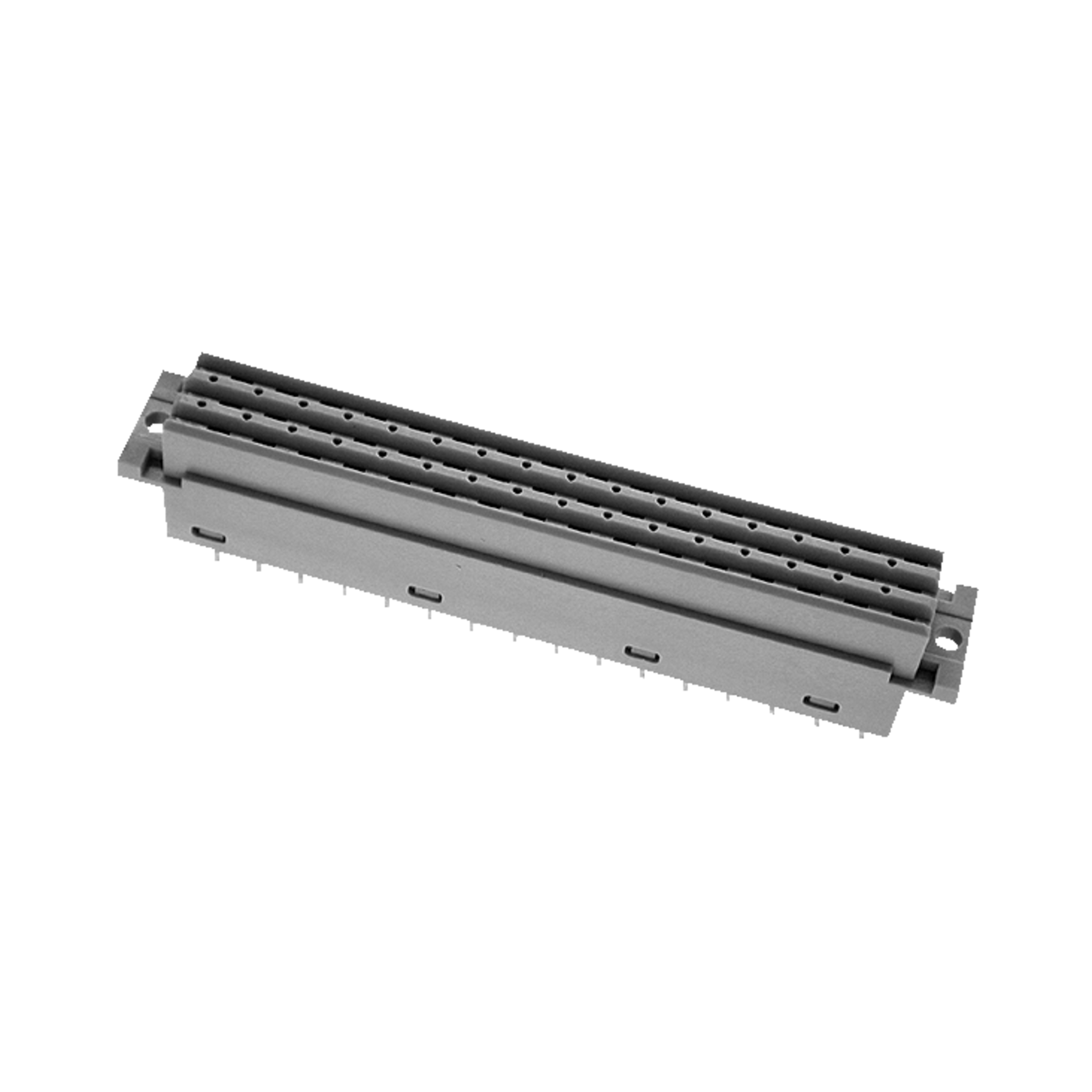

Conec Female connector 122A110_X Header 2-row straight 96 Pole Pitch5,08mm Solder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
50 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Female connector
- Connector Contact

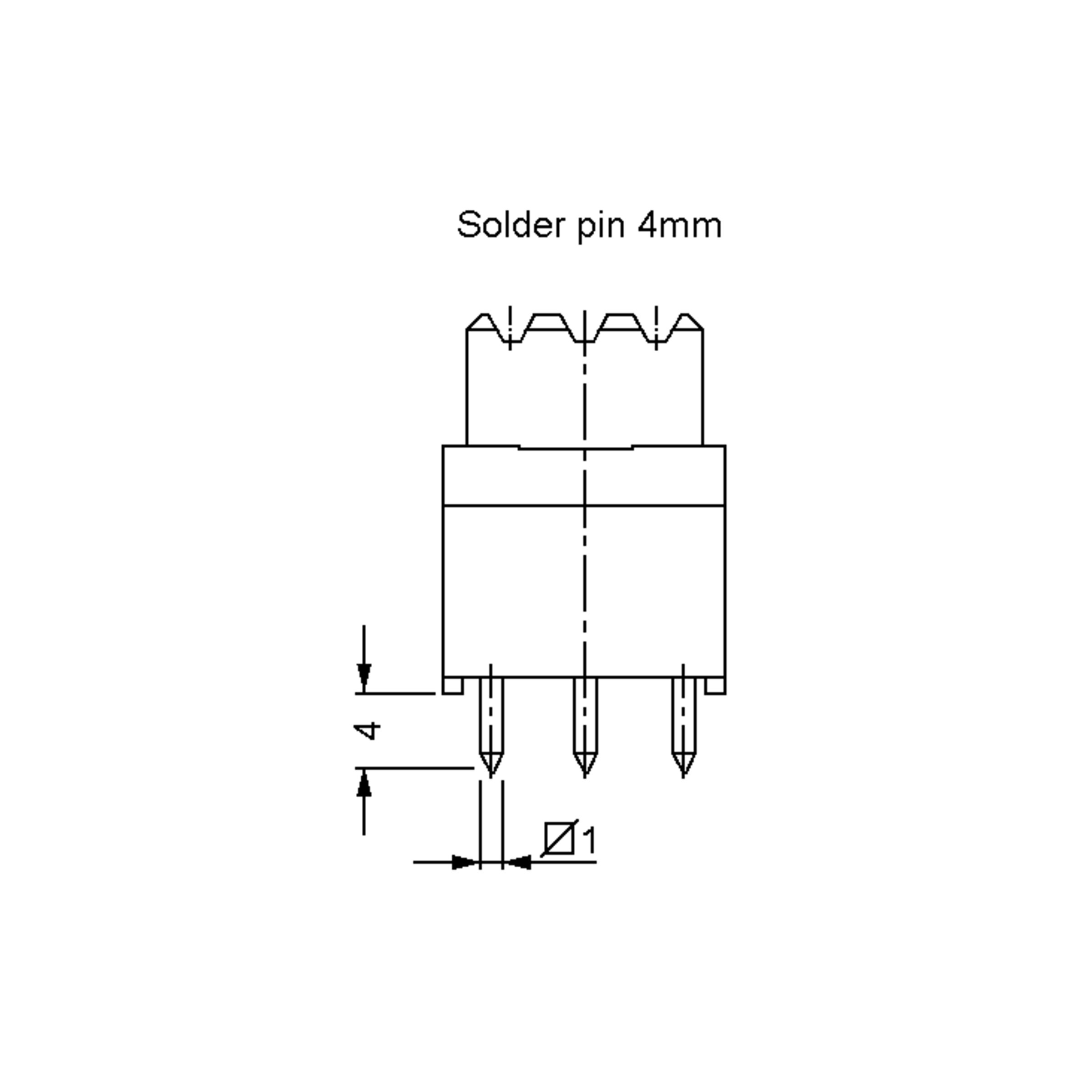

- Solder
- Series
- 122A110_X
- Colour
- gray
- Housing
- 2-row
- Design
- Header
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 96
- Pitch
- 5.08 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 125 °C
- Rated voltage AC
- 125 V AC
- Rated current
- 5.5 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

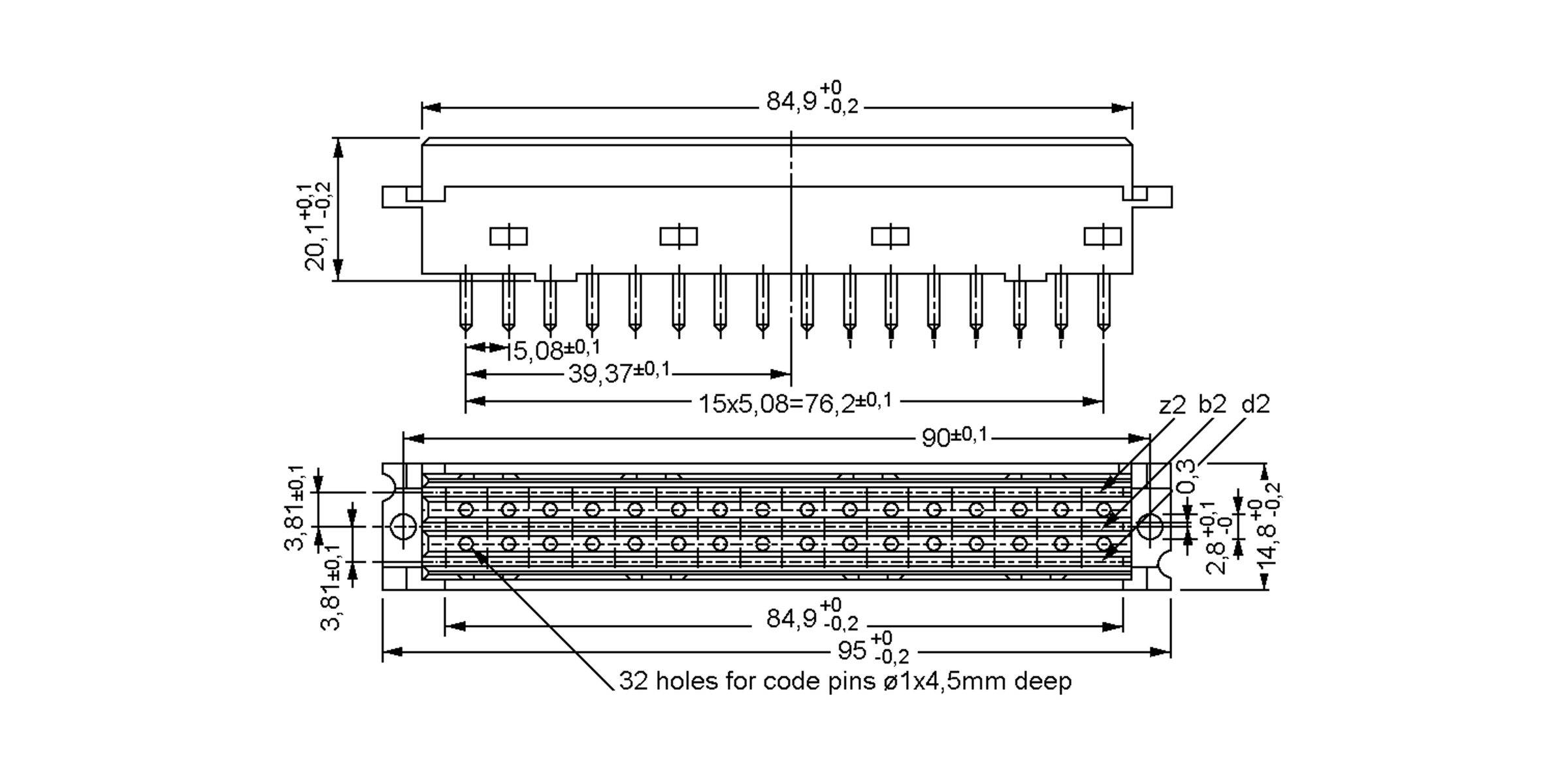

Dimensions and Weights
- Dimension: Length
- 94.8 mm
- Dimension: Width
- 14.8 mm
- Dimension: Height
- 20 mm
- Pitch
- 5.08 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Rated current
- 5.5 A
- Rated voltage AC
- 125 V AC
- Contact resistance
- 15 mOhm
- Insulation resistance
- 10^11 MOhm
Mechanical Features
- Durability
- 50
- Drilling Dimensions
- 2.8 mm
- Insertion force per contact, max.
- 75 N
- Insertion force per contact, min.
- 125 N
- Clearance and creepage distances (contact/ground), min.
- 1.6 mm
- Clearance and creepage distances (contact/ground), max.
- 3 mm
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0

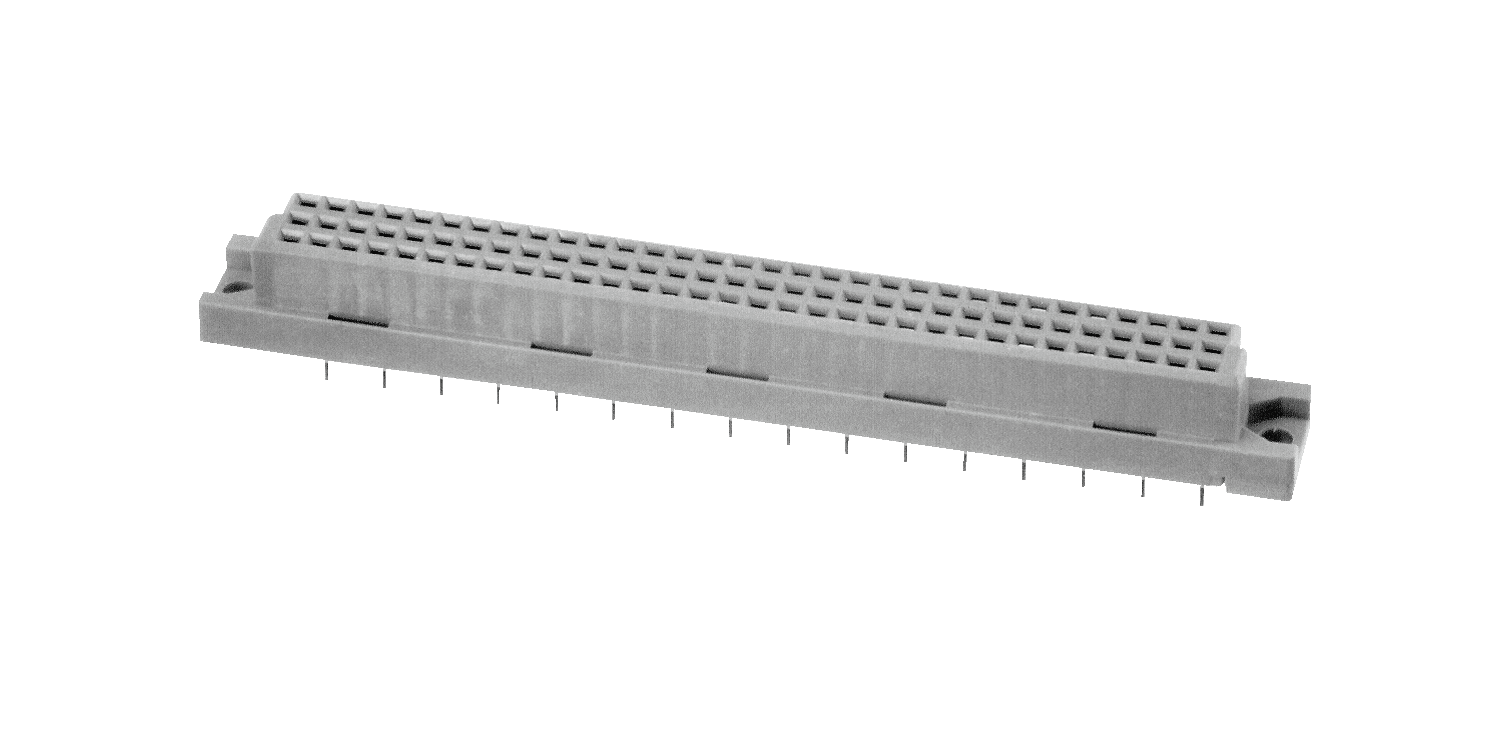

Other Products
