FM686816

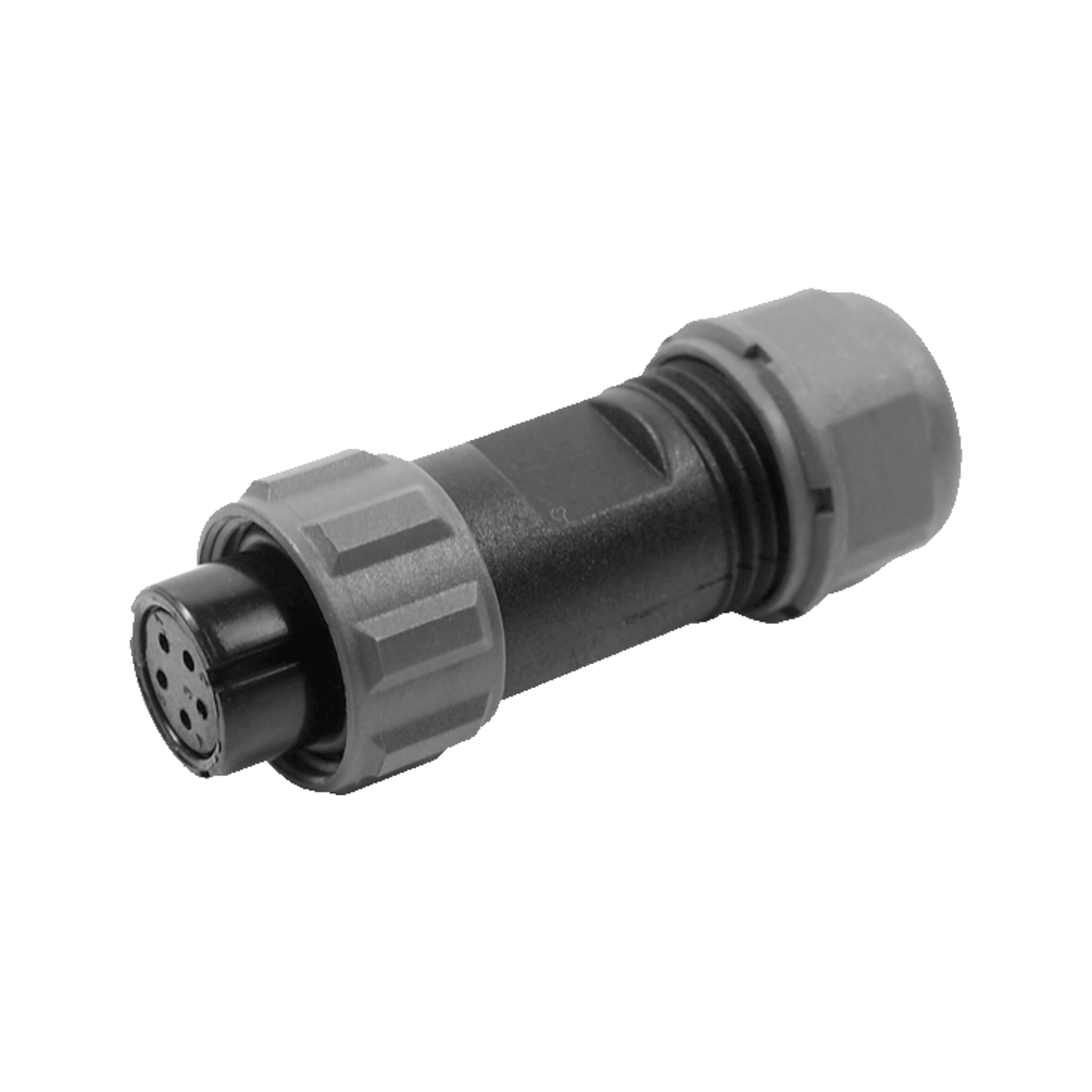

Cliff Circular connector FM6868 Socket 6 Pole vergoldet 0,785mm² 5A 48mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
51 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Circular connector
- Series
- FM6868
- Housing material
- Nylon (NY)
- Insulating body
- Polyphenylensulfide (PPS)
- Cable diameter, max.
- 8 mm
- Number of poles
- 6
- Class of Inflammability
- UL 94 V-0
- Operating Temperature Max.
- 85 °C
- Rated current
- 5 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

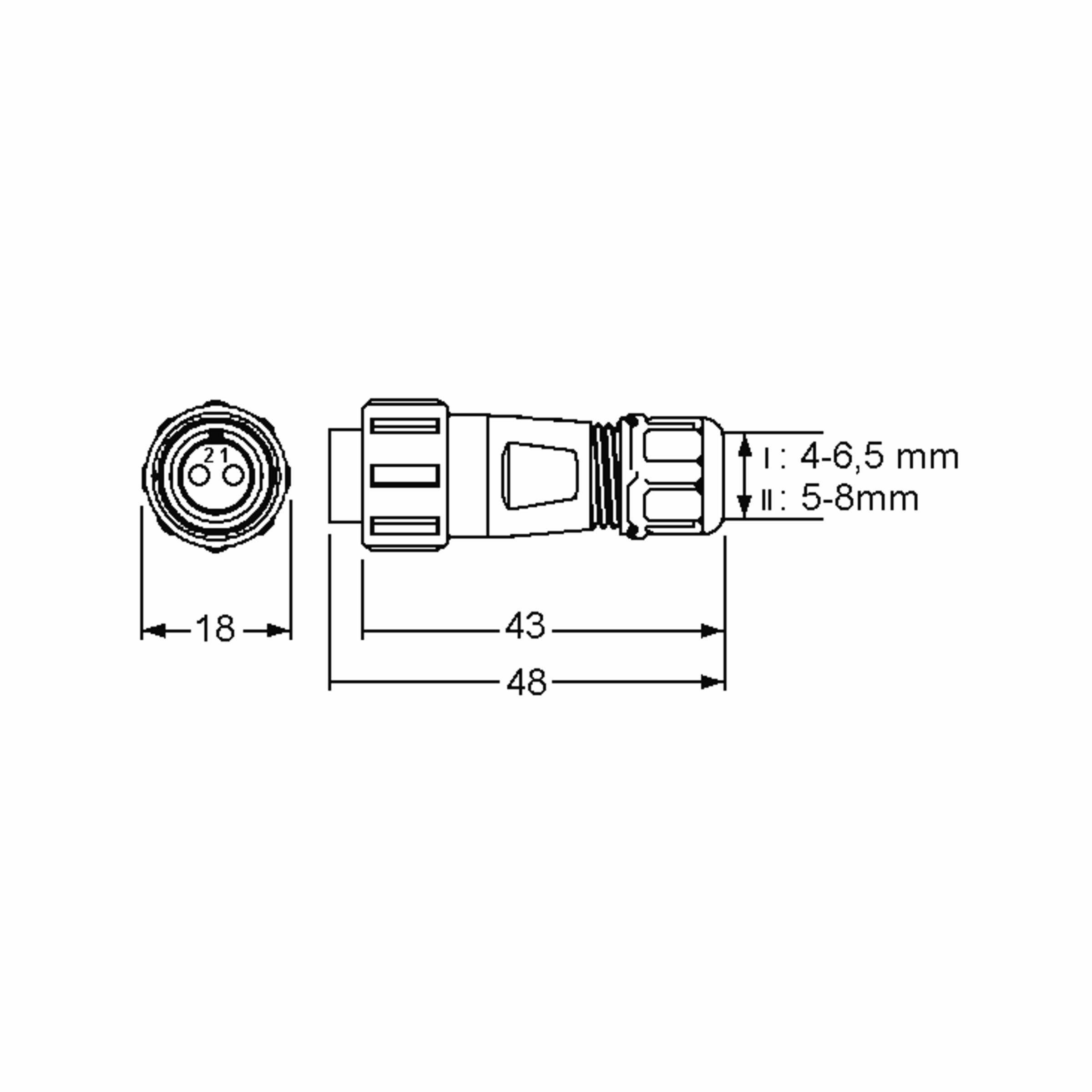

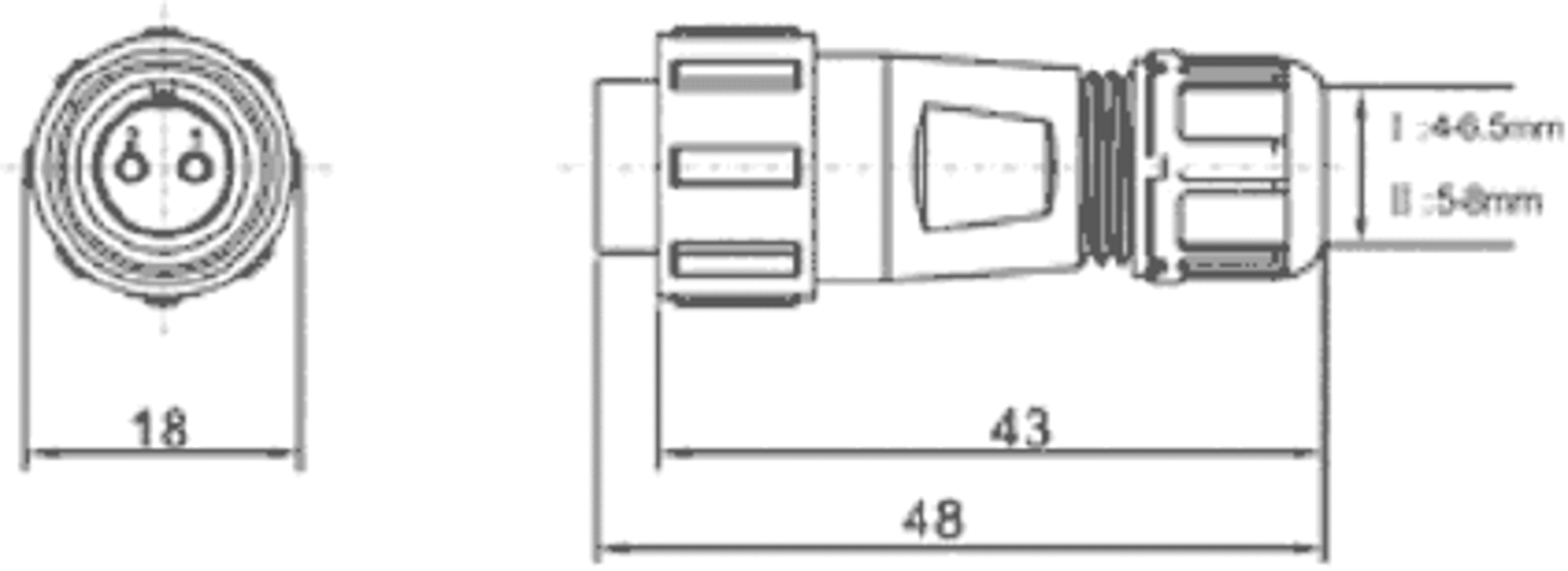

Dimensions and Weights
- Dimension: Length
- 48 mm
- Diameter
- 18 mm
- Cable diameter, min.
- 5 mm
- Cable diameter, max.
- 8 mm
- Conductor cross-section (AWG), max.
- 18 AWG
- Conductor cross-section, max.
- 0.785 mm²
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 5 A
- Breakdown voltage
- 1,000 V RMS / min.
- Contact resistance
- 5,000 mOhm
Mechanical Features
- Durability
- 500
- Housing material
- Nylon (NY)
- Insulating body
- Polyphenylensulfide (PPS)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
