FCR7942

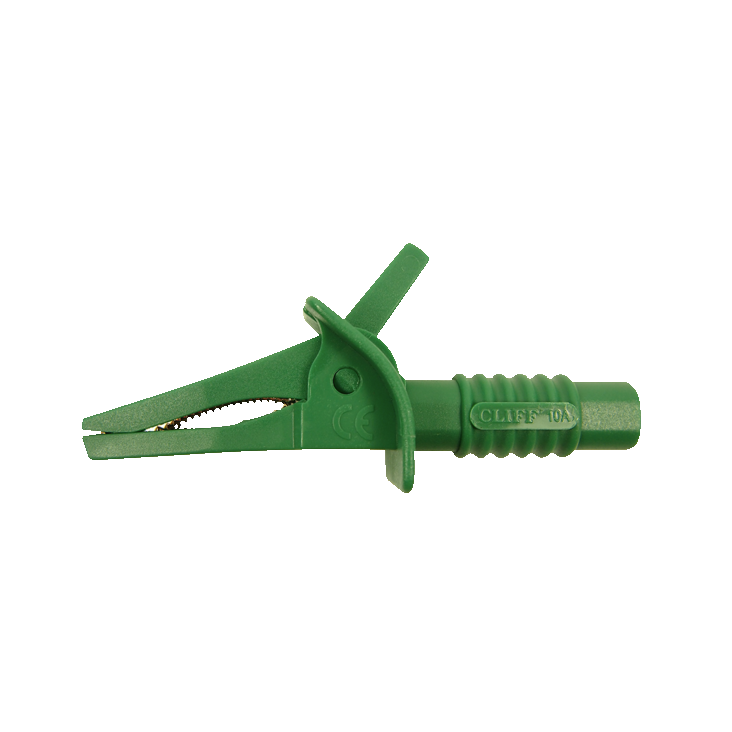

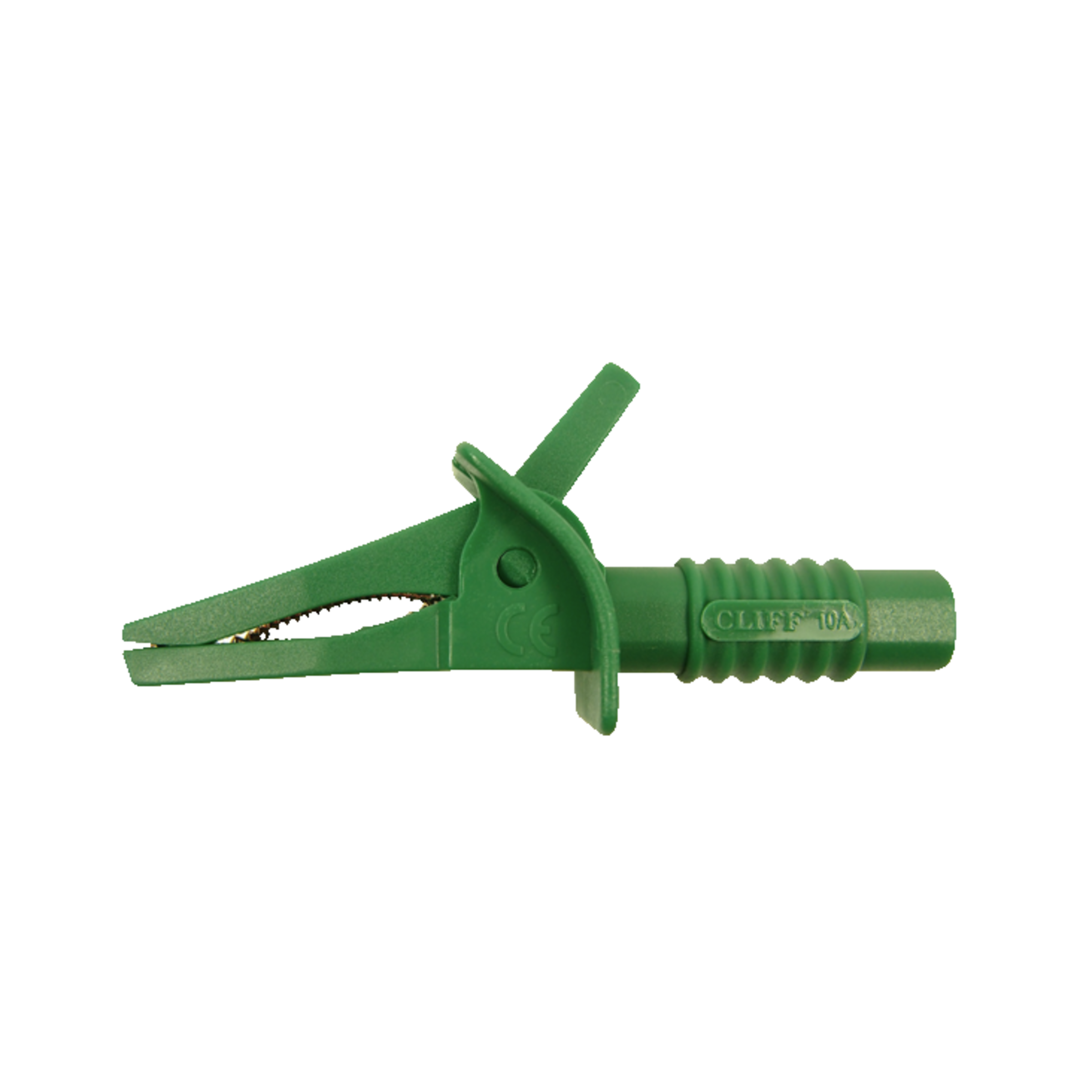

Cliff Crocodile clip FCR79 CAT III CAT II green Plug in 4mm 10A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Crocodile clip
- Connector Contact
- Plug in
- Series
- FCR79
- Colour
- green
- Measurement category
- CAT II
CAT III - Cable diameter, max.
- 4 mm
- Standards
- EN 61010-031
- Operating Temperature Max.
- 40 °C
- Rated current
- 10 A
- Operating Temperature Min.
- -10 °C
- RoHS-Conform
Specifications
Open all

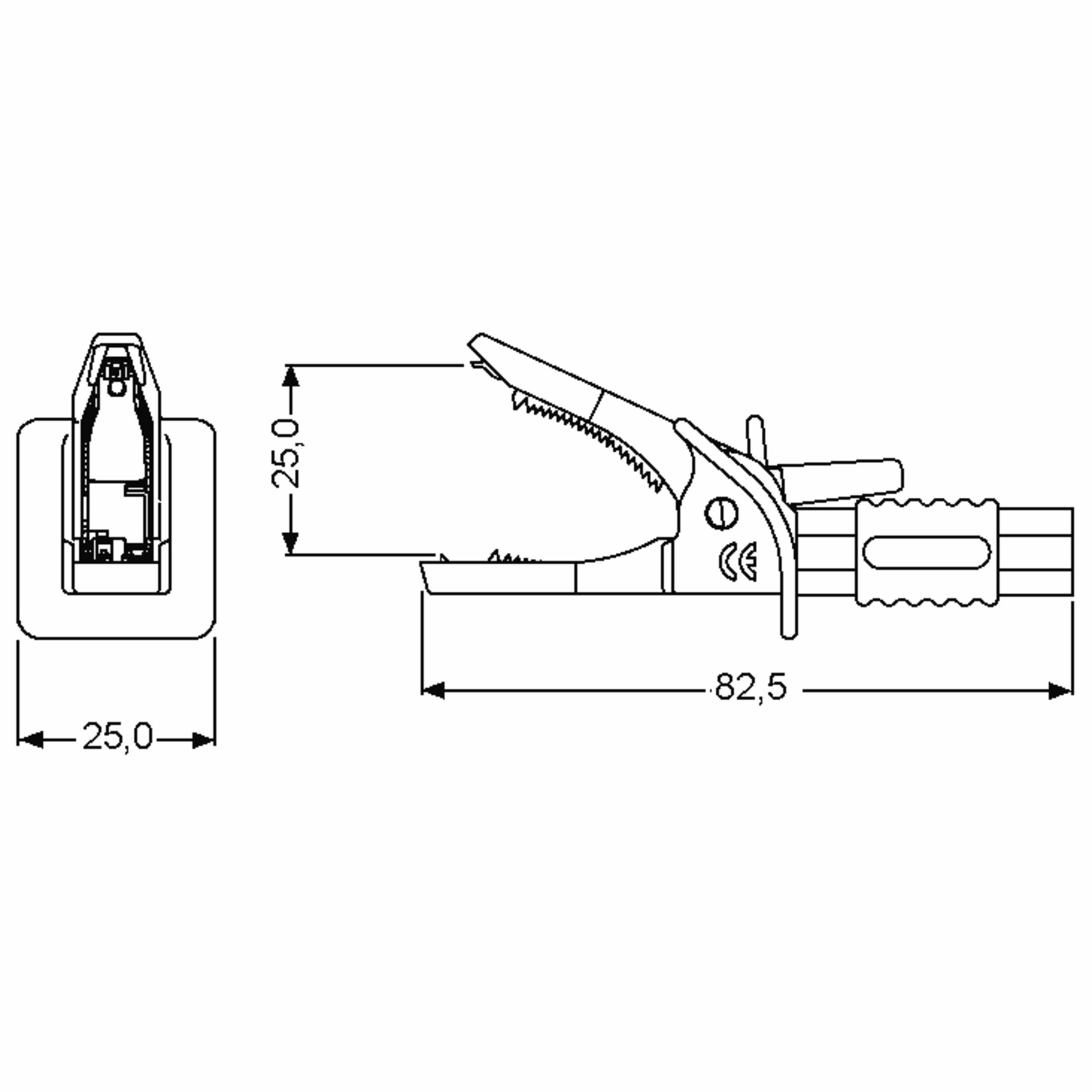

Dimensions and Weights
- Dimension: Length
- 82.5 mm
- Cable diameter, max.
- 4 mm
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 40 °C
Technical Features
- Rated current
- 10 A
Safety/Certifications
- Approvals
- CE
- UKCA
- Standards
- EN 61010-031
Documents
CrocClips.pdf
CrocClips.pdf
CrocClips.pdf
Kroko.pdf
Kroko.pdf
