FC68369

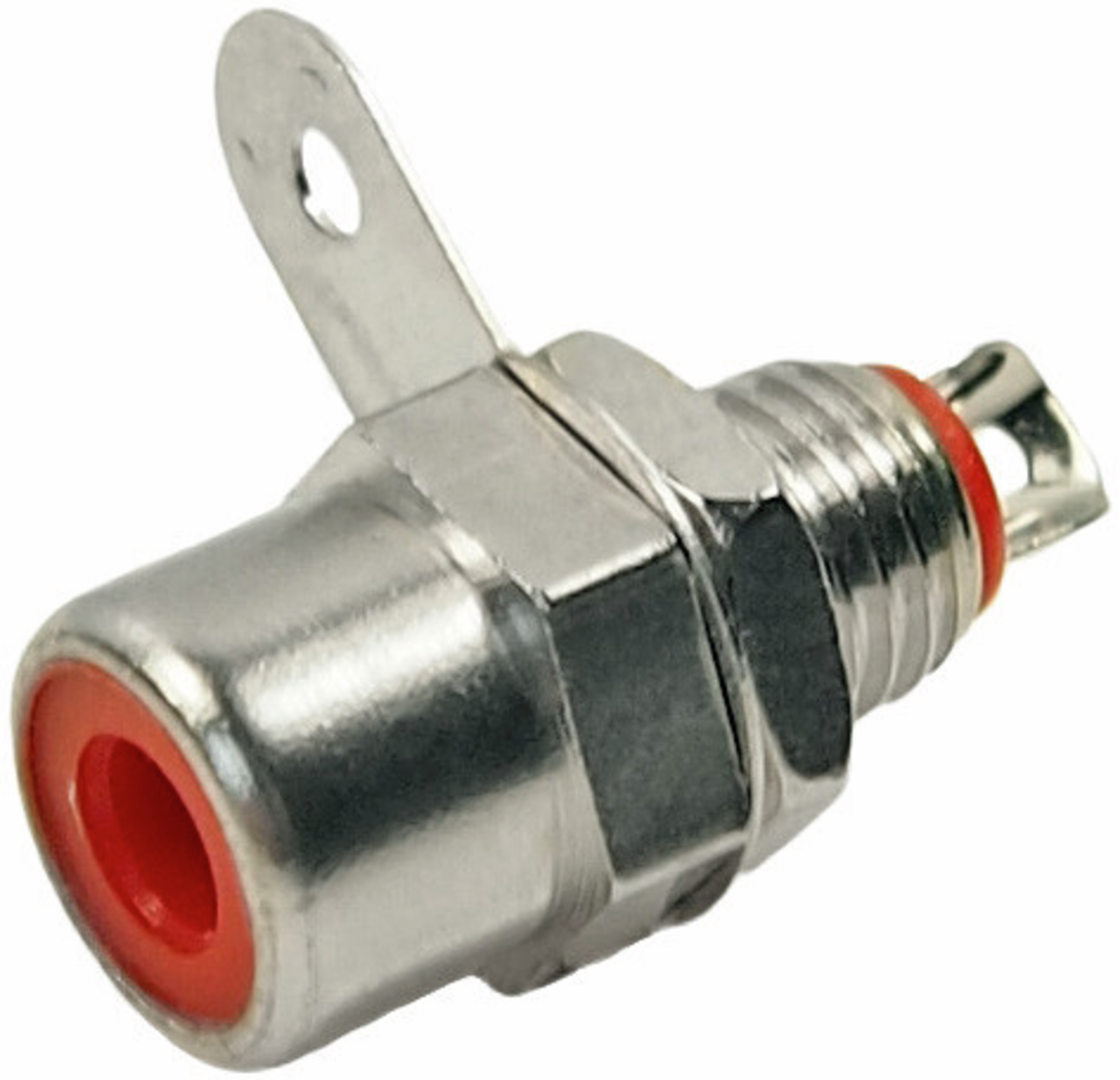

Cliff Socket FC68_ Panel Socket round straight Copper Alloy Solder 21,6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
75 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket
- Connector Contact
- Solder
- Series
- FC68_
- Housing material
- Copper Alloy
- Housing
- round
- Design
- Panel
- Insulating body
- Thermoplast (TP)
- Contact Type
- Cinch
- Locking
- no
- Alignment
- straight
- RoHS-Conform
Specifications
Open all

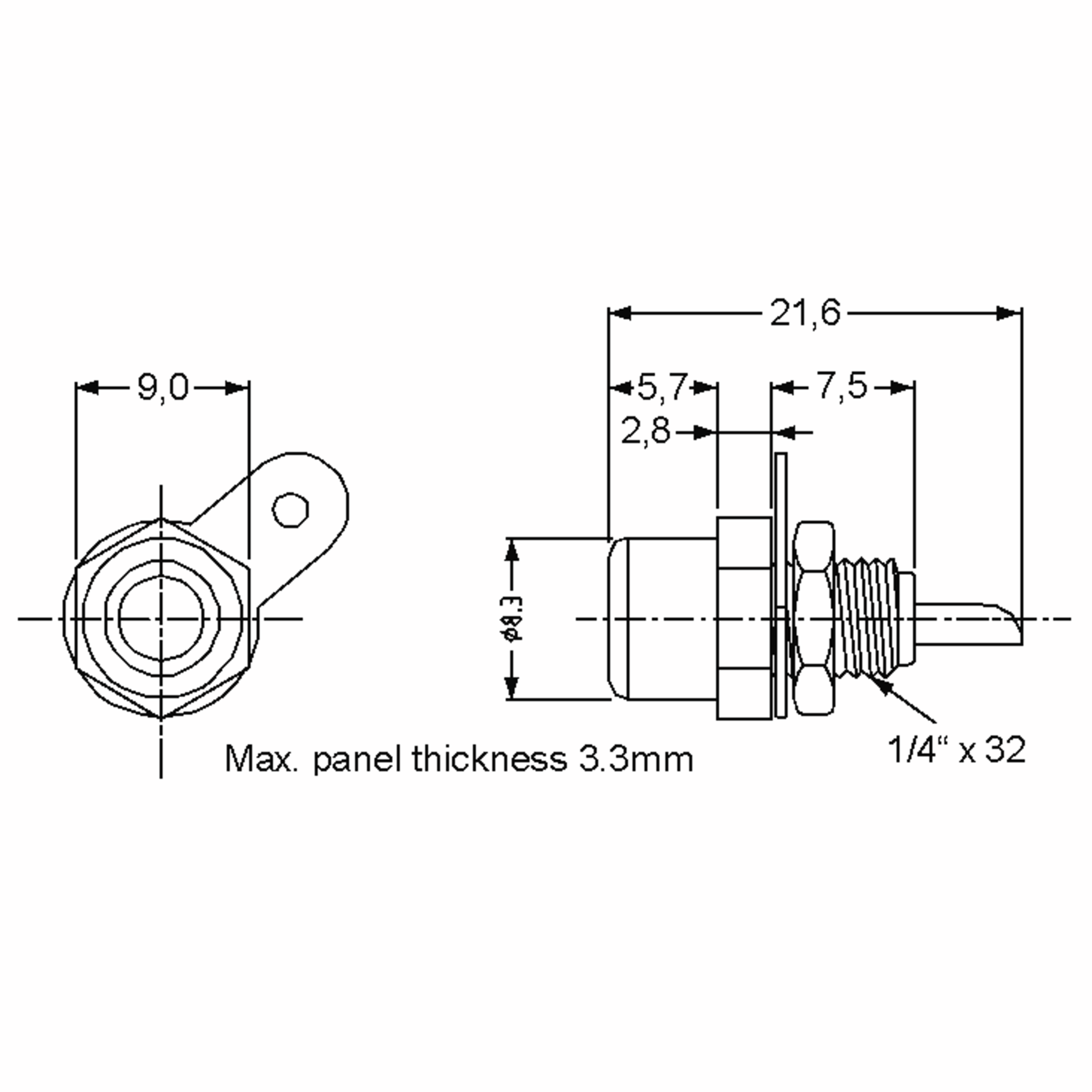

Dimensions and Weights
- Dimension: Length
- 21.6 mm
- Diameter
- 8.3 mm
- Board Strength max.
- 3.3 mm
Technical Features
- Insulation resistance
- 0,1 MOhm
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 4,000
- Housing material
- Copper Alloy
- Insulating body
- Thermoplast (TP)
- Contact Surface Input
- vernickelt
