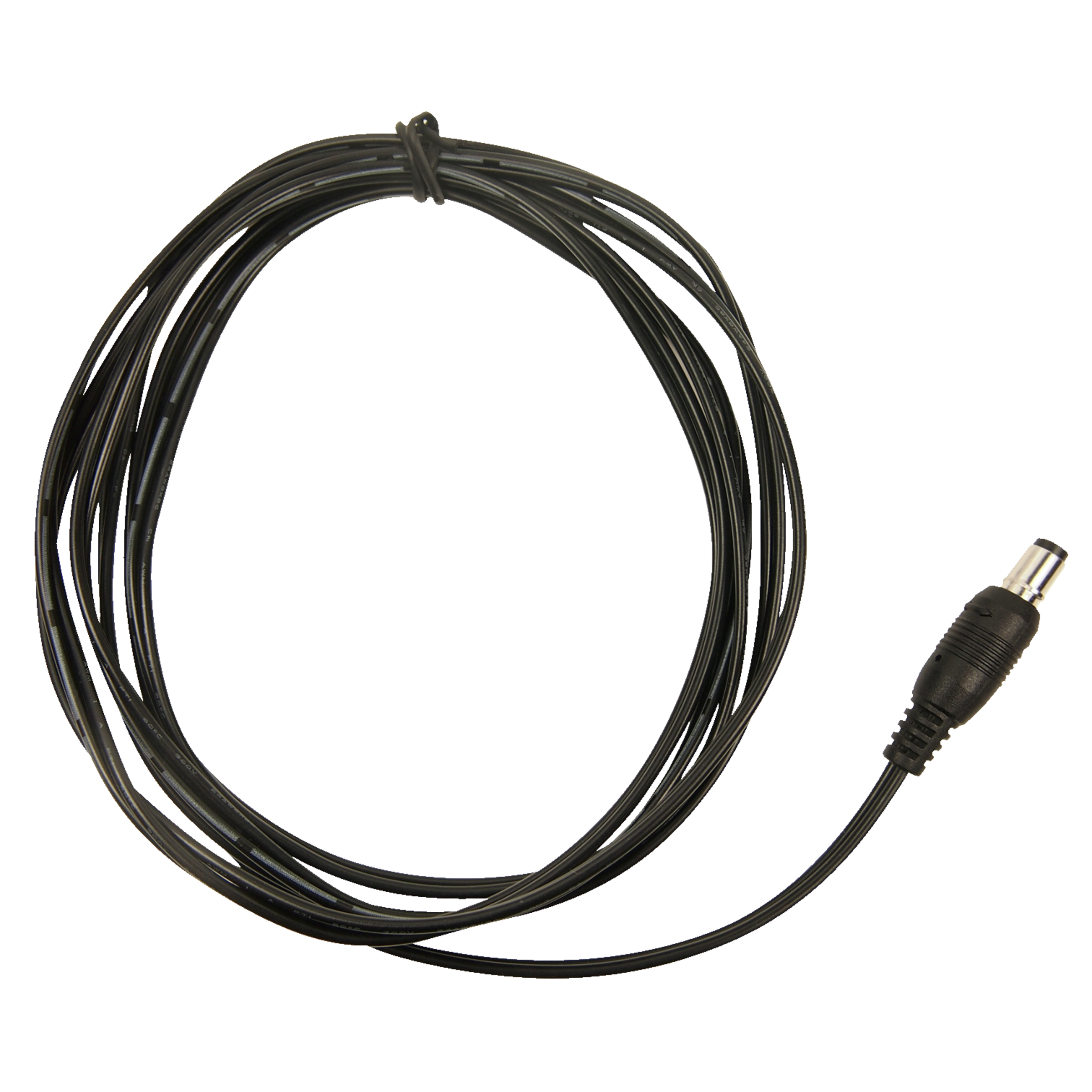

FC6814751W
Cliff
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 21.12.2023
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FC68147_

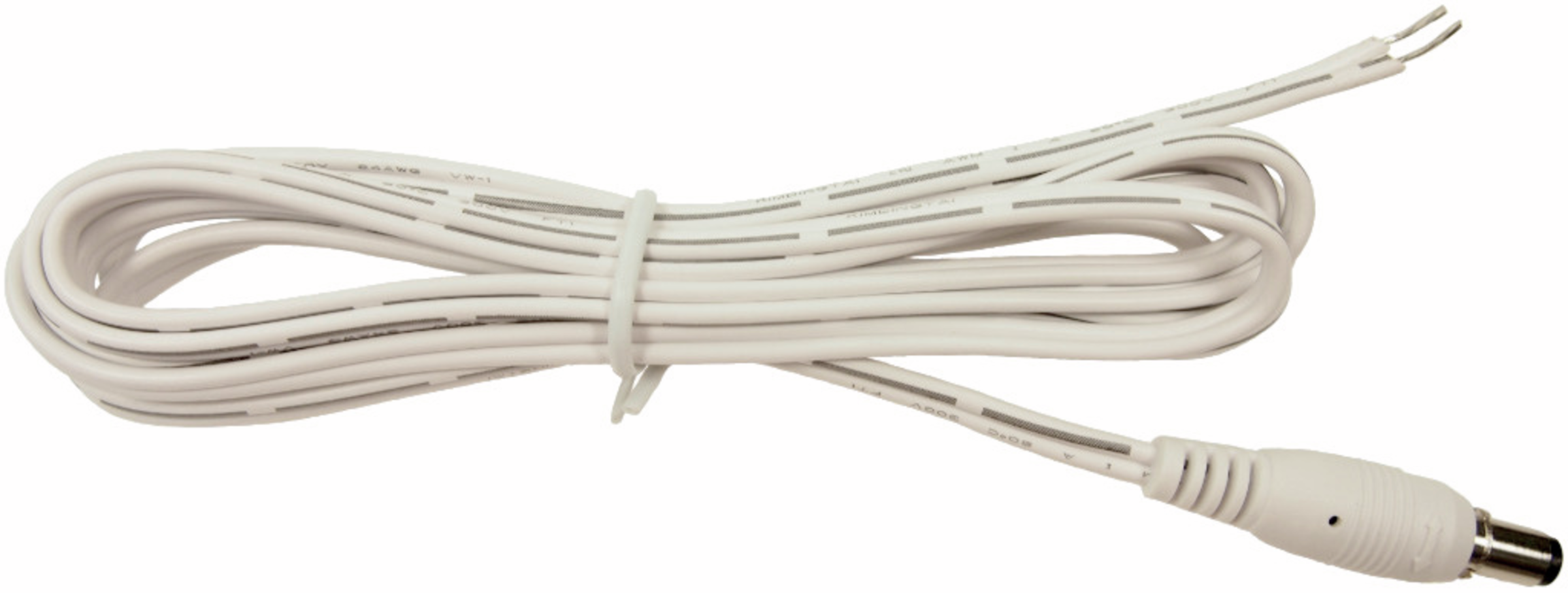

- Colour
- white
- Dimension: Length
- 2,000 mm
- Rated current
- 2 A
- Rated voltage DC
- 16 V DC
- RoHS-Conform
Specifications
Open all

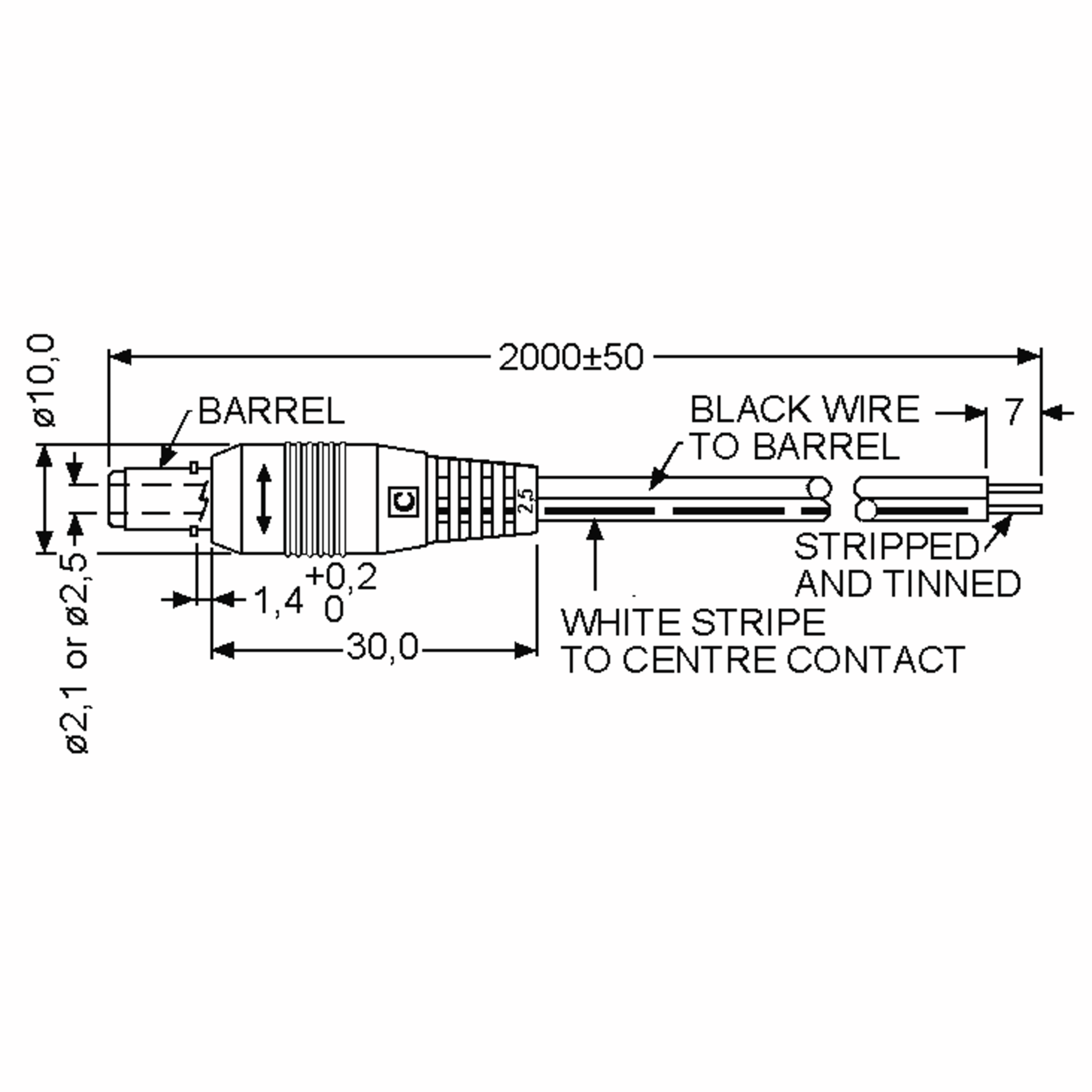

Dimensions and weights
- Dimension: Length
- 2,000 mm
- Diameter
- 10 mm
- Stripping length, max.
- 7 mm
- Conductor cross-section (AWG), max.
- 24 AWG
Technical features
- Rated current
- 2 A
- Rated voltage DC
- 16 V DC
- Insulation resistance
- 100 x 10^6 MOhm
- Contact resistance
- 30 mOhm
