FC681465

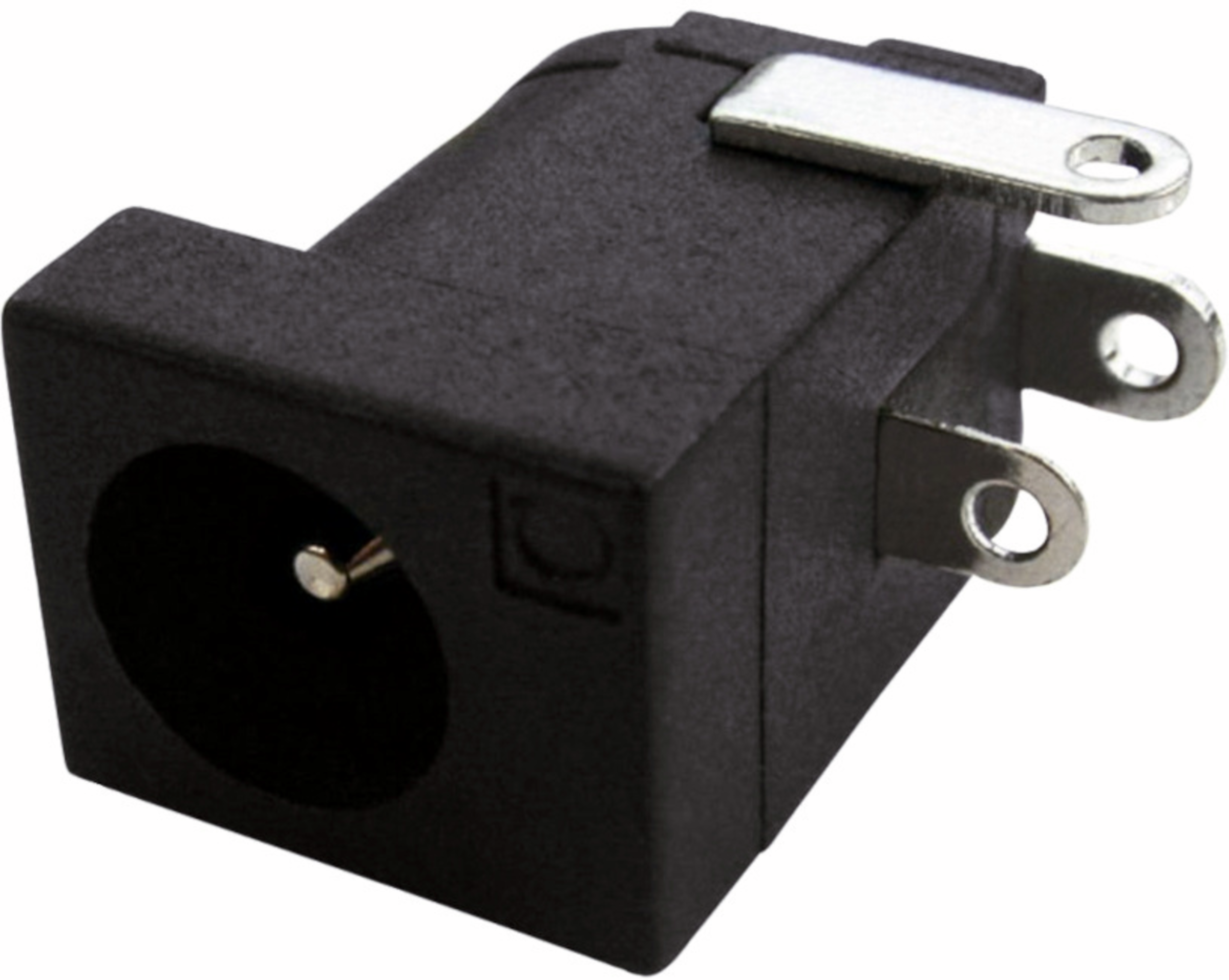

Cliff Power supply socket FC681465 Pin versilbert black 5A 9mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.210 Pcs. in stock
Next Stock Receipt
Week 21/2026
300 Pcs.
300 Pcs.
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Power supply socket
- Series
- FC681465
- Colour
- black
- Housing material
- Polybutylenterephthalat (PBT) GF
- Class of Inflammability
- UL 94 V-0
- Alignment
- Rated current
- 5 A
- Rated voltage DC
- 12 V DC
- RoHS-Conform
Specifications
Open all

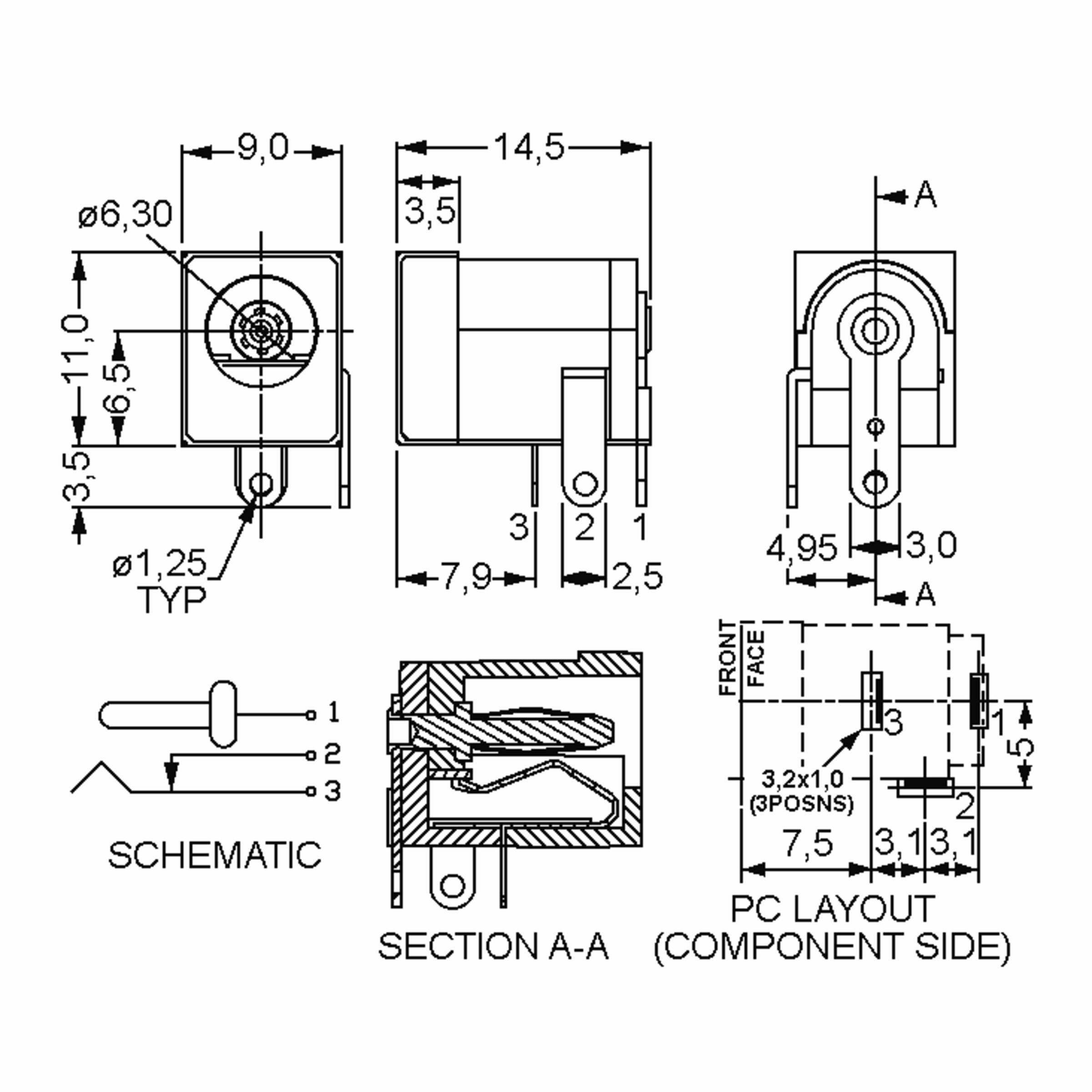

Dimensions and Weights
- Dimension: Length
- 9 mm
- Dimension: Width
- 14.5 mm
- Dimension: Height
- 11 mm
- Height (incl. pins)
- 14.5 mm
Technical Features
- Rated current
- 5 A
- Rated voltage DC
- 12 V DC
- Insulation resistance
- 100 x 10^6 MOhm
Mechanical Features
- Durability
- 5,000
- Housing material
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- versilbert
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
