FC6130

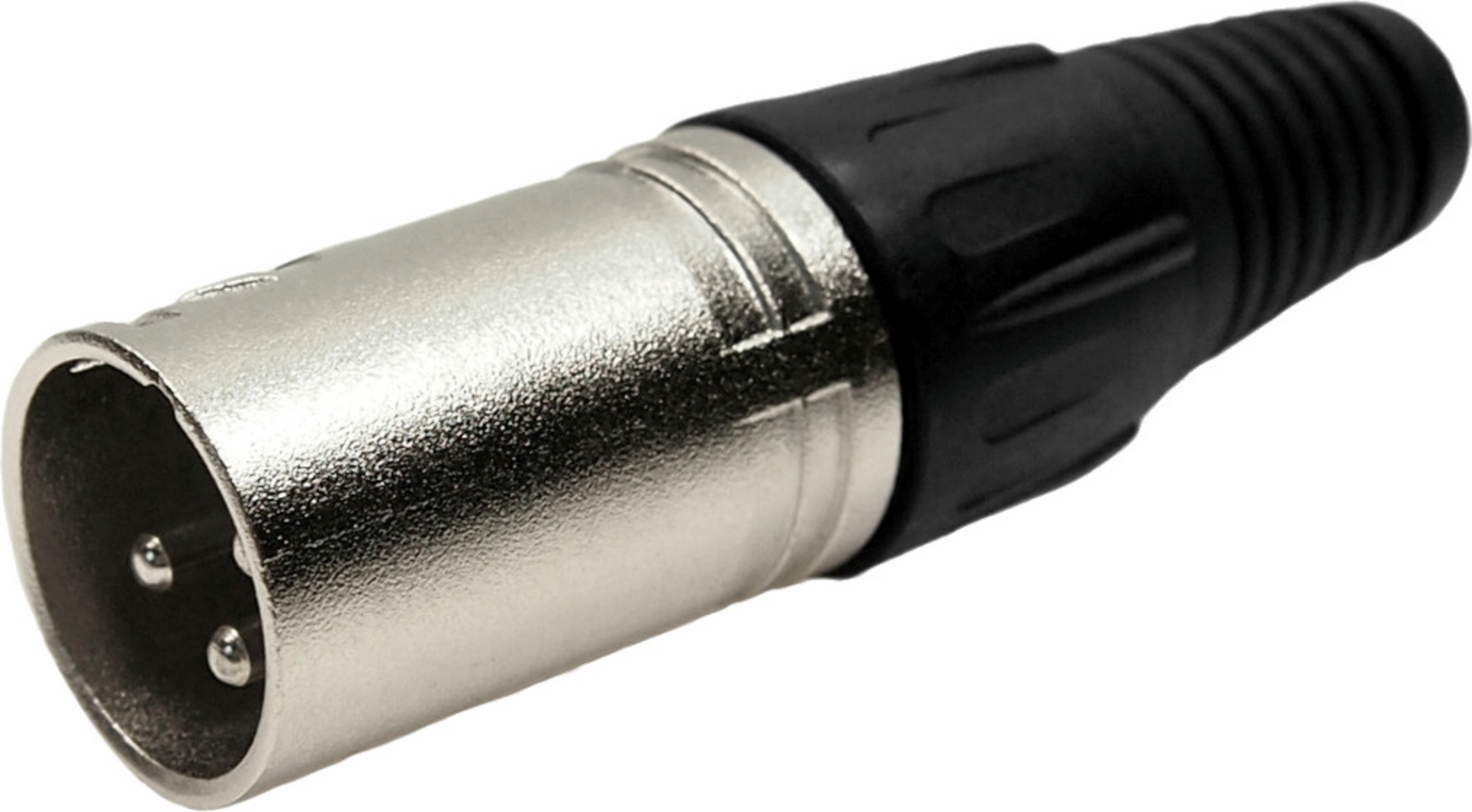

Cliff Cable plug FC61_ Cable Plug Latching lug XLR straight 3 Pole Solder 67mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Cable plug
- Connector Contact
- Solder
- Series
- FC61_
- Housing
- XLR
- Design
- Cable
- Insulating body
- Nylon (NY)
- Number of poles
- 3
- Locking
- yes
- Alignment
- straight
- Locking Type
- Latching lug
- Rated current
- 16 A
- RoHS-Conform
Specifications
Open all

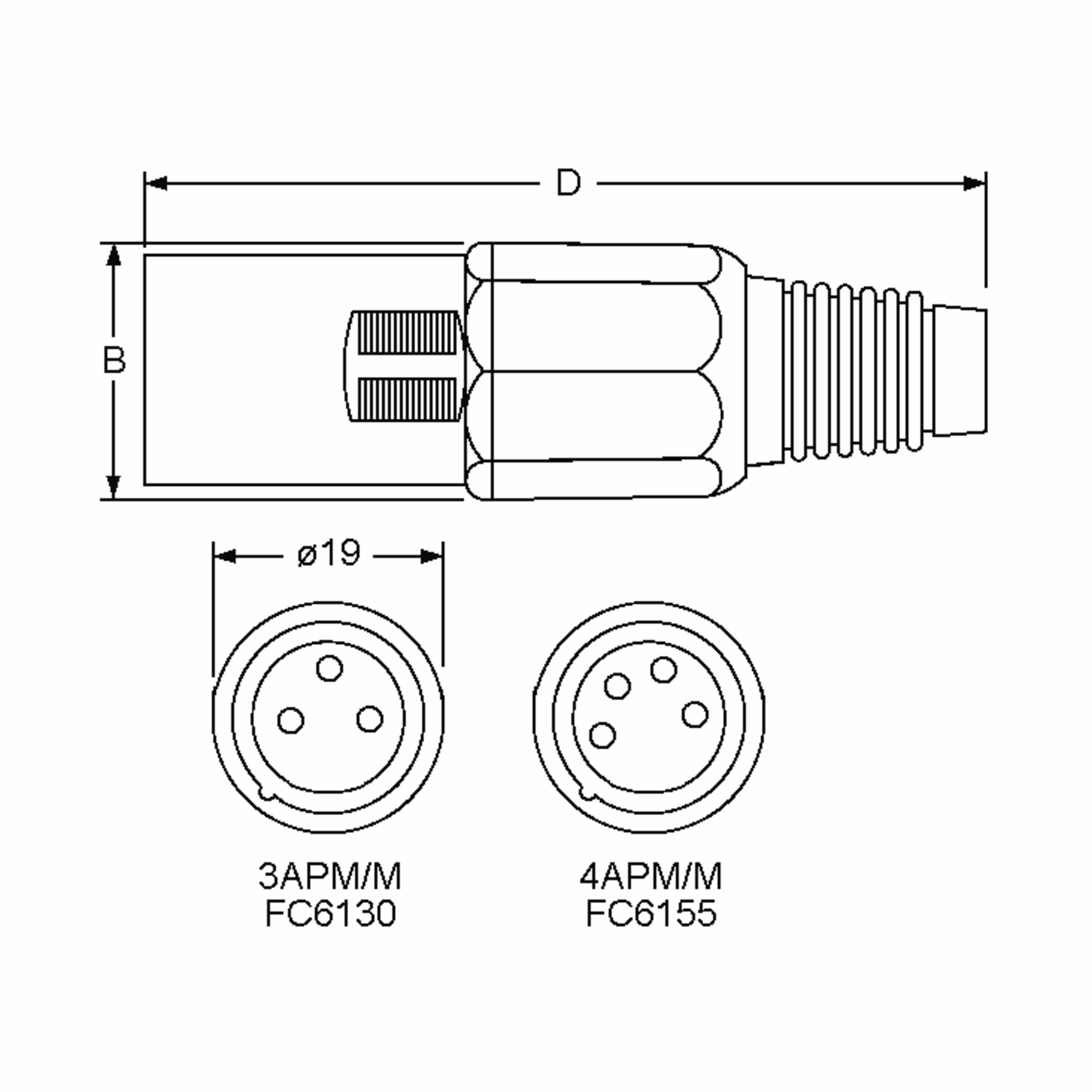

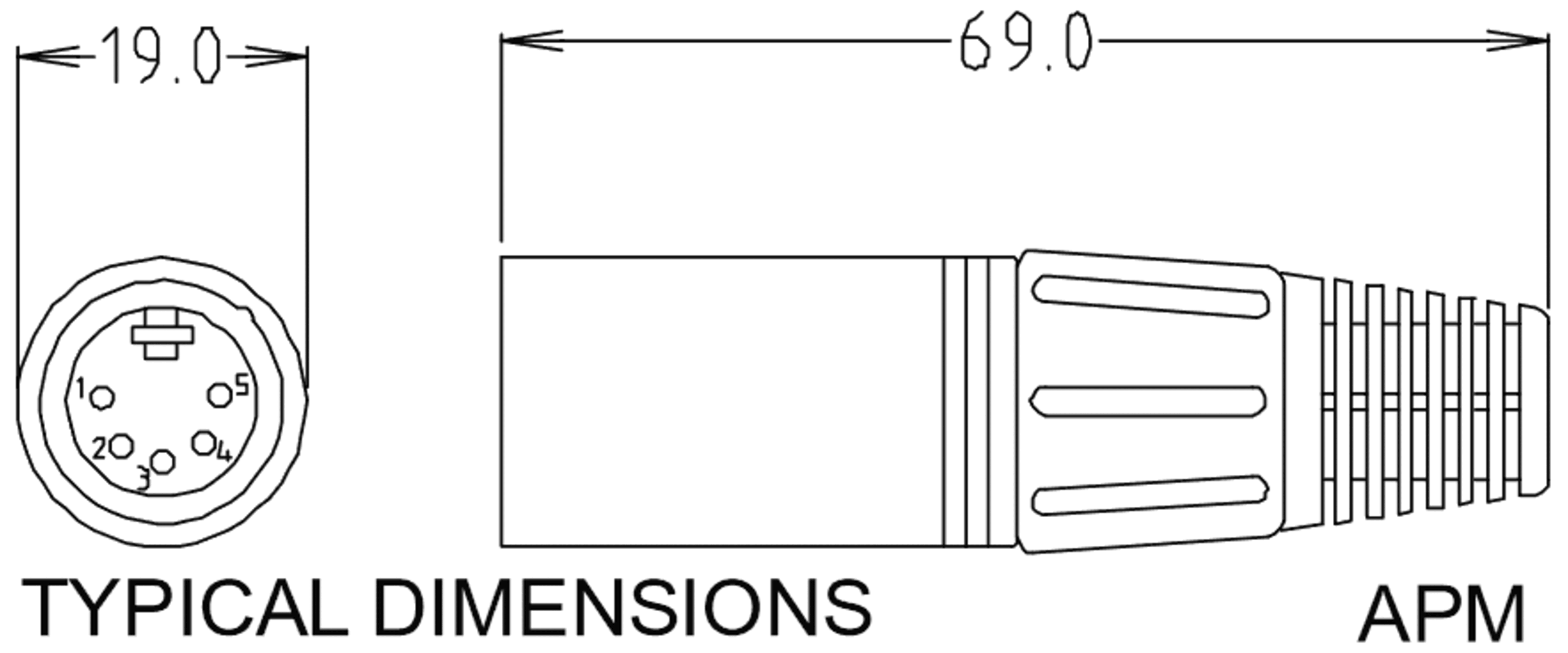

Dimensions and Weights
- Dimension: Length
- 67 mm
- Diameter
- 21.5 mm
Technical Features
- Rated current
- 16 A
- Insulation resistance
- 10^6 MOhm
- Contact resistance
- 3 mOhm
- Capacity
- 4 pF
Mechanical Features
- Insulating body
- Nylon (NY)
- Contact Surface Input
- versilbert
