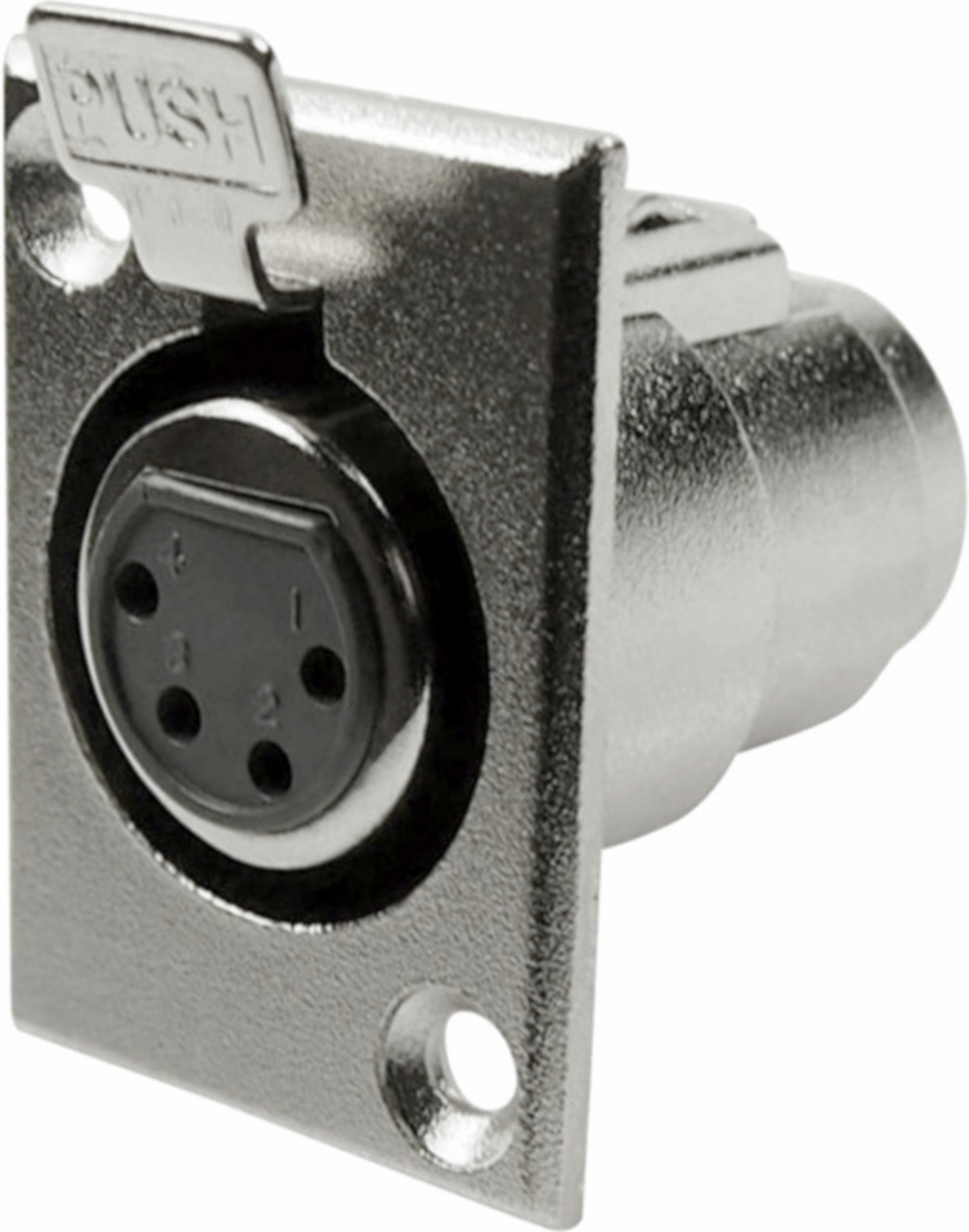

FC6120
Cliff Installation socket FC61_ Panel Socket Latching lug XLR straight 4 Pole Zinc Aluminium Alloy Solder 26,2mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
50 Pcs. in stock
Next Stock Receipt
Week 21/2026
100 Pcs.
100 Pcs.
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Installation socket
- Connector Contact
- Solder
- Series
- FC61_
- Housing material
- Zinc Aluminium Alloy
- Housing
- XLR
- Design
- Panel
- Insulating body
- Nylon (NY)
- Number of poles
- 4
- Locking
- yes
- Alignment
- straight
- Locking Type
- Latching lug
- Operating Temperature Max.
- 89 °C
- Rated current
- 10 A
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all

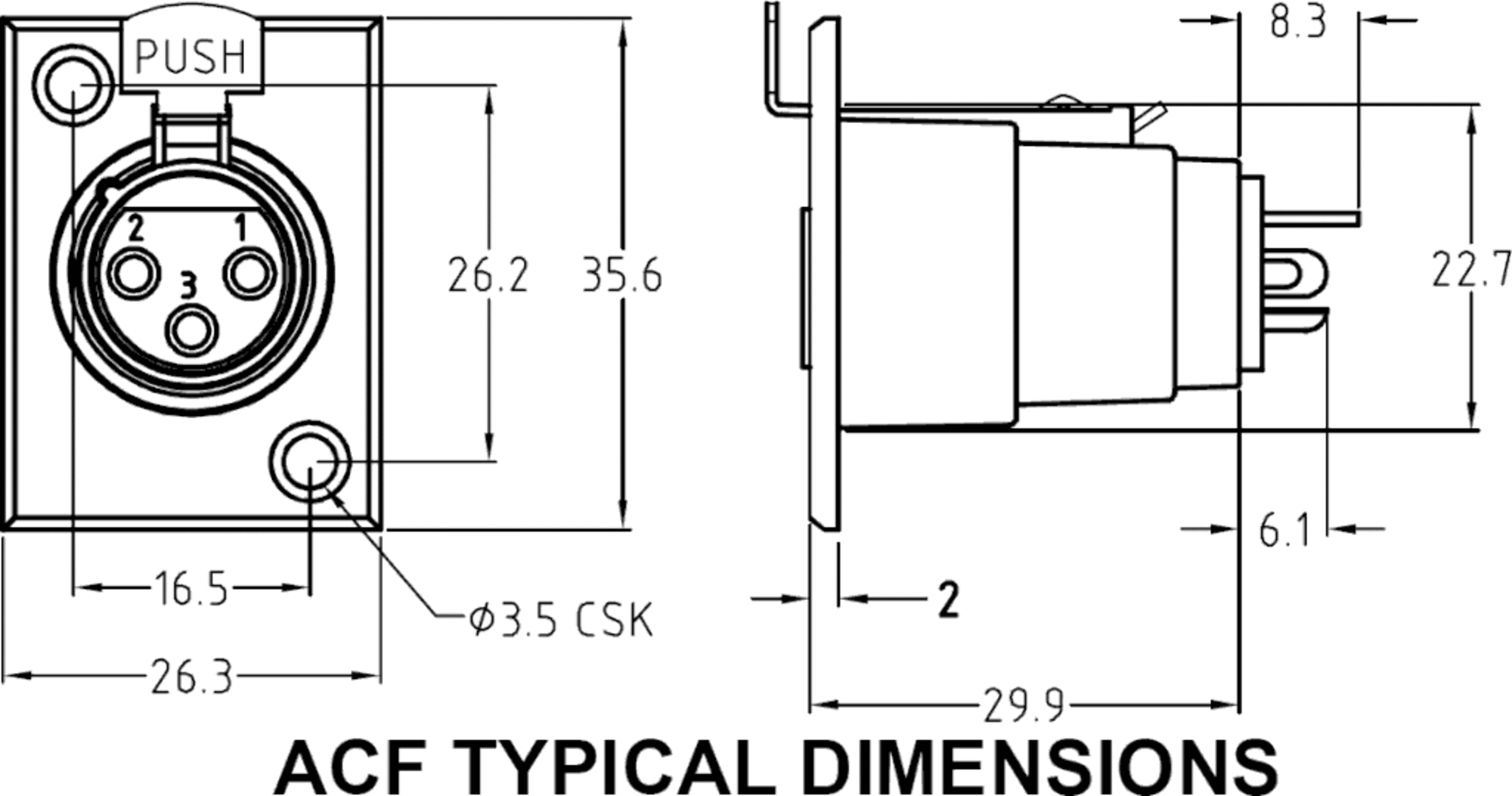

Dimensions and Weights
- Dimension: Length
- 26.2 mm
- Dimension: Width
- 35.7 mm
- Dimension: Height
- 30.8 mm
- Height (incl. pins)
- 36.3 mm
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 89 °C
Technical Features
- Rated current
- 10 A
- Insulation resistance
- 10^6 MOhm
- Contact resistance
- 5 mOhm
- Capacity
- 7 pF
Mechanical Features
- Durability
- 5,000
- Insertion force per contact, min.
- 89 N
- Housing material
- Zinc Aluminium Alloy
- Insulating body
- Nylon (NY)
- Contact Surface Input
- versilbert
