CP30222

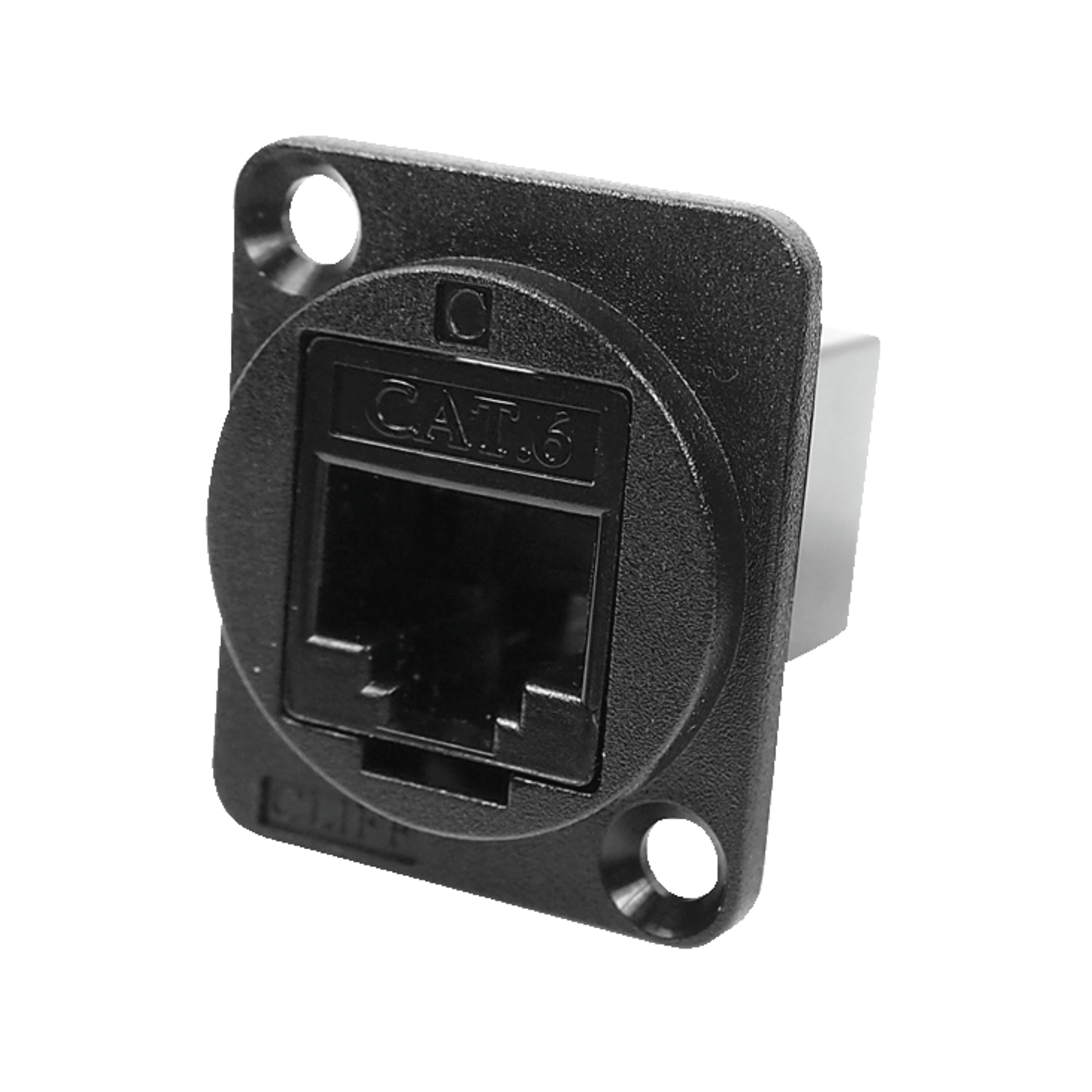

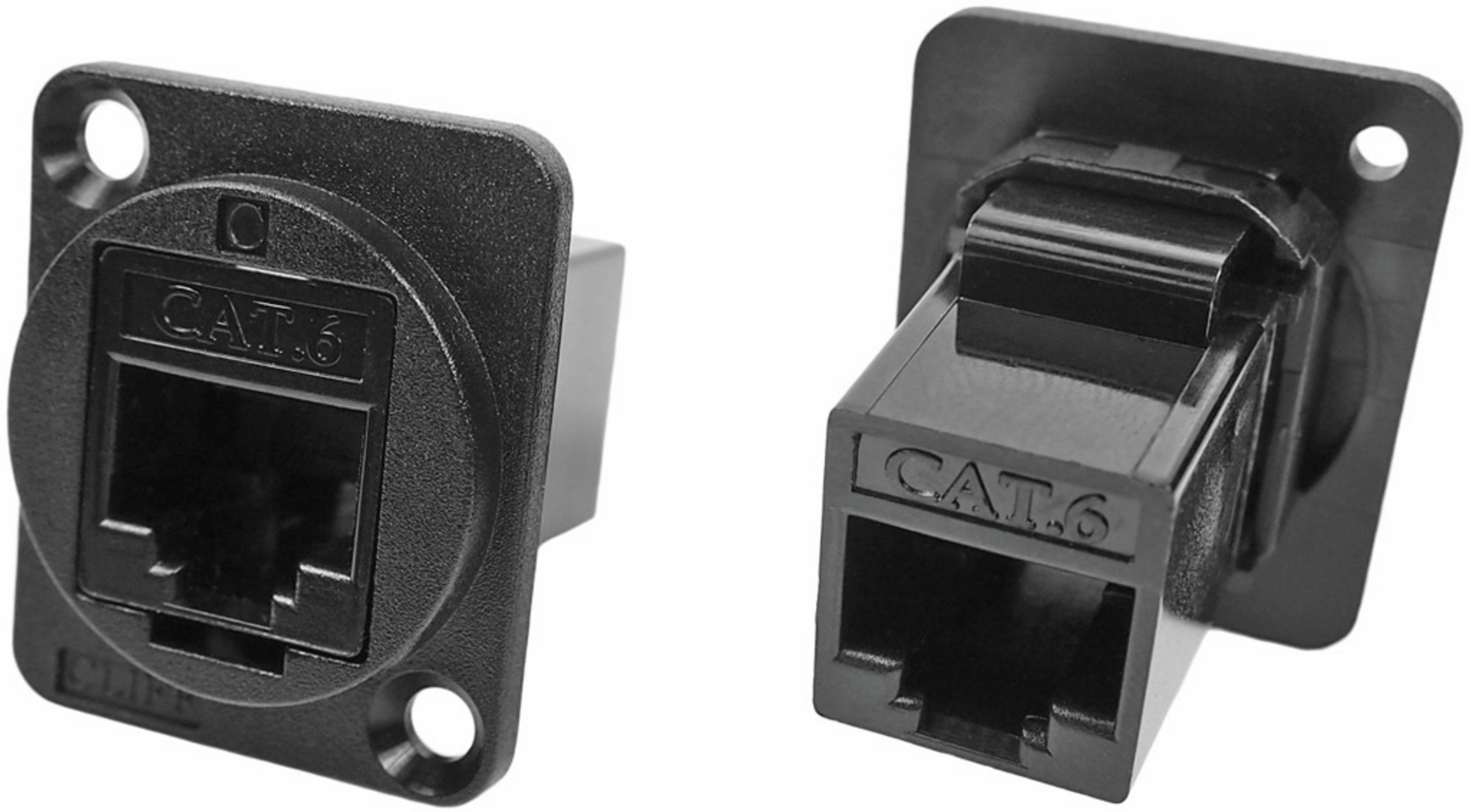

Cliff Mounting adapter CP302_ Panel Socket XLR straight Polyamide (PA) RJ45 29mm

CP30222
Manufacturer Part No.
CP30222
Schukat Part No.
CP30222
Manufacturer
Cliff
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Contact Type
Socket
Type
Mounting adapter
Connector Contact
RJ45
Series
CP302_
Colour
black
Housing material
Polyamide (PA)
Housing
XLR
Connector Coating
Gold-plated
Specifications
Panel
Insulating body
Acrylnitril Butadiene Styrol (ABS)
Contact Type
RJ45
Class of Inflammability
UL 94 V-2
Locking
no
Alignment
straight
Operating Temperature Max.
60 °C
Rated current
1.5 A
Rated voltage DC
125 V DC
Operating Temperature Min.
-10 °C
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Cliff
Type
  • Mounting adapter
Series
  • CP302_
Product group
  • F5420
Housing
  • XLR
Contact Type
  • Socket
Connector Contact
  • RJ45
Contact Type
  • RJ45
Features

  • - for the development of custom I/O configurations
    - suitable for wall panels, shelf panels, etc.
    - fits into a standard XLR panel cut-out
    - allows the use of shared cabling for front and rear connections
    - No soldering or punching required
    - Suitable for use with standard cables for the respective connector type
    - Can be fitted from the front or rear
    - Low profile, i.e. suitable for the tightest spaces ‘behind the panel’

Application
  • Suitable for wall panels, shelf panels, etc.
Alignment
  • straight
Specifications
  • Panel
Protective conductor
Colour
  • black
Locking
  • no
Application note
  • Please note: Performance is affected by cable quality, length and cable configuration.

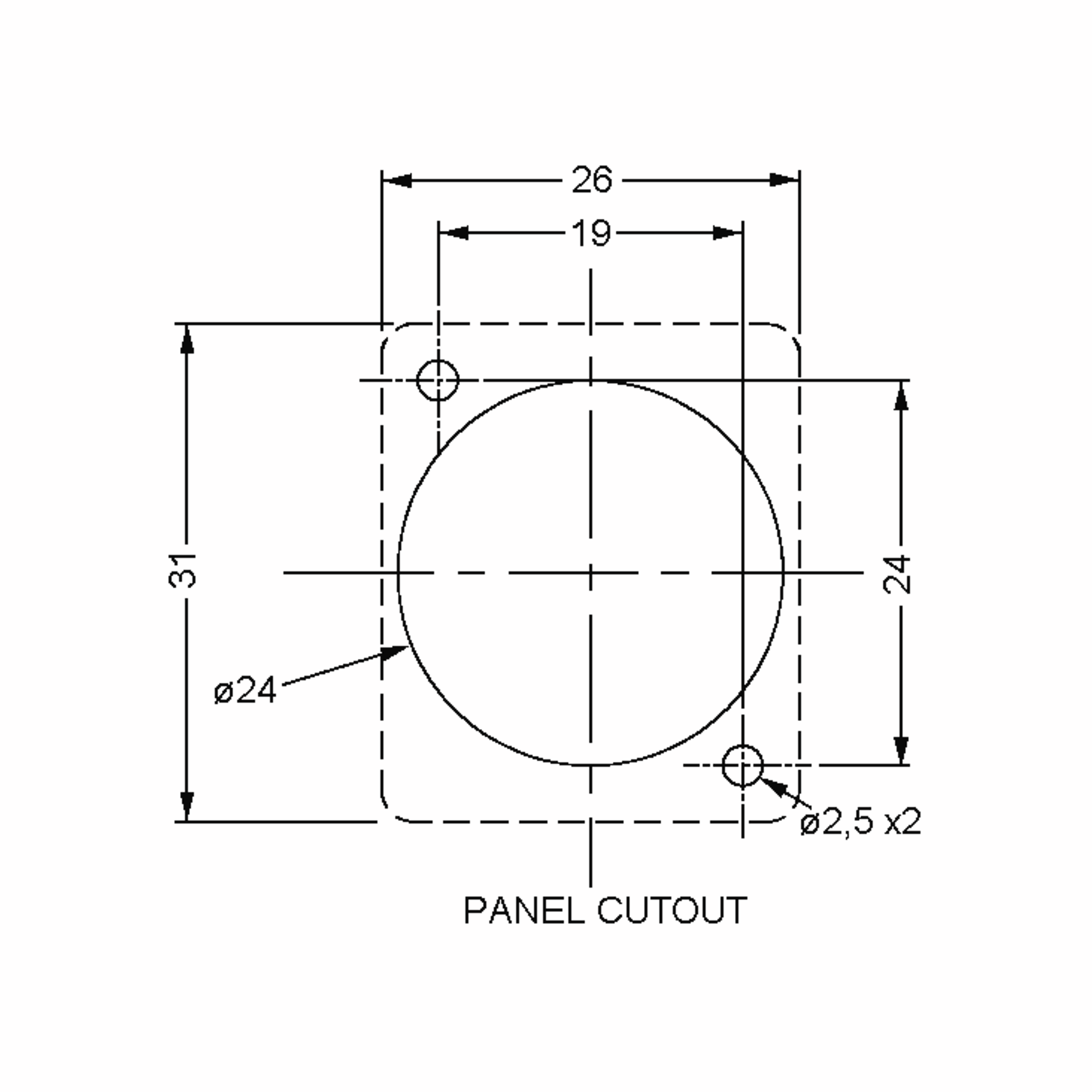

Dimensions and Weights

Dimension: Length
  • 29 mm
Dimension: Width
  • 26 mm
Dimension: Height
  • 31 mm
Board Strength max.
  • 3 mm

Operating conditions

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C

Technical Features

Rated current
  • 1.5 A
Rated voltage DC
  • 125 V DC

Mechanical Features

Insertion force per contact, min.
  • 60 N
Housing material
  • Polyamide (PA)
Insulating body
  • Acrylnitril Butadiene Styrol (ABS)
Contact Material Input
  • Phosphor bronze
Contact Surface Input
  • vergoldet
Connector Material
  • Phosphor bronze
Connector Coating
  • Gold-plated

Safety/Certifications

Class of Inflammability
  • UL 94 V-2

Documents

feedthrough.pdf
Download (pdf, 533 KB)
