CP30216

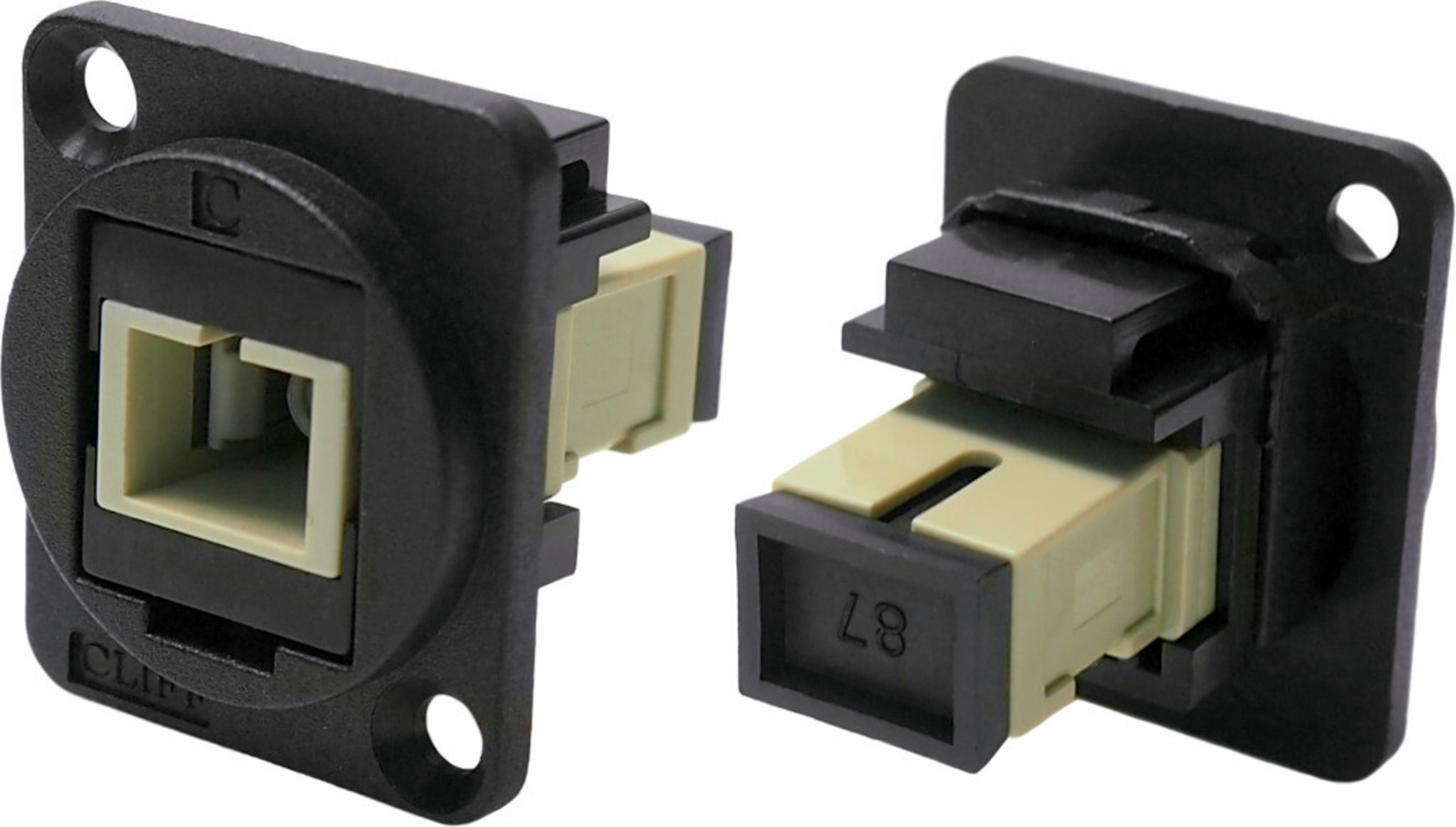

Cliff Installation adapter CP302_ Panel Socket XLR straight Polyamide (PA) SC Simplex MM 33mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Installation adapter
- Connector Contact
- SC Simplex MM
- Series
- CP302_
- Colour
- black
- Housing material
- Polyamide (PA)
- Housing
- XLR
- Design
- Panel
- Insulating body
- Acrylnitril Butadiene Styrol (ABS)
Polycarbonat (PC) - Contact Type
- SC Simplex MM
- Class of Inflammability
- UL 94 V-2
- Locking
- no
- Alignment
- straight
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 33 mm
- Dimension: Width
- 26 mm
- Dimension: Height
- 31 mm
- Board Strength max.
- 3 mm
Mechanical Features
- Housing material
- Polyamide (PA)
- Insulating body
- Acrylnitril Butadiene Styrol (ABS)
- Polycarbonat (PC)
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
