CP30200G

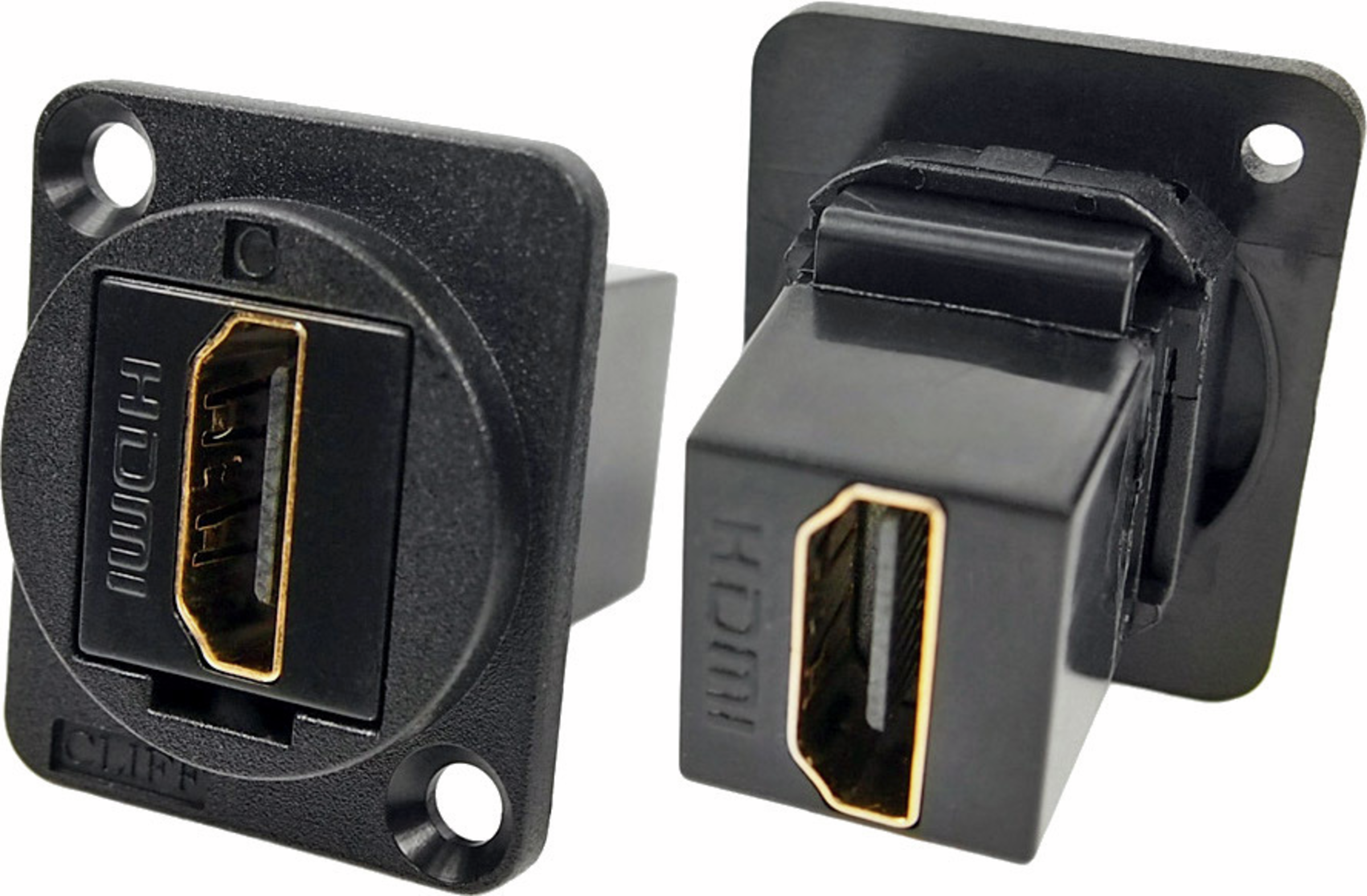

Cliff Installation adapter CP302_ Panel Socket XLR straight HDMI A 29mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Installation adapter
- Connector Contact
- HDMI A
- Series
- CP302_
- Colour
- black
- Housing
- XLR
- Design
- Panel
- Insulating body
- Acrylnitril Butadiene Styrol (ABS)
- Contact Type
- HDMI A
- Class of Inflammability
- UL 94 V-2
- Locking
- no
- Alignment
- straight
- RoHS-Conform
Specifications
Open all

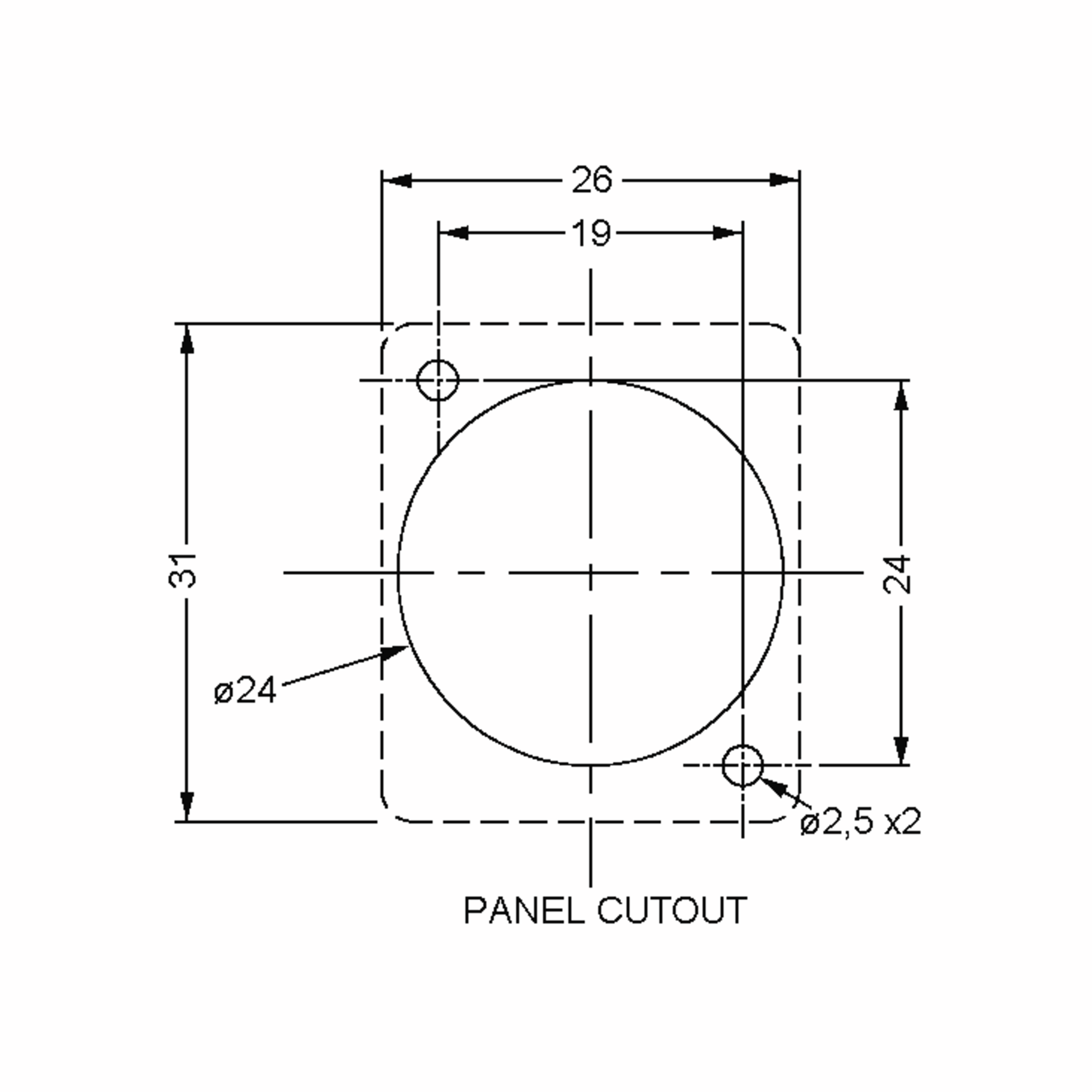

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 26 mm
- Dimension: Height
- 31 mm
- Board Strength max.
- 3 mm
Mechanical Features
- Insulating body
- Acrylnitril Butadiene Styrol (ABS)
- Contact Surface Input
- vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-2
