CP30005

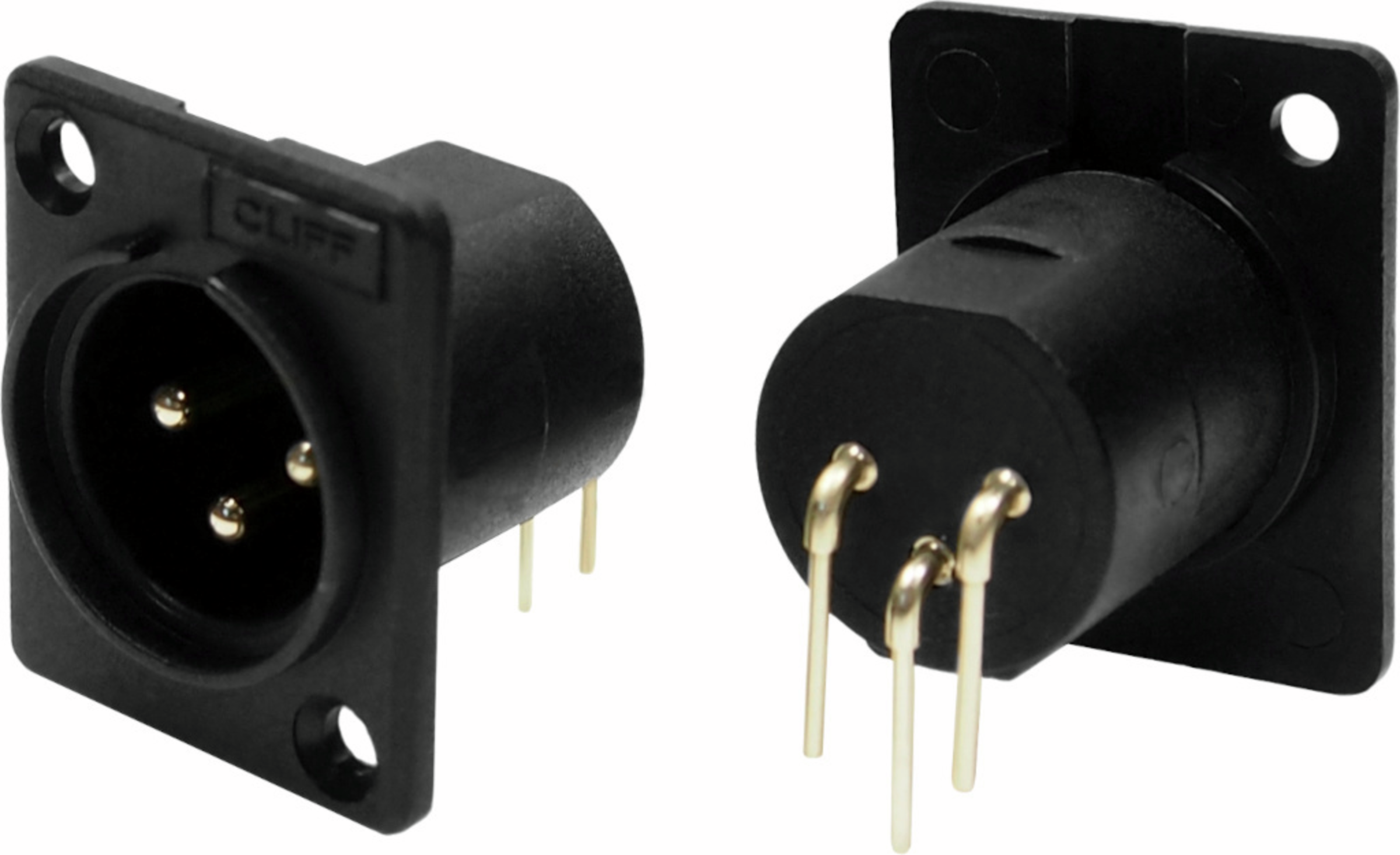

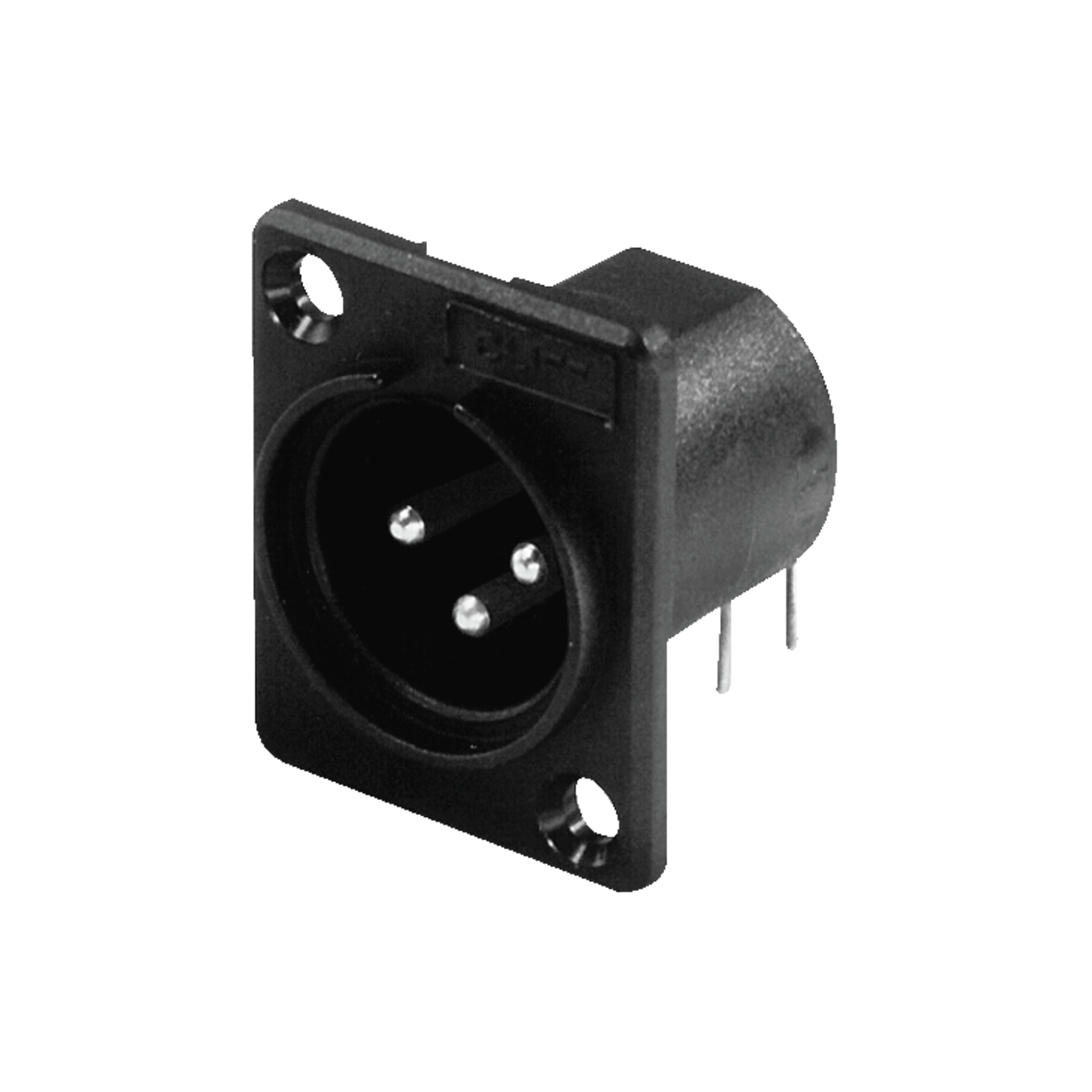

Cliff Built-in plug CP300_ Panel Plug AXR XLR 90° 3 Pole Polyamide (PA) GF Solder 26,1mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Built-in plug
- Connector Contact
- Solder
- Series
- CP300_
- Colour
- black
- Housing material
- Polyamide (PA) GF
- Housing
- AXR
XLR - Design
- Panel
- Number of poles
- 3
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 80 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 5 A
- Operating Temperature Min.
- -30 °C
- RoHS-Conform
Specifications
Open all

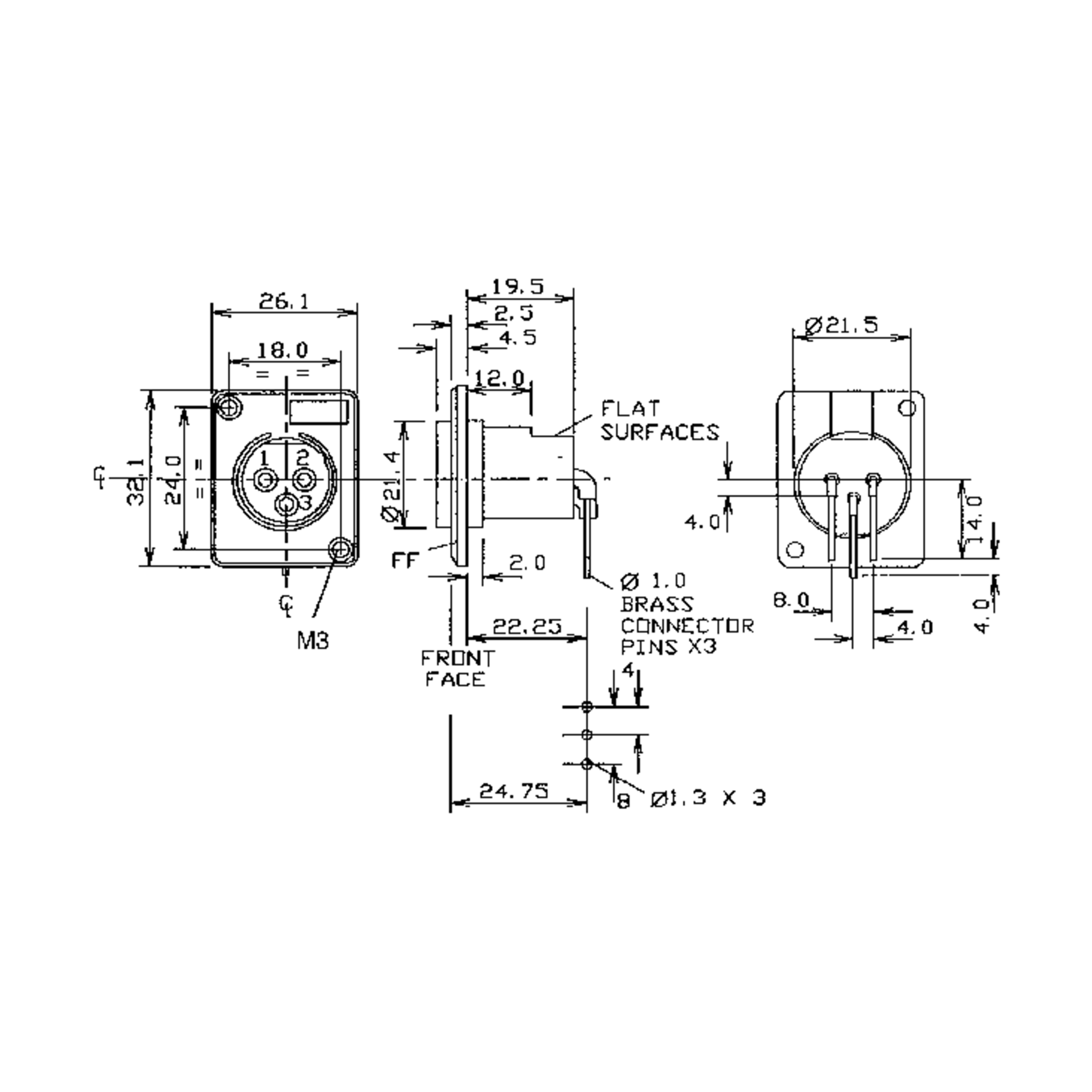

Dimensions and Weights
- Dimension: Length
- 26.1 mm
- Dimension: Width
- 26.75 mm
- Dimension: Height
- 32.1 mm
- Height (incl. pins)
- 34.1 mm
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Rated current
- 5 A
- Rated voltage AC
- 250 V AC
- Insulation resistance
- 10^9 MOhm
- Contact resistance
- 10 mOhm
- Capacity
- 5 pF
Mechanical Features
- Durability
- 1,000
- Insertion force per contact, max.
- 10 N
- Insertion force per contact, min.
- 80 N
- Housing material
- Polyamide (PA) GF
- Contact Surface Input
- Nickel, versilbert
