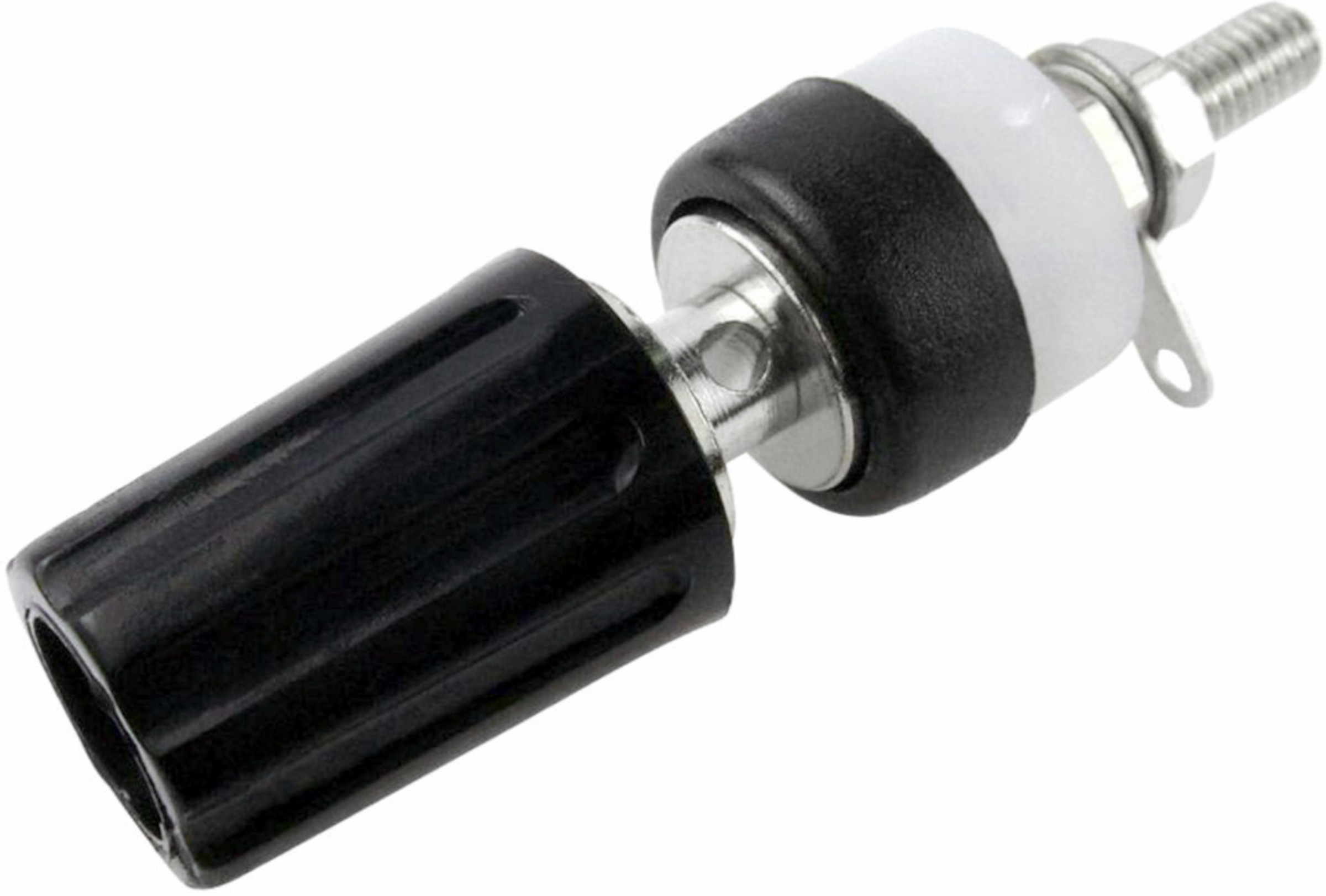

CL1505
Cliff Pole terminal TP/1 round CAT I black Plug in 4mm 15A 30mOhm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
80 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Pole terminal
- Connector Contact
- Plug in
- Series
- TP/1
- Colour
- black
- Housing material
- Nylon (NY) 6
- Housing
- round
- Measurement category
- CAT I
- Cable diameter, max.
- 4 mm
- Class of Inflammability
- UL 94 HB
- Rated current
- 15 A
- RoHS-Conform
Specifications
Open all

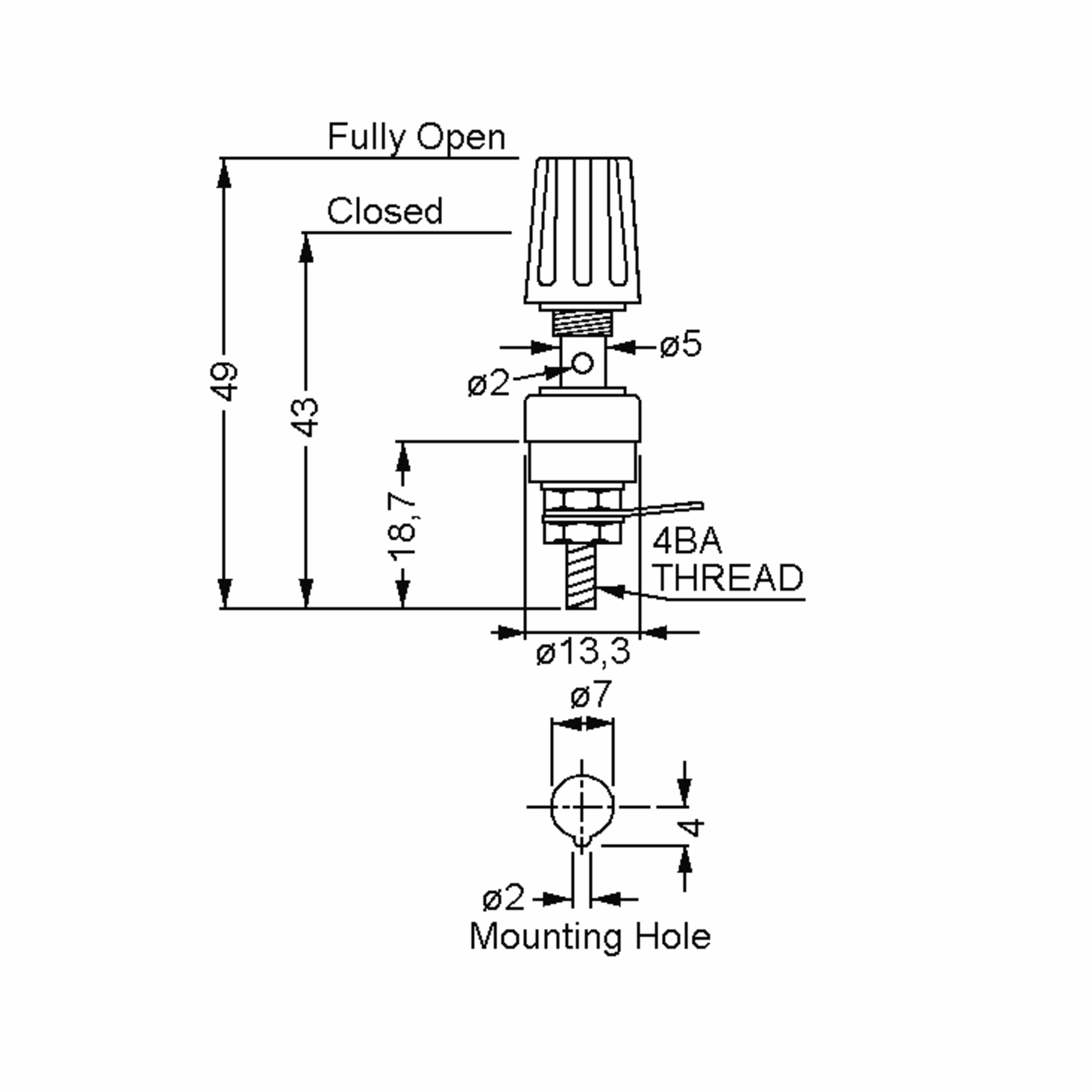

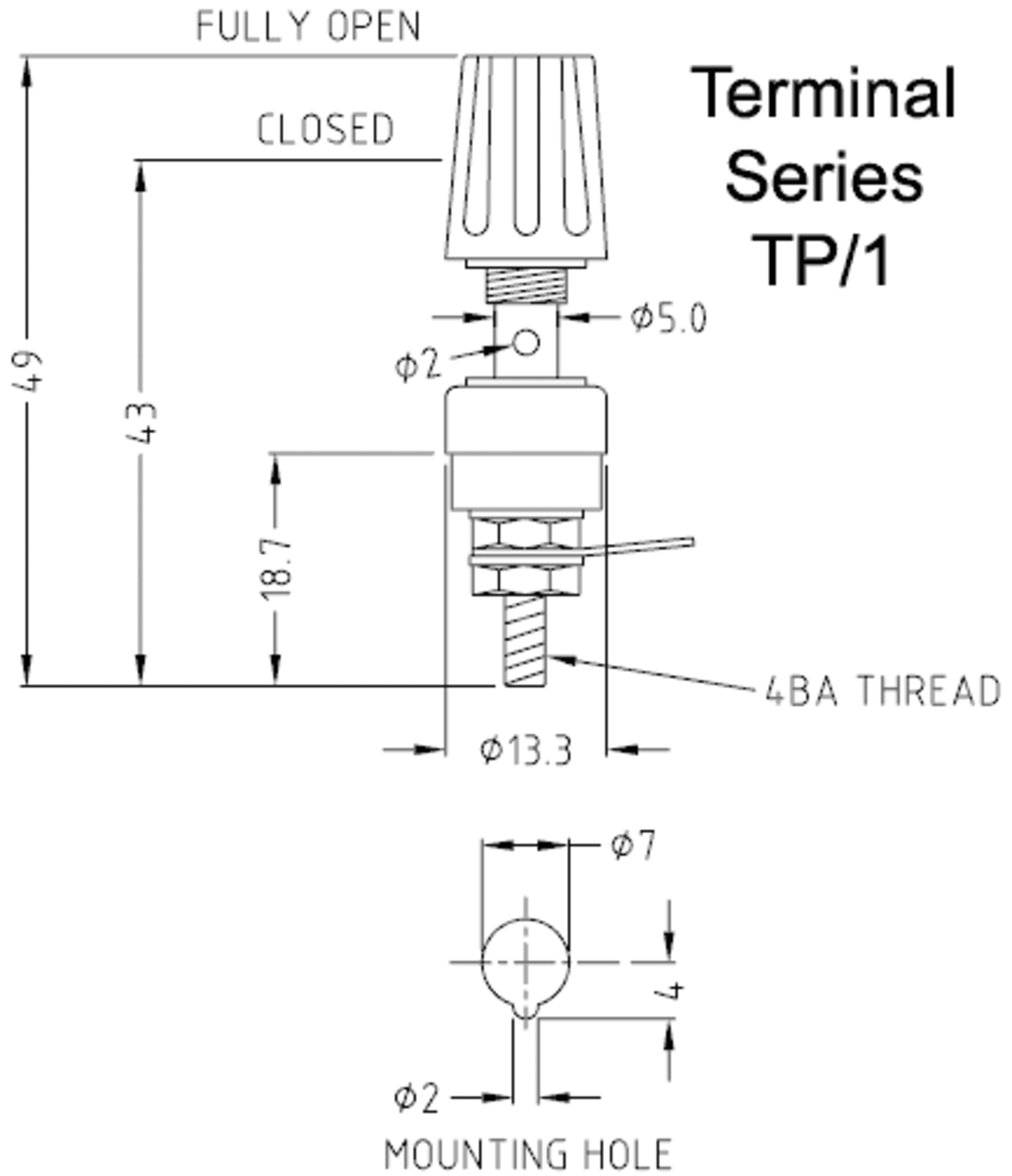

Dimensions and Weights
- Dimension: Length
- 43 mm
- Diameter
- 13.3 mm
- Cable diameter, max.
- 4 mm
Technical Features
- Rated current
- 15 A
- Contact resistance
- 30 mOhm
Mechanical Features
- Drilling Dimensions
- 7 mm
- Housing material
- Nylon (NY) 6
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 HB
