3073-K1P2L2C01T1B01H

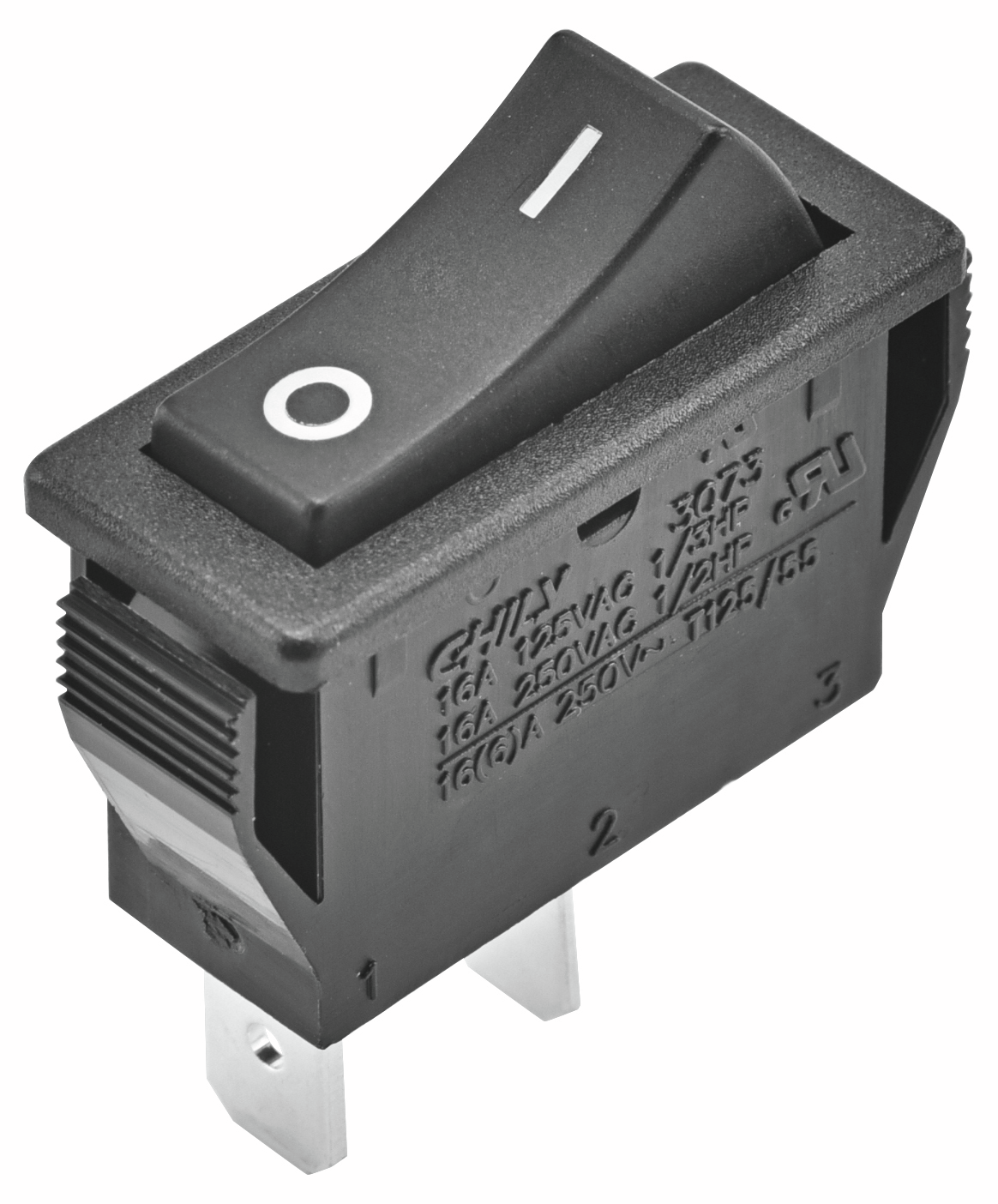

Chily Precision Rocker Switches 3073 1xE-0 black I/O 11x30,1mm 16A Surface area illuminated green
Manufacturer Part No.
3073-K1P2L2C01T1B01H
Schukat Part No.
3073-P2L2C01T1B01H
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- 3073
- Body colour
- black
- contacts
- 1xNC
- Type of actuator
- Rocker
- Function
- 1xE-0
- Imprint
- I/O
- Actuator colour
- green
- Number of poles
- 1
- illumination
- illuminated
- Switching current, max.
- 16 A
- Panel cut out
- 11x30,1mm
- Operating temperature range, max.
- 125 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 32 mm
- Dimension: Width
- 14 mm
- Dimension: Height
- 18.2 mm
- Panel cut out
- 11x30,1mm
Operating conditions
- Operating temperature range, max.
- 125 °C
Technical Features
- Switching voltage
- 250 V AC
- Test voltage
- 1.500 V AC, 1min.
- Service life, electrical
- 10^3 Betätigungen
- Switching current, max.
- 16 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 100 MOhm
- Material: Actuator
- PC
Mechanical properties
- Connection
- Push-in connector
- Number of poles
- 1
