3050-K1P0T4DSBKBK

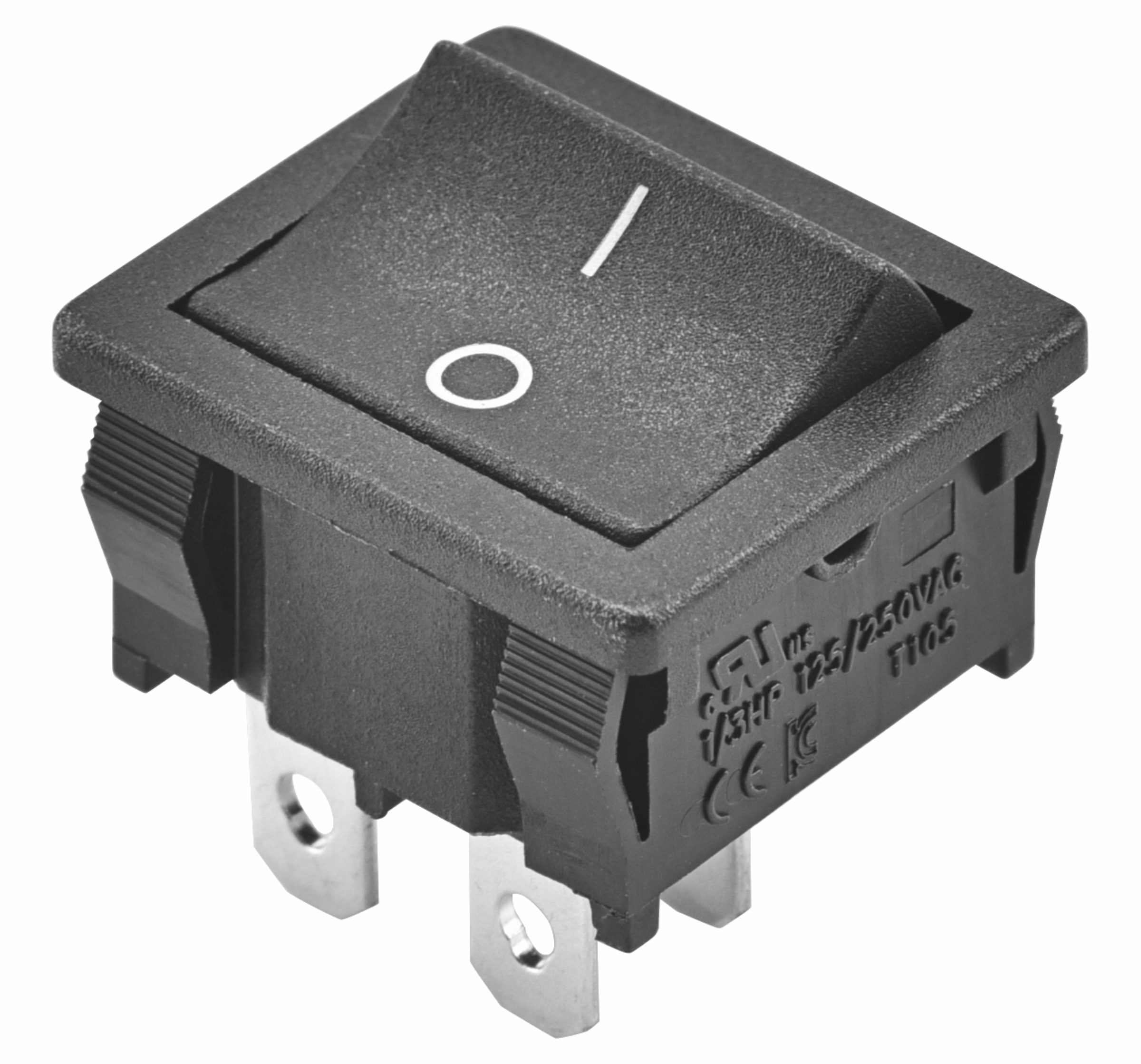

Chily Precision Rocker Switches 3050 2xE-0 black 22,4x19,2mm 10A unlit
Manufacturer Part No.
3050-K1P0T4DSBKBK
Schukat Part No.
3050-K1P0T4DSBKBK
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.540 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- 3050
- Body colour
- black
- contacts
- 2xNC
- Type of actuator
- Rocker
- Function
- 2xE-0
- Actuator colour
- black
- Number of poles
- 2
- illumination
- unlit
- Switching current, max.
- 10 A
- Panel cut out
- 22,4x19,2mm
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 21 mm
- Dimension: Width
- 24 mm
- Dimension: Height
- 10.2 mm
- Panel cut out
- 22,4x19,2mm
Operating conditions
- Operating temperature range, max.
- 85 °C
Technical Features
- Switching voltage
- 250 V AC
- Test voltage
- 1.500 V AC, 1min.
- Service life, electrical
- 10^3 Betätigungen
- Switching current, max.
- 10 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 100 MOhm
Mechanical properties
- Connection
- Push-in connector
- Number of poles
- 2
