3024-P5T20DB20BKBK

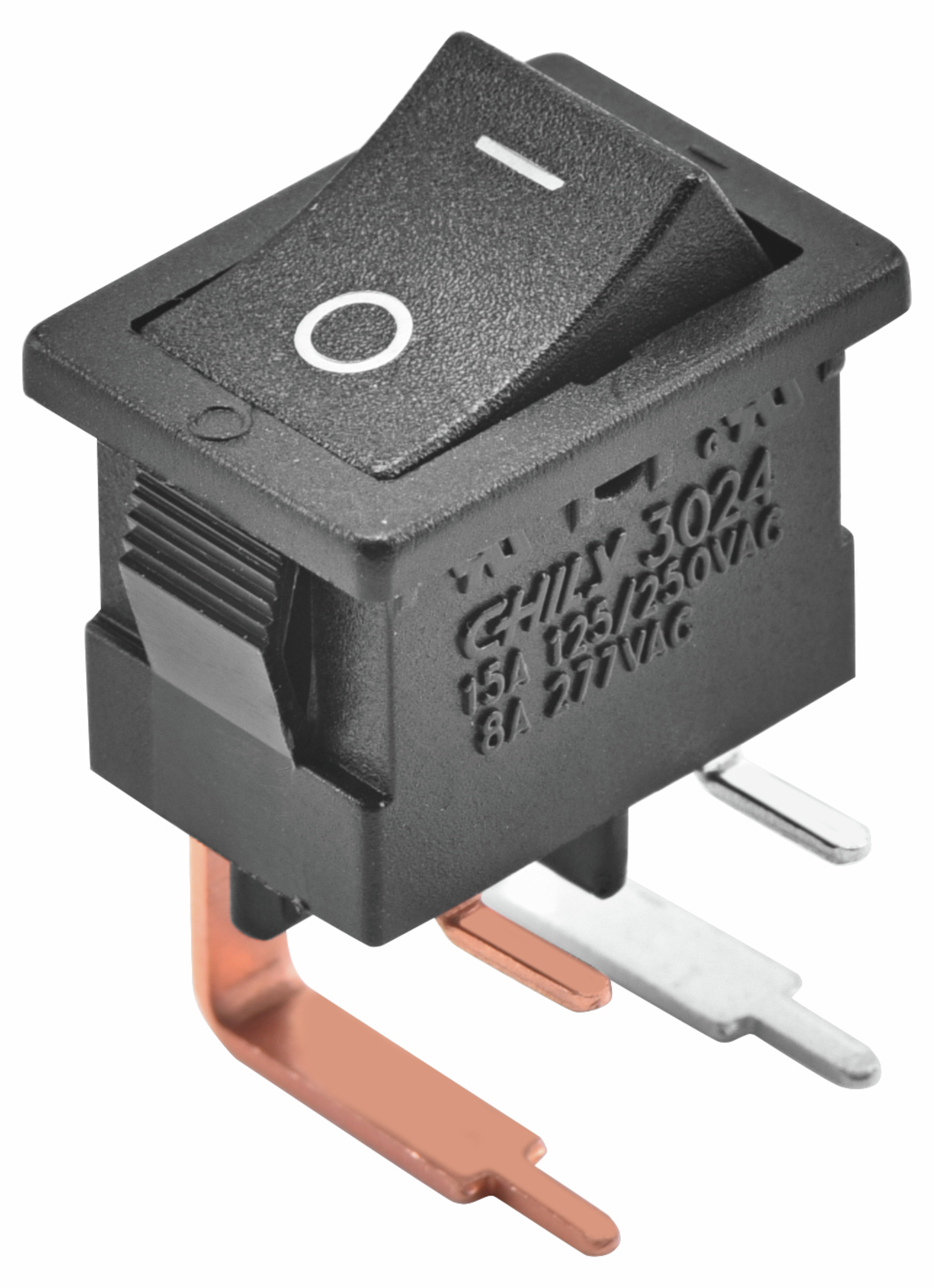

Chily Precision Rocker Switches 3024 2xE-0 black I/O 12,9x19,2mm 16A unlit
NEW
Manufacturer Part No.
3024-P5T20DB20BKBK
Schukat Part No.
3024-P5T20DB20BKBK
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- 3024
- Body colour
- black
- contacts
- 2xNC
- Type of actuator
- Rocker
- Function
- 2xE-0
- Imprint
- I/O
- Actuator colour
- black
- Number of poles
- 2
- illumination
- unlit
- Switching current, max.
- 16 A
- Panel cut out
- 12,9x19,2mm
- Operating temperature range, max.
- 85 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 21 mm
- Dimension: Width
- 15 mm
- Dimension: Height
- 16.5 mm
- Panel cut out
- 12,9x19,2mm
Operating conditions
- Operating temperature range, max.
- 85 °C
Technical Features
- Switching voltage
- 250 V AC
- Test voltage
- 1.500 V AC, 1min.
- Switching current, max.
- 16 A
- Contact resistance
- 20 mOhm
- Insulation resistance, min.
- 100 MOhm
Mechanical properties
- Connection
- Push-in connector
- Number of poles
- 2
Other Products
All Products of the Series
