GS472M035K355
Capxon Aluminum electrolytic capacitor THT radial 4700µF 35V 20% RM7,5mm -40°C - 85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
20 Pcs.
20 Pcs.
Next Stock Receipt
Week 48/2024
4.120 Pcs.
4.120 Pcs.
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 160 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 4.700 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 35 V
- Assembly Type
- THT
- Housing
- radial
- Pitch
- 7.5 mm
- RoHS-Conform
Specifications
Open all

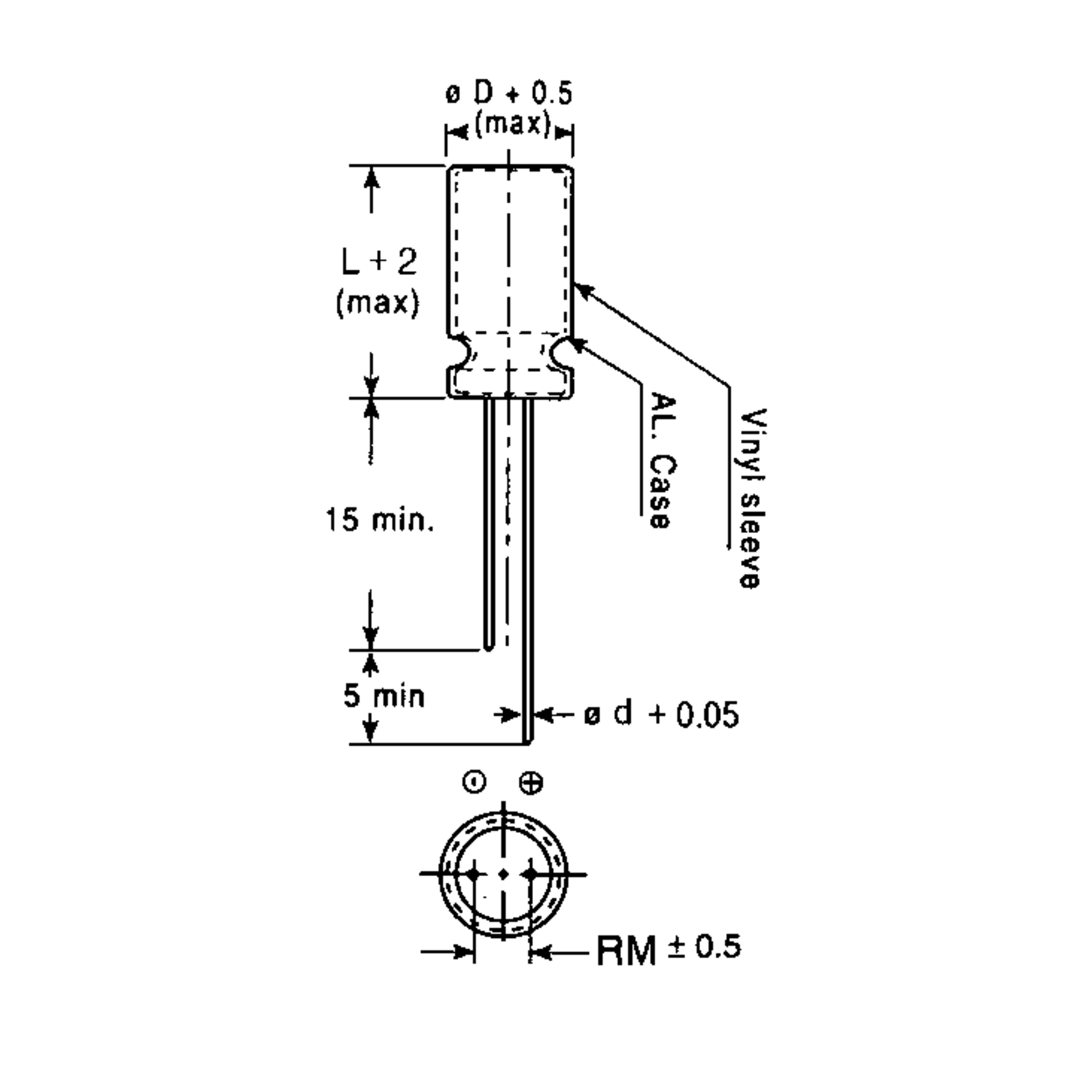

Dimensions and weights
- Diameter
- 18 mm
- Dimension: Height
- 35 mm
- Wire diameter
- 0.8 mm
- Pitch
- 7.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Capacity
- 4.700 µF
- Capacity
- 4,700
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,12
- Leakage current
- 3 µA
- Ripple Current
- 1.600 mA
- Rated voltage DC
- 35 V
- Surge voltage
- 44 V
- Service life
- 2.000 h
Documents
catalogue2014-2015.pdf
catalogue2014-2015.pdf
