RED00202B(R2)

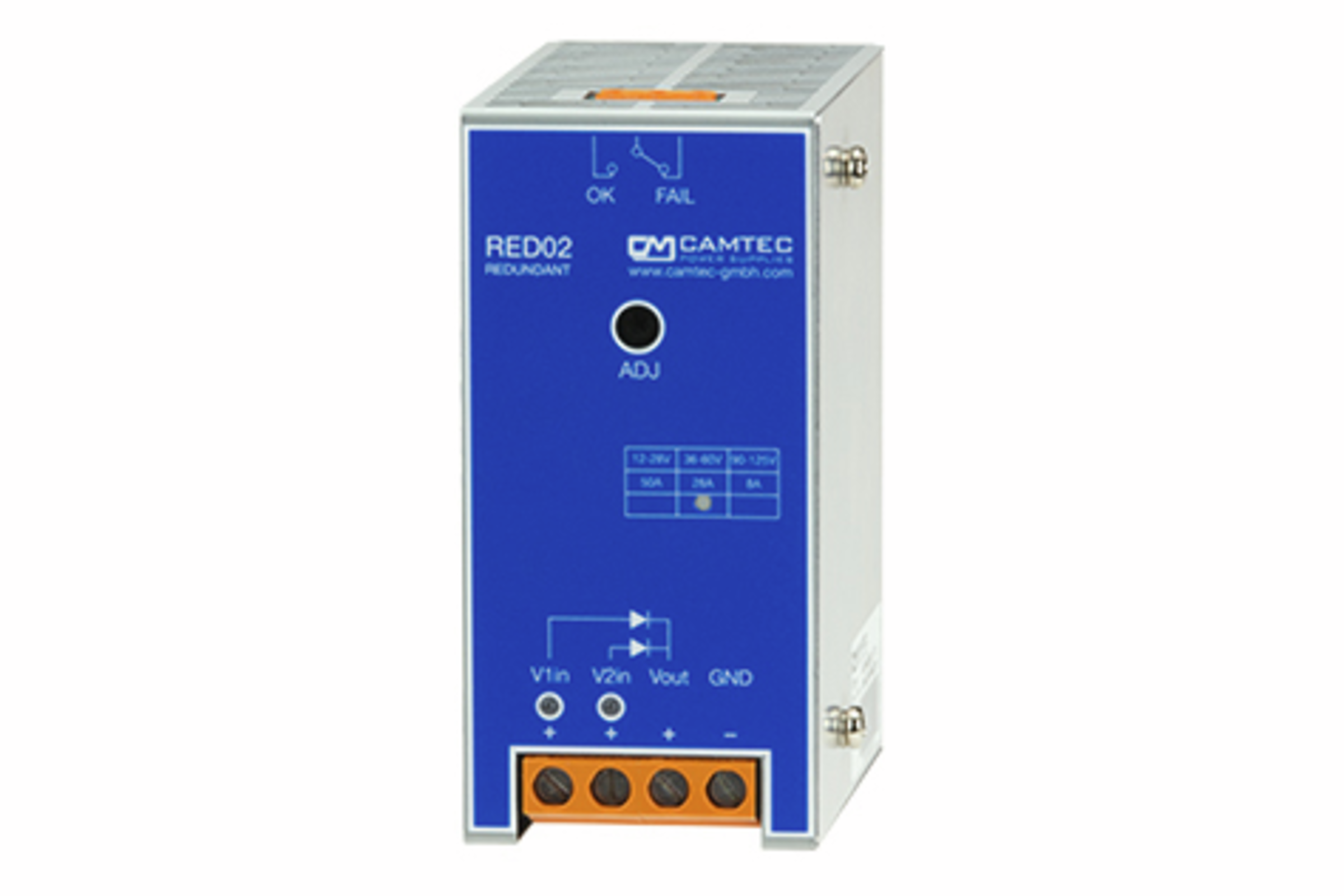

Camtec Redundancy module DIN Rail 1.000W 28A

RED00202B(R2)
Manufacturer Part No.
RED00202B(R2)
Schukat Part No.
RED00202B(R2)
Manufacturer
Camtec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Redundancy module
Output Power
1,000 W
Output current
28.000 A
Package/Case
DIN Rail
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Camtec
Series
  • RED00202
Alternative Part Number
  • RED00202B
Product group
  • M7552
Type
  • Redundancy module
Package/Case
  • DIN Rail
Dimension: Width
  • 62 mm
Dimension: Height
  • 13 mm
Dimension: Depth
  • 115 mm
Weight
  • 1,000 g
Manufacturer's warranty (years)
  • 5
Product description
  • The redundancy module RED00202 is designed for applications from 0Vdc to 125Vdc. The DC outputs of two identical DC voltage sources are decoupled. The total load is equal to the individual load of each connected DC source. In normal operation, the total load is distributed evenly among the connected power supplies. If one of the connected DC power sources fails, the other source takes over the entire load without causing a power failure in the system. The internal Power-ok relay (changeover contact) provides continuous control of the status of the connected power supplies. If one power supply fails, the relay indicates that the remaining power supply will take over. The low voltage detection Vu can be adjusted via the ADJ control potentiometer on the front panel. The over voltage detection Vo from the technical data table is set by the factory and cannot be changed. The DC input and the DC output are potential-free. The GND input of the RED00202 is only necessary for selfsupply. The voltage drop between DC input and DC output is between 500mV and 700mV (see table Technical Data).
Features
  • DC-OK-Signal

Input

Input voltage min. DC
  • 36 V
Input voltage max. DC
  • 60 V
Connection type, input
  • Screw Terminal

Output

Output Power
  • 1,000 W
Output current
  • 28.000 A
Connection type, output
  • Screw Terminal

Safety/Certifications

Approvals
  • CE
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class A
  • EN 55032 Class B
Standards (safety)
  • EN 61010-1
  • EN 62368-1
