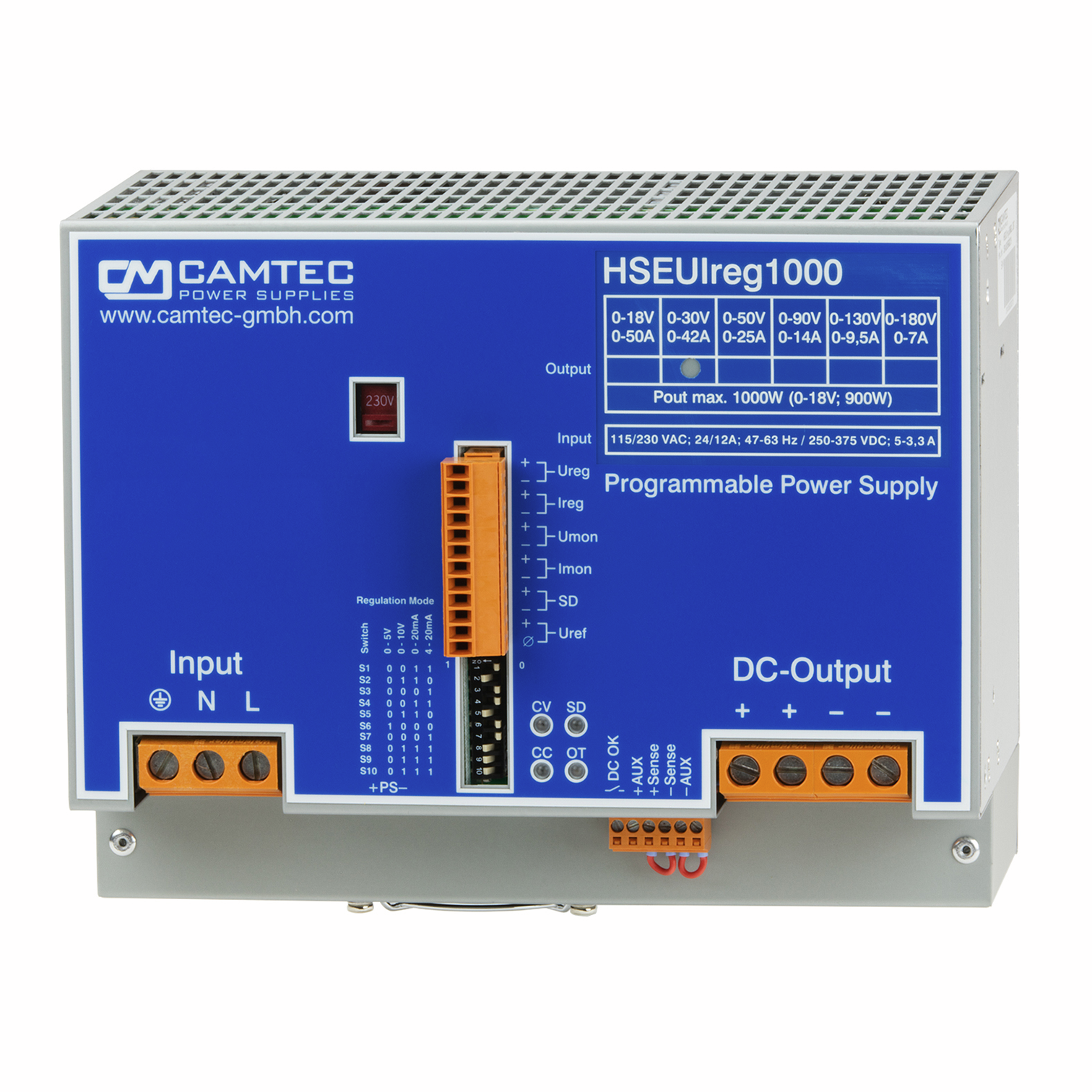

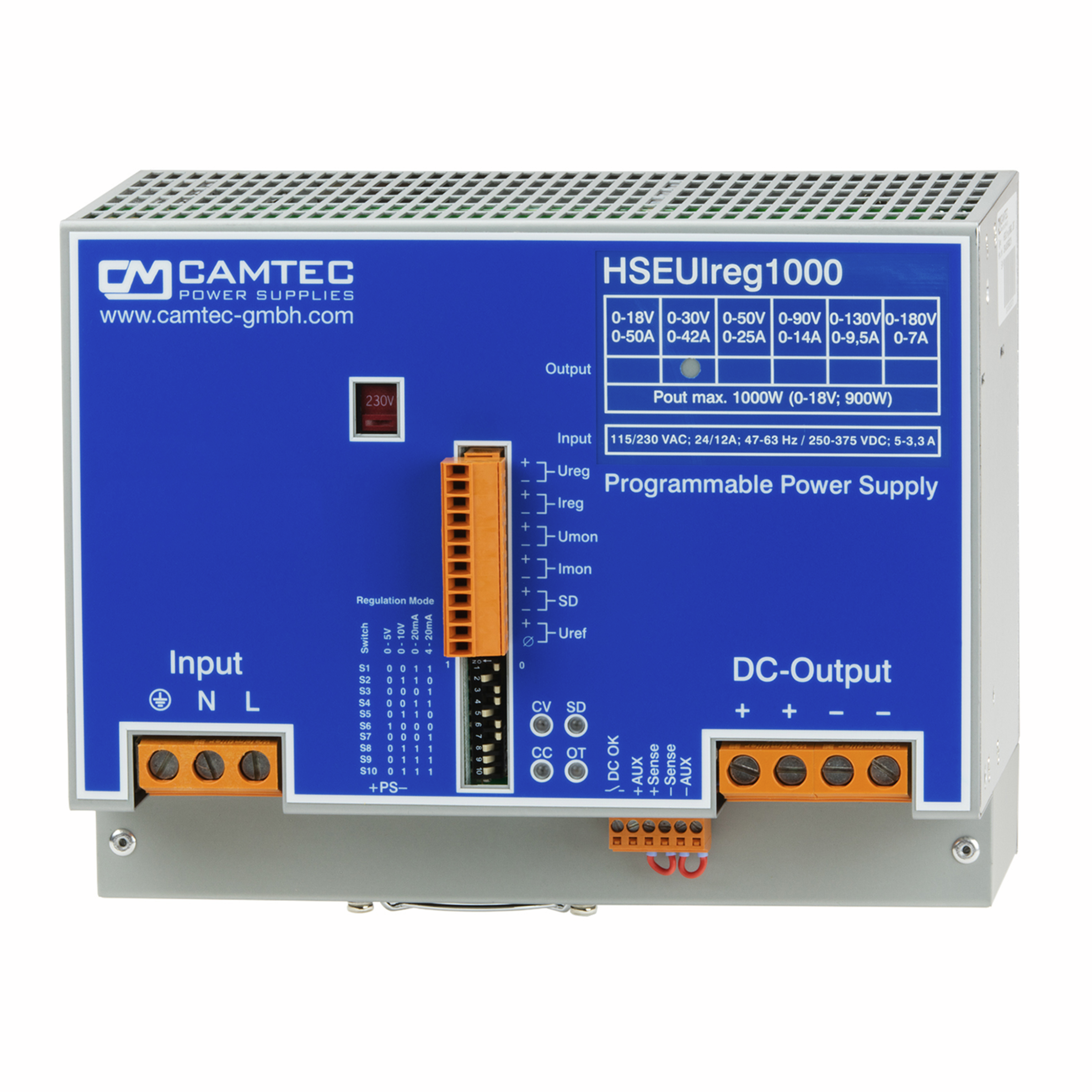

The Camtec HSEUiREG models are high-precision laboratory power supplies ‘Made in Germany’. These power supplies are designed for power supply systems in test automation and for industrial use.
Camtec Power Supplies has been manufacturing high-end switching power supplies in Germany for more than 25 years. A field failure rate of less than 0.004% over a 10-year period confirms our rigorous quality approach. Every Camtec product manufactured undergoes 100% testing for every individual function and a full-load burn-in test. Although not required by safety standards, our production department carries out a routine safety test on every unit manufactured, even if it is a low-voltage model. The components in the assembled unit undergo stress ageing to ensure a consistent level of performance and to prevent delayed failures. Our internal product development guidelines set out a clear objective: Camtec products must have a ‘fit and forget’ reputation. Quality
is never just a promise for our team.
The HSEUiREG laboratory power supplies offer low noise and residual ripple, very fast programming and precise regulation during high load changes. With an efficiency of up to 90%, the units are highly energy-efficient. Equipped with high-end capacitors offering outstanding service life, our power supplies guarantee a very long and reliable operating life. The circuit design of the HSEUiREG series enables it to cope even with complex loads. The internal protection circuits safeguard the power supply and the
connected system, even in exceptional circumstances. The HSEUiREG series is protected against high transients by powerful, high-energy filters. All inputs and outputs are galvanically isolated. The design specifications meet the highest standards of safety and interference suppression.
The 480W and 720W models operate using natural convection. The 1kW models utilise forced air cooling with a fan. When selecting the fan – as with all our power supplies – we use components from the German manufacturer EBM Papst, which we believe to be the highest quality and most reliable on the global market. A special heat dissipation design enables thermal coupling via a baseplate, should the customer so wish. A baseplate mounting bracket is available as an accessory. The units naturally operate independently even without this baseplate. The baseplate therefore has no influence on the derating behaviour of the units as specified in the data sheet.
The HSEUiREG power supply series delivers high programmable power in a space-saving housing. The latest generation of electrical equipment benefits from the high reliability of all CAMTEC products. CAMTEC’s philosophy is to use 125°C low-ESR ultra-long-life capacitors wherever appropriate in order to achieve an exceptionally long product lifespan. The HSEUiREG power supply is designed for highly reliable and demanding industrial applications such as electroplating systems, professional DC drives and complex test benches.
The analogue interface of the HSEUiREG series is exceptionally well-equipped. On the one hand, it allows adaptation to all possible control voltages via DIP switches; on the other hand, it offers numerous useful monitoring and control inputs. In addition to the ability to set the voltage and current via the Ureg and Ireg inputs, it outputs the set voltage in real time. Features such as sense mode, externally controllable remote shutdown, Power OK monitoring and an internal reference voltage for controlling the unit via external potentiometers (if required) round off the package. The load resistance is 1 kΩ to ensure interference-free operation with controller interfaces
The HSEUiREG power supply is very similar to a typical laboratory power supply – but without its displays. It is designed for automated industrial test benches operating 24/7. The HSEUiREG offers safe and precise programming right down to zero voltage. The unit is characterised by low latency and fast ramp-up programming, resulting in a typical programming time of 15 ms from zero to Umax. An internal power sink module for fast ramp-down programming is available as an option, as is a digital USB interface with an open-source driver. The driver enables secure integration into any test software, such as WinLab, LabVIEW, MCD TestManager and many others.
The power supply is galvanically isolated between the input and the output. All functions are connected to the DC power outputs.
The unit automatically switches between voltage source and current source modes. It features an internal thermal overload circuit with automatic restart once it has cooled down to normal operating temperatures.
A continuous short circuit will not damage the power supply. The HSEUiREG will then supply a constant current and zero output voltage. It restarts automatically once the short circuit is cleared.
