HSEUIREG07201.050(R2)

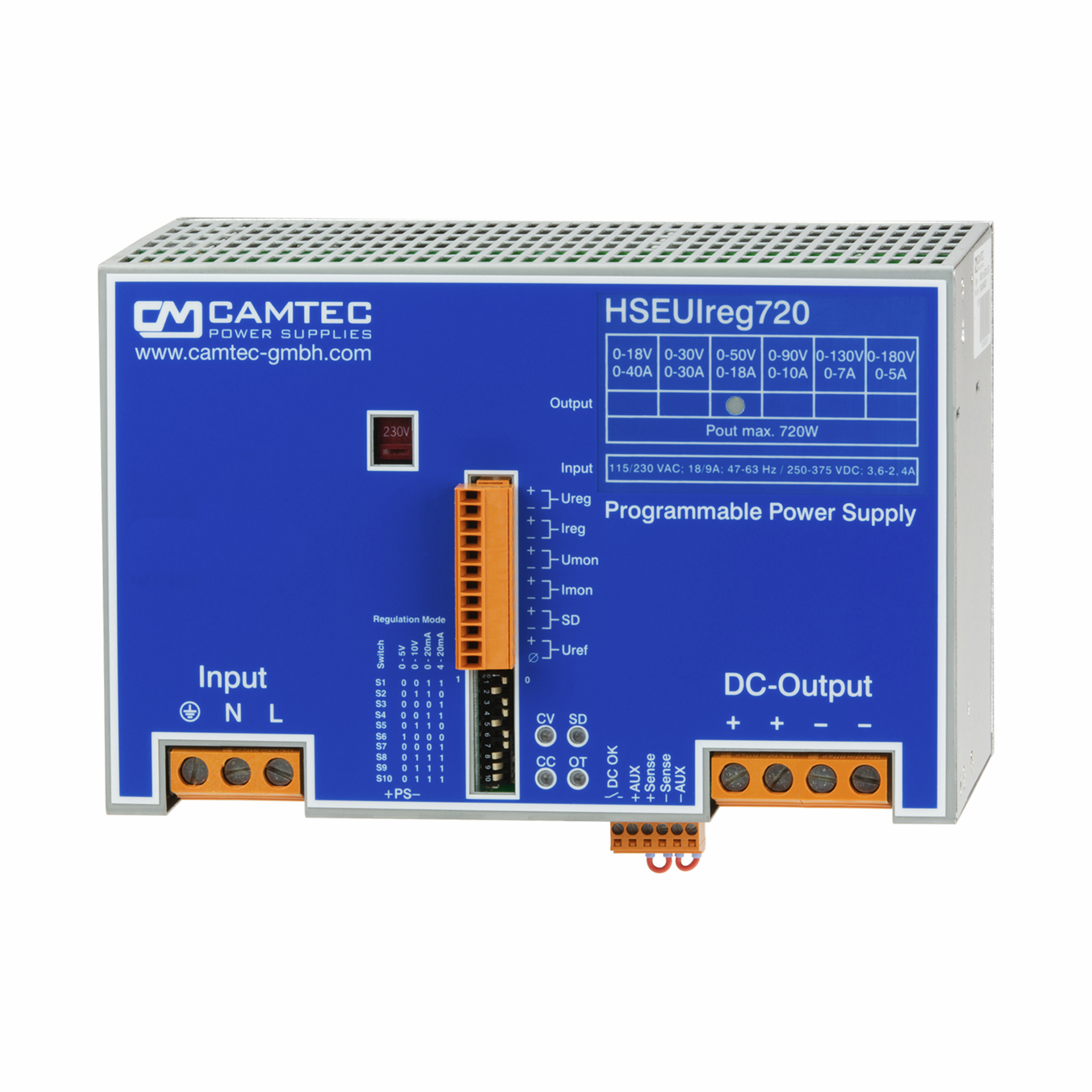

Camtec AC/DC industrial power supply unit DIN Rail 720W 50V 19,8A 0-5 Volt 0-10 Volt 0-20 mA 4-20 mA

HSEUIREG07201.050RHSEUIREG07201.050R
Manufacturer Part No.
HSEUIREG07201.050(R2)
Schukat Part No.
HSEUIREG07201.050R
Manufacturer
Camtec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
DIN Rail
Output Power
720 W
Output voltage
50 V
Output current
19.800 A
Efficiency
90 %
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Camtec
Series
  • HSEUiREG07201
Alternative Part Number
  • HSEUIREG07201.050
Product group
  • M7528
Application
  • ITE
  • Industry
Package/Case
  • DIN Rail

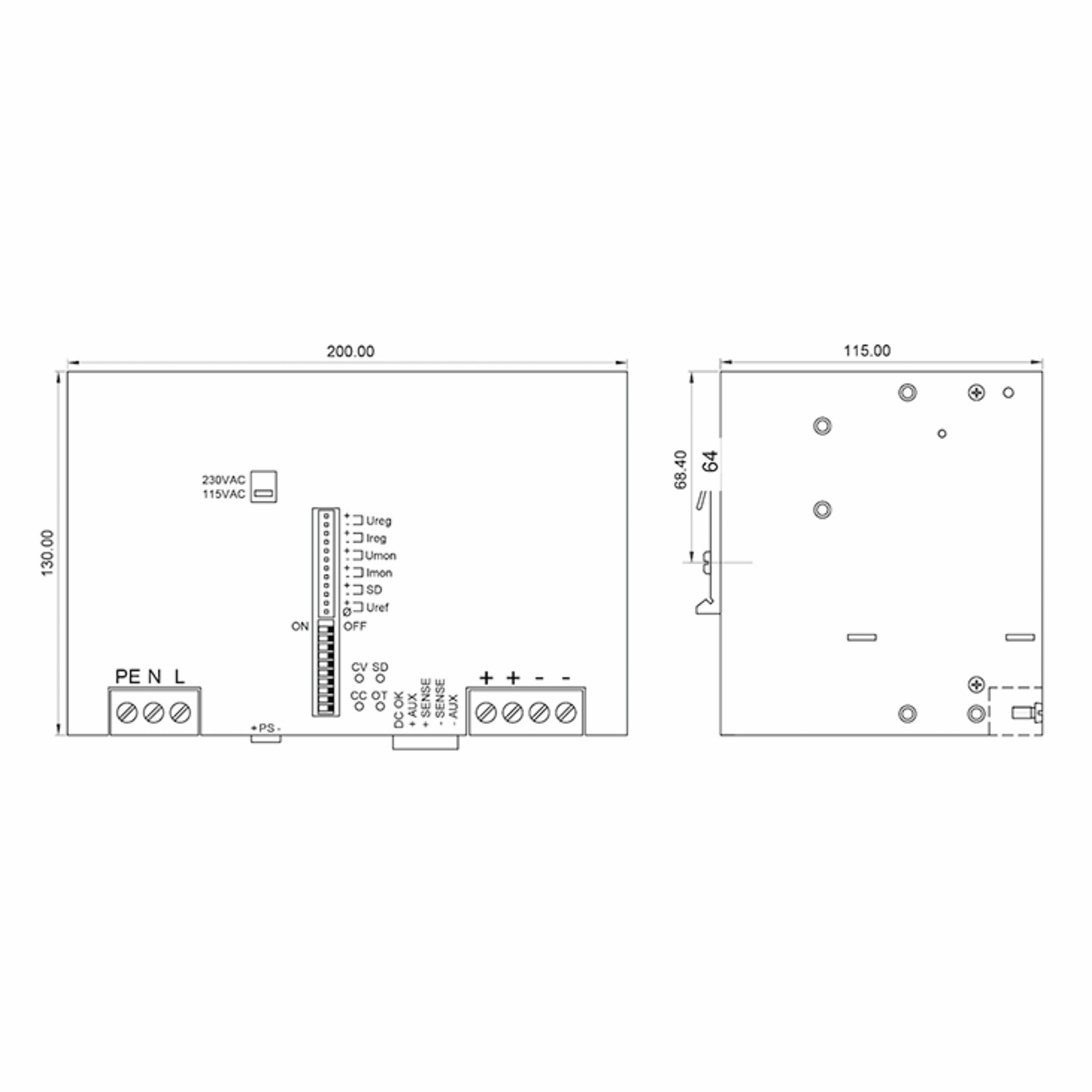

Dimension: Width
  • 200 mm
Dimension: Height
  • 130 mm
Dimension: Depth
  • 115 mm
Weight
  • 3,100 g
Interfaces
  • 0-10 Volt
  • 0-20 mA
  • 0-5 Volt
  • 4-20 mA
Manufacturer's warranty (years)
  • 5
Product description
  • The Camtec HSEUiREG models are high-precision laboratory power supplies "Made in Germany." The power supplies designed for this thesis are intended for power supply systems in test automation. Camtec Power Supplies has been manufacturing high-quality switching power supplies in Germany for over 25 years. A field failure rate of less than 0.004% over a 10-year period confirms our demanding quality concept. Every Camtec product undergoes multiple 100% tests for every detailed function and a burn-in test under full load. Although not required by safety standards, our production department subjects every device manufactured to a routine safety test, even if it is a low-voltage model. The components in the assembled device are assigned a voltage change to achieve a consistent level and prevent future failures. Our internal product development guidelines set a clear goal: The reputation of Camtec products must be "fit and forget." For our team, quality is not a mere promise. The HSEUiREG laboratory power supplies are characterized by low noise and low residual ripple, very fast programming, and precise adjustment under high load changes. With an efficiency of up to 90%, the devices are extremely energy-efficient. Equipped with high-quality capacitors with excellent service life, our power supplies guarantee very long and reliable operation. The circuit design of the HSEUiREG series enables the handling of complex loads. The internal protection circuits protect the power supply and the connected system even in exceptional situations. The HSEUiREG series is protected against high transients by powerful, highly energy-efficient filters. All inputs and outputs are galvanically isolated. The design specifications require the highest standards of safety and interference suppression. The device is designed according to EN61010-1, EN61010-2-201, EN62368-1, EN60950-1, and EMC compatibility according to EN55032. The special heat dissipation design allows for easy cooling of the base plate using an optional wall mounting plate.
Features
  • DC compatible
  • DC-OK-Signal
  • Programmable Output Current
  • Programmable Output Voltage
  • Remote Function
  • Remote Sense

Operating conditions

MTBF
  • 400,000 h
Operating expectation
  • 147,212 h
Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 184 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 250 V
Input voltage max. DC
  • 375 V
Input current
  • 7.2 A
Efficiency
  • 90 %
Inrush current, max.
  • 9.8 A
Max. number on B16 circuit breaker
  • 1
Max. number on C16 circuit breaker
  • 1
Power factor correction (PFC)
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 720 W
Output voltage
  • 50 V
Output voltage tolerance
  • -5.005 %
Ripple & Noise
  • 100 mVp-p
Output current
  • 19.800 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 3,000 V
Isolation voltage I/P-FG
  • 2,500 V
Isolation voltage O/P-FG
  • 500 V
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55032 Class A
  • EN 55032 Class B
Standards (safety)
  • EN 60950-1
  • EN 61010-1
  • EN 62368-1
  • IEC 60950-1

Documents

usb_ui_drive_interface_quick_reference_de_1212a.pdf
Download (pdf, 842 KB)
