Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
DIN Rail
Output Power
480 W
Output voltage
240 V
Output current
3.000 A
Efficiency
90 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
Camtec
Series
HSEUiREG04801
Alternative Part Number
HSEUIREG04801.240
Product group
M7522
Application
ITE
Industry
Package/Case
DIN Rail

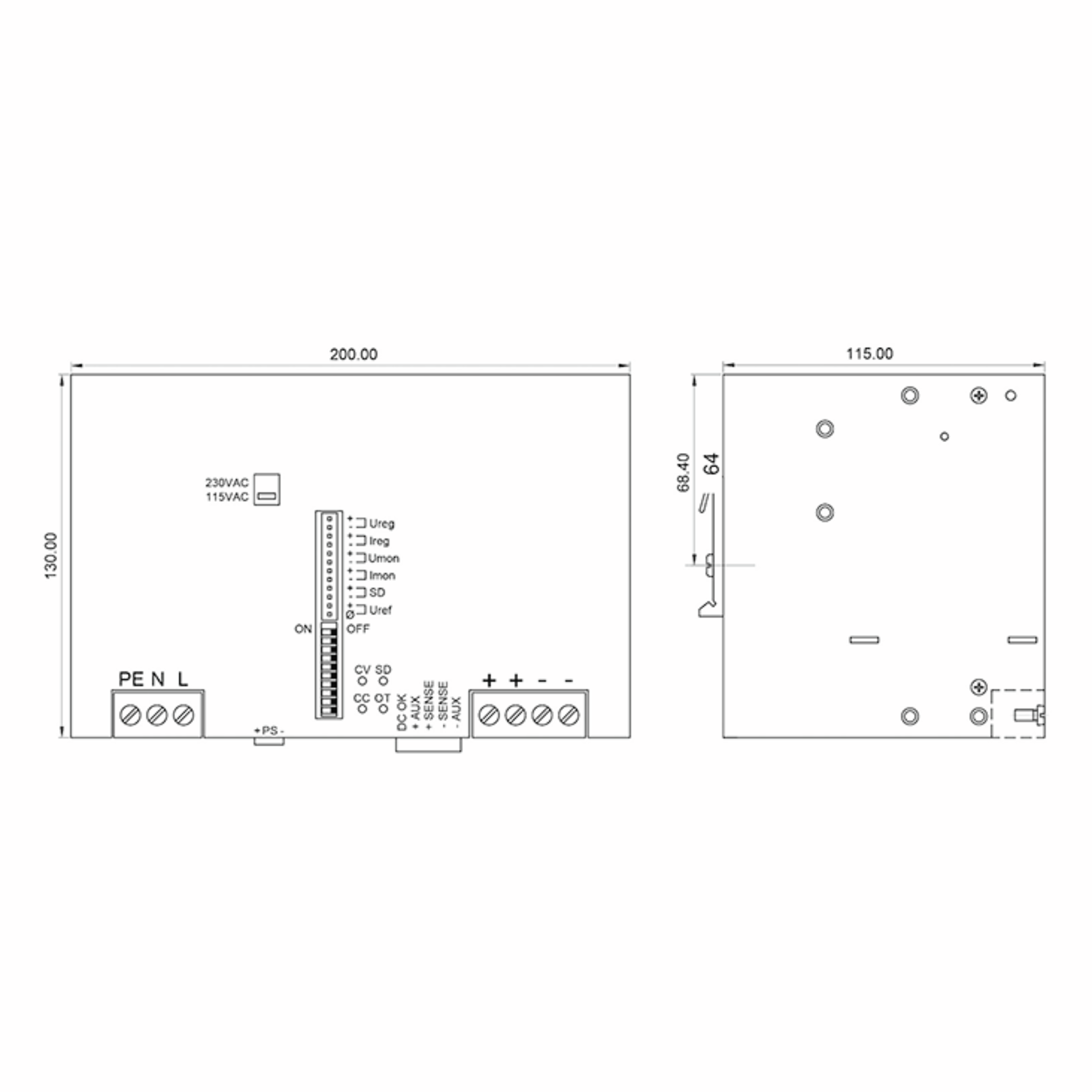

Dimension: Width
200 mm
Dimension: Height
130 mm
Dimension: Depth
114.5 mm
Weight
2,900 g
Interfaces
0-10 Volt
0-20 mA
0-5 Volt
4-20 mA
Manufacturer's warranty (years)
5
Product description

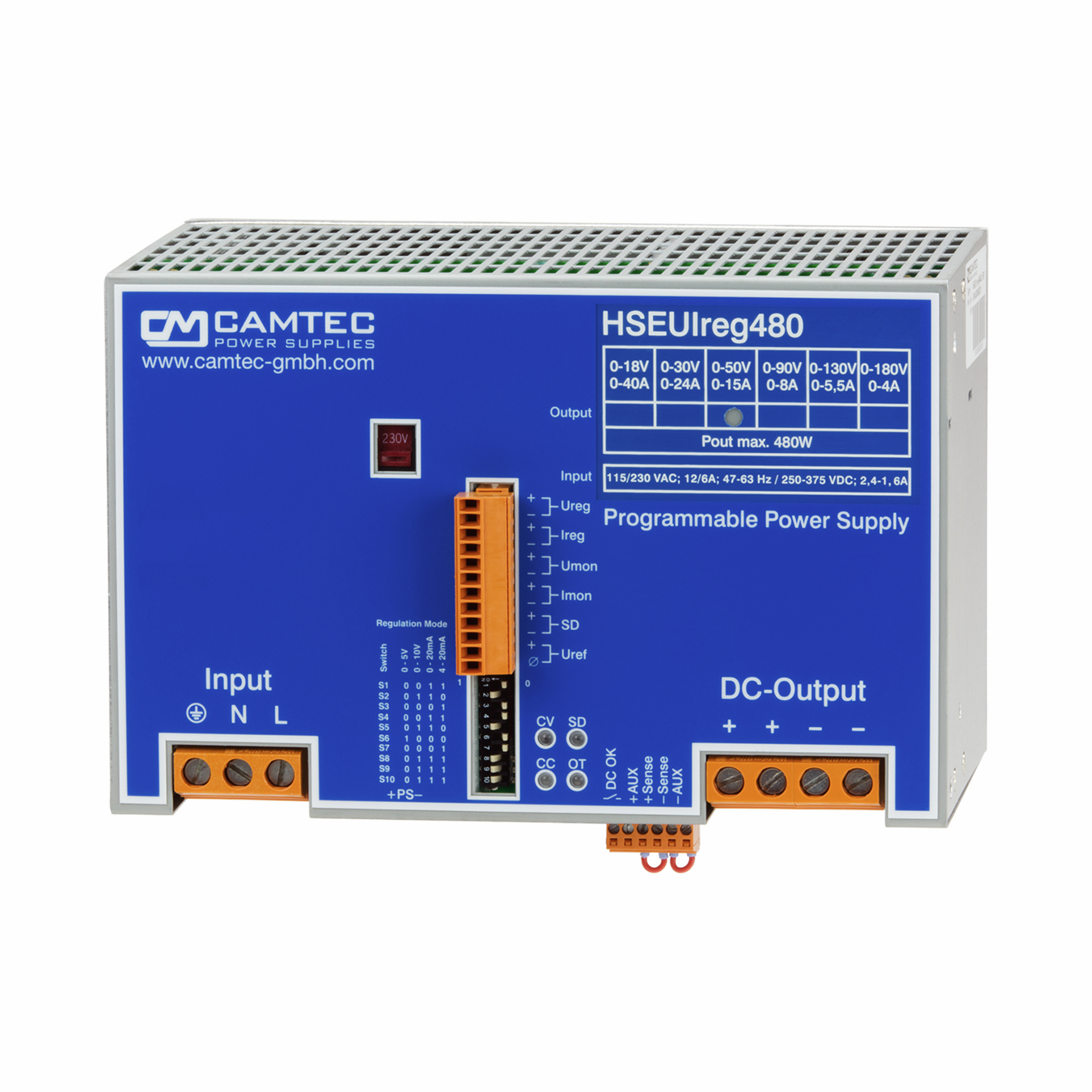

The Camtec HSEUiREG models are high-precision laboratory power supplies "Made in Germany." These power supplies are designed for power supply systems in test automation. Camtec Power Supplies has been manufacturing high-quality switching power supplies in Germany for over 25 years. A field failure rate of less than 0.004% over a 10-year period confirms our demanding quality concept. Every Camtec product undergoes multiple 100% tests for every detailed function and a burn-in test under full load. Although not required by safety standards, our production department routinely subjects every manufactured device to safety testing, even low-voltage models. The components in the assembled device undergo voltage aging to achieve a consistent level and prevent future failures. Our internal product development guidelines set a clear goal: The reputation of Camtec products must be "install and forget." For our team, quality is not a mere promise. The HSEUiREG laboratory power supplies are characterized by low noise and ripple, very fast programming, and precise adjustment even under high load changes. With an efficiency of up to 90%, the devices are extremely energy-efficient. Equipped with high-quality capacitors with outstanding service life, our power supplies guarantee very long and reliable operation. The circuit design of the HSEUiREG series enables the handling of complex loads. The internal protection circuits protect the power supply and the connected system even in exceptional situations. The HSEUiREG series is protected against high transients by powerful, highly energy-efficient filters. All inputs and outputs are galvanically isolated. The design specifications require the highest standards of safety and radio interference suppression. The device is designed according to EN61010-1, EN61010-2-201, EN62368-1, EN60950-1, and EMC compatibility according to EN55032. The special heat dissipation design allows for easy cooling of the base plate using an optional wall mounting plate.
