HPV04801.072PG(R2)

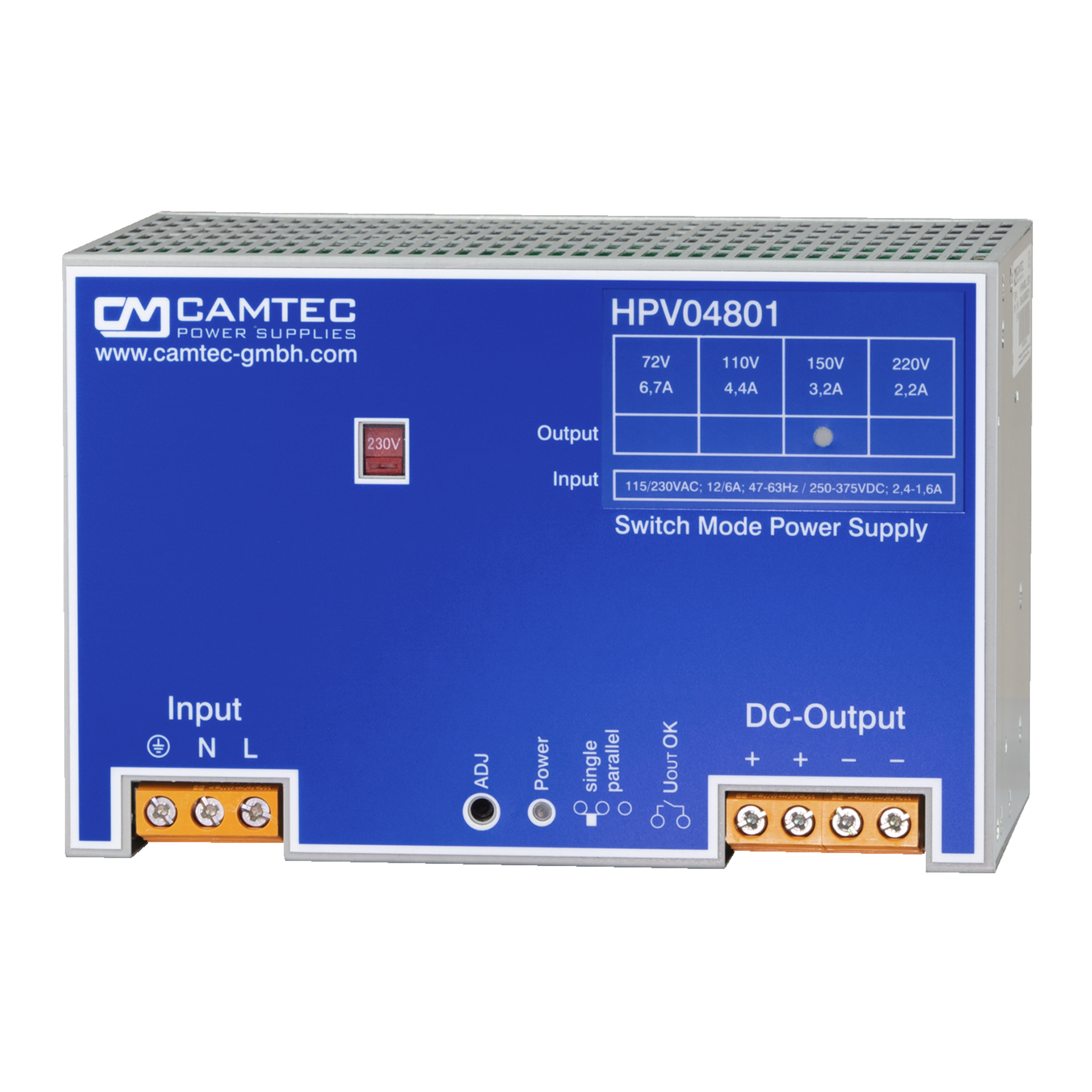

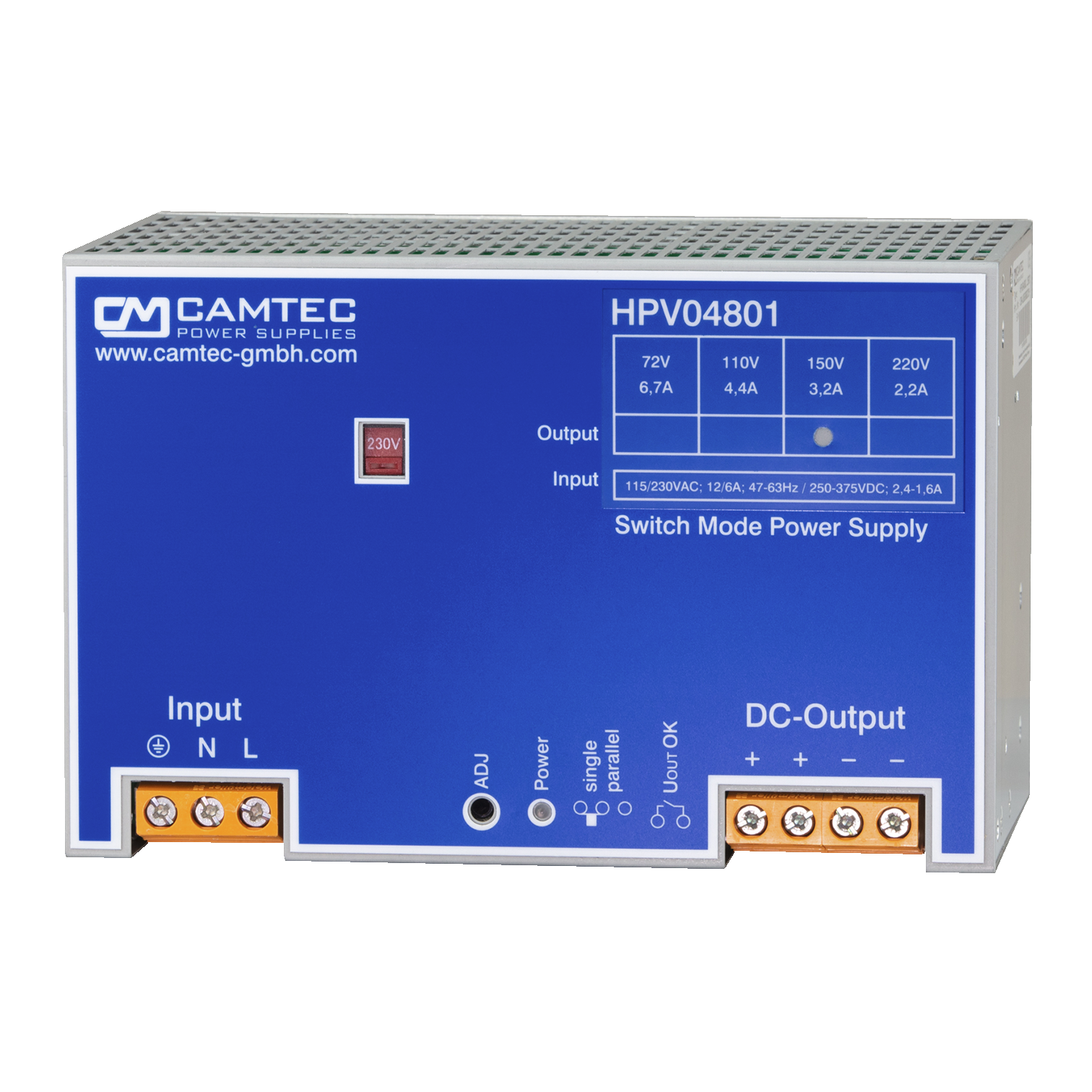

Camtec AC/DC industrial power supply unit DIN Rail 480W 72V 6,7A

HPV04801.072PG(R2)HPV04801.072PG(R2)
Manufacturer Part No.
HPV04801.072PG(R2)
Schukat Part No.
HPV04801.072PG(R2)
Manufacturer
Camtec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
DIN Rail
Output Power
480 W
Output voltage
72 V
Output current
6.700 A
Efficiency
93 %
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Camtec
Series
  • HPV04801
Alternative Part Number
  • HPV04801.072PG
Product group
  • M7524
Application
  • ITE
  • Industry
Package/Case
  • DIN Rail

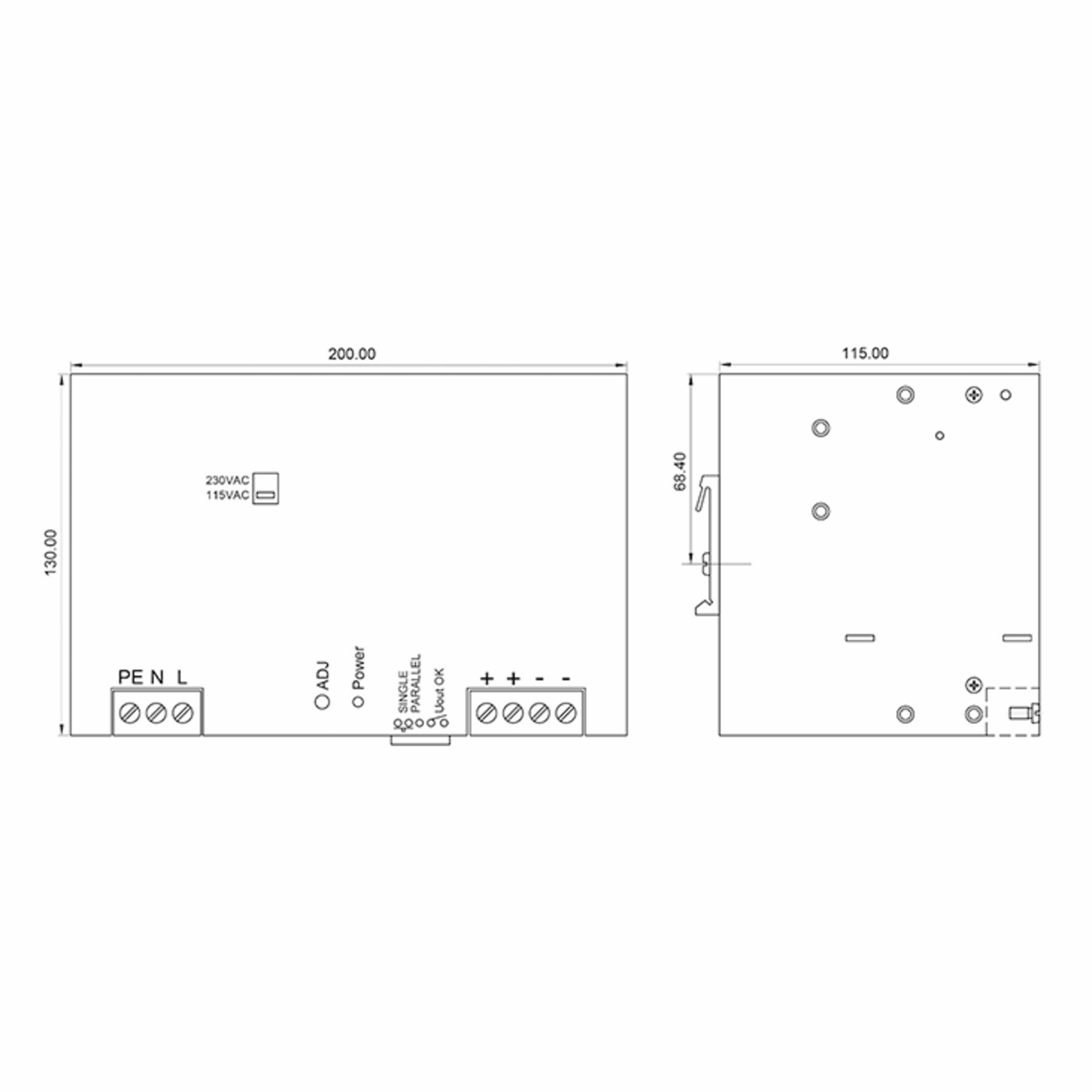

Dimension: Width
  • 200 mm
Dimension: Height
  • 130 mm
Dimension: Depth
  • 115 mm
Weight
  • 2,800 g
Manufacturer's warranty (years)
  • 5
Product description
  • The Camtec HPV models are high-precision laboratory power supplies "Made in Germany." These power supplies are designed for power supply systems in industrial applications. For more than 25 years, Camtec Power Supplies has been manufacturing high-end switching power supplies in Germany. A field failure of less than 0.004% over a 10-year period validates our demanding quality concept. Every Camtec product manufactured undergoes 100% testing for every detail function and a full-load burn-in test. Although not required by safety standards, our production team conducts a routine safety test on every manufactured device, even if it is a low-voltage model. The components in the assembled device undergo load aging to achieve a uniform level and to prevent delayed failures. Our internal product development guidelines state a clear goal: The reputation of Camtec products must be "one of the best in the world." Quality it's never just a promise for our team. The design of the HPV series meets demanding applications such as complex drives, piezo printheads, test benches and professional mechanical engineering. The power supply offers low noise, precise load control, and high efficiency up to 93%. High-quality long-life capacitors guarantee extended bridging time and exceptional lifetime of the power supply. The circuit design is designed for complex loads. The internal control loop prevents problematic operating conditions to protect your system from damage. The HPV series features active protection against high input transients with suppressor diodes, X2 capacitors and varistors. All inputs, outputs and function ports are galvanically isolated. The design specifications are designed for enhanced noise resistance and safety. The device is homogenized with the safety standards EN61010-1, EN6101010-2-201, EN62368-1, EN60950-1 and EMC compatibility according to EN55032. The device is permanently safe (ticker mode) with automatic restart. The device has an internal temperature control that protects the device from overload. As soon as the temperature drops to the normal value, the power supply automatically restarts (autostart). The starting behavior is controlled in all cases and an uncontrolled and excessive overload of the output voltage never occurs. A special heat dissipation design allows heat coupling via a baseplate if the customer so wishes. A baseplate holder is available as an accessory. The devices naturally operate independently even without this baseplate. The baseplate therefore has no influence on the derating behavior of the devices mentioned in the datasheet.
Features
  • Adjustable Input Voltage
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal

Operating conditions

MTBF
  • 400,000 h
Operating expectation
  • 128,124 h
Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 250 V
Input voltage max. DC
  • 375 V
Input current
  • 4.9 A
Efficiency
  • 93 %
Inrush current, max.
  • 81 A
Max. number on B16 circuit breaker
  • 1
Max. number on C16 circuit breaker
  • 1
Power factor correction (PFC)
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 480 W
Output voltage
  • 72 V
Output voltage tolerance
  • -1.01 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 6.700 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 3,000 V
Isolation voltage I/P-FG
  • 2,500 V
Isolation voltage O/P-FG
  • 2,500 V
Approvals
  • CE
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class A
  • EN 55032 Class B
Standards (safety)
  • EN 61010-1
  • EN 62368-1
