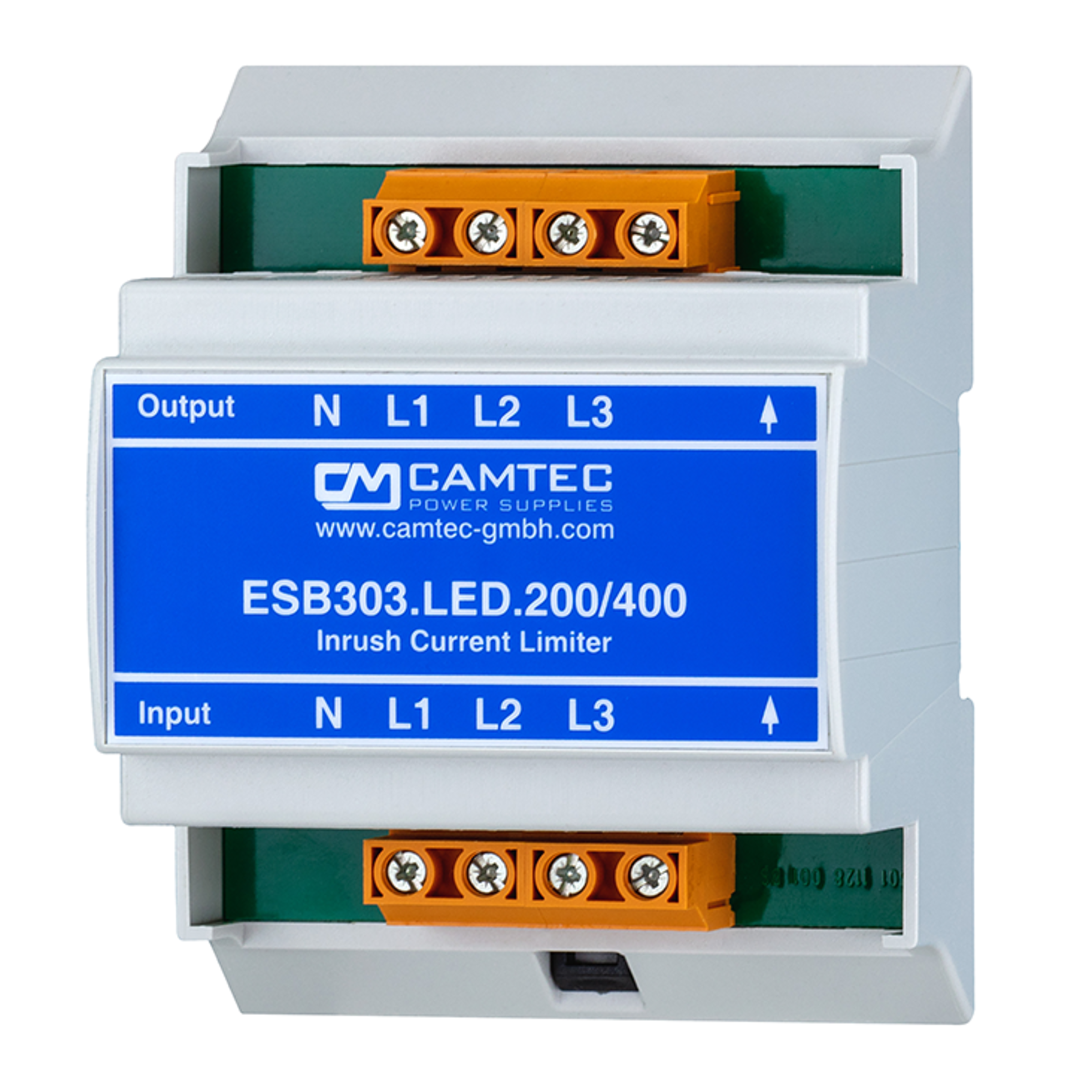

ESB303.LED.200/400(R2)

Camtec Inrush current limiter 48 A 350 ms 6.000 µF DIN Rail

Manufacturer Part No.
ESB303.LED.200/400(R2)
Schukat Part No.
ESB303.LED.200/400
Manufacturer
Camtec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

46 Pcs. in stock

Next Stock Receipt
Week 48/2024
100 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Peak current limitation
48 A
Limitation period
350 ms
Capacitive load, max.
6,000 µF
Package/Case
DIN Rail
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Camtec
Series
  • ESB303
Application
  • ITE
  • Industry
  • Lighting
Package/Case
  • DIN Rail
Dimension: Width
  • 97.8 mm
Dimension: Height
  • 110 mm
Dimension: Depth
  • 62 mm
Weight
  • 300 g

Operating conditions

MTBF
  • 460,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C
Limitation period
  • 350 ms
Interval limit, min.
  • 1,200 ms

Input

Mains connection/phases
  • III
Mains frequency min.
  • 16.33 Hz
Mains frequency max.
  • 440 Hz
Input voltage min. AC
  • 184 V
Input voltage max. AC
  • 400 V
Input current
  • 16 A
Connection type, input
  • Screw Terminal

Output

Connection type, output
  • Screw Terminal
RMS current limitation
  • 33.9 A
Capacitive load, max.
  • 6,000 µF
Peak current limitation
  • 48 A

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 60950-1
  • EN 61010-1
  • EN 62368-1
