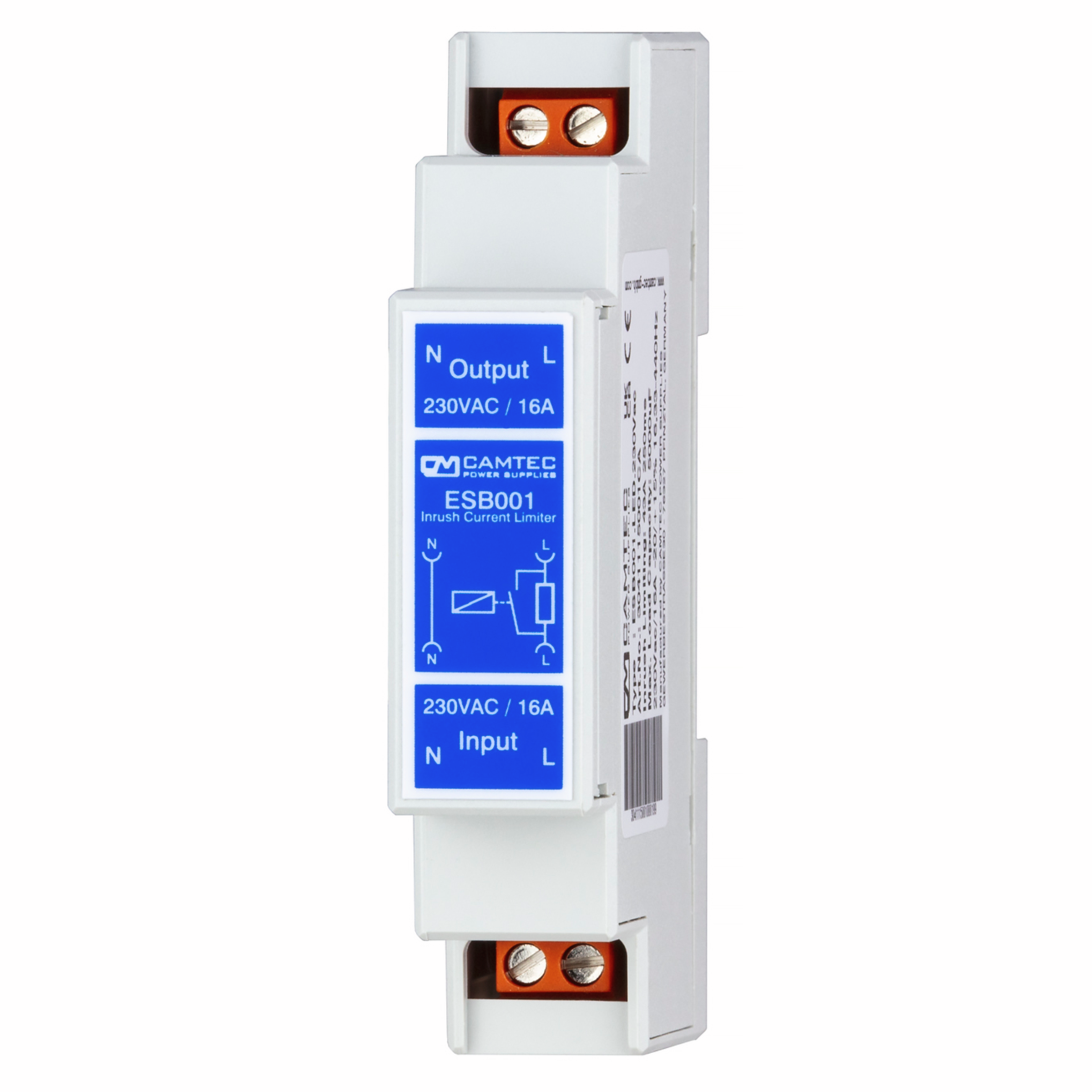

ESB001.LED.230VAC
Camtec Inrush current limiter 43 A 250 ms 5.000 µF DIN Rail
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 49/2024
50 Pcs.
50 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Peak current limitation
- 43 A
- Limitation period
- 250 ms
- Capacitive load, max.
- 5,000 µF
- Package/Case
- DIN Rail
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 380,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 55 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
- Limitation period
- 250 ms
- Interval limit, min.
- 1,000 ms
Input
- Mains connection/phases
- I
- Mains frequency min.
- 16.33 Hz
- Mains frequency max.
- 440 Hz
- Input voltage min. AC
- 184 V
- Input voltage max. AC
- 264 V
- Input current
- 16 A
- Connection type, input
- Screw Terminal
Output
- Overload protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
- RMS current limitation
- 30.1 A
- Capacitive load, max.
- 5,000 µF
- Peak current limitation
- 43 A
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP20
- Approvals
- CE
- EN
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 61010-1
- EN 62368-1
