CPS-EP2000.110(R2)

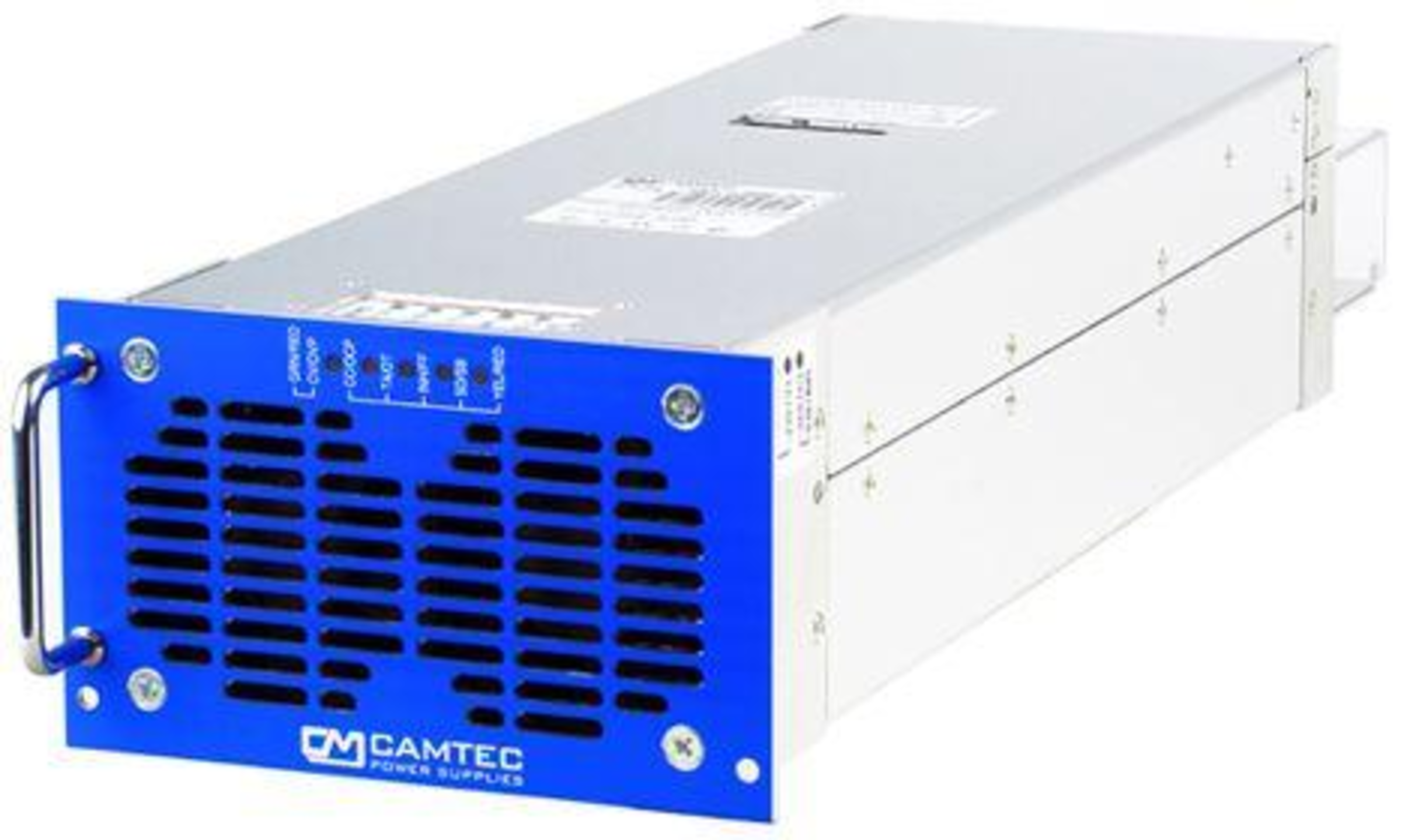

Camtec AC/DC industrial power supply unit Rack-Module 2.000W 110V 18,2A

CPS-EP2000.110(R2)
Manufacturer Part No.
CPS-EP2000.110(R2)
Schukat Part No.
CPS-EP2000.110(R2)
Manufacturer
Camtec
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Rack-Module
Output Power
2,000 W
Output voltage
110 V
Output current
18.200 A
Efficiency
94 %
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Camtec
Series
  • CPS-EP2000
Alternative Part Number
  • CPS-EP2000.110
Product group
  • M7540
Application
  • ITE
  • Industry
Package/Case
  • Rack-Module
Dimension: Length
  • 444 mm
Dimension: Width
  • 126.4 mm
Dimension: Height
  • 84 mm
Weight
  • 4,400 g
Manufacturer's warranty (years)
  • 5
Product description
  • The Camtec CPS-EP models are high-precision industrial power supplies „Made in Germany“. These power supplies are designed for scalable power systems. Camtec Power Supplies has been manufacturing high-end switching power supplies in Germany for more than 25 years. A field failure rate of less than 0.004% over a 10-year observation period confirms our demanding quality concept. Every Camtec product manufactured undergoes several 100% spot tests for every detailed function and a full load burn-in test. Although not required by safety standards, our production department routinely subjects every device manufactured to a safety test, even if it is a particularly low voltage model. The components in the assembled device undergo stress aging to achieve a consistent level and prevent delayed failures. Our internal product development guidelines set a clear goal: Camtec product reputation must be “install and forget”. Quality is never just a promise for our team. The CPS-EP is the high quality product based 100% on the CPS-EX series. The CPS-EP power supplies offer low noise & ripple and precise adjustment during high load changes. With an efficiency of 92-94% and a power factor of 0.99, the devices are very energy efficient. Equipped with high-end capacitors with an outstanding service life, our power supply units guarantee a very long and reliable operating time. The circuit design of the CPS-EP series makes it possible to handle complex loads. The internal protection circuits protect the power supply unit and the connected system, even in exceptional situations. The CPS-EP series is protected against high transients by strong filters with high energy efficiency. All inputs and outputs as well as the interface are galvanically isolated. The design specifications require the highest standards of safety and interference suppression. The device was developed in accordance with the requirements of EN61010-1, EN61010-2-201, EN62368-1 and the EMC standards EN55032 conducted class B, radiated class A.
Features
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal
  • Parallel Function
  • Remote Function
  • Remote Sense

Operating conditions

MTBF
  • 419,000 h
Operating expectation
  • 146,110 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 184 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 250 V
Input voltage max. DC
  • 375 V
Input current
  • 13.5 A
Efficiency
  • 94 %
Inrush current, max.
  • 14.6 A
Max. number on B16 circuit breaker
  • 1
Max. number on C16 circuit breaker
  • 1
Power factor correction (PFC)
Power factor
  • 0.99
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 2,000 W
Output voltage
  • 110 V
Output voltage tolerance
  • -5.005 %
Ripple & Noise
  • 200 mVp-p
Output current
  • 18.200 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 3,000 V
Isolation voltage I/P-FG
  • 2,500 V
Isolation voltage O/P-FG
  • 2,800 V
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55032 Class A
  • EN 55032 Class B
Standards (safety)
  • EN 61010-1
  • EN 62368-1
