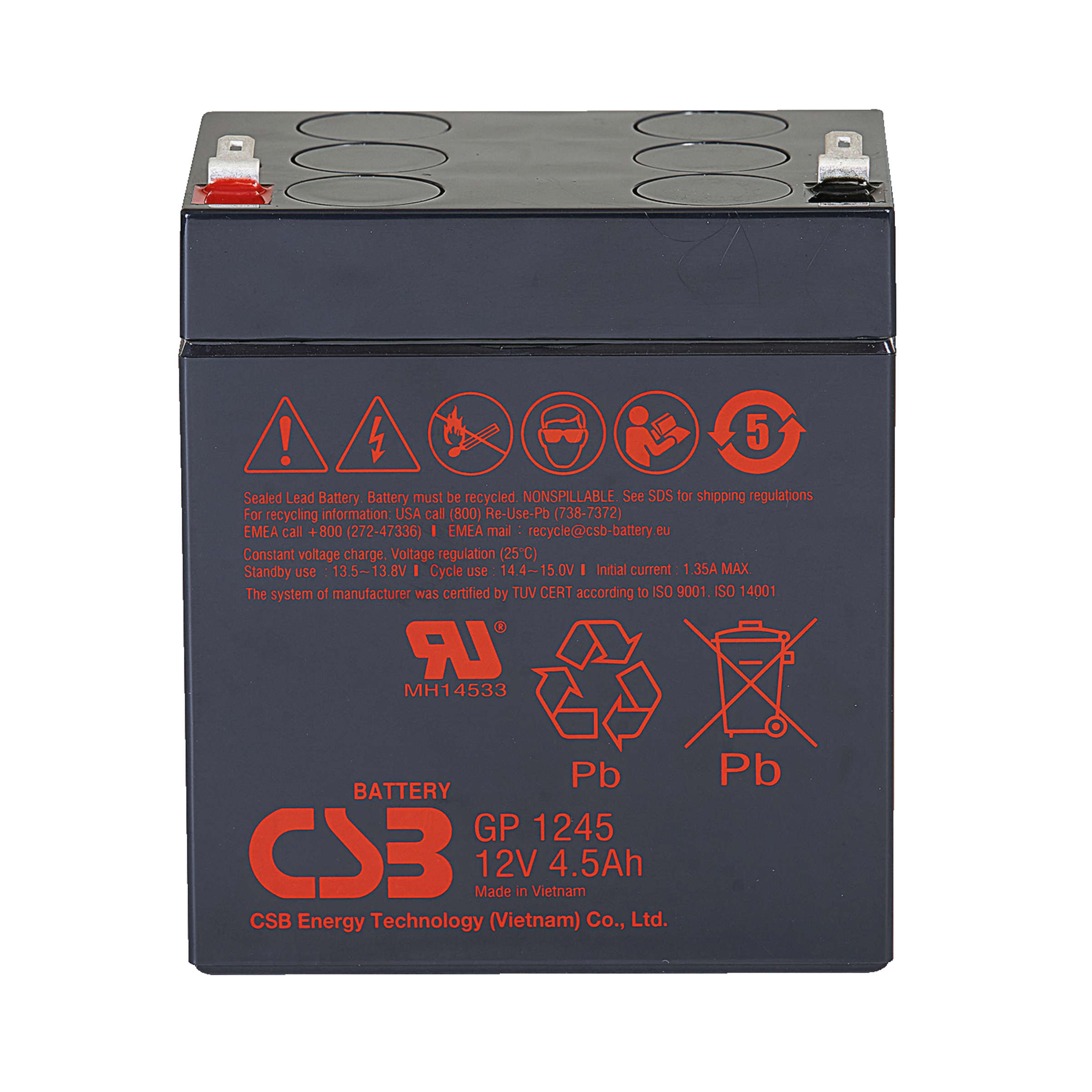

GP1245F1
CSB Lead-acid batteries GP 12V 4.500mAh L92,8mm B69,9mm H102,3mm Male Tab Connector 4,8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
- Rated Voltage
- 12 V
- Nominal capacity
- 4,500 mAh
- Chemical system
- Lead acid (Pb)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -15 °C
- Operating temperature, charge, max.
- 40 °C
- Operating temperature, discharge, min.
- -15 °C
- Operating temperature, discharge, max.
- 50 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 3 Jahre
- Storage Temperature Min.
- -15 °C
- Storage Temperature Max.
- 40 °C
Electrical features
- Nominal capacity
- 4,500 mAh
- Impedance
- 37.7 mOhm
- Rated Voltage
- 12 V
- Charge voltage, standard
- 14.4 V
- Charge voltage, max.
- 15 V
- Charge current, max.
- 1,350 mA
- Discharge current, max.
- 60,000 mA
Safety/Certifications
- Approvals
- CE; UL
- Standards (safety)
- IEC 61056-1/2:2012; UL 1989; MH 14533
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
Documents
PSDS CSB 2025 ABS Gehäuse DEU.pdf
PSDS CSB.pdf
SDS-CSB-001-VRLAABS-USEN-STD-013.pdf
