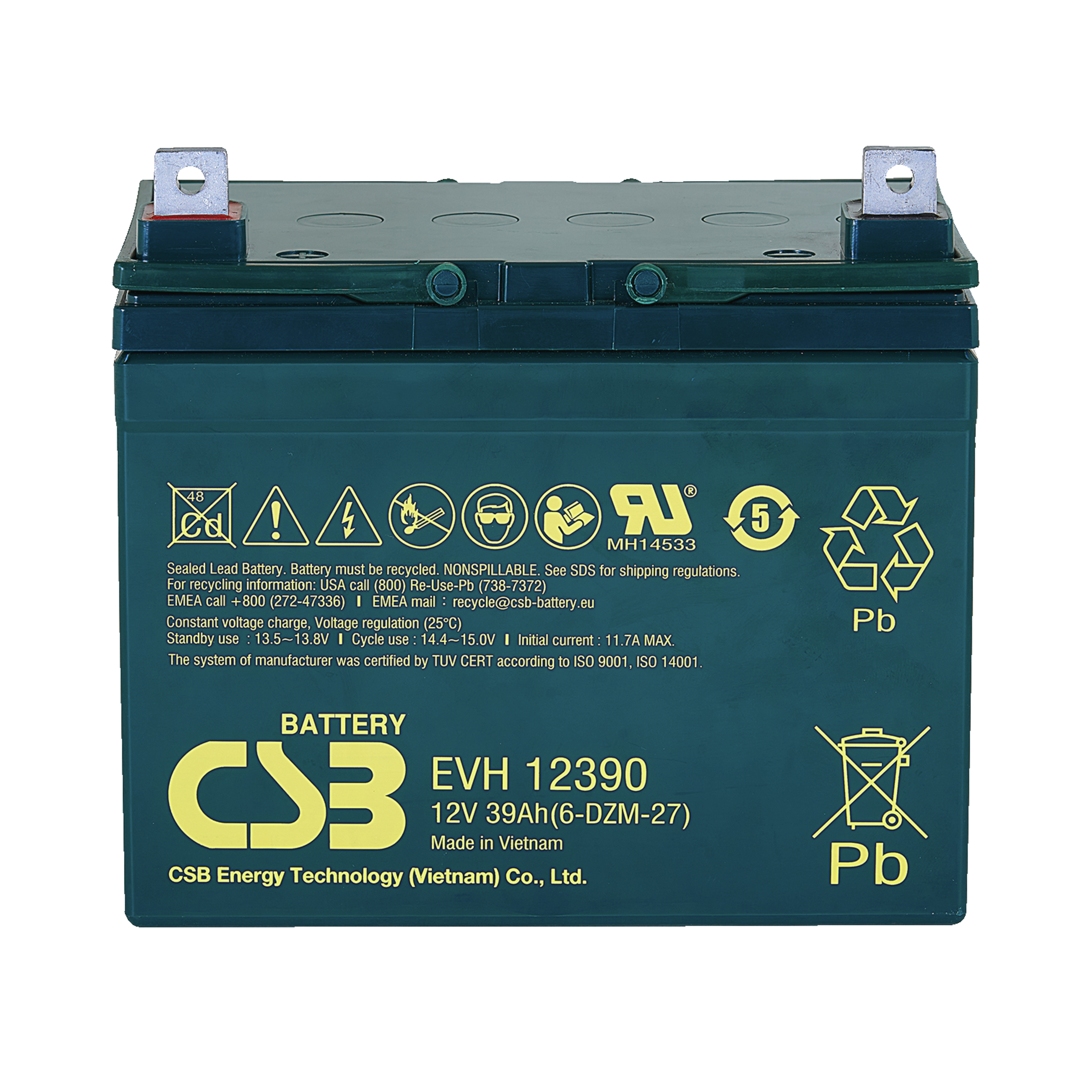

EVH12390
CSB Lead-acid batteries EVH 12V 39.000mAh L195,6mm B130mm H154,8mm Flat Pole M5
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
- Rated Voltage
- 12 V
- Nominal capacity
- 39,000 mAh
- Chemical system
- Lead acid (Pb)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -15 °C
- Operating temperature, charge, max.
- 40 °C
- Operating temperature, discharge, min.
- -15 °C
- Operating temperature, discharge, max.
- 50 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Storage Temperature Min.
- -15 °C
- Storage Temperature Max.
- 40 °C
Electrical features
- Nominal capacity
- 39,000 mAh
- Impedance
- 8.9 mOhm
- Rated Voltage
- 12 V
- Charge voltage, standard
- 14.4 V
- Charge voltage, max.
- 15 V
- Charge current, max.
- 11,700 mA
- Discharge current, max.
- 400,000 mA
Safety/Certifications
- Approvals
- CE; UL
- Standards (safety)
- IEC 60254-1:2005; IEC 60254-2:2008; UL 1989; MH 14533
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
Documents
PSDS CSB 2025 ABS Gehäuse DEU.pdf
PSDS CSB.pdf
SDS-CSB-001-VRLAABS-USEN-STD-013.pdf
