52 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
UN Number (Dangerous Goods)
1950 - Pressurised Gas Pack
Type

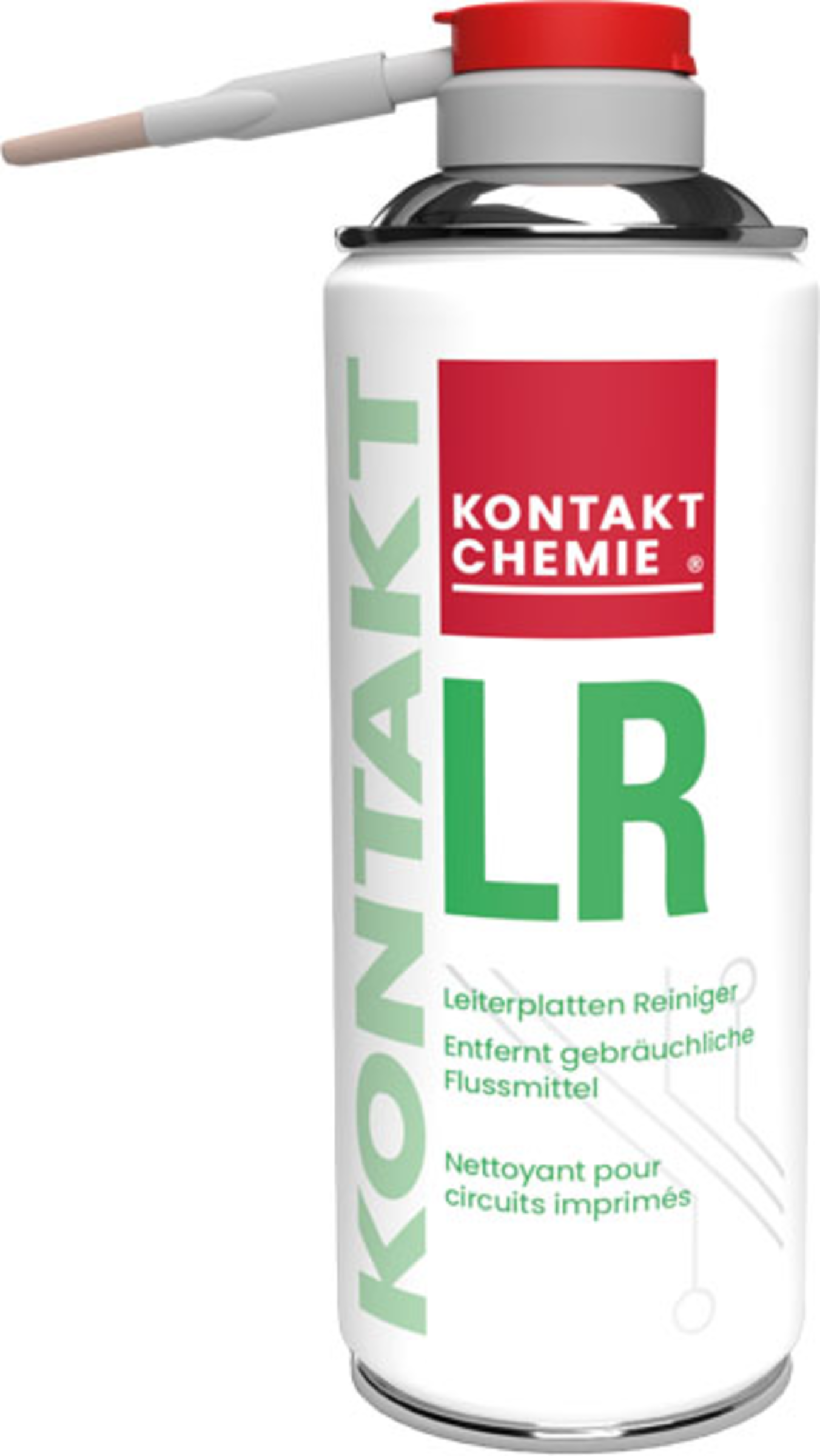

PCB Cleaner
RoHS-Conform
Specifications
Close all
General
Manufacturer
CRC
Type
PCB Cleaner
Series
KONTAKT LR
Product group
R2266
Application
Cleaner and remover
Packaging (ml)
200 ml
Features
- Highly effective cleaner for printed circuit boards of all kinds - Ideal for effective flux removal ago for cleaning of printed circuit boards and after soldering or repair work - Integrated cleaning brush guarantees fast and effective stain removal - Well tolerated with common circuit board materials and labels - Dries quickly and residue free - Flammability: flash point <0°C, highly flammable
Safety/Certifications
Directions
The aerosol can has been fit with a brush-type spray head to help the cleaning by mechanical means. The aerosol can be used in an upside-down position (360° valve) for hard to reach areas. As carbon dioxide is used as propellant it was possible to fill the aerosol can with ±95% active product. For minor cleaning operations it is possibly enough to rinse the printed circuit board with KONTAKT PCC. Brushing of course supports the cleaning. To remove residues of flux, first wet the brush and than spray the product on while brushing with a gentle pressure over the printed circuit board. In doing so, hold the board as vertical as possible and work, from top to bottom. For optimum results, it is best to re-rinse the surface with KONTAKT PCC. If a “whitish deposit” forms on the printed circuit board after cleaning, this might mean there was probably a coating present which has been partially dissolved by KONTAKT PCC. In this case a perfect appearance is restored to the circuit board by coating it with our conformal coating PLASTIK 70. KONTAKT PCC has been tested for compatibility with PCB materials, solder-stop varnish and electronic components. In particular it has been found that colour codings are not damaged by KONTAKT PCC. There are only a few very sensitive plastics which are attacked by KONTAKT PCC. These include, for example, polystyrene and polycarbonate. Compatibility with such materials should be tested on forehand. As KONTAKT PCC contain flammable solvents, all sources of ignition should be removed. Do not spray on life equipment. A safety data sheet (MSDS) according to EU directive 91/155/EEC and amendments is available for all CRC products.
Hazardous Substances/Goods
UN Number (Dangerous Goods)
1950 - Pressurised Gas Pack
Documents
KONTAKT LR-Belgium-English-2_3_pdf-BDS002424AE.pdf
