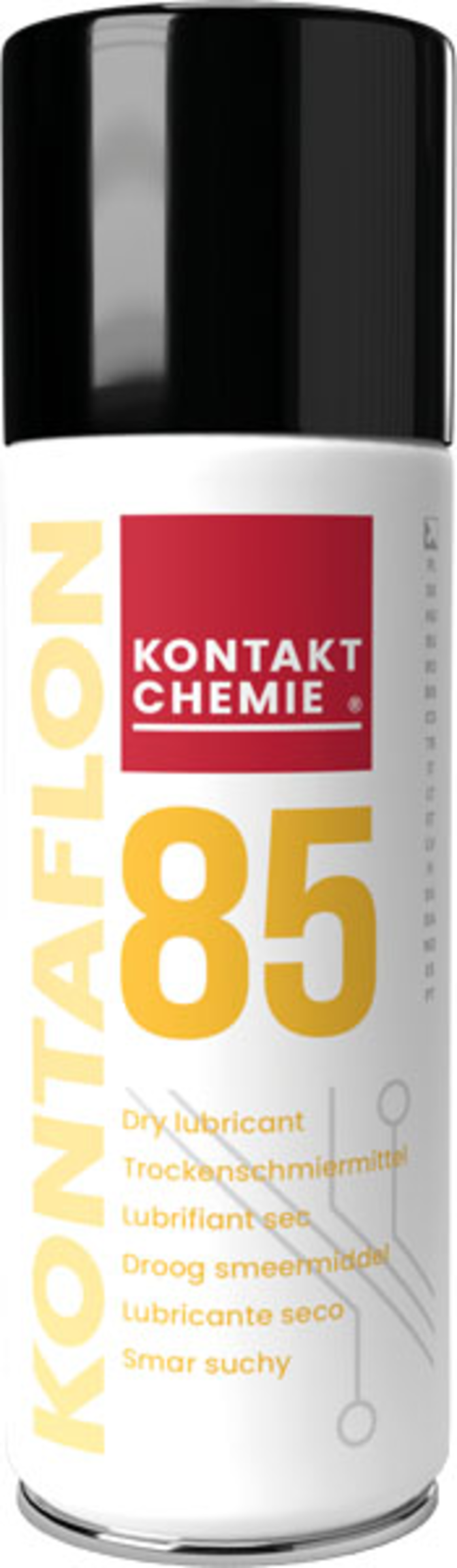

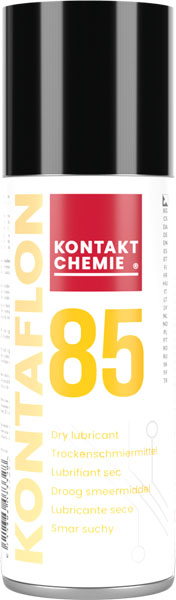

CRC KONTAKT CHEMIE PTFE Dry Lubricant 1035471 200 ml

Manufacturer Part No.
1035471
Schukat Part No.
K85-200-M19
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

19 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
PTFE Dry Lubricant
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • CRC
Type
  • PTFE Dry Lubricant
Series
  • KONTAFLON 85
Product group
  • R2285 CRC Mechanical Sprays: Lubricating, Cleaning
Application
  • Lubricate

Packaging (ml)
  • 200 ml
Features
  • - Fat-free slip and anti-adhesive PTFE-based
    - Polytetrafluorethylene (PTFE) silicone-free release agent contains a binder which bonds the PTFE particles firmly to the surface, chemical resistant, non-conductive
    - Forms a dirt-resistant non-adhesive coating
    - Is used as a lubricant for plastic and cable, as a dry lubricant for drives or as a universal anti-adhesive
    - Temperature resistant up to +260°C
    - Material compatibility: it does not attack sensitive materials
    - Documents in 19 languages

Safety/Certifications

Directions
  • KONTAKT CHEMIE Kontaflon 85 is most easily applied using the aerosol can. The solid active substance settles to the bottom relatively quickly in the aerosol, concentrate and dilutions. Therefore the storage container needs to be shaken and/or stirred at regular intervals. Before the product is applied, the surfaces must be clean and grease-free. Metal surfaces can be degreased, e.g., using KONTAKT CHEMIE Degreaser 65. The solutions of KONTAKT CHEMIE Kontaflon 85 are moisture-sensitive. During storage, containers must always be properly closed and sealed. Diluted solutions are to be prepared only in amounts capable of being consumed in a day. Installations and equipment used must be suitable for the handling of flammable liquids. Freshly coated surfaces "feel" relatively flat. If optimum gliding properties are to be guaranteed immediately, the lubricating film should be polished with a cloth or swab after 15 to 30 minutes drying time. The load bearing capacity of PTFE is relatively small compared with other solid lubricants. When high surface pressures are involved, therefore, other solid lubricants are to be preferred (e.g. graphite or MoS2). KONTAKT CHEMIE Kontaflon 85 is a release agent who prevents the sticking of coatings, plastics moulding compounds and adhesives. In contrast to silicones, however, it is nonvolatile and non-penetrating. When components are moved into areas where coatings or adhesives are being applied, there is no danger of wetting problems on adjacent surfaces In the given working temperature range, PTFE is a substance of extraordinary chemical stability. No harmful effects are observed when it is absorbed orally or comes into contact with the skin. When handling relatively large quantities, we recommend that a good ventilation should be provided and dust filter masks should be worn. When PTFE combusts, toxic decomposition products are released. A no-smoking rule must also be enforced therefore when using the product. Ensure there is good ventilation when using the aerosol or the diluents. Further information on safety can be found in the safety datasheet.

Hazardous Substances/Goods

UN number
  • 1950 - Pressurised gas pack
