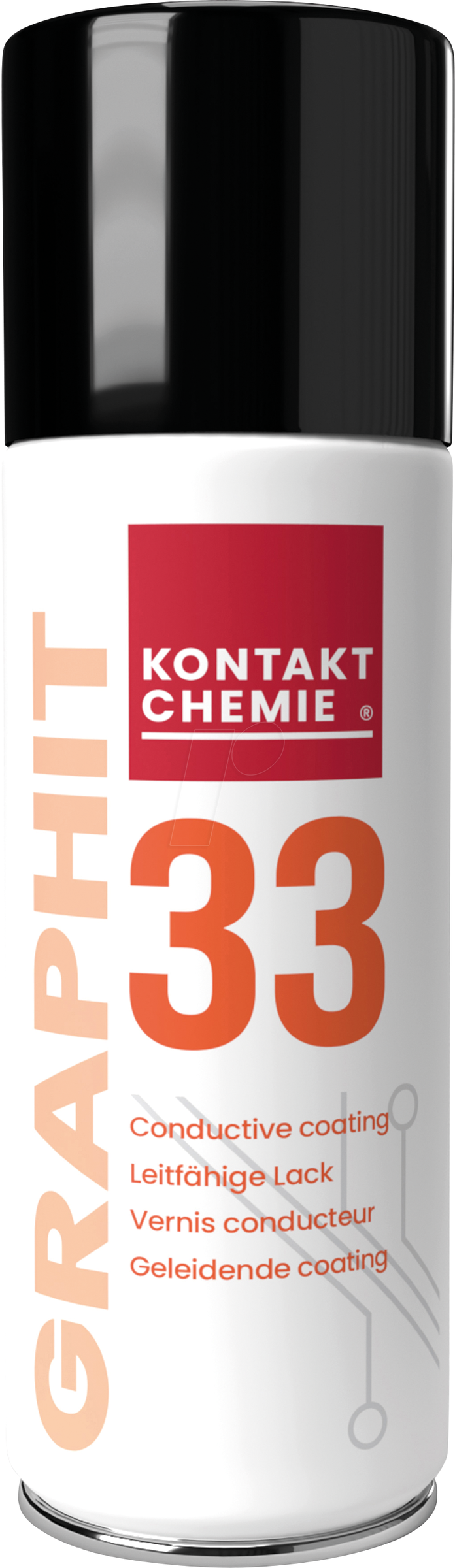

CRC KONTAKT CHEMIE Graphite Lacquer 1035411 200 ml

Manufacturer Part No.
1035411
Schukat Part No.
K33-200-M19
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

68 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Graphite Lacquer
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • CRC
Type
  • Graphite Lacquer
Series
  • GRAPHIT 33
Product group
  • R2269 CRC Electronic Sprays: Anti-Static and EMC
Application
  • Conducting, sliding, separating and absorbing

Packaging (ml)
  • 200 ml
Features
  • - Application: As a conductive coating for permanent and safe diverting of electrostatic discharges (ESD); As sliding coating for permanent, temperature resistant, dry sliding coating.; As high-temperature release agent : conductive protective release coating for high-voltage contacts, high-temperature release agent, e.g. for moulds used for the sintering of abrasive agents in abrasive discs.; Optical applications : the dark black colour makes GRAPHIT 33 suitable as an absorbent coating in for example laser applications.
    - Exhibits good adhesion on metal, many plastics, glass and wood
    - Drying time at room temperature: tack-free <20 min.; cured 4 hours
    - Documents in 19 languages

Safety/Certifications

Directions
  • When relative small amounts are involved, the easiest way to apply GRAPHIT 33 is to spray from an aerosol can. Shake can thoroughly before use. Spray, from a distance of 20-30 cm onto the dry and degreased surface. After use, always clean button by spraying upside-down until only gas escapes. When larger amounts are needed, GRAPHIT 33 can be applied by spraying using commercial spray guns. Before use, stir vigorously (best for 10 minutes with propeller agitator). During use, shake or stir at regular intervals. The surface resistivity can be further reduced by heating at 90°C (1 hour) or by polishing with a cloth or swab. Polishing makes also the weak graphite layer more firm. At temperatures above 100°C the binding agent will decompose. Nevertheless a good adhering graphite film remains that can be used as e.g. release coating. When GRAPHIT 33 is used in vacuum equipment, the lacquer must be heated on forehand. When using GRAPHIT 33 ensure that there is good ventilation. Remove all sources of ignition. A safety data sheet (MSDS) according to EU directive 91/155/EEC and amendments is available for all CRC products.

Hazardous Substances/Goods

UN number
  • 1950 - Pressurised gas pack
