55 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
UN Number (Dangerous Goods)
1950 - Pressurised Gas Pack
Type
Print Protection Coating
RoHS-Conform
Specifications
Close all
General
Manufacturer
CRC
Type
Print Protection Coating
Series

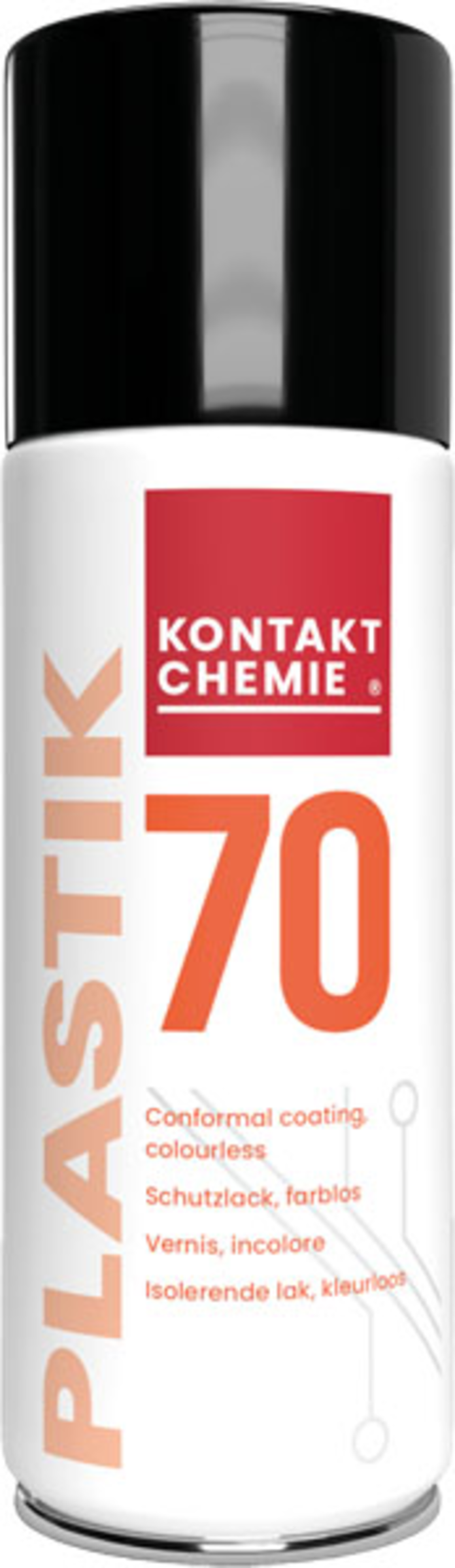

PLASTIK 70
Product group
R2267
Application
Protect and insulate
Packaging (ml)
400 ml
Features
- Universal protective and insulating lacquer based on acrylic resin - Highly insulating, quick drying, colourless transparent, flexible, UV light resistant - Durable adhesion in temperature ranges between -40 and +60°C, short period temperature capacity at 100°C (max. 0,5h) - For the permanent protection of printed circuit boards against moisture, for isolate of coils and a universal clearcoat for all types of surfaces - Dielectric strength: more 80kV/mm - Directly solderable for repair purposes - K70-_-M19: documents in 19 languages
Safety/Certifications
Directions
For small runs and service applications, the easiest way to apply PLASTIK 70 is from an aerosol can. Spray from a distance of 20 to 30 cm on the dry and degreased surface. As pre-cleaning of PCB’s, we do recommend the use of KONTAKT PCC to remove greases, dirt and flux residues. When finished spraying, clean the aerosol valve by turning the can upside down and pressing the button until only propellant escapes. For serial production runs, PLASTIK 70 in bulk can be applied by brush or by dipping. For spraying, two parts per volume PLASTIK 70 is diluted with up to one part of THINNER FOR PLASTIK 70. The precise mixing ratio must be determined by trials with the equipment concerned. For dip coating it is also necessary to fix the immersion time and the withdrawal speed. The faster the removal from the bulk, then thicker the film will be. Dipping baths have to be carefully protected to ensure no entrapment of conductive stuck-on residues. PLASTIK 70 contains solvents like ethyl acetate and butyl acetate. Printed circuit board materials and electronic components generally have a good compatibility with these solvents. In case of plastic surfaces (e.g. housings) a compatibility test is always recommend. It is necessary in particular, to test its suitability for plastics susceptible to stress cracking (e.g. polycarbonate). PLASTIK 70 contains flammable solvents and hence when working with the product, make sure there is good ventilation in the workplace. Remove all possible ignition sources. A safety data sheet (SDS) according to EU directive 91/155/EEC and amendments is available for all CRC products.
